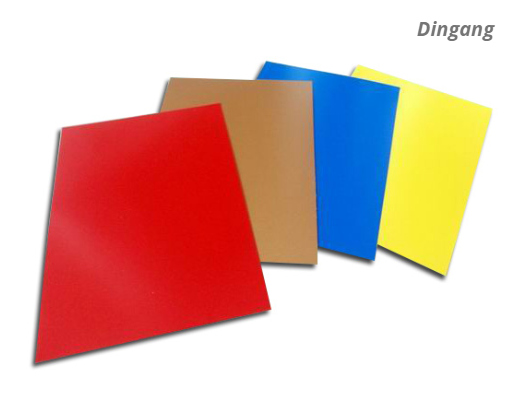

PE PVDF Color Aluminum Sheet Prepainted Flat Aluminum Plate for Ceiling Advertising Sign Roof Wall Panel

Color aluminum sheet is processed from flat mill aluminum sheet, after degreasing, chromate pretreatment, double coating baking technology. Two coating systems available: PE polyester coating for indoor use, PVDF fluorocarbon coating for long-term outdoor exposure.

The color layer adheres tightly to aluminum substrate, no peeling, fading or chalking under sunlight and rainwater. We supply solid color, metallic color, wood grain, stone grain color sheets. The base aluminum adopts 1060/3003 alloy, light weight, easy cutting, bending, punching processing. Each sheet covered with transparent PE protective film to avoid scratch during transport.

Main Technical Parameters

1. Base alloy: 1060, 3003 aluminum sheet

2. Thickness: 0.3mm – 3.0mm

3. Standard width: 1000mm, 1220mm, 1250mm, 1500mm

4. Length: Custom cut as customer drawing

5. Coating type: PE Polyester (15-25μm), PVDF Fluorocarbon (25-40μm)

6. Standard color: RAL color system, custom color sample match acceptable

7. Surface protection: Transparent PE protective film

Application Range

• Indoor decoration: Interior ceiling, wall cladding, kitchen cabinet panel, partition board

• Outdoor engineering: Building roof panel, exterior wall curtain wall, villa decorative board

• Advertising industry: Outdoor billboard, signboard, traffic sign, display stand panel

• Hardware processing: Equipment shell, elevator decorative panel

Package Standard

Each sheet separated by anti-collision foam paper, whole stack fixed on fumigated wooden pallet, wrapped with waterproof plastic film, edge protective corner cover to prevent collision damage during sea transport.

FAQ

Q1: What’s the difference between PE and PVDF color aluminum sheet?

A: PE coating service life 8-10 years for indoor; PVDF fluorocarbon coating anti-UV, service life 20-30 years for coastal, high temperature outdoor area.

Q2: Can you match custom color according to my color sample?

A: Yes, send us physical color sample, we will make color sample sheet within 3-5 days for confirmation before mass production.

Q3: Can I cut small size color aluminum sheet?

A: We support any custom length and width cutting, small size trial order acceptable.

Q4: Will the color layer peel off after bending?

A: Our double coating baking technology ensures good flexibility, normal 90° bending without paint peeling.

Q5: How to avoid scratch during delivery?

A: Every sheet sticks protective film, pallet equipped plastic edge guard, full waterproof wrapping.
