High Temperature Epoxy Coated Aluminum Sheet

Core Advantages

• Special high-temperature epoxy coating, stable performance under continuous 280℃ high temperature, no bubbling, cracking or peeling

• 3003 aluminum substrate, lightweight yet rigid, won’t rust in high temperature & humid industrial environments

• Integrated epoxy layer achieves excellent resistance against oil, weak acid, alkali and industrial dust erosion

• Compact matte coating surface, easy to wipe oil stains and industrial dirt, convenient daily cleaning

• Coating possesses strong bending flexibility, can be folded, stamped and processed on site without damaging the heat-resistant layer

• Non-flammable aluminum body, A2 fire grade, effectively stop flame spread for industrial safety

• No toxic volatiles under high temperature heating, no harmful gas release, environmentally safe

• Customizable thickness, color and coating thickness to match different temperature working scenarios

Production Process

Aluminum coil feeding → Degreasing & washing → Chromium-free passivation drying → Primer roller coating & curing → High temperature resistant epoxy topcoat coating → High-temperature baking curing → Cooling → Protective film covering → Fixed-size cutting → High-temperature aging sampling test → Coating adhesion inspection → Stacking & moisture-proof export packaging

Each batch undergoes high temperature aging test and salt spray test before delivery to guarantee heat resistance performance.

Technical Parameters

Application

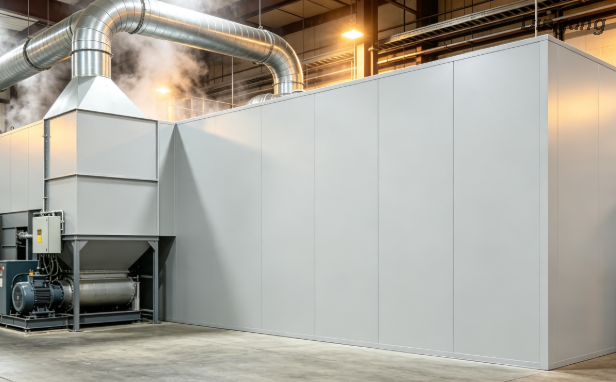

Industrial equipment: Industrial oven shell, baking machine casing, drying equipment outer panel

Ventilation system: High temperature exhaust duct, factory smoke exhaust pipe outer cladding

Factory construction: High-temperature workshop wall, boiler room wall panel, metal factory partition wall

Chemical industry: Light anti-corrosion wall panel for chemical workshop

Hardware processing: Heat-resistant outer cover for heating machinery

Export Packaging

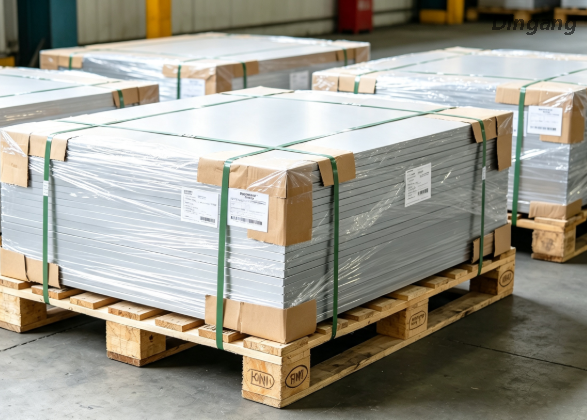

Aluminum sheets separated by isolation kraft paper piece by piece. The whole pallet wrapped with moisture-proof PE film and kraft paper, fastened on IPPC fumigated wooden pallets with packing straps. Outer shipping marks mark alloy grade, thickness, dimensions, color, weight and batch number. We supply fumigation certificates, MTC and high temperature test reports for overseas engineering tender and customs clearance.

FAQ

Q1: What is the maximum sustainable working temperature?

A: Standard epoxy coating version works steadily at 220℃ continuously; enhanced high-temperature formula can reach 280℃ long-term usage.

Q2: Will the coating release toxic fumes when heated?

A: Food-grade high-temperature epoxy formula, no VOC volatilization and no toxic gas when heated, safe for oven and food baking equipment shells.

Q3: Can it be bent and processed?

A: Yes, the epoxy coating has good flexibility, conventional bending, cutting and punching construction will not cause coating peeling.

Q4: How long is the service life in high-temperature factory environment?

A: Normally 12~18 years indoors in high-temperature workshops, no fading or peeling.

Q5: Can I customize black high-temperature epoxy color?

A: Supported, black epoxy coated aluminum sheets are commonly used for oven casings, heat equipment outer covers.
