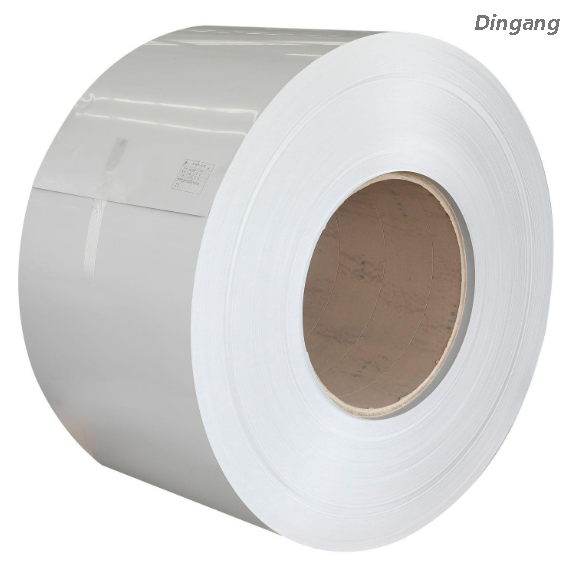

Prepainted Aluminium Coil for Roof Drainage Products

Product Overview

Prepainted Aluminium Coil for Roof Drainage Products is a factory-coated aluminium material designed for manufacturers producing gutters, eavestroughs, downspouts, drainage channels, roof flashing, rainwater outlets, and other roof water management components.

Roof drainage products require a combination of formability, surface protection, weather resistance, dimensional consistency, and attractive appearance. Prepainted aluminium coil provides manufacturers with a ready-coated material that can be continuously processed into different drainage profiles.

Depending on the application and production requirements, AA3003, AA3105, AA3004, AA5005 and other suitable aluminium alloys can be supplied in different tempers, thicknesses, widths, coating systems, colors, and surface finishes.

The coil is suitable for roll forming, bending, cutting, punching, profiling, and other downstream manufacturing processes.

Why Choose Prepainted Aluminium Coil for Roof Drainage Products

Factory-Applied Protective Coating

The coating is applied to the aluminium substrate before the coil reaches the customer's production line.

This provides a consistent coated surface that can be processed into finished roof drainage components.

Typical Surface Requirements

• Uniform color

• Consistent coating

• Good surface appearance

• Suitable coating adhesion

• Good forming performance

• Resistance to normal outdoor exposure

Suitable for Continuous Roll Forming

Prepainted aluminium coil is particularly suitable for manufacturers using continuous roll-forming equipment.

The coil can be fed directly into production lines to manufacture long-length drainage profiles.

Lightweight for Roof Drainage Components

Aluminium offers a lightweight alternative for many roof drainage applications.

This can simplify material handling, transportation, cutting, profiling, and installation of finished products.

Wide Range of Colors and Finishes

Prepainted aluminium allows drainage products to coordinate with roofing and exterior building materials.

Standard colors, RAL colors, and customized colors can be supplied according to project requirements.

What Are Roof Drainage Products?

Roof drainage products are components used to collect, control, transport, and discharge rainwater from building roofs.

Main Roof Drainage Components

Rain Gutters

Rain gutters collect water flowing from the roof and direct it toward downspouts or drainage outlets.

Eavestroughs

Eavestrough is a commonly used term for roof-edge gutters, particularly in North American markets.

Downspouts

Downspouts transport collected rainwater vertically from the gutter to the ground drainage system.

Drainage Channels

Drainage channels can be used in different roof and architectural drainage designs to control water flow.

Roof Flashing

Prepainted aluminium can also be processed into selected flashing components used around roof edges, joints, walls, and other areas requiring water management.

Rainwater Outlets

Aluminium sheet and coil can be used for selected roof drainage outlet components according to the required design and fabrication method.

Aluminium Alloy Options

AA3003 Aluminium Coil

AA3003 aluminium is suitable for many forming applications where a combination of formability and practical strength is required.

It can be considered for gutters, downspouts, drainage profiles, flashing, and other roll-formed roof drainage components.

AA3105 Aluminium Coil

AA3105 is widely considered for coated building products and applications requiring suitable forming performance.

Potential Applications

• Rain gutters

• Eavestroughs

• Downspouts

• Roof drainage channels

• Flashing

• Architectural drainage profiles

AA3004 Aluminium Coil

AA3004 can be considered for applications where specific mechanical properties and forming requirements need to be balanced.

AA5005 Aluminium Coil

AA5005 may be selected for architectural applications where surface appearance and fabrication characteristics are important.

Temper Options

Depending on the product profile and forming requirements, different aluminium tempers can be considered.

O Temper

Soft aluminium with high formability, suitable for applications requiring substantial forming.

H14 Temper

A commonly selected temper for formed aluminium products where a balance between strength and formability is required.

H16 and H24 Temper

These tempers can be considered for applications requiring additional strength while maintaining suitable forming characteristics.

The final temper should be selected according to the gutter profile, forming equipment, bending radius, and finished product requirements.

Technical Specifications

Item	Specification
Product	Prepainted Aluminium Coil for Roof Drainage Products
Aluminium Alloy	AA3003 / AA3105 / AA3004 / AA5005
Temper	O / H14 / H16 / H24 / H26
Thickness	0.30–1.50 mm
Width	Customized according to product profile
Coating	PE / Polyester / High Performance Polyester / PVDF
Color	Standard / RAL / Custom
Surface Finish	Matte / Satin / Gloss / Textured
Protective Film	Optional
Coil Weight	Customized
Core ID	Customized
Production Form	Aluminium Coil / Slit Coil
Processing	Roll Forming / Bending / Cutting / Punching
Main Applications	Gutters / Downspouts / Drainage Channels / Flashing
Packaging	Export Standard Seaworthy Packaging

Coating Options for Roof Drainage Products

PE Coated Aluminium Coil

PE coating is a practical choice for many standard building and rainwater drainage applications.

It is suitable for manufacturers looking for a balance between decorative appearance and cost-effective coating performance.

Typical Applications

• Residential gutters

• Eavestroughs

• Standard downspouts

• Roof drainage profiles

Polyester Coated Aluminium Coil

Polyester coating can provide a suitable combination of appearance and outdoor coating performance for many building applications.

It is available in different colors and surface finishes.

High Performance Polyester Aluminium Coil

High-performance polyester coating can be considered for applications requiring enhanced exterior coating performance.

It can be used for commercial and residential roof drainage products where increased weatherability is required.

PVDF Coated Aluminium Coil

PVDF coating is an option for demanding exterior applications where long-term weatherability, UV resistance, and appearance retention are important.

Potential Applications

• Premium roof drainage products

• Commercial buildings

• Architectural drainage systems

• Coastal projects

• High UV exposure areas

Color Options

RAL Color Prepainted Aluminium Coil

RAL color matching allows manufacturers to produce roof drainage products that coordinate with different roofing and façade materials.

Common Colors

• White

• Black

• Brown

• Dark brown

• Anthracite grey

• Dark grey

• Green

• Red

• Beige

Custom Color Aluminium Coil

Custom colors can be produced according to:

• RAL reference

• Physical color sample

• Roofing color

• Building façade color

• Customer coating specification

Matte Finish Aluminium Coil

Matte finishes provide a low-reflective architectural appearance and are increasingly suitable for modern exterior building designs.

Gloss Finish Aluminium Coil

Gloss finishes provide a brighter surface appearance for customers requiring a more traditional decorative finish.

Applications of Prepainted Aluminium Coil for Roof Drainage Products

Aluminium Rain Gutter Manufacturing

Prepainted aluminium coil can be roll formed into different rain gutter profiles.

Typical Gutter Types

• K-style gutters

• Half-round gutters

• Box gutters

• Fascia gutters

• Custom-profile gutters

• Continuous gutters

Aluminium Eavestrough Manufacturing

In markets where the term eavestrough is commonly used, prepainted aluminium coil can be supplied for continuous eavestrough production.

The coil width and thickness can be customized according to the customer's forming equipment and finished profile.

Aluminium Downspout Manufacturing

Coated aluminium coil can be processed into vertical downspouts used to transport rainwater from roof gutters to ground-level drainage.

Common Downspout Profiles

• Round

• Square

• Rectangular

• Custom profiles

Roof Drainage Channel Manufacturing

Prepainted aluminium can be used for selected roof drainage channels and water collection profiles.

Roof Flashing Manufacturing

The coil can also be slit, cut, bent, or roll formed into different flashing components.

Potential Applications

• Roof edge flashing

• Valley flashing

• Wall flashing

• Eave flashing

• Drip edge

• Custom water-diversion profiles

Rainwater Collection Components

Prepainted aluminium products can form part of larger rainwater collection and drainage systems.

Prepainted Aluminium Coil for Roll Forming

Continuous Roll Forming Process

Coil-fed production is widely used when manufacturers need continuous lengths of gutters, downspouts, or drainage profiles.

A typical production process may include:

1. Coil unwinding

2. Straightening

3. Roll forming

4. Profile shaping

5. Cutting

6. Punching where required

7. Quality inspection

8. Packaging

Material Selection for Roll Forming

The correct combination of alloy, temper, thickness, width, and coating is important for stable production.

Information Required for Customized Production

• Finished profile drawing

• Material thickness

• Coil width

• Aluminium alloy

• Temper

• Coating type

• Coating thickness

• Color

• Coil weight

• Core ID

• Protective film requirement

Surface Protection During Manufacturing

Protective Film

An optional protective PE film can be applied to the coated surface when additional protection is required during transportation and fabrication.

Protection During Roll Forming

Protective film may help reduce the risk of minor surface scratches and handling marks during downstream processing.

The film specification should be matched to the customer's roll-forming speed, processing conditions, storage period, and film-removal requirements.

Performance Requirements for Roof Drainage Aluminium

Weather Resistance

Roof drainage products are continuously exposed to outdoor conditions.

The appropriate coating system can help protect the aluminium surface from normal environmental exposure.

UV Resistance

UV exposure can affect exterior coating appearance over time.

For applications with demanding UV exposure, a higher-performance coating system such as PVDF may be considered.

Corrosion Resistance

Aluminium naturally develops a protective oxide layer. A suitable coating system provides additional surface protection for coated exterior applications.

Formability

The material must be compatible with the customer's forming process.

Alloy, temper, thickness, coating system, and forming radius should be considered together.

Color Stability

Consistent coating production helps manufacturers maintain a uniform appearance across large quantities of roof drainage products.

Advantages for Roof Drainage Manufacturers

Ready-to-Process Coated Surface

Manufacturers receive aluminium coil with the coating already applied, reducing the need for painting after forming.

Efficient Coil-Based Production

Continuous coil supply is suitable for automated or semi-automated manufacturing lines.

Flexible Product Design

Different widths, thicknesses, colors, and coatings allow the material to be adapted to different drainage product designs.

Consistent Appearance

Factory-coated aluminium provides a consistent surface for long production runs.

Suitable for OEM Production

Material specifications can be customized according to customer drawings, samples, production equipment, and final product requirements.

Quality Control

Incoming Aluminium Inspection

Typical Inspection Items

• Alloy

• Temper

• Thickness

• Width

• Surface condition

• Coil dimensions

Coating Inspection

Typical Inspection Items

• Coating thickness

• Color

• Gloss

• Surface appearance

• Coating adhesion

• Formability

Dimensional Inspection

Coil dimensions are checked according to agreed production specifications.

Main Parameters

• Thickness

• Width

• Coil weight

• Core ID

• Slit width

• Surface condition

Final Quality Inspection

Before shipment, finished coils can be checked against the agreed technical specifications and packaging requirements.

Packaging and Export Transportation

Seaworthy Export Packaging

Prepainted aluminium coil is packed with protection against mechanical damage and moisture during international transportation.

Typical Packaging Materials

• Wooden pallets

• Moisture-resistant wrapping

• Barrier film

• Edge protection

• Coil securing

• Protective film where required

Moisture Protection

Ocean transportation can expose aluminium coils to changes in temperature and humidity.

Suitable moisture-resistant packaging helps reduce the risk of condensation-related surface problems during transportation and storage.

Custom Prepainted Aluminium Coil Supply

Customized Width

Coil width can be produced according to the customer's finished drainage profile and roll-forming equipment.

Customized Thickness

Thickness can be selected according to the structural requirements and forming conditions of the finished product.

Customized Coating

Available coating options include:

• PE

• Polyester

• High Performance Polyester

• PVDF

Customized Color

Customers can specify standard colors, RAL colors, or approved color samples.

Customized Coil Weight

Coil weight and core specifications can be adapted to the customer's handling and production requirements where technically feasible.

Packaging and Delivery

The aluminum composite film can be supplied in roll form, coil packing, eye-to-sky packing, eye-to-wall packing, or customized export packaging. Standard wooden pallets and moisture-proof packaging help protect the film during storage and international transportation.

• Coil packing: eye-to-sky or eye-to-wall

• Export standard wooden pallets

• Moisture-proof packaging

• Lead time: 10–20 days, depending on order quantity and specification

Why Choose Us

Aluminium Coil Manufacturing Experience

We focus on aluminium rolled products and coated aluminium materials for industrial and building applications.

Flexible Material Specifications

We can supply different combinations of alloy, temper, thickness, width, coating, color, and surface finish.

B2B Manufacturing Support

Our products are suitable for manufacturers, distributors, roll-forming companies, roofing suppliers, and building material businesses.

Export-Oriented Packaging

Coils can be prepared using export-standard seaworthy packaging for international shipments.

Quality Management

Our production and quality management system supports consistent material control and customer-specific production requirements.

Relevant certifications include:

• ISO 9001

• ISO 14001

• ISO 45001

Frequently Asked Questions

What is prepainted aluminium coil for roof drainage products?

It is factory-coated aluminium coil designed for manufacturing gutters, eavestroughs, downspouts, drainage channels, flashing, and other roof water management products.

Which aluminium alloy is commonly used for roof drainage products?

AA3003 and AA3105 are commonly considered for forming applications. The best alloy and temper depend on the finished profile, thickness, forming equipment, and required mechanical properties.

Can prepainted aluminium coil be used for gutters?

Yes. It can be supplied for manufacturing rain gutters, seamless gutters, eavestroughs, box gutters, fascia gutters, and custom drainage profiles.

Can this aluminium coil be used for downspouts?

Yes. Suitable prepainted aluminium coil can be roll formed or otherwise processed into round, square, rectangular, or custom downspout profiles.

What thickness is suitable for roof drainage products?

The required thickness depends on the finished product, profile design, forming process, and local market requirements. Common specifications can range from approximately 0.30 mm to 1.50 mm.

What coating should I choose for outdoor drainage products?

PE and polyester can be suitable for many standard applications, while high-performance polyester or PVDF may be considered for more demanding outdoor environments.

Can you provide RAL colors?

Yes. Standard RAL colors and customized colors can be supplied according to customer requirements and approved references.

Can the coil be supplied with protective film?

Yes. Protective film is available as an optional surface protection solution for transportation and downstream processing.

Can you manufacture custom-width aluminium coil?

Yes. Width can be customized according to the customer's finished profile and production equipment.

Can you supply aluminium coil for continuous gutter production?

Yes. Suitable coil specifications can be supplied for continuous roll-forming production of gutters and eavestroughs.

Do you supply PVDF coated aluminium coil for roof drainage?

Yes. PVDF coating can be considered for premium exterior drainage products requiring enhanced weatherability and UV resistance.
