PVDF Color Coated Aluminium Coil for Metal Roofing Systems

Product Overview

PVDF Color Coated Aluminium Coil is a premium architectural-grade prepainted aluminum product specifically engineered for modern metal roofing systems, curtain walls, wall cladding, architectural facades, rainwater systems, composite panels, and industrial buildings. Manufactured using high-quality aluminum alloy substrates coated with 70% Kynar®/Hylar® PVDF resin, this product delivers exceptional weather resistance, UV stability, corrosion protection, color retention, and long-term durability.

Compared with conventional polyester-coated aluminum coils, PVDF coated aluminum offers significantly superior resistance to ultraviolet radiation, chalking, fading, chemical corrosion, acid rain, and harsh marine environments. It has become the preferred material for commercial buildings, airports, railway stations, stadiums, warehouses, shopping centers, high-rise buildings, and residential roofing projects worldwide.

As a professional Prepainted Aluminium Coil Manufacturer in China, w  e provide customized PVDF color coated coils in various alloys, thicknesses, widths, colors, gloss levels, and protective film options. OEM & ODM manufacturing services are available for roofing manufacturers, roll-forming companies, distributors, and construction material suppliers.

Key Features

Premium PVDF Coating Technology

The high-performance PVDF coating provides outstanding protection against ultraviolet radiation and extreme weather conditions, ensuring excellent appearance retention for decades.

Benefits

• Outstanding UV resistance

• Exceptional color retention

• Excellent chalk resistance

• Long outdoor service life

Superior Corrosion Resistance

The aluminum substrate combined with PVDF coating offers reliable protection in coastal, industrial, humid, and chemically aggressive environments.

Benefits

• Salt spray resistance

• Acid rain protection

• Chemical resistance

• Marine environment durability

Excellent Formability

Despite its durable coating system, the material maintains excellent flexibility for roll forming, bending, stamping, and profiling.

Benefits

• Easy roll forming

• Crack-resistant coating

• High processing efficiency

• Suitable for complex profiles

Lightweight with High Strength

Aluminum provides an excellent strength-to-weight ratio, reducing structural loads while maintaining excellent mechanical performance.

Benefits

• Lower transportation costs

• Easier installation

• Reduced building load

• Improved construction efficiency

Eco-Friendly & Sustainable

Aluminum is 100% recyclable, making PVDF coated aluminum coils an environmentally responsible building material.

Benefits

• Sustainable construction

• Lower carbon footprint

• Recyclable material

• Long product lifecycle

Product Advantages

Designed for Long-Term Outdoor Performance

PVDF coating systems are engineered to maintain gloss, color consistency, and coating integrity even after prolonged exposure to sunlight and severe weather.

Reduces Building Maintenance Costs

Excellent resistance to fading, corrosion, and surface degradation minimizes repainting and maintenance throughout the product's service life.

Ideal for Modern Architectural Design

Available in hundreds of solid colors, metallic finishes, stone effects, wood grain patterns, and customized architectural finishes.

Compatible with Various Roofing Systems

Suitable for standing seam roofing, corrugated roofing sheets, trapezoidal roofing panels, concealed fixing systems, sandwich panels, and wall cladding systems.

Excellent Processing Performance

Designed for high-speed roll-forming lines with stable coating adhesion and excellent bendability.

Technical Specifications

Item	Specification
Product Name	PVDF Color Coated Aluminium Coil
Alloy	AA1050, AA1060, AA1100, AA3003, AA3004, AA3105, AA5005, AA5052
Temper	H14, H16, H24, H26, H44
Thickness	0.20 mm – 3.00 mm
Width	30 mm – 1600 mm
Coil Weight	1 MT – 5 MT
Coating Type	70% PVDF (Kynar® / Hylar®)
Paint Thickness	Top 25–35μm / Back 7–15μm
Surface Finish	Glossy / Matte / Metallic / Textured
Gloss Level	10–90%
Color Standard	RAL, Pantone, Custom Colors
Protective Film	Optional
Standard	ASTM, EN, GB, JIS
OEM & ODM	Available

Available Surface Finishes

Solid Color PVDF Aluminum Coil

Classic architectural colors designed for roofing, wall cladding, and industrial buildings.

Popular Colors

• White

• Grey

• Silver

• Black

• Brick Red

• Dark Blue

• Forest Green

Metallic PVDF Coated Aluminum

Creates a premium metallic appearance with outstanding weather durability.

Typical Applications

• Airports

• Shopping malls

• Office buildings

• Luxury commercial projects

Wood Grain PVDF Aluminum Coil

Combines the appearance of natural timber with the durability of aluminum.

Typical Applications

• Villas

• Residential buildings

• Decorative facades

• Ceiling systems

Stone & Marble Pattern PVDF Aluminum

Provides a natural stone appearance while reducing installation weight and maintenance costs.

Typical Applications

• Curtain walls

• Decorative panels

• Commercial buildings

Typical Applications

Metal Roofing Systems

Standing Seam Roofing

Ideal for industrial buildings, warehouses, logistics centers, airports, and sports arenas requiring superior weather resistance.

Corrugated Roofing Sheets

Widely used in factories, agricultural buildings, workshops, and residential construction.

Architectural Wall Cladding

Curtain Wall Systems

Premium exterior wall solutions for commercial buildings, hotels, hospitals, schools, and office towers.

Aluminum Composite Panels (ACP)

High-quality facing material for ACP manufacturing and architectural decoration.

Industrial Buildings

Warehouses & Manufacturing Plants

Provides durable roofing and wall cladding with low maintenance requirements.

Infrastructure Projects

Suitable for railway stations, metro systems, airports, and exhibition centers.

Residential Construction

Villas & Apartments

Offers attractive aesthetics, long service life, and excellent environmental performance for modern housing.

Renovation Projects

Ideal for roof replacement, façade refurbishment, and energy-efficient building upgrades.

Packaging and Delivery

The aluminum composite film can be supplied in roll form, coil packing, eye-to-sky packing, eye-to-wall packing, or customized export packaging. Standard wooden pallets and moisture-proof packaging help protect the film during storage and international transportation.

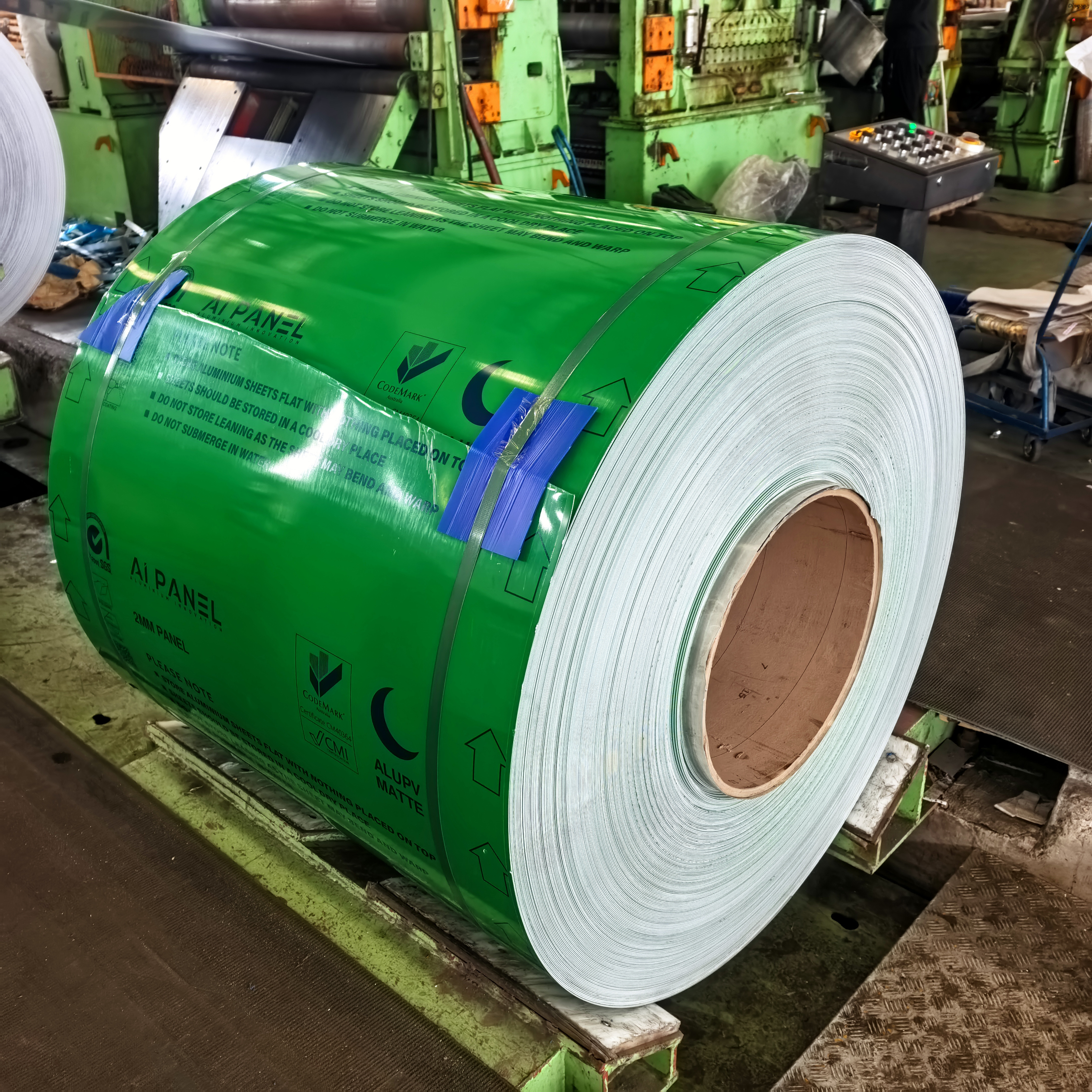

• Coil packing: eye-to-sky or eye-to-wall

• Export standard wooden pallets

• Moisture-proof packaging

• Lead time: 10–20 days, depending on order quantity and specification

Why Choose Our PVDF Color Coated Aluminium Coil

Advanced Continuous Coil Coating Lines

Our automated coil coating production lines ensure precise paint thickness, excellent adhesion, and consistent color quality throughout every production batch.

Benefits

• Uniform coating quality

• High production efficiency

• Excellent color consistency

• Stable coating performance

Premium Raw Materials

We source high-quality aluminum coils and internationally recognized PVDF coating systems to ensure superior product reliability.

Benefits

• Longer service life

• Better corrosion resistance

• Excellent processing properties

• Reliable outdoor durability

Complete OEM & ODM Manufacturing

From alloy selection to custom colors and protective packaging, we offer one-stop manufacturing solutions tailored to customer requirements.

Benefits

• Custom RAL & Pantone colors

• Logo printing on protective film

• Tailored coil dimensions

• Private-label production

Strict Quality Inspection

Every production batch is tested according to international standards before shipment.

Testing Includes

• Coating thickness

• Color difference (ΔE)

• Gloss measurement

• Pencil hardness

• Adhesion test

• Impact resistance

• T-bend test

• MEK solvent resistance

• Salt spray resistance

• UV weathering performance

Global Supply Experience

Our PVDF color coated aluminum coils are exported to roofing manufacturers, construction companies, distributors, and building material suppliers in Europe, North America, South America, Southeast Asia, the Middle East, Africa, and Oceania.

Benefits

• Stable production capacity

• Professional export packaging

• Fast delivery schedules

• Technical application support

Frequently Asked Questions

What is the difference between PVDF and PE coated aluminum?

PVDF coatings offer significantly better UV resistance, color retention, weather durability, and corrosion resistance than standard PE coatings, making them ideal for long-term exterior architectural applications.

Can you produce customized colors?

Yes. We can manufacture according to RAL, Pantone, customer samples, or customized architectural color specifications.

Is PVDF aluminum suitable for coastal environments?

Yes. The excellent salt spray and corrosion resistance make PVDF coated aluminum coils ideal for coastal, marine, and high-humidity environments.

What roofing systems are compatible with this product?

Our PVDF coated coils are suitable for standing seam roofing, corrugated roofing, trapezoidal roofing, sandwich panels, wall cladding, and aluminum composite panel production.

Do you provide OEM manufacturing?

Yes. We provide OEM & ODM services including custom alloy selection, coating systems, colors, dimensions, protective films, packaging, and branding.
