Aluminum Laminated foil
Dingang
| Availability: | |
|---|---|
| Quantity: | |
We manufacture customized aluminum laminated films and foil composite materials for flexible packaging, industrial protection, insulation, HVAC, pharmaceutical packaging and other engineered applications. Aluminum foil can be laminated with PET, PE, PA Nylon, CPP, PP, EVOH, PVC, kraft paper, fiberglass scrim and other functional substrates according to the required barrier, mechanical, sealing and processing performance.
Typical structures include PET/AL/PE, PET/AL/CPP, PET/AL/PA/PE and AL/PE/AL, with additional multilayer constructions available according to project requirements. Aluminum foil thickness ranges from 6μm to 50μm, total laminate thickness from 50μm to 350μm, and widths from 100mm to 2200mm.
Dry lamination, solvent-free lamination, extrusion lamination, functional coating, printing, slitting and roll finishing can be coordinated according to the approved product specification. OEM and ODM projects can include custom structures, roll dimensions, surface finishes, heat-seal layers, printing and export packaging.
Different applications require different laminate constructions. Standard flexible-packaging film, retort-grade film, pharmaceutical material, battery pouch laminate, insulation facing and functional industrial composite should therefore be specified separately according to their actual performance and compliance requirements.
Request a Custom Aluminum Laminate Quote
| Item | Specification |
|---|---|
| Product Name | Aluminum Laminated Film |
| Supply | China factory manufacturing and customized OEM / ODM supply |
| Typical Material Structures | PET/AL/PE, PET/AL/CPP, PET/AL/PA/PE, AL/PE/AL and customized multilayer structures |
| Available Substrates | Aluminum foil, PET, PE, PA Nylon, CPP, PP, EVOH, PVC, kraft paper, fiberglass scrim and other project-specific substrates |
| Aluminum Foil Thickness | 6μm-50μm |
| Total Thickness | 50μm-350μm |
| Width | 100mm-2200mm |
| Roll Length | Customized according to converting and packaging requirements |
| Surface Finish | Glossy / Matte / Embossed / Customized |
| Printing | Gravure printing up to 10 colors |
| Lamination Process | Dry lamination / Extrusion lamination / Solvent-free lamination |
| Heat-Seal Layer | PE / CPP / PP / RCPP or another application-specific sealant where required |
| Barrier Requirements | High oxygen, moisture and light barrier structures available; numerical OTR and WVTR should be specified where controlled |
| OEM & ODM | Custom structure, dimensions, printing, surface treatment and packaging available |
| Production Lead Time | Confirmed according to structure, printing, sampling requirements, quantity and current production schedule |
The listed dimensions represent the current general production range. Actual feasibility depends on layer structure, individual material gauges, width, printing, slitting, winding configuration and final application.
Send Your Laminate Specification
The laminate structure should be selected according to the required barrier level, heat-sealing conditions, puncture resistance, stiffness, printability, thermal process, product compatibility and converting equipment rather than using one standard construction for every application.
Aluminum foil thickness from 6μm to 50μm can be considered according to barrier requirements, flex durability, laminate stiffness, forming behavior and the complete layer construction.
PE, CPP, PP or another specialized sealant can be selected according to seal initiation temperature, packaging equipment, filling conditions, product contact and required thermal processing.
Where shelf life or industrial protection depends on controlled barrier properties, specify the required OTR and WVTR values together with test temperature, relative humidity and applicable test method.
Roll width, roll length, core diameter, maximum outside diameter, target roll weight, winding direction, splice requirement and surface orientation can be coordinated with printing, pouch-making, laminating or other converting equipment.
PET/AL/PE combines a printable and dimensionally stable PET outer layer, a solid aluminum foil barrier and a PE heat-sealing layer. It is suitable for many dry-food, powder, coffee, ingredient, healthcare and industrial high-barrier packaging applications where the selected structure meets the product-contact and processing requirements.
PET/AL/CPP uses CPP as the inner sealing layer. The exact CPP grade, adhesive and laminate construction should be selected according to sealing conditions and any required post-packaging thermal treatment.
The added PA Nylon layer can improve puncture resistance, toughness and flex durability. This structure can be considered for vacuum packaging, FIBC liners, industrial barrier packaging and products imposing greater mechanical stress on the laminate.

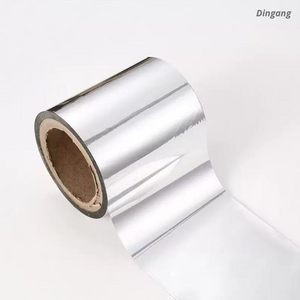

Double-sided aluminum composite structures can be used as moisture- and vapor-barrier materials or facings for selected insulation and industrial composite applications. Thermal performance should be evaluated as part of the complete insulation assembly.
Additional PET, PA, EVOH, PE, CPP, PP, PVC, kraft paper, fiberglass scrim, coating or foil layers can be combined where the complete construction has been reviewed for the required application.
Dry lamination can be used for compatible flexible packaging and industrial composite structures where controlled interlayer bonding, curing and converting performance are required.
Solvent-free lamination can be considered for compatible structures according to substrate selection, adhesive system, curing requirements and final product performance.
Extrusion lamination can integrate polymer layers with aluminum foil, film, paper or other substrates where the required composite construction is compatible with the process.
Functional coatings can be evaluated for applications requiring heat-sealing, surface protection, printability, adhesion or other specific performance. Any anti-static, flame-retardant, chemical-resistant or specialized coating requirement should include measurable acceptance criteria.
Gravure printing up to 10 colors is available for suitable packaging laminates. Buyers should provide approved artwork, color references, print repeat, winding direction and surface-finish requirements before production.
Master rolls can be slit according to required finished width, core size and winding configuration. Width tolerance and edge-quality requirements should be specified for high-speed converting applications.
High-barrier aluminum laminates can be developed for coffee, tea, snacks, powders, spices, nutritional products and other foods requiring protection against oxygen, moisture and light. Food-contact materials and documentation should be selected according to the product and destination market.
PA/Nylon-reinforced foil laminates can be considered for vacuum packaging where additional puncture resistance and mechanical durability are required. Product geometry, vacuum level, sealing conditions and storage requirements should be provided for structure selection.
Printed or unprinted aluminum laminate can be supplied as rollstock for suitable stand-up pouches, flat pouches, sachets, gusseted bags and other flexible-packaging formats according to converter requirements.
Foil laminates can provide oxygen, moisture and light protection for suitable coffee packaging. Finished-package performance also depends on seals, valves, zippers and other closures used in the final bag.
A standard PET/AL/PE or general-purpose PET/AL/CPP laminate should not automatically be treated as suitable for high-temperature retort sterilization.
Retort projects require a laminate structure designed for the actual sterilization cycle, including a compatible retort-grade sealant such as RCPP where applicable, high-temperature laminating adhesive, controlled curing and final validation under the customer's process.
Provide sterilization temperature, holding time, pressure or overpressure profile, filling temperature, product composition, pouch size, fill weight and required shelf life before the retort laminate is finalized.
Representative material should be tested through the actual filling, sealing, sterilization and cooling process before a new retort structure is approved for commercial production.
Aseptic packaging requires compatibility between the package material, sterilization method, filling equipment and sealing system. A general aluminum laminate should not automatically be described as aseptic-grade without validation against the intended packaging process.
For aseptic projects, provide the packaged product, sterilization method, filling temperature, package format, required barrier performance and applicable hygiene or regulatory requirements.
High-barrier aluminum laminates can be evaluated for pharmaceutical powders, nutraceutical products, diagnostic products, healthcare sachets and selected medical packaging where substrate selection, cleanliness, migration, sterilization and documentation satisfy the application requirements.
The destination market, direct or indirect product-contact conditions and required pharmaceutical or healthcare documentation should be identified before material selection.
General flexible aluminum laminate is different from dedicated pharmaceutical blister lidding foil or cold-form laminate. Blister packaging projects should therefore specify the exact blister construction and applicable pharmaceutical requirements separately.
Lithium-ion pouch-cell packaging requires a dedicated aluminum laminate designed for battery-specific performance. General flexible-packaging PET/AL/PE or PET/AL/CPP material should not automatically be used as battery pouch film.
Battery pouch laminates can require controlled forming performance, insulation, electrolyte resistance, moisture barrier, heat resistance, heat-seal integrity and corrosion resistance. These requirements should be treated as a separate technical project.
Provide the required layer structure, total thickness, aluminum foil gauge, forming depth, electrolyte system, seal conditions, electrical-insulation requirements, corrosion-resistance requirements and applicable cell-manufacturer specification for review.
Aluminum foil can be laminated with kraft paper, fiberglass scrim, polymer films or other substrates to produce suitable insulation facings and vapor-control layers for HVAC, duct, pipe and building-insulation systems.
Foil-scrim-kraft and related reinforced constructions can be developed where the insulation assembly requires foil facing together with reinforcement and kraft backing. Layer structure, basis weight, reinforcement and vapor-performance requirements should be specified.
Where vapor transmission is critical, specify the required water-vapor permeance or WVTR together with applicable test conditions instead of relying only on a description such as “moisture barrier.”
Aluminum facing can contribute to radiant-heat control when used within an appropriate assembly, but overall insulation performance depends on insulation material, air space, installation method and complete system design.
PET/AL/PA/PE and related high-barrier constructions can be considered for FIBC liners and bulk packaging of moisture-sensitive powders, chemicals, food ingredients, resins and other industrial products.
Aluminum barrier materials can be converted into protective wraps or bags for machinery, precision equipment and industrial components requiring protection from moisture and environmental contamination during storage and shipment.
Chemical packaging requires compatibility testing with the actual contents. Polymer resistance, laminate bond, seal integrity, permeation and applicable transport or regulatory requirements should be reviewed before a structure is approved.
Flame-retardant performance requires a specifically designed material construction and an agreed fire-test method. A conventional aluminum laminate should not automatically be described as fire-retardant solely because it contains aluminum foil.
Anti-static, static-dissipative or shielding performance requires an appropriate functional construction and measurable electrical properties. Standard aluminum packaging laminate should not automatically be treated as ESD packaging.
For heat-resistant applications, provide the actual continuous or peak temperature, exposure duration, pressure and mechanical conditions so that suitable substrates, adhesives and seal layers can be evaluated.
Chemical resistance must be evaluated against the actual substance, concentration, temperature and contact duration. The aluminum foil layer alone does not define resistance of the complete laminate.
Total thickness, individual layer gauges, roll width, core dimensions and roll configuration can be inspected according to the approved purchase specification.
Bond and peel requirements should be defined according to layer construction, adhesive system, curing conditions and final application.
Heat-seal performance can be evaluated according to the selected PE, CPP, PP, RCPP or other sealant layer together with the required sealing temperature, pressure and dwell time.
Where oxygen barrier is a purchasing requirement, specify the maximum OTR and applicable test temperature, relative humidity and test method.
Where moisture barrier is controlled, provide the required WVTR together with the specified test conditions.
Printed material can be evaluated for approved artwork, color, registration and surface appearance according to the agreed order requirements.
Roll edges, winding, splices, telescoping, wrinkles and surface condition should be controlled according to the customer's downstream converting requirements.
Layer sequence, foil gauge, polymer thickness, adhesive system and sealant layer can be developed according to the approved technical specification.
Width, roll length, core size, roll weight and winding direction can be customized according to converting equipment and logistics requirements.
Gravure printing up to 10 colors can be provided according to approved artwork, print repeat, color reference and production requirements.
Private-label identification and customized export packaging can be coordinated for distributors, converters and OEM customers according to the agreed order.
Provide the packed product or industrial application, required shelf life, processing conditions, storage environment, package format and applicable regulatory requirements.
The aluminum foil, polymer layers, reinforcement, adhesive, sealant and total thickness are reviewed against barrier, mechanical, thermal and converting requirements.
Where required, representative material can be evaluated on the customer's packaging, sealing, forming, laminating or other production equipment before commercial approval.
The approved structure, individual layer gauges, total thickness, width, roll configuration, printing and test requirements should be documented before mass production.
Commercial production follows the agreed material specification, with inspection items defined according to the order and final application.
Start Your Custom Laminate Project
Aluminum laminated film can be supplied in roll form with horizontal, vertical, eye-to-sky, eye-to-wall or other suitable export packing according to roll dimensions and handling requirements.
Wooden cases, pallets, moisture-resistant wrapping and protective edge materials can be selected to reduce roll movement, edge damage, moisture exposure and surface damage during storage and international transportation.
Production lead time is confirmed according to material structure, printing, sample approval, order quantity, raw-material availability and manufacturing schedule.
Wooden Case Packing
Pallet Coil Packing
Aluminum Foil Barrier Bag
State whether the laminate will be used for food packaging, vacuum packaging, retort processing, pharmaceutical packaging, industrial protection, insulation, battery pouch development or another application.
If an existing construction is already approved, provide the complete layer sequence and individual layer gauges. If not, provide the required performance targets.
Where barrier performance is controlled, provide numerical OTR and WVTR limits together with test temperature, humidity and applicable method.
State filling temperature, heat-seal conditions, vacuum level, retort temperature and time, forming depth or other relevant processing conditions.
Specify width, roll length or maximum OD, core size, winding direction, maximum roll weight and required quantity.
For printed material, provide artwork, number of colors, print repeat, surface finish and approved color references.
Identify the destination market and required food-contact, pharmaceutical, industrial, electrical, fire-performance or other compliance documentation before structure selection.
Aluminum laminated film is a multilayer composite combining aluminum foil with polymer film, paper, reinforcement or other functional substrates to provide a selected combination of barrier, sealing, mechanical and surface properties.
Typical structures include PET/AL/PE, PET/AL/CPP, PET/AL/PA/PE and AL/PE/AL, with additional customized constructions available according to application requirements.
The current listed aluminum foil range is 6μm to 50μm.
The current listed total laminate thickness range is 50μm to 350μm.
The current listed width range is 100mm to 2200mm, subject to structure, gauge and production confirmation.
Yes. Roll length, core size, coil weight and winding configuration can be customized according to production equipment and order requirements.
Yes. Gravure printing up to 10 colors is listed for suitable structures. Artwork, color reference, print repeat and winding direction should be confirmed before production.
Structures can be selected according to required barrier performance. Provide the target OTR and WVTR together with specified test conditions for evaluation.
Suitable PET/AL/PE structures can be used for food packaging when the substrates, adhesives, inks and product-contact materials meet the intended food and destination-market requirements.
It should not automatically be used for retort sterilization. Retort applications require a specifically selected high-temperature laminate, adhesive and sealant construction validated for the actual sterilization process.
Yes. High-barrier structures with PA Nylon or another reinforcing layer can be evaluated for vacuum packaging according to product geometry, puncture resistance, vacuum level and seal requirements.
A laminate can be developed for an aseptic packaging project, but final suitability depends on the sterilization, filling and sealing system and requires project-specific validation.
High-barrier structures can be evaluated for suitable pharmaceutical and healthcare applications when material, cleanliness, product-contact and regulatory requirements are clearly specified.
No. Lithium-ion battery pouch film requires dedicated performance for forming, insulation, electrolyte resistance, heat sealing, moisture barrier, heat resistance and corrosion resistance. Battery projects should be specified separately.
Yes, suitable foil laminates with polymer films, kraft paper, fiberglass scrim or related substrates can be developed as insulation facings or vapor-control layers according to the complete HVAC or insulation system.
Flame-retardant structures can be evaluated when the required fire-test method, rating, construction and substrate requirements are provided. Aluminum foil content alone does not establish flame-retardant classification.
Anti-static or ESD-related materials require a dedicated functional structure and measurable electrical requirements. Provide the required surface resistance, shielding or dissipation criteria for evaluation.
The listed processes include dry lamination, extrusion lamination and solvent-free lamination, together with functional coating and precision slitting.
Yes. Structure, thickness, width, roll length, printing, surface finish, functional requirements and packaging can be customized according to the approved order specification.
Trial material or samples can be discussed according to structure complexity, material availability, printing requirements and required production setup.
Depending on the project, requirements can include laminate thickness, bond strength, peel strength, heat-seal strength, OTR, WVTR, printing quality, surface appearance and roll dimensions.
Lead time depends on material structure, printing, raw-material availability, sampling, order quantity and production schedule. The confirmed delivery time should be stated in the commercial quotation.
Please provide the application, existing layer structure if known, aluminum foil thickness, total thickness, width, roll length or maximum OD, core size, quantity, OTR/WVTR target, heat-seal layer, printing requirements, processing conditions, required testing, destination-market compliance requirements and delivery destination.
If you are sourcing aluminum laminated film for flexible packaging, industrial barrier applications, HVAC insulation, pharmaceutical packaging or another engineered composite application, send us your required material structure, performance targets, dimensions, processing conditions and quantity for specification confirmation and quotation.
