Aluminum Laminated foil
Dingang
| Availability: | |
|---|---|
| Quantity: | |

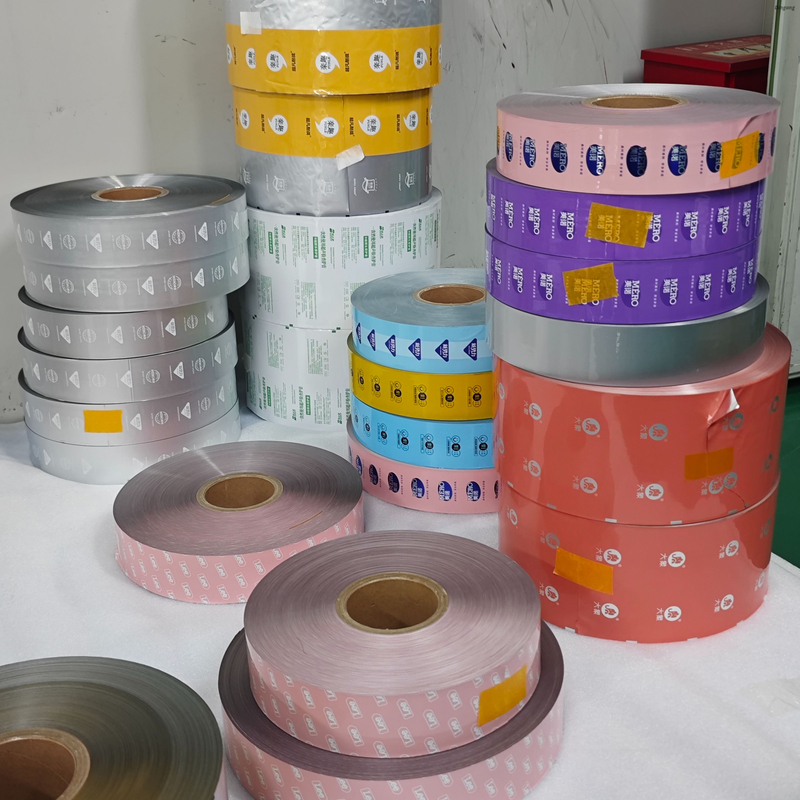

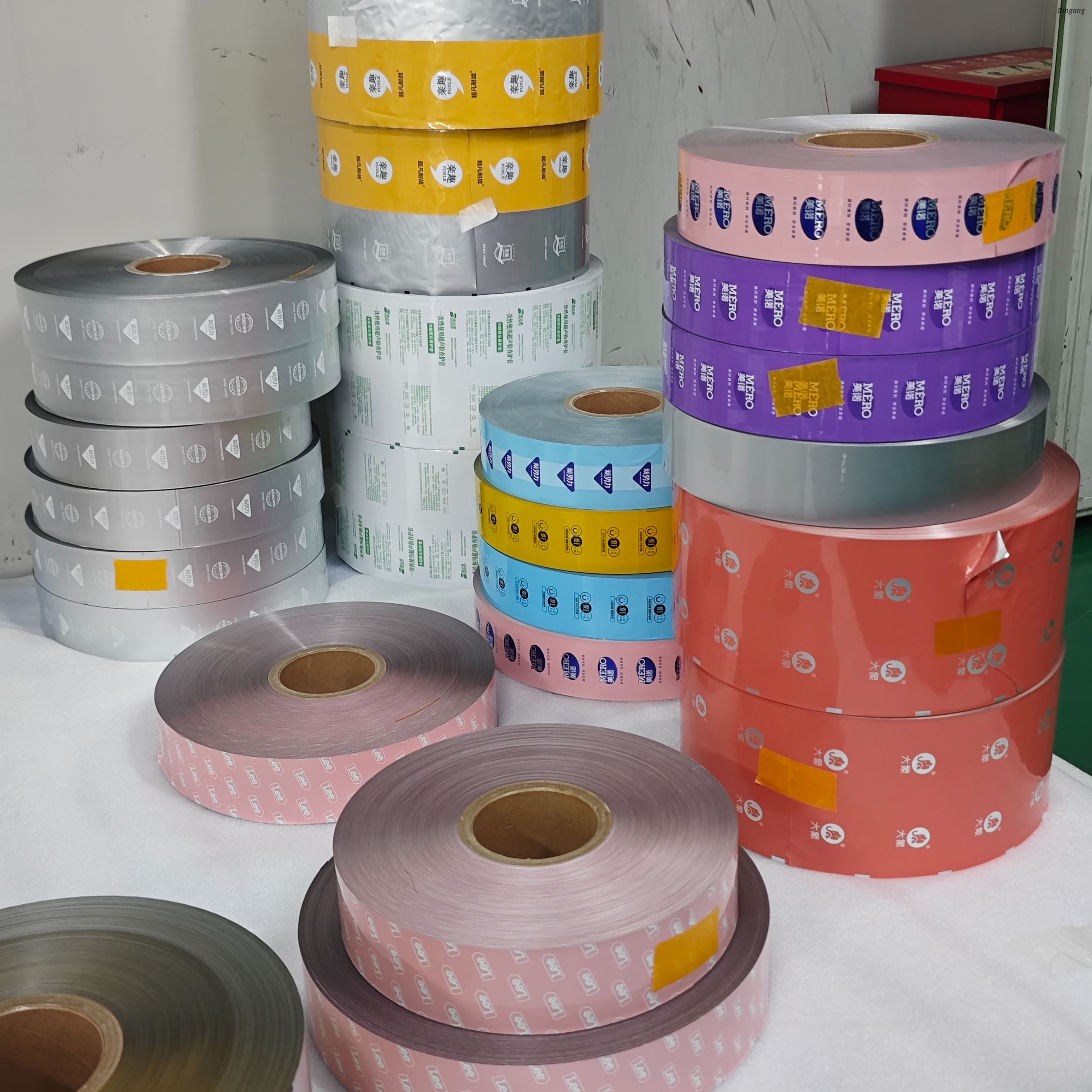

Printed flexible aluminum packaging film is a multilayer barrier laminate designed for custom-branded food, nutraceutical, personal-care, consumer-goods and compatible industrial packaging. It combines printable polymer films with an aluminum foil barrier layer and application-specific sealing layers.
Typical structures include PET/AL/PE, PET/AL/CPP, PET/AL/PA/PE and customized PET/AL/EVOH/PE constructions. The current product range uses aluminum foil from 6μm to 25μm, total laminate thicknesses from 60μm to 220μm and finished widths from 100mm to 2000mm.
Up to 10-color gravure printing is available together with glossy, matte, metallic and soft-touch finishes. Laminate structure, sealant layer, printing construction, barrier requirement and roll configuration should be selected according to the packed product, filling process and packaging equipment.
Request a Printed Packaging Film Quotation
| Item | Published / Available Specification | Purchasing Consideration |
|---|---|---|
| Product Type | Printed flexible aluminum packaging film | For rollstock, sachets, pouches and compatible flexible packaging |
| Typical Structures | PET/AL/PE, PET/AL/CPP, PET/AL/PA/PE, PET/AL/EVOH/PE, customized | Select according to product compatibility, barrier, puncture, process and seal requirements |
| Aluminum Foil Thickness | 6μm–25μm | Foil gauge affects barrier robustness, flex-crack behavior, cost and converting |
| Total Laminate Thickness | 60μm–220μm | Final gauge should match pouch format, fill weight and mechanical requirements |
| Width | 100mm–2000mm | Custom slitting according to pouch-making or form-fill-seal equipment |
| Roll Length | Customized | Specify core ID, OD, roll weight, winding and splice limits |
| Surface Finish | Glossy / Matte / Metallic / Soft Touch | Physical finish approval recommended before bulk printing |
| Printing | Gravure printing up to 10 colors | Specify color references, artwork repeat, registration and eye-mark requirements |
| Heat-Seal Layer | PE / CPP / PP | Sealant should match product chemistry, filling temperature and sealing equipment |
| Oxygen Barrier | High-barrier aluminum-containing construction | Specify numerical OTR and test conditions where critical |
| Moisture Barrier | High-barrier aluminum-containing construction | Specify numerical WVTR and test conditions where critical |
| Food-Contact Structures | Available where specified | Documentation must match the exact film, adhesive, ink, sealant, food and conditions of use |
| Customization | OEM / ODM supported | Structure, print, coating, roll dimensions and performance targets can be customized subject to feasibility |
For contract-critical projects, terms such as high barrier, strong seal and high-speed machinability should be converted into numerical test requirements and agreed acceptance criteria.
Get Technical Data & Printed Samples
PET provides a stable printing and lamination substrate with useful heat resistance, dimensional stability and mechanical strength for many flexible packaging structures.
The aluminum foil layer is opaque and provides very high resistance to oxygen, water-vapor, light and aroma transmission when the foil remains intact.
Finished package performance can still be influenced by pinholes, folding, flex cracks, seals, spouts, pouch geometry and mechanical damage.
PA can be incorporated where additional puncture, impact and flex resistance is required for heavier products, vacuum packs or demanding distribution conditions.
EVOH can provide an additional gas-barrier function in selected customized structures. Where both aluminum foil and EVOH are specified, the role of each layer should be defined according to the package design rather than assuming additional layers automatically provide a better result.
The innermost polymer normally provides heat sealing and often forms the direct product-contact surface. Its chemistry should be selected according to the packed product, temperature and filling process.
| Structure | Primary Characteristics | Typical Selection Direction |
|---|---|---|
| PET / AL / PE | Printability, aluminum barrier and PE heat seal | Coffee, dry foods, powders and compatible consumer products |
| PET / AL / CPP | Printable outer layer, aluminum barrier and CPP sealant | Selected confectionery, nutraceutical and consumer applications requiring CPP sealing |
| PET / AL / PA / PE | Added puncture and mechanical reinforcement | Vacuum, heavier products and mechanically demanding applications after validation |
| PET / AL / EVOH / PE | Customized multi-barrier construction | Application-specific projects where additional functional-layer performance is required |
| Custom Printed Laminate | Structure selected around product, filling, barrier and machinery requirements | Custom brand, converter and contract-packaging projects |
Gravure printing is available for detailed graphics, brand colors, product identification, instructions and high-volume commercial packaging.
Where the laminate structure permits, graphics can be reverse printed on the inner face of a transparent outer film before lamination, helping protect the ink from direct abrasion during distribution.
Surface printing can also be used where appropriate. The required overprint varnish, rub resistance and product-contact separation should be defined for the application.
Artwork repeat, print-to-cut registration, eye-mark position and pouch orientation should match the converter's or packing machine's requirements.
Where brand colors are critical, buyers should provide physical color standards or approved printed samples and define an acceptable color-difference method and tolerance.
Printed film should be evaluated for ink adhesion and abrasion resistance according to the printing construction, pouch process and expected distribution conditions.
Gloss finishes can provide high color saturation and strong visual contrast for retail packaging.
Matte coatings can reduce glare and create a lower-gloss premium appearance. Target gloss should be specified where visual consistency is important.
Aluminum-containing laminates can support metallic visual effects through appropriate artwork and printing construction. Final appearance should be approved from production-representative samples.
Soft-touch coatings can be developed for compatible projects where tactile differentiation is required. Rub resistance, coefficient of friction and machine handling should be checked before production.
Where oxidation affects product quality, a numerical OTR target should be specified together with the test temperature, relative humidity and specimen condition.
For moisture-sensitive food, powder, nutraceutical and industrial products, WVTR should be specified numerically with the applicable environmental conditions.
An intact aluminum foil layer is opaque and provides strong protection from light transmission through the film.
Aluminum-containing structures can help reduce aroma loss and external odor ingress, subject to the integrity of the complete pouch and seal system.
Very thin aluminum foil provides strong barrier when intact but can be sensitive to pinholes and repeated flexing. Finished-package performance should therefore be evaluated after representative converting and handling where necessary.
For demanding pouches, reinforced PA layers or different aluminum gauges can be considered according to the package geometry and mechanical exposure.
Reliable flexible packaging requires a sealant layer that matches the filling product, pouch geometry and packaging machine.
The seal initiation temperature should be established for the actual PE, CPP or PP sealant rather than assumed from the polymer family alone.
High-speed lines benefit from an operating range that provides adequate seals across normal variations in jaw temperature, pressure and dwell time.
Hot-tack performance can be important on vertical form-fill-seal lines where the newly formed seal carries product weight before it has fully cooled.
Seal strength should be defined together with sealing temperature, pressure, dwell time, sample width, conditioning and test method.
A strong laminate or seal-strength result does not by itself establish that a finished pouch will be leak-free.
Where package integrity is important, the finished pouch can be evaluated for leakage, burst or creep, drop performance, seal channels, spout integrity and transportation damage using methods appropriate to the package.
The adhesive bond between PET, aluminum foil, PA, EVOH and sealant films must remain stable throughout converting, filling and storage.
Interlayer peel strength should be specified by layer pair and test method where delamination resistance is important.
Adhesive systems require appropriate curing before final conversion or product contact. Cure requirements depend on adhesive chemistry, coating weight and production conditions.
Where solvent-based printing or lamination is used, residual-solvent limits can be specified to support odor, food-contact and product-compatibility requirements.
Printed rollstock can be configured for vertical and horizontal form-fill-seal lines, but machine performance depends on more than total film thickness.
COF influences film feeding, forming-collar movement and pouch handling. Required slip level should be agreed with the packaging machine and application.
Good web flatness helps maintain stable tracking, print registration and sealing on automatic lines.
Roll tension, telescoping, edge alignment, core quality and splices should be controlled according to the customer's unwind system.
Printed rollstock should identify eye-mark dimensions, position, print repeat and orientation for the specific packing machine.
Stand-up pouches
Flat pouches
Three-side seal pouches
Four-side seal sachets
Side-gusset bags
Quad-seal pouches
Zipper pouches
Vacuum pouches where the selected structure is suitable
Stick packs and sachets
Automatic packaging rollstock
Custom converted flexible-packaging formats
Suitable food-contact structures can be developed for coffee, tea, spices, snacks, powders, confectionery, bakery ingredients and other products requiring printed barrier packaging.
Coffee packaging can require strong oxygen, moisture and aroma protection. Degassing valve requirements, residual oxygen and pack format should be considered separately from laminate barrier.
Dry powders can require moisture protection, seal-through-powder tolerance and static-control considerations depending on the filling process.
For chocolate or fat-rich confectionery, the food-contact sealant, adhesive and ink construction should be compatible with oils and fats under the intended storage conditions.
Where the laminate is used for frozen or chilled products, puncture resistance, low-temperature flexibility, seal performance and condensation exposure should be qualified for the actual application.
Food-contact suitability applies to the complete laminate construction rather than to the aluminum foil layer alone.
The assessment can include:
Outer and inner polymer films
Aluminum foil
Laminating adhesives
Printing inks
Primers and overprint coatings
Sealant layer
Migration and organoleptic requirements
For food-contact applications in the European Union, the complete material should meet the applicable general food-contact and Good Manufacturing Practice requirements. Specific requirements for plastic layers should also be reviewed according to their intended use.
For U.S. applications, the regulatory basis of the applicable polymers, coatings, adhesives, colorants and other food-contact substances should match their intended food type and use conditions.
Printed aluminum barrier laminates can be evaluated for compatible vitamin, dietary supplement, protein powder, probiotic and nutrition-product sachets or pouches.
Barrier level should be selected according to the actual formulation, hygroscopicity, oxygen sensitivity, intended shelf life and storage environment.
Printed aluminum laminates can be developed for selected pharmaceutical or healthcare packaging, but a general commercial flexible laminate should not automatically be treated as qualified primary drug packaging.
Primary pharmaceutical packaging requires qualification of the actual container-closure system for the specific dosage form and product, including protection, compatibility, safety, performance and applicable regulatory documentation.
Where sachets or pouches are intended for pharmaceutical tablets, capsules or powders, moisture barrier, sealing, material compatibility and package integrity should be defined for the actual drug product.
Medical-device packaging can require additional sterilization compatibility, seal integrity, microbial-barrier and validation requirements that are outside a general printed food-packaging specification.
Printed aluminum laminates can be used for compatible facial-mask sachets, creams, gels, shampoo samples, conditioners, lotion packets and refill formats.
Alcohol, fragrance oils, essential oils, surfactants and active ingredients can interact differently with sealant films and adhesives, so product-contact compatibility should be evaluated using the actual formulation.
The laminate can be developed for compatible household and consumer products where printed presentation, barrier protection and flexible packaging are required.
Detergents, cleaners, oils and solvent-containing formulations require separate chemical-compatibility testing with the inner sealant and adhesive system.
Aluminum barrier laminates can be used for compatible industrial parts and moisture-sensitive components requiring high-barrier flexible packaging.
Where electronic components require electrostatic-discharge control, static-dissipative or moisture-barrier packaging standards, those properties must be specified separately. Standard printed PET/AL/PE laminate should not automatically be treated as ESD-qualified packaging.
The general 60–220μm printed laminate range should not automatically be treated as suitable for retort, hot fill or sterilization.
High-temperature processing can require specialized retort-grade adhesives, inks and sealant layers together with post-process peel strength, seal integrity and delamination testing.
If the product will be retorted, pasteurized, sterilized or hot filled, the process temperature, time and pressure should be provided during material selection.
High barrier packaging can support a required shelf-life target, but laminate specification alone does not establish commercial shelf life.
Shelf-life performance can depend on:
Initial product quality
Product oxygen and moisture sensitivity
OTR and WVTR
Residual headspace oxygen
Seal integrity
Pouch flexing and puncture
Filling temperature
Storage temperature and humidity
Light exposure
Distribution conditions
| Inspection Item | What to Confirm |
|---|---|
| Laminate Structure | Exact PET / AL / PA / EVOH / sealant layer construction |
| Aluminum Foil Gauge | Required 6–25μm foil thickness and tolerance |
| Total Thickness | Required 60–220μm total construction and tolerance |
| Width | Finished width and slitting tolerance |
| Print Registration | Print-to-print and print-to-cut tolerance |
| Color Difference | Approved master sample and agreed ΔE method where required |
| Ink Adhesion | Applicable tape, rub or abrasion test |
| Residual Solvent | Required analytes, test method and maximum values |
| Interlayer Peel Strength | Layer pair, conditioning and minimum bond requirement |
| Seal Strength | Sealant, temperature, pressure, dwell time and test method |
| Seal Initiation Temperature | Required SIT for the actual packing line where applicable |
| Hot Tack | Required hot-seal performance for high-speed FFS applications |
| Coefficient of Friction | Required inside/outside COF where machine handling is sensitive |
| OTR | Numerical oxygen-transmission limit and test environment |
| WVTR | Numerical moisture-transmission limit and test environment |
| Puncture / Tear | Mechanical requirements where heavy or sharp products are packed |
| Surface Appearance | Wrinkles, scratches, printing defects, delamination and contamination |
| Roll Quality | Core, OD, winding, telescoping, splices and edge condition |
Printed aluminum composite film can be supplied as rollstock with moisture-resistant export protection according to roll dimensions, weight and transportation requirements.
Eye-to-sky or eye-to-wall packing can be arranged according to customer handling and converting requirements.
The current published lead-time reference is 10–20 days depending on order quantity and specification. Final production and delivery schedule should be confirmed during quotation.
Wooden Case Packing
Pallet Coil Packing
Aluminum Foil Barrier Pouch
To receive an accurate printed flexible packaging proposal, please provide as much of the following information as possible:
Packed product and formulation type
Food, supplement, personal care, pharmaceutical, household or industrial application
Required laminate structure
Aluminum foil thickness
Total laminate thickness
Required width and tolerance
Roll length
PE, CPP or PP sealant
Required OTR
Required WVTR
Target commercial shelf life
Filling temperature
Storage temperature and humidity
Hot-fill, pasteurization, retort or sterilization process, if applicable
Required seal initiation temperature
Sealing temperature, pressure and dwell time
Required seal strength
Required hot-tack performance
Required interlayer peel strength
Puncture or tear requirements
Required inside and outside COF
Stand-up pouch, sachet, side-gusset, quad-seal, zipper or rollstock format
Packaging-machine manufacturer and model
VFFS, HFFS or pouch-making process
Line speed
Gravure printing color count
Artwork files and approved color references
Glossy, matte, metallic or soft-touch finish
Print repeat and eye-mark specification
Print registration tolerance
Ink-adhesion requirement
Rub-resistance requirement
Residual-solvent limit
Food-contact or product-contact documentation
Pharmaceutical packaging requirements, if applicable
Core inner diameter
Maximum roll outside diameter
Maximum roll weight
Winding direction
Maximum number of splices
Order quantity
Destination country or delivery port
Send Your Printed Film Specifications
It is a multilayer flexible packaging laminate combining printable polymer film, aluminum foil and a heat-sealing layer for applications requiring custom graphics and high barrier performance.
The current range includes PET/AL/PE, PET/AL/CPP, PET/AL/PA/PE, PET/AL/EVOH/PE and customized structures.
The current published aluminum foil thickness range is 6μm to 25μm.
The current published total laminate range is 60μm to 220μm.
The current product range covers finished widths from 100mm to 2000mm, subject to laminate structure and production feasibility.
The current specification supports gravure printing up to 10 colors.
Yes. Custom graphics, logos, text, brand colors and product information can be printed according to artwork, print-process and registration requirements.
Yes. Glossy, matte, metallic and soft-touch surface options are listed in the current product range, subject to coating and printing compatibility.
An intact aluminum layer provides extremely strong oxygen barrier performance, but finished-package performance can also be affected by pinholes, flex cracks, folds, seals and pouch damage.
Yes, where barrier performance is important. Numerical targets should include the relevant test conditions so different materials can be compared consistently.
No. Packaging supports a shelf-life target, but final stability also depends on product characteristics, filling conditions, residual oxygen, seal integrity and storage environment.
Suitable rollstock can be developed for VFFS, HFFS and pouch-making lines. Seal window, COF, roll dimensions, web flatness and print registration should match the specific equipment.
COF affects web movement through rollers, forming collars, guides and sealing equipment. Incorrect friction can cause feeding or tracking problems on high-speed lines.
Seal initiation temperature is the temperature at which the sealant begins to form a defined bond under specified sealing conditions. The exact value depends on sealant chemistry and test conditions.
Hot tack describes the strength of a newly formed heat seal before it has fully cooled. It can be particularly important on high-speed vertical packaging lines.
No. Finished-package leakage can also result from channels, folds, punctures, spouts, damaged film or incomplete seals. Complete pouch integrity should be validated separately.
Peel strength measures the bond between specified layers of the laminate. The required value should identify the layer pair, conditioning and test method.
Residual printing or lamination solvents can affect odor, product compatibility and regulatory requirements. Limits can be agreed where they are relevant to the packaged product.
Suitable food-contact structures can be developed, but the complete laminate including polymers, adhesives, inks and sealant must be appropriate for the intended food and use conditions.
No. The complete packaging construction and all relevant food-contact substances should be reviewed for the intended market and application.
Selected structures can be developed for pharmaceutical applications, but general commercial laminate should not automatically be treated as qualified primary drug packaging. The actual container-closure system must be evaluated for the specific drug product.
Medical-device packaging can require additional seal-integrity, sterilization and microbial-barrier validation. These requirements should be specified separately.
Yes, compatible structures can be evaluated for cosmetics and personal care. Alcohol, fragrance oils, essential oils and surfactants should be considered in product-contact compatibility testing.
Not automatically. Retort processing requires a qualified retort-grade laminate construction, adhesive, ink and sealant system together with post-retort performance testing.
The reinforced structure can be evaluated for compatible vacuum applications, but puncture resistance, seal integrity, product geometry and shelf-life requirements should be validated.
Yes, compatible laminates can be converted into zipper pouches where zipper resin, sealant layer and pouch-making process are matched.
Yes. Width, roll length, core size, outside diameter, roll weight, winding direction and splice requirements can be customized according to production feasibility.
Sample availability can be confirmed according to laminate structure, thickness, printing, finish and sealant requirements. Machine trials and product compatibility testing are recommended before commercial approval.
Please provide packed product, required structure, foil and total thickness, width, OTR/WVTR targets, seal requirements, pouch format, machine type, printing artwork, finish, regulatory requirements, roll configuration, quantity and destination.
Products
Application
Quick links
Contact Us
