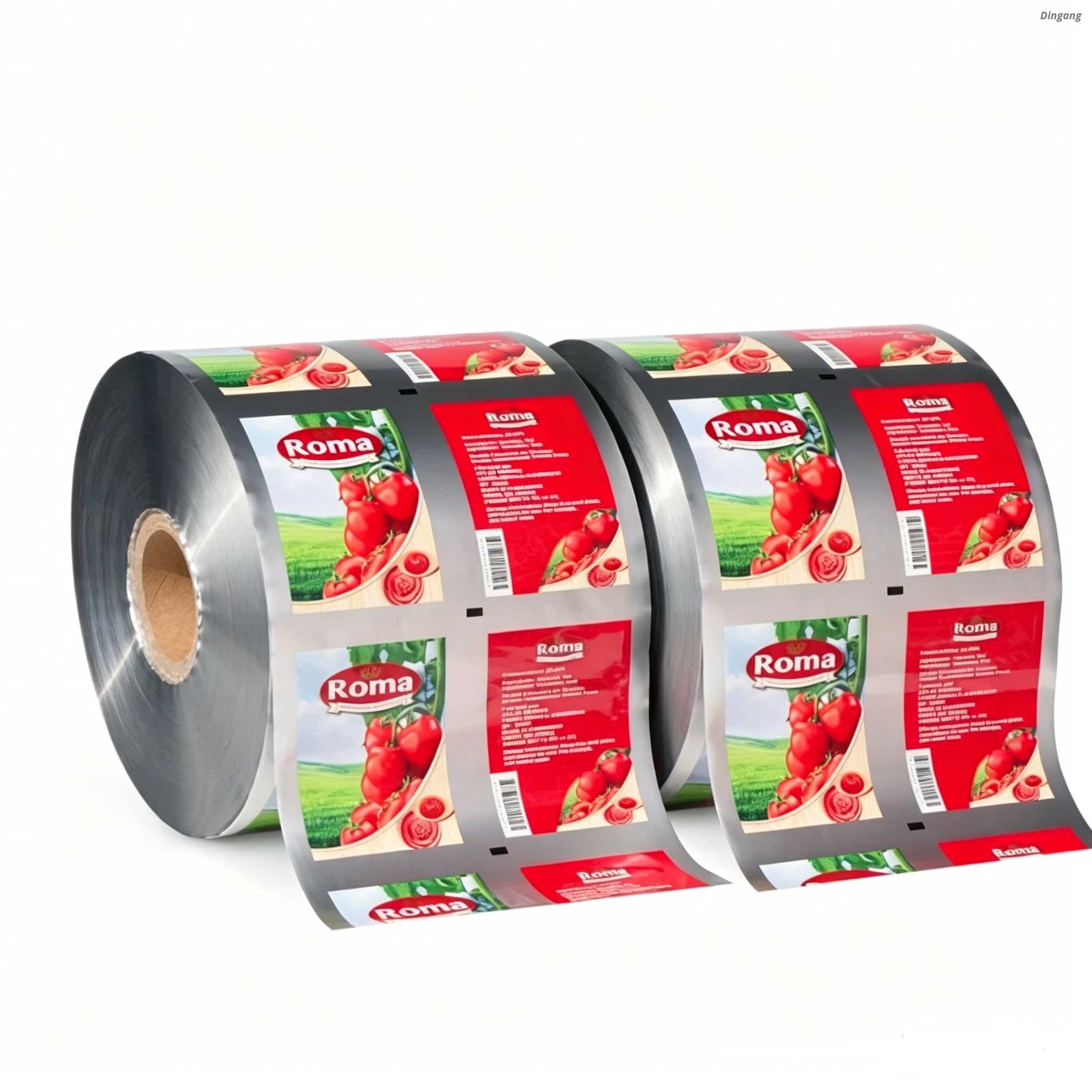

Printable Aluminum Barrier Packaging Film for Custom Printed Flexible Packaging & Premium Brand Applications

Printable aluminum barrier packaging film for converters and premium brands, with PET/AL/PE, PET/AL/CPP and PA-reinforced structures, 6-25μm foil, gravure printing, custom finishes and rollstock.
  • Aluminum Laminated foil

  • Dingang

Availability:
Quantity:

Printable Aluminum Barrier Film for Flexible Packaging

Printable aluminum barrier packaging film is a multilayer flexible laminate developed for packaging converters, printing companies and brand owners requiring high-quality graphics together with strong oxygen, moisture, light and aroma barrier performance.

Typical structures include PET/AL/PE, PET/AL/CPP, PET/AL/PA/PE and customized PET/AL/EVOH/PE laminates. The current product range uses aluminum foil from 6μm to 25μm, total laminate thicknesses from 60μm to 220μm and finished widths from 100mm to 2000mm.

The printable surface can support customized gravure graphics up to 10 colors, with glossy, matte and metallic finishes available. Surface treatment, ink system, artwork registration, laminate construction and sealant should be matched to the final printing, converting and packaging process.

                   Request Printable Barrier Film Pricing

Technical Specifications

Item Published / Available Specification Purchasing Consideration
Product Type Printable aluminum barrier packaging film For printing, laminating, pouch conversion and flexible packaging rollstock
Typical Structures PET/AL/PE, PET/AL/CPP, PET/AL/PA/PE, PET/AL/EVOH/PE, customized Select according to barrier, printing, product compatibility, puncture and sealing requirements
Aluminum Foil Thickness 6μm–25μm Foil gauge influences pinhole robustness, flex resistance, barrier and cost
Total Thickness 60μm–220μm Select according to pouch size, fill weight, mechanical exposure and machine process
Width 100mm–2000mm Custom slitting according to printing, laminating or packaging equipment
Roll Length Customized Specify core ID, OD, roll weight, winding direction and splice limits
Surface Finish Glossy / Matte / Metallic Approve physical surface and printed samples before production
Printing Method Gravure printing up to 10 colors Specify artwork, colors, printing side, repeat and registration requirements
Printing Adhesion Printing-ready treated surface available Ink adhesion should be qualified with the actual ink, primer, coating and curing system
Heat-Seal Layer PE / CPP / PP Select according to filling product, sealing temperature and equipment
Oxygen Barrier High-barrier aluminum-containing structure Specify numerical OTR and test conditions where controlled
Moisture Barrier High-barrier aluminum-containing structure Specify numerical WVTR and test conditions where controlled
Food-Contact Structures Available where specified Documentation must match the exact polymer, adhesive, ink, sealant, food and conditions of use
Customization OEM / ODM supported Structure, graphics, finish, roll format and performance requirements can be customized subject to feasibility

For packaging converters, printability should be specified together with the surface treatment, printing side, ink system, registration, friction, roll geometry and downstream lamination or pouch-making process.

                   Get Technical Data & Print Samples

Printing-Ready Surface

A printable flexible laminate requires more than a visually smooth surface. Ink wetting, anchorage, drying, curing and downstream lamination all depend on the surface condition presented to the printing process.

Printing Side

The order should identify which surface will be printed and whether the graphics will be reverse printed before lamination or surface printed on the finished laminate.

Surface Treatment

The printable surface should provide sufficient and stable wetting for the selected ink, primer or coating. Where a minimum surface-energy value is required, the test method, treated side and timing of measurement should be stated.

Primer Compatibility

Some printing and lamination systems use primers to improve ink anchorage or adhesive bonding. Primer chemistry should be compatible with the substrate, inks, adhesives and final package requirements.

Surface Cleanliness

Oil, dust, silicone, blocking additives or other contamination can interfere with printing and lamination. Clean surface handling is therefore important before conversion.

Up to 10-Color Gravure Printing

The current product specification supports gravure printing with up to 10 colors for customized flexible packaging graphics.

High-Definition Graphics

Gravure printing can reproduce detailed images, fine text, gradients, product photography and brand elements when cylinder engraving, inks, substrate and press conditions are appropriately controlled.

Print Registration

Multicolor artwork requires accurate alignment between print stations. Buyers should specify acceptable color-to-color registration and print-to-cut tolerance where required.

Print Repeat

The artwork repeat should match pouch dimensions, sealing geometry and the packaging-machine registration system.

Eye Mark

Automatic packaging rollstock can require printed registration marks for photocell detection. Eye-mark dimensions, position, contrast and pitch should be provided with the artwork specification.

Reverse Printing vs Surface Printing

Printing Construction Characteristics Selection Direction
Reverse Printing Ink is printed on the inner surface of a transparent outer film and protected after lamination Useful where graphics require protection from abrasion and direct handling
Surface Printing Ink remains exposed on the outside surface Requires appropriate ink adhesion, rub resistance and overprint protection where necessary

Color Management

Physical Color Approval

Screen and office-printer colors can differ significantly from production gravure printing. Brand-critical projects should approve a physical color reference or production-representative printed sample.

Color Difference

Where color consistency is contractual, the buyer can define an agreed color space, illuminant, observer and permitted color-difference tolerance.

Metallic Background Effects

The aluminum barrier layer can influence the appearance of printed colors when the package design intentionally uses transparent or partially opaque inks to create metallic effects.

Ink Adhesion and Rub Resistance

Printing adhesion depends on the printable surface, primer, ink chemistry, drying or curing conditions and any subsequent laminate or protective coating.

Ink Adhesion Testing

Where print adhesion is critical, an agreed tape, rub or other applicable test should be used instead of relying only on a visual statement that adhesion is excellent.

Rub and Abrasion Resistance

Surface-printed materials can experience rubbing during winding, pouch conversion, filling, cartoning and distribution. Representative abrasion performance should be specified where graphics remain exposed.

Residual Solvent and Odor Control

Solvent-based gravure inks and some lamination systems require adequate drying and curing before the material is converted or used for product packaging.

Where odor-sensitive food, nutraceutical, cosmetic or pharmaceutical products are packed, residual-solvent requirements can be specified by analyte, method and maximum permitted value.

Glossy, Matte and Metallic Finishes

Glossy Finish

Glossy surfaces can provide strong color saturation and high visual contrast for consumer packaging.

Matte Finish

Matte surfaces reduce reflected glare and can create a lower-gloss appearance for premium product positioning. Target gloss should be defined where consistency is important.

Metallic Finish

Metallic visual effects can be developed using the aluminum background together with appropriate artwork and ink opacity. Final appearance should be approved on production-representative material.

Material Structure Options

Structure Primary Characteristics Typical Selection Direction
PET / AL / PE Printable PET outer layer, aluminum barrier and PE sealant Coffee, dry foods, powders and general high-barrier flexible packaging
PET / AL / CPP Printable PET, aluminum barrier and CPP sealing layer Confectionery, supplements, cosmetic sachets and compatible CPP-seal applications
PET / AL / PA / PE Additional Nylon layer for puncture, flex and mechanical reinforcement Vacuum, frozen or mechanically demanding applications after validation
PET / AL / EVOH / PE Customized structure with additional functional gas-barrier layer Projects requiring a specifically engineered multilayer construction

Aluminum Barrier Performance

The solid aluminum foil layer provides the principal oxygen, moisture, aroma and light barrier in the laminate when the metallic layer remains intact.

OTR

Where oxygen transmission affects product stability, the required OTR should be specified numerically together with temperature, relative humidity and test conditions.

WVTR

For moisture-sensitive products, the required WVTR should be defined numerically rather than described only as an excellent moisture barrier.

Light Protection

An intact aluminum foil layer is opaque and provides strong protection from light transmission through the laminate.

Finished Package Barrier

Barrier results measured on flat laminate do not automatically represent the performance of a fabricated pouch. Folds, flex cracks, seals, fitments and mechanical damage can influence finished-package barrier.

Pinhole and Flex-Crack Control

Thin aluminum foil can contain pinholes and can develop microcracks under repeated flexing or aggressive folding. These effects become increasingly important when very low OTR or WVTR is required.

Where the finished package experiences severe handling, the buyer can specify post-flex barrier testing or select a reinforced PA-containing structure.

Heat-Seal Performance

PE, CPP and PP Sealants

The inner sealant layer should be selected according to the packed product, sealing equipment, filling temperature and required pouch performance.

Seal Initiation Temperature

The seal initiation temperature should be established for the actual sealing layer and test conditions rather than assumed from PE, CPP or PP designation alone.

Operating Seal Window

A practical packaging line requires adequate seal performance across normal changes in jaw temperature, pressure and dwell time.

Hot Tack

Hot-tack performance is particularly important where newly formed seals must carry product weight before cooling, such as on some vertical packaging lines.

Seal Strength

Seal-strength requirements should define sample width, seal temperature, pressure, dwell time, conditioning and test method.

Lamination Bond Strength

Printable aluminum laminate contains multiple interfaces that must remain bonded during printing, pouch making, filling, transportation and storage.

Interlayer Peel Strength

Where delamination resistance is critical, peel strength should identify the tested layer pair, specimen width, conditioning and minimum acceptance value.

Adhesive Cure

Laminating adhesive should receive the required curing time before further conversion or product contact according to the adhesive system and manufacturing process.

Converter Rollstock Requirements

Printable laminate supplied to converters should be specified as a roll product as carefully as the material structure itself.

Core Inner Diameter

Core ID should match the printing, laminating, slitting or packaging-machine unwind system.

Maximum Roll OD

Maximum outside diameter should be specified according to machine clearance, web length and handling limits.

Winding Direction

The required printing face and sealant face should be identified together with winding orientation to prevent incorrect loading at the converting or packaging line.

Splices

Maximum splice quantity, splice type, marker and distance from the roll end can be included in the purchase specification where continuous production is important.

Coefficient of Friction and Web Handling

Surface friction influences printing, laminating, pouch-making and form-fill-seal web handling.

Where machine speed is sensitive to slip level, buyers should specify inside and outside COF rather than relying only on the terms glossy or matte.

Flexible Packaging Formats

  • Stand-up pouches

  • Flat pouches

  • Three-side seal bags

  • Four-side seal sachets

  • Side-gusset bags

  • Quad-seal bags

  • Zipper pouches

  • Vacuum packaging where the selected laminate is qualified

  • Stick packs and sachets

  • VFFS rollstock

  • HFFS rollstock

  • Custom converted packaging formats

Coffee, Tea and Dry Food Packaging

PET/AL/PE and related printed barrier structures can be used for compatible coffee, tea, spices, dry foods and powdered products requiring protection from oxygen, moisture, aroma loss and light.

Coffee Packaging

Coffee pouch design should consider aroma barrier, residual headspace oxygen, degassing requirements, valve installation and seal integrity in addition to laminate OTR.

Powder Packaging

Fine powders can contaminate sealing areas. Packaging trials should therefore evaluate seal-through-powder behavior where product dust is likely to enter the seal zone.

Confectionery Packaging

Printable aluminum laminates can be converted into compatible confectionery and snack pouches requiring custom graphics and high barrier.

Chocolate, nuts and oil-rich products should be evaluated for compatibility with the sealant, adhesives and other product-contact components.

Frozen and Vacuum Packaging

PA-reinforced aluminum laminates can be evaluated for selected frozen or vacuum packaging applications requiring additional puncture and flex resistance.

Actual suitability depends on low-temperature flexibility, product geometry, sealing requirements, puncture exposure and distribution conditions.

Nutraceutical Packaging

High-barrier printable laminates can be developed for compatible vitamin, probiotic, protein powder and dietary-supplement sachets and pouches.

The barrier requirement should be selected according to the actual formulation, moisture sensitivity, oxygen sensitivity and intended shelf-life conditions.

Food-Contact Requirements

Food-contact suitability should be assessed for the complete package construction rather than from the presence of aluminum foil alone.

Relevant components include:

  • PET, PA, PE, CPP, PP or EVOH layers

  • Aluminum foil

  • Laminating adhesives

  • Printing inks

  • Primers

  • Overprint coatings

  • Heat-seal layer

European Union Market

For food-contact use in the European Union, the finished material should meet the applicable general food-contact and Good Manufacturing Practice requirements. Material-specific requirements should also be reviewed for the polymer, coating and other functional layers used.

United States Market

For U.S. applications, the regulatory basis for the applicable polymers, adhesives, coatings, colorants and other food-contact substances should correspond to their intended food and conditions of use.

Pharmaceutical and Healthcare Packaging

Printable aluminum barrier laminates can be developed for selected healthcare and pharmaceutical packaging, but a general commercial laminate should not automatically be treated as qualified primary drug packaging.

The required container-closure system should be qualified for the specific drug product, dosage form, contact conditions and applicable regulatory requirements.

Pharmaceutical Powders and Sachets

Where a laminate is intended for a pharmaceutical powder or unit-dose sachet, barrier performance, seal integrity, compatibility and migration requirements should be defined for the actual formulation.

Medical Device Packaging

Medical-device packaging may require sterilization compatibility, microbial-barrier performance and validated seal integrity that should be specified separately from ordinary commercial packaging requirements.

Cosmetics and Personal Care Packaging

Printable barrier film can be used for compatible facial-mask sachets, shampoo samples, creams, gels, lotion packs and refill pouches requiring premium graphics and light or oxygen protection.

Fragrance oils, alcohol, surfactants and active ingredients can influence sealants and adhesives, so the final laminate should be tested with the actual formulation.

Household and Consumer Products

Customized printable aluminum laminates can be evaluated for compatible household and consumer products requiring printed presentation and environmental barrier protection.

Cleaning liquids, solvent-containing products and aggressive formulations require product-contact compatibility testing with the actual sealant and laminate adhesive system.

Industrial and Electronics Packaging

Printable aluminum laminate can provide branding, handling instructions and barrier protection for compatible industrial components and moisture-sensitive products.

Where electronics require ESD, static-dissipative or specialized moisture-barrier packaging, these electrical properties should be specified separately. Standard printable aluminum laminate should not automatically be treated as ESD-qualified packaging.

Retort and High-Temperature Processing

The general printable aluminum laminate described on this page should not automatically be treated as suitable for retort, pasteurization, sterilization or hot-fill processes.

High-temperature applications require appropriate adhesives, inks and sealants together with qualification for the actual process temperature, pressure and dwell time.

Shelf-Life Validation

A high-barrier laminate can support the target shelf life of a packaged product, but the material alone does not establish commercial shelf life.

Product sensitivity, OTR, WVTR, seal integrity, residual oxygen, filling conditions, storage temperature, humidity and distribution all influence final package performance.

Quality Control for Printable Laminate

Inspection Item What to Confirm
Laminate Structure Exact layer construction and material identification
Aluminum Thickness Required 6–25μm foil gauge and tolerance
Total Thickness Required 60–220μm laminate gauge and tolerance
Width Finished width and slitting tolerance
Printable Surface Printing side, surface treatment and cleanliness requirements
Ink Adhesion Test with the intended ink / primer system where required
Print Registration Color-to-color and print-to-cut tolerance
Color Difference Approved physical reference and agreed measurement criteria
Rub Resistance Applicable abrasion requirement for surface-printed graphics
Residual Solvent Specified analytes and limits where applicable
Lamination Peel Strength Layer pair, conditioning and minimum required value
OTR Numerical target and test environment
WVTR Numerical target and test environment
Seal Strength Sealant, sealing conditions and test method
COF Inside / outside friction where converter or packer requires controlled slip
Roll Quality Core, OD, winding, telescoping, edge alignment and splice limits

Packaging and Delivery

Printable aluminum barrier film can be supplied in roll form with moisture-resistant export packaging according to roll size, weight and downstream converting requirements.

Eye-to-sky or eye-to-wall packaging can be arranged according to handling and converting equipment.

The current published lead-time reference is 10–20 days depending on structure, printing, quantity and production schedule. Final delivery timing should be confirmed during quotation.

Wooden case packing for printable aluminum barrier packaging film

Wooden Case Packing

Pallet coil packing for printable aluminum barrier laminate rollstock

Pallet Coil Packing

Printable aluminum foil barrier pouch material for flexible packaging

Aluminum Foil Barrier Pouch

Information Required for a Quotation

For an accurate printable aluminum barrier film quotation, please provide as much of the following information as possible:

  • Final packed product

  • Packaging converter or finished packaging application

  • Required PET/AL/PE, PET/AL/CPP, PET/AL/PA/PE or custom structure

  • Required aluminum foil thickness

  • Required total thickness

  • Finished width and tolerance

  • Printing side

  • Reverse or surface printing

  • Required surface treatment

  • Ink and primer system, if already specified

  • Number of gravure colors

  • Artwork files

  • Approved color references

  • Print registration tolerance

  • Print repeat

  • Eye-mark size and position

  • Glossy, matte or metallic finish

  • Ink-adhesion requirement

  • Rub-resistance requirement

  • Residual-solvent limits

  • Required OTR

  • Required WVTR

  • PE, CPP or PP sealant requirement

  • Seal initiation temperature

  • Required seal window

  • Hot-tack requirement

  • Required seal strength

  • Required lamination peel strength

  • Inside and outside COF

  • Puncture or tear requirements

  • VFFS, HFFS, pouch-making or other converting process

  • Machine manufacturer and model

  • Production-line speed

  • Core inner diameter

  • Maximum roll outside diameter

  • Maximum roll weight

  • Winding direction

  • Maximum permitted splices

  • Food-contact or other product-contact documentation

  • Retort, hot-fill, sterilization or special process requirements

  • Order quantity

  • Destination country or delivery port

                   Send Your Printable Film Specifications

FAQ

What is printable aluminum barrier packaging film?

It is a multilayer aluminum foil laminate designed to support custom printing while providing oxygen, moisture, aroma and light barrier for compatible flexible packaging applications.

What is the difference between printable film and printed packaging film?

Printable film emphasizes the substrate, surface treatment and converter compatibility required for printing and downstream conversion. Printed packaging film refers to material that has already received the required graphics and printing construction.

What structures are available?

The current product range includes PET/AL/PE, PET/AL/CPP, PET/AL/PA/PE, PET/AL/EVOH/PE and customized multilayer structures.

What aluminum foil thickness is available?

The current published aluminum foil range is 6μm to 25μm.

What total laminate thickness is available?

The current published total laminate thickness is 60μm to 220μm.

What width can be supplied?

The current width range is 100mm to 2000mm, subject to laminate construction and converting requirements.

How many gravure colors are available?

The current product specification supports gravure printing up to 10 colors.

Can the laminate be supplied for reverse printing?

Suitable constructions can be configured for reverse printing where the graphics are printed on the inner face of the outer transparent film before lamination. The required printing side should be identified when ordering.

Can surface printing be used?

Yes, where the selected printing construction is suitable. Ink adhesion, abrasion resistance and any required protective varnish should be validated for exposed graphics.

How should printability be specified?

Specify the printing side, surface-treatment requirement, intended ink and primer system, printing process, adhesion requirement and downstream lamination conditions.

Does a printable surface guarantee ink adhesion with every ink?

No. Adhesion depends on surface condition, ink chemistry, primer, drying or curing and the final coating or lamination construction.

Can brand colors be matched?

Custom brand-color matching can be discussed according to physical color references and production capability. Printed sample approval is recommended before bulk production.

Can metallic graphics be produced?

Metallic effects can be developed using suitable ink opacity and the appearance of the aluminum-containing laminate. Final appearance should be approved from physical samples.

Why is print registration important?

Registration controls alignment between multiple colors and between printed graphics, cutting and sealing positions. Poor registration can affect appearance and pouch conversion.

Why are eye marks important?

Automatic packaging machines use registration marks to control cutting and sealing positions. Their dimensions, color, contrast and location should match the machine's sensor system.

Should residual solvents be controlled?

Yes, where solvent-based inks or adhesives are used and odor, food contact or product compatibility is important. Required limits should be specified numerically.

Does the aluminum layer provide an absolute oxygen barrier?

An intact aluminum foil layer provides extremely strong oxygen barrier, but pinholes, flex cracks, folds, seals and pouch damage can affect finished-package performance.

Should OTR and WVTR be specified?

Yes. Numerical OTR and WVTR targets with defined test conditions are more useful for procurement than general descriptions such as excellent barrier.

Can the film be used on VFFS and HFFS machines?

Suitable rollstock can be configured for VFFS and HFFS equipment. COF, sealing window, hot tack, roll geometry and registration should match the specific machine.

Can it be used for food packaging?

Suitable food-contact structures can be developed, but all relevant polymers, adhesives, inks, coatings and sealants must be appropriate for the intended food and conditions of use.

Can it be used for pharmaceutical packaging?

Selected structures can be evaluated for pharmaceutical use, but general printable aluminum laminate should not automatically be treated as qualified primary drug packaging.

Can it be used for medical-device packaging?

Medical-device packaging can require specific sterilization, microbial-barrier and seal-integrity validation beyond ordinary flexible-packaging requirements.

Can the laminate be used for retort packaging?

Not automatically. Retort packaging requires suitable retort-grade adhesives, inks and sealants together with validation at the required processing temperature, time and pressure.

Can PET/AL/PA/PE be used for vacuum packaging?

It can be evaluated for compatible vacuum packaging because the PA layer can improve mechanical durability, but seal integrity, puncture resistance and product geometry should be validated.

Can custom roll dimensions be supplied?

Yes. Width, roll length, core size, OD, roll weight, winding direction and splice requirements can be customized subject to production capability.

Can samples be supplied for printing trials?

Sample availability can be confirmed according to laminate structure, gauge, surface treatment and finish. Converter printing and machine trials are recommended before commercial approval.

What information should I provide for a quotation?

Please provide laminate structure, foil gauge, total thickness, width, printing side, surface-treatment requirement, artwork, printing colors, registration, finish, OTR/WVTR, sealing requirements, COF, roll configuration, application, quantity and destination.

                   Contact Us for Printable Film Samples & Pricing

Previous:
Next:

Product Category

Related Products

Consult Us To Get Your Customized Aluminum Solution

We help you specify and source the coated aluminum you need, on time and within budget.

Products

Application

Quick links

Follow Us

Contact Us

    joey@cnchangsong.com
    +86-18602595888
   Building 2, Zhixing Business Plaza, No.25 North Street, Zhonglou District, Changzhou City, Jiangsu Province, China
    Chaoyang road, Konggang economic development area, Lianshui, Huai'an city, Jiangsu,China
© COPYRIGHT 2026 CHANGZHOU DINGANG METAL MATERIAL CO., LTD. ALL RIGHTS RESERVED.
