Aluminum Laminated foil
Dingang
| Availability: | |
|---|---|
| Quantity: | |

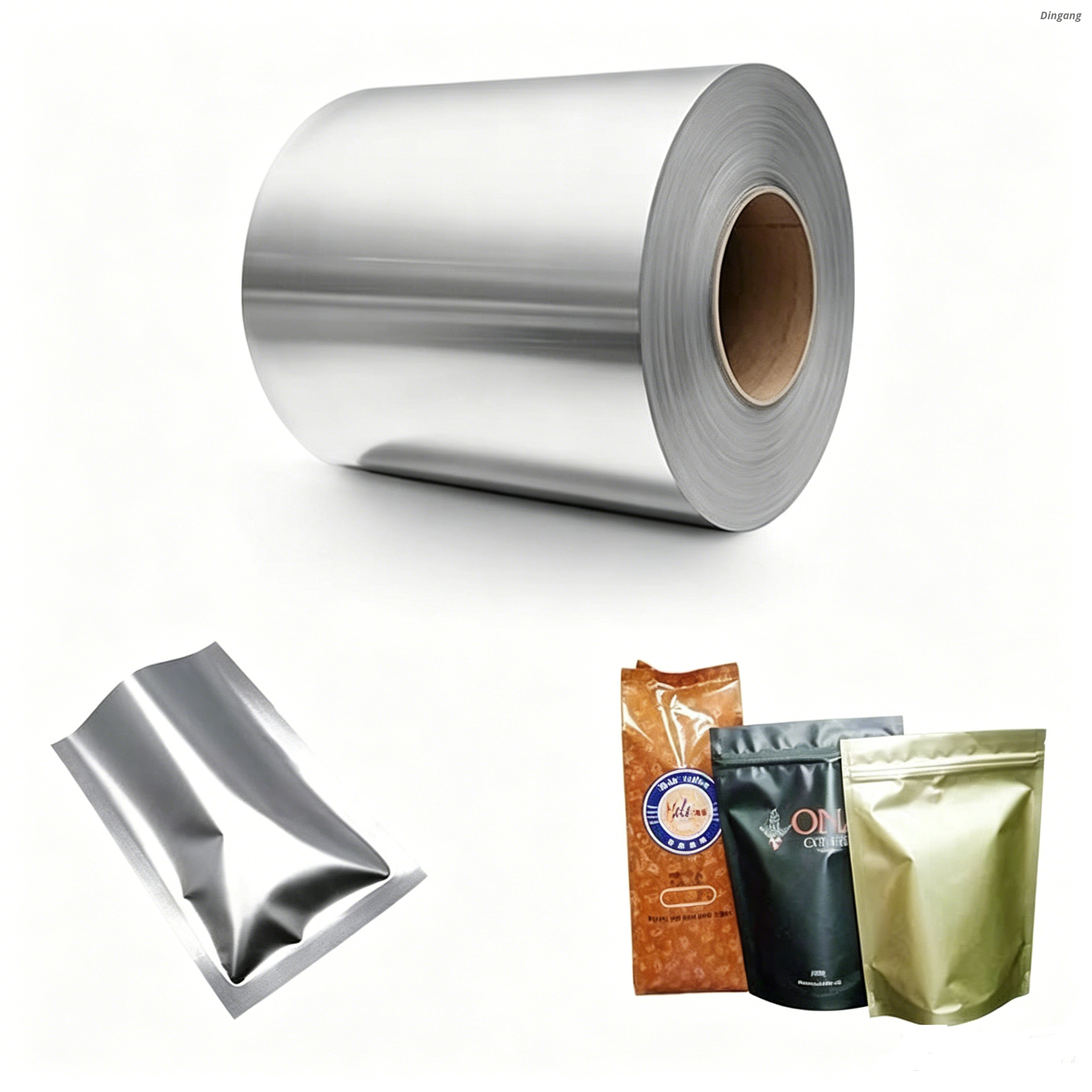

Aluminum plastic film for pouch production is a multilayer flexible barrier laminate developed for packaging converters producing stand-up pouches, flat pouches, three-side seal bags, zipper pouches, spouted pouches, side-gusset bags, quad-seal bags and other custom flexible packaging formats.
Typical structures include PET/AL/PE, PET/AL/CPP, PET/AL/PA/PE and customized PET/AL/EVOH/PE constructions. The aluminum foil layer provides strong light, oxygen and moisture barrier performance, while the polymer layers provide printability, mechanical reinforcement, heat sealing and product-contact functions.
The current product range includes aluminum foil from 6μm to 25μm, total laminate thicknesses from 60μm to 220μm and finished widths from 100mm to 2000mm. Roll dimensions, sealing layer, surface finish, printing and mechanical properties can be customized according to pouch design and converting equipment.
Request a Pouch Film Quotation
| Item | Published / Available Specification | Pouch-Making Consideration |
|---|---|---|
| Product Type | Aluminum plastic laminate film for pouch production | For rollstock conversion into multiple flexible pouch formats |
| Typical Structures | PET/AL/PE, PET/AL/CPP, PET/AL/PA/PE, PET/AL/EVOH/PE, customized | Select according to barrier, puncture, sealing, filling and pouch geometry |
| Aluminum Foil Thickness | 6μm–25μm | Foil gauge affects barrier robustness, flex-crack behavior, cost and pouch durability |
| Total Thickness | 60μm–220μm | Select according to pouch size, fill weight, stiffness and mechanical exposure |
| Width | 100mm–2000mm | Custom slitting according to pouch-making or FFS machine requirements |
| Roll Length | Customized | Specify core ID, roll OD, weight, winding direction and splice limits |
| Surface Finish | Glossy / Matte | Finish should be compatible with printing, pouch handling and COF requirements |
| Printing | Up to 10-color gravure printing | Specify artwork, print repeat, registration, eye mark and winding orientation |
| Heat-Seal Layer | PE / CPP / PP | Match product chemistry, pouch format and sealing equipment |
| Oxygen Barrier | High-barrier aluminum-containing structure | Specify OTR and test conditions where critical |
| Moisture Barrier | High-barrier aluminum-containing structure | Specify WVTR and test conditions where critical |
| Puncture Resistance | Application-specific | PA-reinforced structures can be considered for demanding pouches |
| Food-Contact Structures | Available where specified | Complete laminate must match the intended food and conditions of use |
| Customization | OEM / ODM supported | Structure, roll dimensions, printing and pouch-converting requirements can be customized subject to feasibility |
The appropriate pouch laminate should be selected from the complete packaging requirement rather than from total thickness alone. Pouch geometry, product chemistry, filling temperature, storage conditions, sealing equipment and distribution loads can all change the required material construction.
Get Technical Data & Pouch Samples
| Structure | Primary Characteristics | Typical Selection Direction |
|---|---|---|
| PET / AL / PE | Printable PET outer layer, aluminum barrier and PE sealant | Dry foods, powders, coffee and general high-barrier pouches |
| PET / AL / CPP | Printable PET, aluminum barrier and CPP sealing layer | Selected confectionery, supplements, personal-care and CPP-seal applications |
| PET / AL / PA / PE | PA reinforcement for puncture, impact and flex resistance | Heavy products, vacuum pouches, demanding transportation and larger pouch formats after validation |
| PET / AL / EVOH / PE | Customized multilayer barrier construction | Applications requiring a specifically engineered additional functional barrier layer |
| Custom Structure | Layer construction developed around pouch requirements | Custom pouch shape, filling method, barrier or mechanical requirements |
Stand-up pouches require a laminate that can form stable front, back and bottom-gusset panels while maintaining reliable seals around the gusset intersections.
The bottom gusset expands when the pouch is filled, creating the base that allows the package to stand on a shelf. Material stiffness, thickness and gusset geometry influence the final stance of the pouch.
Areas where multiple film layers overlap can require more heat and pressure than simple two-layer seals. Pouch trials should therefore evaluate seal integrity at the bottom corners and gusset transitions.
Shelf presentation depends partly on laminate stiffness. The appropriate structure should balance standing performance with folding, sealing and consumer handling requirements.
Flat pouches and three-side seal bags provide a compact packaging format for powders, seasonings, dry products, supplements and other compatible goods.
The laminate should provide sufficient seal strength along the side and bottom seams while maintaining the required tear, barrier and printing performance.
Seal width should be selected according to pouch dimensions, product weight, sealant and filling conditions. Wider seals do not automatically compensate for poor sealing parameters or contamination.
Tear notches, laser scoring or other opening features can be evaluated according to laminate structure and converting capability.
Resealable pouches require compatibility between the pouch laminate, zipper profile and sealing system.
The zipper material should be compatible with the inner sealant layer so the zipper flange bonds consistently without excessive heat damaging the surrounding laminate.
Pre-made zipper pouches commonly require a final top seal after filling. Seal settings should account for the zipper area, film thickness and product contamination risk.
Zipper opening and closing performance should be evaluated separately from laminate barrier. Reclose convenience does not automatically restore the original hermetic seal after the pouch has been opened.
Spouted pouches add a rigid fitment to the flexible laminate and therefore require additional compatibility between the film, sealant and spout flange.
The spout material should be compatible with the pouch sealant layer. PE-based and PP-based fitments generally require matching seal-system design.
The flange shape affects film contact, heat transfer and sealing pressure. Fitment dimensions and sealing parameters should be validated on the actual pouch-making equipment.
The fitment-to-film interface should be included in leak, burst, drop and transportation testing because it can experience concentrated stress during filling and consumer use.
Side-gusset and quad-seal formats can increase package volume and provide broad front and side panels for branding.
These formats contain multiple folds and seal intersections, so material stiffness, flex resistance, registration and sealing consistency should be evaluated on the actual pouch design.
A laminate suitable for a small sachet is not automatically suitable for a large pouch carrying several kilograms of product.
Increasing pouch size or fill weight can increase stress on seals, gussets, spouts and film surfaces. Larger formats can therefore require greater total thickness, stronger sealants or additional PA reinforcement.
Heat-seal performance is one of the most important factors in successful pouch production. PE, CPP and PP sealing layers have different temperature and product-compatibility characteristics.
Seal initiation temperature is the point at which the sealant begins to achieve the specified bond under defined pressure and dwell time. It should be established for the exact material rather than assumed from the polymer name alone.
A practical pouch-making or packing process benefits from a sealing window that maintains acceptable seal strength across normal variations in jaw temperature, pressure and dwell time.
Hot tack measures the strength of a seal while it is still hot. It can be important on form-fill-seal equipment where product load acts on the newly formed seal before cooling.
Seal-strength requirements should identify the sealant, sealing temperature, pressure, dwell time, sample width, conditioning and test method.
Powders, oils, liquids and food particles can contaminate the seal zone during filling and reduce seal continuity.
Where seal contamination is likely, pouch trials should reproduce realistic filling conditions rather than testing only perfectly clean laboratory seals.
Material seal strength alone does not establish the integrity of a complete pouch. Finished package testing should reflect the pouch format and intended distribution environment.
| Test Area | Purpose |
|---|---|
| Seal Peel Strength | Measures strength and consistency of a defined seal |
| Leak Test | Detects gross seal, pouch or fitment leakage using an appropriate method |
| Burst / Creep | Evaluates complete package behavior under internal pressure |
| Drop Test | Evaluates pouch, gusset, zipper or spout durability under impact |
| Compression / Stack Test | Assesses packaging performance under warehousing or transport loads where applicable |
| Product Compatibility Storage | Checks changes in laminate, sealant, adhesive or package integrity during contact |
Where oxygen affects product quality, the required OTR should be specified numerically with the applicable temperature, relative humidity and test conditions.
For moisture-sensitive products, the required WVTR should be defined numerically rather than only described as an excellent moisture barrier.
An intact aluminum foil layer is opaque and provides strong resistance to light and aroma transmission through the material.
Barrier values measured on flat laminate do not automatically represent the final pouch. Flex cracks, seals, spouts, zipper areas and pouch damage can create additional transmission paths.
Thin aluminum foil can contain pinholes and can develop microcracks under repeated flexing or sharp folding.
Stand-up gussets, side folds and repeated pouch handling can locally flex the aluminum layer. Where extremely low OTR or WVTR is required after distribution, post-flex barrier testing can be included in pouch qualification.
Sharp product edges, hard particulates, frozen foods, bones, equipment parts or spout components can concentrate stress on flexible pouch material.
PET/AL/PA/PE structures can be evaluated where additional puncture and flex resistance is required. The required mechanical performance should be established with the actual product and pouch geometry.
The interfaces between PET, aluminum foil, PA, EVOH and the sealant layer must remain stable throughout pouch making, filling, distribution and storage.
Where delamination resistance is important, specify peel strength for the relevant layer pair together with conditioning and test method.
Laminating adhesive should receive sufficient cure time before pouch making, filling or product contact according to the adhesive system and processing conditions.
Stable conversion requires consistent film geometry as well as suitable mechanical and sealing properties.
COF affects web feeding through rollers, forming sections, guides and pouch-making stations. Inside and outside friction can be specified where machine speed is sensitive to slip level.
Good flatness helps maintain stable tracking, pouch dimensions, print registration and sealing alignment.
Telescoping, excessive roll hardness, wrinkles or poor edge alignment can affect high-speed conversion. Roll construction should match the customer's unwind system.
Where continuous production is important, buyers can specify maximum splice quantity, splice construction, marker and minimum distance from the roll ends.
Up to 10-color gravure printing is available for customized pouch graphics according to the current product specification.
Print repeat must match the pouch length, seal geometry, gusset position and cutting cycle.
Graphics, tear notches, zipper locations and cut positions should remain within the agreed registration tolerance.
Where photocell registration is used, eye-mark size, position, color and contrast should match the machine sensor.
Suitable laminate structures can be developed for snacks, coffee, tea, spices, grains, powders, confectionery and other dry products requiring high-barrier flexible packaging.
Coffee packaging should consider oxygen and aroma barrier, degassing requirements, valve installation, residual headspace oxygen, seal integrity and pouch format.
Fine powder can contaminate sealing areas, so seal-through-contamination behavior should be evaluated where powder is likely to enter the seal zone during filling.
Compatible aluminum laminate structures can be developed for selected sauces, purees, condiments, personal-care liquids and other liquid or semi-liquid products.
Liquid-package suitability depends strongly on sealant compatibility, adhesive stability, pouch integrity and the actual product chemistry.
Acids, oils, alcohol, surfactants, fragrances, solvents and other ingredients can interact differently with PE, CPP, PP and laminate adhesives. Representative storage testing should be performed for demanding formulations.
PA-reinforced structures can be evaluated for selected frozen, meat, seafood or vacuum pouch applications requiring additional mechanical resistance.
Low-temperature flexibility, puncture exposure, product edges, vacuum stress and seal integrity should be tested with the actual finished pouch.
Food-contact suitability applies to the complete pouch laminate rather than only the aluminum foil layer.
Relevant components can include:
PET, PA, PE, CPP, PP or EVOH layers
Aluminum foil
Laminating adhesives
Printing inks
Primers and coatings
Sealant layer
Zipper or spout components where applicable
Documentation should correspond to the actual packed food, filling temperature, storage conditions, contact time and destination market.
Aluminum barrier pouches can be developed for compatible vitamins, protein powders, probiotics and dietary supplements where strong moisture or oxygen protection is required.
Barrier selection should be based on the actual formulation, hygroscopicity, oxygen sensitivity and intended shelf-life conditions.
Selected aluminum laminate structures can be developed for pharmaceutical or healthcare pouch applications, but general commercial pouch film should not automatically be treated as qualified primary drug packaging.
The actual container-closure system should be evaluated for the specific dosage form, drug product, barrier requirement, compatibility and applicable regulatory requirements.
Medical-device pouches can require sterilization compatibility, validated seal integrity and microbial-barrier performance. These requirements should be specified separately from general commercial pouch production.
Suitable structures can be developed for compatible shampoos, conditioners, creams, gels, lotions, detergents and refill products.
Fragrance oils, alcohol, surfactants, alkaline ingredients and solvents should be considered in compatibility testing because they can influence sealant and adhesive performance.
The general pouch laminate range described on this page should not automatically be treated as retort-grade material.
Retort, pasteurization, hot-fill and sterilization applications require appropriate heat-resistant inks, adhesives and sealant layers together with testing at the actual process temperature, pressure and duration.
Aluminum barrier pouch film can support a required shelf-life target, but final shelf life depends on the packaged product and the complete finished package.
Important factors include product sensitivity, initial product quality, OTR, WVTR, residual oxygen, seal integrity, pouch flexing, storage temperature, humidity, light exposure and distribution conditions.
| Inspection Item | What to Confirm |
|---|---|
| Laminate Structure | Exact polymer / aluminum / adhesive / sealant construction |
| Aluminum Gauge | Required 6–25μm aluminum foil and tolerance |
| Total Thickness | Required 60–220μm construction and tolerance |
| Width | Finished roll width and slitting tolerance |
| OTR | Required numerical value and test conditions |
| WVTR | Required numerical value and test conditions |
| Lamination Peel Strength | Layer pair, conditioning and minimum acceptance result |
| Seal Initiation Temperature | Required SIT for the actual pouch-making or filling process |
| Heat-Seal Strength | Seal temperature, pressure, dwell time and peel method |
| Hot Tack | Performance where hot seals carry product load during high-speed filling |
| Puncture Resistance | Required method for mechanically demanding pouches |
| Tear Resistance | Required MD/CD performance where controlled |
| Coefficient of Friction | Inside and outside COF for machine compatibility |
| Print Registration | Color-to-color and print-to-cut tolerance where printed |
| Surface Appearance | Wrinkles, scratches, delamination, contamination and print defects |
| Roll Quality | Core ID, OD, roll weight, winding, telescoping, edges and splices |

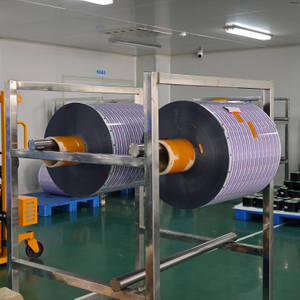

Aluminum plastic pouch film can be supplied in roll form with moisture-resistant export packaging according to roll dimensions, weight and customer handling requirements.
Eye-to-sky or eye-to-wall packing can be arranged according to converter and warehouse requirements.
The current published lead-time reference is 10–20 days depending on structure, printing, dimensions and order quantity. Final production schedule should be confirmed at quotation.
Wooden Case Packing
Pallet Coil Packing
Aluminum Foil Barrier Pouch
For an accurate aluminum plastic film quotation, please provide as much of the following information as possible:
Final packed product
Stand-up, flat, three-side seal, zipper, spouted, gusseted or custom pouch
Required pouch dimensions
Target fill weight or volume
Required laminate structure
Aluminum foil thickness
Total laminate thickness
Finished roll width
PE, CPP or PP sealant requirement
Required OTR
Required WVTR
Required puncture resistance
Required tear resistance
Target commercial shelf life
Filling temperature
Storage temperature
Required seal initiation temperature
Heat-seal temperature range
Seal pressure and dwell time
Required seal strength
Required hot-tack performance
Required interlayer peel strength
Inside and outside COF
Bottom gusset dimensions
Zipper type and resin, where applicable
Spout / fitment material and flange dimensions, where applicable
Tear notch or easy-open requirement
Laser scoring requirement, if applicable
Gravure printing requirement
Artwork and number of colors
Print repeat
Eye-mark dimensions and position
Print registration tolerance
Glossy or matte finish
Pouch-making machine manufacturer and model
VFFS, HFFS, pre-made pouch or dedicated pouch-making process
Production-line speed
Core inner diameter
Maximum roll outside diameter
Maximum roll weight
Winding direction
Maximum permitted splices
Finished-pouch leak, drop or burst test requirements
Food-contact or product-contact documentation
Retort, hot-fill or sterilization conditions, if applicable
Order quantity
Destination country or delivery port
Send Your Pouch Film Specifications
It is a multilayer aluminum foil laminate supplied as rollstock for conversion into stand-up, flat, zipper, spouted, gusseted and other flexible pouches.
Compatible structures can be converted into stand-up pouches, flat pouches, three-side seal bags, zipper pouches, spouted pouches, side-gusset bags, quad-seal bags and custom formats.
The current product range includes PET/AL/PE, PET/AL/CPP, PET/AL/PA/PE, PET/AL/EVOH/PE and customized constructions.
The current published aluminum foil thickness range is 6μm to 25μm.
The current published total thickness range is 60μm to 220μm.
The current range covers widths from 100mm to 2000mm, subject to laminate construction and production feasibility.
PET/AL/PE and other compatible structures can be used, but the final laminate should be selected according to pouch size, stiffness, fill weight, barrier, gusset design and sealing requirements.
PA can increase puncture, impact and flex resistance for larger pouches or products exposed to demanding handling conditions.
Yes, compatible laminate can be converted into zipper pouches when the zipper resin and flange are suitable for the inner sealant layer.
Yes, suitable structures can be developed, but the spout resin, flange geometry, sealing conditions and finished-pouch integrity should be validated together.
A zipper provides consumer reclose convenience but should not automatically be considered equivalent to the original unopened heat seal for barrier or hermetic performance.
Seal initiation temperature is the temperature at which the sealant begins forming a specified bond under defined pressure and dwell-time conditions.
Hot tack is the strength of a heat seal before it has completely cooled and can be important on high-speed filling lines.
No. Leakage can also occur at gusset intersections, channels, folds, spouts, zipper areas, punctures or damaged film. Complete pouch integrity should be tested separately.
Coefficient of friction affects roll feeding, web tracking and movement through pouch-making and packaging equipment. Incorrect friction can cause machine instability.
Yes. The current product specification supports gravure printing with up to 10 colors.
Yes. Numerical OTR and WVTR values with defined test conditions are more useful for material qualification than general descriptions such as excellent barrier.
No. Final shelf life also depends on product formulation, initial quality, filling, residual oxygen, pouch integrity and storage conditions.
Yes. Repeated flexing can create microcracks in thin aluminum foil, so post-flex barrier testing can be useful for highly folded or heavily handled pouch formats.
PA-reinforced structures can be evaluated for compatible vacuum applications, but puncture resistance, product geometry, seals and vacuum stress should be validated.
Suitable structures can be developed for compatible liquids and semi-liquids, but sealant and adhesive compatibility should be tested with the actual formulation.
Yes, suitable food-contact structures can be developed. The complete laminate, including polymers, adhesives, inks and sealant, should match the intended food and use conditions.
Selected structures can be evaluated for pharmaceutical applications, but general commercial pouch laminate should not automatically be treated as qualified primary drug packaging.
Not automatically. Retort applications require an appropriate retort-grade adhesive, ink and sealant construction together with validation at the required temperature, pressure and processing time.
Sample availability can be confirmed according to structure, gauge, width, sealant and printing requirements. Representative pouch-making and filling trials are recommended before commercial approval.
Please provide product, pouch format, pouch size, fill weight, laminate structure, foil gauge, total thickness, barrier targets, seal requirements, zipper or spout details, machine type, roll dimensions, printing, quantity and destination.
Products
Application
Quick links
Contact Us
