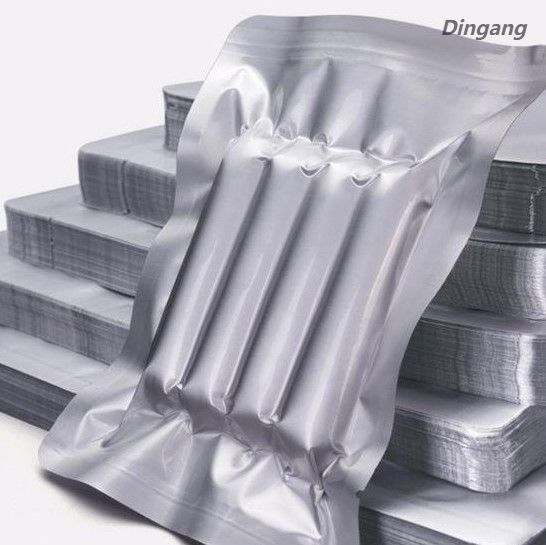

Vacuum packaging aluminum composite film is a multilayer high-barrier laminate developed for vacuum pouches, reduced-oxygen packaging, industrial barrier bags and compatible high-barrier rollstock applications.
Typical structures include PET/AL/PE, PET/AL/PA/PE, PET/AL/CPP and PA/AL/PP. The aluminum foil layer provides strong oxygen, moisture, light and aroma barrier performance, while PA, PET and heat-seal layers contribute mechanical strength, puncture resistance, converting stability and sealing functionality.
The current product range includes aluminum foil from 6μm to 25μm, total laminate thicknesses from 70μm to 220μm and finished widths from 100mm to 2000mm. Structure, foil gauge, heat-seal layer, printing and roll dimensions can be customized according to the packaged product and vacuum equipment.
Request a Vacuum Packaging Film Quotation
| Item | Published / Available Specification | Vacuum Packaging Consideration |
|---|---|---|
| Product Type | Vacuum packaging aluminum composite film | For vacuum pouches, barrier bags and compatible reduced-oxygen packaging |
| Typical Structures | PET/AL/PE, PET/AL/PA/PE, PET/AL/CPP, PA/AL/PP | Select according to barrier, puncture, sealing and product compatibility requirements |
| Aluminum Foil Thickness | 6μm–25μm | Foil gauge affects barrier robustness, pinhole sensitivity and flex-crack resistance |
| Total Thickness | 70μm–220μm | Select according to fill weight, pouch size, product edges and vacuum stress |
| Width | 100mm–2000mm | Custom slitting according to bag-making or packaging equipment |
| Roll Length | Customized | Specify core ID, OD, roll weight, winding and splice limits |
| Surface Finish | Glossy / Matte | Finish should be compatible with printing and machine handling |
| Printing | Up to 10-color gravure printing | Specify artwork, print repeat, registration and eye-mark requirements |
| Heat-Seal Layer | PE / CPP / PP | Select according to product chemistry, filling temperature and sealing equipment |
| Oxygen Barrier | High-barrier aluminum-containing construction | Specify numerical OTR and test conditions where critical |
| Moisture Barrier | High-barrier aluminum-containing construction | Specify numerical WVTR and test conditions where critical |
| Vacuum Retention | Application-specific | Validate using the finished package, seals and vacuum process |
| Puncture Resistance | High-performance options available | PA-reinforced structures can be used where greater abuse resistance is required |
| Food-Contact Structures | Available where specified | Complete laminate must match the actual food and conditions of use |
| Customization | OEM / ODM supported | Structure, gauge, sealant, printing and roll configuration can be customized subject to feasibility |
The term vacuum packaging describes a reduced-oxygen environment created by removing air before sealing. It should not be interpreted as a permanent zero-oxygen condition inside every package.
Get Vacuum Film Technical Data & Samples
Vacuum packaging removes a substantial portion of the air from a package before sealing, creating a reduced-oxygen environment.
Residual oxygen can remain in headspace, within porous products, dissolved in food or introduced through microscopic leaks and package transmission over time.
For applications where residual oxygen is critical, buyers should define the target vacuum level, headspace oxygen requirement, seal integrity and barrier performance rather than relying on the term “oxygen-free.”
| Structure | Primary Characteristics | Typical Selection Direction |
|---|---|---|
| PET / AL / PE | Printable PET outer layer, aluminum barrier and PE heat seal | General high-barrier vacuum bags and dry-product applications |
| PET / AL / PA / PE | PA reinforcement for puncture, flex and abuse resistance | Meat, seafood, bone-in or mechanically demanding applications after validation |
| PET / AL / CPP | Aluminum barrier with CPP sealing layer | Selected food, nutritional and consumer applications requiring CPP sealing |
| PA / AL / PP | PA reinforcement, aluminum barrier and PP sealant | Application-specific vacuum packaging where PP sealing is required |
| Custom Multilayer Structure | Barrier and mechanical construction developed around the packed product | Projects with defined vacuum level, puncture, sealing and shelf-life requirements |
The aluminum foil layer provides very strong resistance to oxygen transmission when it remains intact. Where oxygen sensitivity is critical, OTR should be specified numerically with the applicable test temperature and relative humidity.
For moisture-sensitive products, the required WVTR should be defined numerically together with the environmental test conditions.
An intact aluminum foil layer is opaque and provides strong protection from light transmission through the laminate.
Aluminum-containing laminates can help reduce aroma loss and external odor ingress when the complete package remains intact.
Low OTR alone does not guarantee long-term vacuum retention. A finished vacuum package includes the laminate, heat seals, folds, corners and any fitments or openings.
Vacuum loss can result from:
Incomplete or contaminated seals
Pinhole defects
Flex cracks in the aluminum layer
Punctures from product edges
Damaged pouch corners
Incorrect sealing temperature or pressure
Seal creep under internal or external stress
Product off-gassing
Seal initiation temperature is the temperature at which the selected PE, CPP or PP sealant begins to achieve the specified seal strength under defined pressure and dwell time.
A practical vacuum packaging process benefits from a sealing window that maintains acceptable performance despite normal variations in machine temperature, pressure and dwell time.
Seal strength should be defined together with sample width, sealing temperature, pressure, dwell time, conditioning and test method.
Where hot seals experience load immediately after formation, hot-tack performance can be included in the qualification requirements.
| Test Area | Purpose |
|---|---|
| Seal Peel Strength | Measures strength and consistency of defined heat seals |
| Vacuum Decay | Evaluates whether a sealed package loses vacuum over a defined period |
| Leak Test | Detects gross leaks, seal channels or package defects using an appropriate method |
| Burst / Creep Test | Assesses complete package resistance under internal pressure or sustained load |
| Drop / Impact Test | Evaluates seal, corner and film durability after impact |
| Post-Storage Vacuum Check | Verifies vacuum retention after representative storage conditions |
Vacuum pressure pulls the laminate tightly against the packaged product, so sharp edges, bones, shells, frozen corners and hard components can create concentrated puncture stress.
PET/AL/PA/PE and PA/AL/PP structures can be evaluated where additional puncture, flex and impact resistance is needed.
Bone-in meat can create significantly greater puncture risk than smooth boneless products. Material selection should be based on actual product geometry and representative packaging trials.
Seafood shells, frozen corners and rigid product edges can also puncture high-barrier laminate. Additional reinforcement, pouch thickness or protective features may be required.
Thin aluminum foil can contain pinholes and can develop microscopic cracks when repeatedly flexed or sharply folded.
Where extremely low oxygen or moisture transmission is required after handling, buyers can specify pinhole inspection and post-flex OTR or WVTR testing.
The PET, aluminum, PA and sealant layers must remain bonded through pouch making, vacuum cycling, filling, cold storage and distribution.
Peel strength should identify the tested layer pair, conditioning and test method where delamination resistance is important.
Laminating adhesives require adequate cure before final bag making, product contact or demanding vacuum service.
Premade barrier pouches can be used with compatible chamber vacuum machines where bag dimensions, sealant and sealing settings match the equipment.
High-speed lines require controlled roll dimensions, web flatness, sealing properties, friction and mechanical durability.
Where rollstock is used to form packages automatically, web tension, registration, sealant orientation and roll geometry should be specified for the exact machine.
The current product description references thermoforming applications, but aluminum-containing laminates should not automatically be treated as deep-draw thermoforming films.
Thermoforming deforms the laminate significantly, and excessive draw can thin or crack the aluminum layer.
Where thermoforming is required, the project should specify forming depth, cavity dimensions, draw ratio, forming temperature, aluminum gauge, PA reinforcement and required post-forming barrier performance.
The current product specification supports gravure printing with up to 10 colors for branded vacuum packaging.
Print repeat, eye mark, cutting position and registration should match the pouch-making or packaging process.
Ink, primer, adhesive and outer film should be compatible with each other and with the intended storage temperature and product-contact requirements.
Suitable high-barrier vacuum laminate can support reduced-oxygen packaging for meat, seafood, cheese, coffee, dried foods and other compatible products.
Vacuum packaging can reduce oxidative changes and some forms of aerobic spoilage, but the required food-safety controls depend on the food formulation, processing method and storage conditions.
Vacuum packaging can help reduce oxygen exposure and moisture loss, but perishable meat and poultry still require appropriate refrigerated or frozen storage according to the food-safety plan.
Vacuum-packaged seafood can require particularly careful control of temperature, product formulation, oxygen permeability and thawing instructions because reduced-oxygen conditions can create specific microbiological hazards.
Cheese requirements vary by product. Some cheeses benefit from high oxygen barrier, while others release gases and may require a different permeability level or packaging format.
Coffee requires strong aroma and oxygen protection, but freshly roasted coffee can release carbon dioxide. Degassing behavior and valve requirements should be considered separately from vacuum barrier.
Reduced-oxygen packaging can improve product quality and shelf-life performance for suitable foods, but it should not be treated as a microbial kill step.
Depending on the food, safe vacuum packaging may require controls involving:
Refrigeration or freezing
Product pH
Water activity
Salt or curing system
Thermal processing
Storage time
HACCP or other food-safety controls
Applicable labeling and thawing instructions
The correct laminate should therefore be selected as part of the complete food processing and storage system rather than as the sole control for product safety.
Vacuum laminates used for frozen foods should retain flexibility, seal integrity and puncture resistance at the intended storage temperature.
Sharp frozen corners and ice crystals can increase mechanical stress, so PA-reinforced structures may be considered where higher abuse resistance is required.
High-barrier aluminum laminate can also be used for compatible moisture-sensitive industrial components, spare parts, instruments and precision products requiring reduced atmospheric exposure during storage or transport.
Vacuum or barrier packaging can reduce exposure to environmental moisture, but long-term corrosion prevention can also require desiccants, VCI materials or controlled-humidity packaging.
Selected industrial chemicals can be packaged in compatible laminates only after chemical compatibility, sealant resistance and any applicable transport regulations have been reviewed.
Aluminum barrier laminate can provide strong moisture protection for compatible electronic components and precision devices.
Where semiconductor or electronic packaging requires ESD control, static-dissipative performance, moisture-barrier-bag classification or dry-pack handling, those requirements should be specified separately. Standard vacuum laminate should not automatically be treated as an ESD-qualified package.
Selected aluminum composite structures can be developed for compatible pharmaceutical or healthcare packaging, but general vacuum laminate should not automatically be treated as qualified primary drug or sterile medical-device packaging.
Primary pharmaceutical or medical packaging may require product-specific compatibility, seal-integrity, sterilization and regulatory qualification.
Vacuum packaging can support a required shelf-life target by reducing oxygen exposure and limiting moisture or aroma transfer, but final shelf life depends on the complete product and process.
Important factors include:
Initial product microbiological condition
Residual oxygen
Vacuum level
OTR and WVTR
Seal integrity
Puncture and flex damage
Product pH and water activity where relevant
Refrigeration or freezing
Storage time
Distribution temperature
| Inspection Item | What to Confirm |
|---|---|
| Laminate Structure | Exact PET / AL / PA / sealant construction |
| Aluminum Foil Thickness | Required 6–25μm foil gauge and tolerance |
| Total Thickness | Required 70–220μm laminate gauge and tolerance |
| Width | Finished width and slitting tolerance |
| Pinhole Inspection | Required sampling and acceptance criteria where barrier is critical |
| OTR | Numerical oxygen-transmission target and test conditions |
| WVTR | Numerical water-vapor-transmission target and test conditions |
| Interlayer Peel Strength | Layer pair, conditioning and minimum bond requirement |
| Seal Initiation Temperature | Required SIT for the actual sealant |
| Heat-Seal Strength | Seal temperature, pressure, dwell time and test method |
| Vacuum Retention | Finished-package vacuum or leak test where applicable |
| Puncture Resistance | Required performance for sharp or bone-in products |
| Flex Resistance | Required flex-crack or post-flex barrier performance where applicable |
| Printing | Registration, adhesion and surface appearance where printed |
| Roll Quality | Core, OD, winding, edges, telescoping and splice limits |
Vacuum packaging aluminum composite film can be supplied in roll form with moisture-resistant export packaging according to roll dimensions, weight and downstream converting requirements.
Eye-to-sky or eye-to-wall packing can be arranged according to warehouse and handling equipment.
The current published lead-time reference is 10–20 days depending on structure, dimensions, printing and order quantity. Final production schedule should be confirmed during quotation.
Wooden Case Packing
Pallet Coil Packing
Aluminum Foil Barrier Bag
For an accurate vacuum packaging film proposal, please provide as much of the following information as possible:
Packed product
Food, industrial, electronics or other application
Required laminate structure
Required aluminum foil thickness
Required total thickness
Finished roll or bag width
Required pouch dimensions
Target vacuum level
Residual oxygen target, if specified
Required OTR
Required WVTR
PE, CPP or PP sealing layer
Seal initiation temperature
Seal temperature range
Seal pressure and dwell time
Required seal strength
Required vacuum-retention or leak test
Required puncture resistance
Bone-in, shell, sharp-edge or frozen product details
Required flex-crack performance
Target commercial shelf life
Storage temperature
Frozen or refrigerated conditions
Product pH and water activity where relevant to food safety
Vacuum machine manufacturer and model
Chamber bag, rollstock or other packaging format
Thermoforming requirement, if applicable
Forming depth and cavity dimensions, if applicable
Printing requirement
Artwork and number of colors
Core inner diameter
Maximum roll outside diameter
Maximum roll weight
Winding direction
Food-contact or other product-contact documentation
Order quantity
Destination country or delivery port
Send Your Vacuum Packaging Specifications
It is a multilayer aluminum foil laminate designed for high-barrier vacuum pouches, rollstock and other compatible reduced-oxygen packaging applications.
No. Vacuum packaging removes a substantial portion of air, but residual oxygen can remain in the package or product and can also enter through defects or package transmission over time.
The current product range includes PET/AL/PE, PET/AL/PA/PE, PET/AL/CPP and PA/AL/PP.
The current published aluminum foil thickness range is 6μm to 25μm.
The current published total laminate thickness range is 70μm to 220μm.
The current product range covers widths from 100mm to 2000mm, subject to laminate structure and production feasibility.
PA can improve puncture, impact and flex resistance, which is useful for products with sharp edges, bones, shells or demanding distribution conditions.
No. Vacuum retention also depends on pouch seals, pinholes, punctures, flex cracks, product off-gassing and the complete package construction.
The finished package can be evaluated using an appropriate vacuum-decay, leak, pressure, storage or package-integrity method according to the application.
No. Finished-package leakage can also result from channels, contamination, folds, punctures, corners and material damage.
PA-reinforced structures can be evaluated for bone-in applications, but puncture resistance and package integrity should be tested using the actual product geometry.
Suitable structures can be evaluated for seafood, but puncture resistance, refrigeration or freezing, product formulation and reduced-oxygen food-safety requirements should be considered together.
No. Perishable meat and poultry still require appropriate refrigerated or frozen storage. Vacuum packaging does not eliminate microbiological growth.
Reduced-oxygen conditions can create specific hazards for certain foods if temperature, formulation and processing controls are inadequate. The packaging should therefore be used within an appropriate food-safety program.
Yes, compatible structures can be evaluated for frozen products. Low-temperature flexibility, seal integrity and puncture resistance should be confirmed at the intended storage temperature.
Yes, selected structures can be evaluated, but cheese products differ in gas production, moisture and oxygen requirements, so barrier level should match the specific product.
Yes. Aluminum laminate provides strong aroma and oxygen barrier, but freshly roasted coffee may release carbon dioxide and can require suitable degassing management.
Thermoforming should be validated separately. Deep forming can stretch or crack the aluminum layer, so forming depth, PA reinforcement, foil gauge and post-forming barrier should be tested.
Suitable rollstock or premade pouches can be developed for compatible chamber and automatic vacuum equipment. Sealant, dimensions, friction and machine settings should be confirmed.
Yes. The current product range supports gravure printing with up to 10 colors.
Yes. Numerical values with defined test conditions are more useful for procurement than general descriptions such as excellent oxygen or moisture barrier.
No. Shelf life depends on the packaged product, initial microbiological quality, residual oxygen, barrier, seals, puncture resistance, storage temperature and other processing conditions.
Selected structures can be evaluated for pharmaceutical applications, but general vacuum laminate should not automatically be treated as qualified primary drug packaging.
It can be used for compatible moisture-sensitive components. ESD, static-dissipative or formal moisture-barrier-bag requirements should be specified separately where needed.
Sample availability can be confirmed according to structure, foil gauge, total thickness, sealant and roll dimensions. Representative vacuum and package-integrity trials are recommended before commercial approval.
Please provide the packed product, laminate structure, foil gauge, total thickness, vacuum level, OTR/WVTR targets, seal requirements, puncture requirement, storage temperature, machine type, printing, roll dimensions, quantity and destination.
