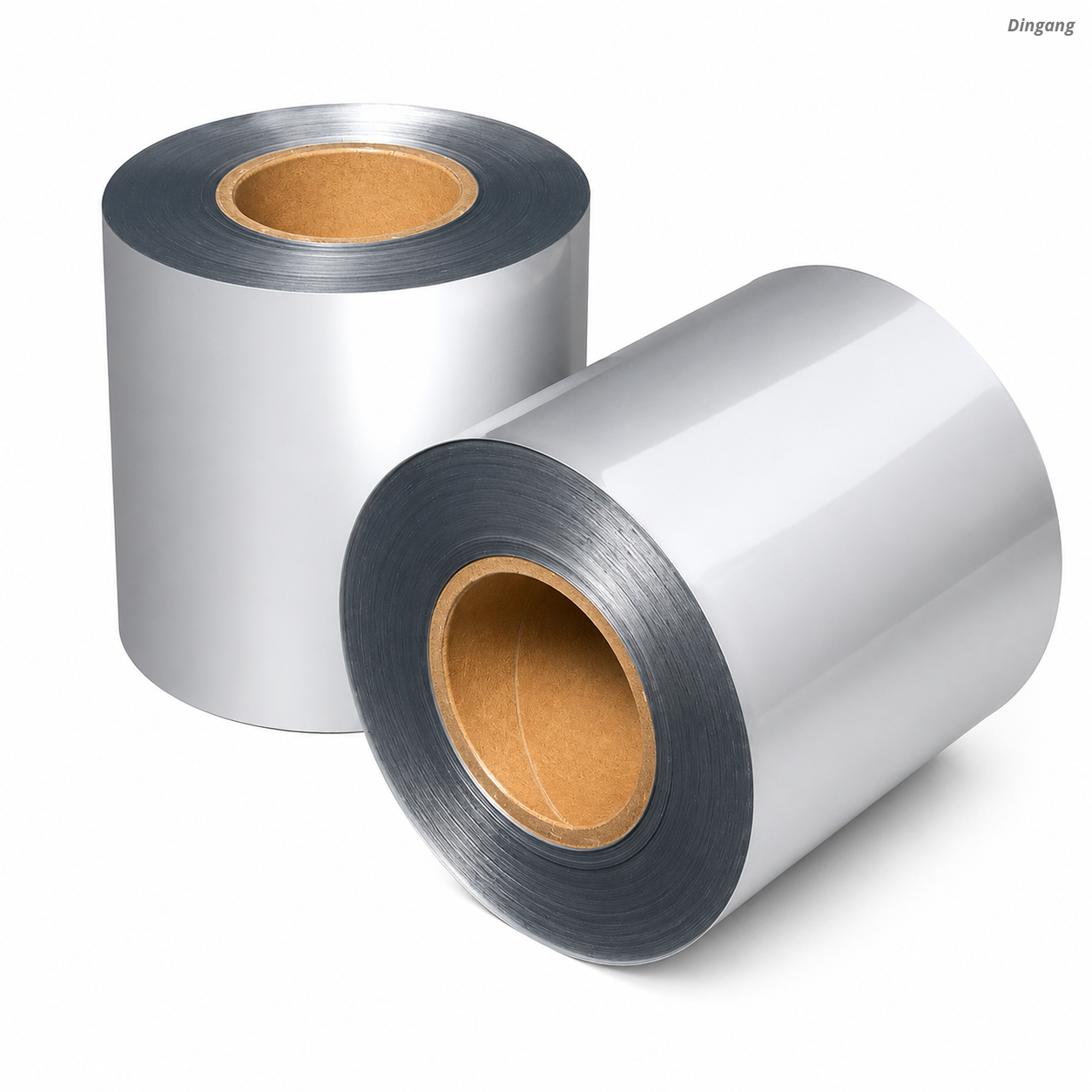

Aseptic packaging aluminum laminate film is a high-barrier multilayer material designed for compatible liquid-food pouches, liners, sachets, bag-in-box systems and other packaging formats used with validated aseptic filling processes.
Typical structures combine aluminum foil with PE, PET, PA, EVOH and application-specific sealant layers. The aluminum layer provides the principal barrier to light and very high resistance to oxygen and water-vapor transmission, while polymer layers provide sealing, mechanical strength, printing support and food-contact functionality.
The current product range includes aluminum foil thicknesses from 6μm to 20μm, total laminate thicknesses from 60μm to 180μm and widths from 100mm to 2000mm. Structures can be developed around UHT milk, juice, plant-based beverages, nutritional drinks and other compatible liquid foods according to filling equipment, package sterilization method and shelf-life requirements.
Request an Aseptic Laminate Quotation
| Item | Published / Available Specification | Purchasing Consideration |
|---|---|---|
| Product Type | Aseptic aluminum barrier laminate film | For compatible liquid-food pouches, liners, sachets and bag-in-box packaging systems |
| Typical Structures | PE/AL/PE, PET/AL/PE, PET/AL/PA/PE, PE/AL/EVOH/PE | Final structure should match sterilization method, filling system, mechanical requirements and shelf-life target |
| Aluminum Foil Thickness | 6μm–20μm | Select according to barrier, flex-crack and package-conversion requirements |
| Total Laminate Thickness | 60μm–180μm | Higher mechanical demands may require reinforced multilayer construction |
| Width Range | 100mm–2000mm | Custom slitting according to converting or filling equipment |
| Roll Length | Customized | Confirm core ID, roll OD, roll weight and splice requirements |
| Surface Finish | Glossy / Matte | Surface treatment should remain compatible with printing and sterilization conditions |
| Printing | Gravure printing available | Specify ink system, color count, artwork, curing and sterilization compatibility |
| Heat-Seal Layer | PE / CPP / Customized | Sealant should match product, filling temperature and package sterilization process |
| Oxygen Barrier | High-barrier aluminum-containing structure | Specify numerical OTR and test conditions where contract-critical |
| Moisture Barrier | High-barrier aluminum-containing structure | Specify numerical WVTR and environmental test conditions where required |
| Light Barrier | Opaque aluminum barrier layer | Finished package integrity depends on foil continuity, seals and conversion quality |
| Food-Contact Construction | Available according to order requirements | Verify polymers, adhesives, inks, coatings and sealants for the intended market and use conditions |
| Customization | OEM / ODM supported | Structure, width, printing, seal layer and performance targets can be reviewed by project |
Where barrier, seal strength or sterilization compatibility is part of the purchase specification, numerical test requirements and the applicable test conditions should be agreed before production.
Aseptic packaging is a complete processing and filling system rather than a property of the laminate alone.
In a validated aseptic process, the liquid product is commercially sterilized, the filling and downstream equipment are maintained under controlled sterile conditions, the packaging material is sterilized by an appropriate validated method, and the package is filled and closed without recontamination.
The laminate must therefore provide the required barrier and sealing performance while also remaining compatible with the specific packaging-material sterilization and filling system.
UHT processing and aseptic packaging perform different functions. UHT processing thermally treats the liquid product, while the packaging system subsequently fills the treated product into a sterilized package under controlled aseptic conditions.
The packaging laminate does not normally receive the same UHT treatment as the product. Instead, it must tolerate the sterilization method, forming, sealing and handling conditions of the actual filling line.
Aluminum-containing aseptic laminate can be evaluated for compatible UHT milk packaging where the material, sterilization method, filling machine and finished package have been qualified together.
Juice, coffee drinks, plant-based beverages and functional drinks can require different oxygen, light, aroma and product-contact properties, so the laminate structure should be selected around the actual formulation and shelf-life requirement.
| Structure | Primary Function | Application Direction |
|---|---|---|
| PE / AL / PE | Aluminum barrier with heat-sealable PE layers | Compatible liquid-food liners, pouches and custom barrier structures |
| PET / AL / PE | PET mechanical and print surface + aluminum barrier + PE seal layer | Printed beverage pouches, liners and high-barrier flexible liquid packaging |
| PET / AL / PA / PE | Adds PA for puncture resistance and mechanical toughness | Demanding liquid packaging, larger pouches and mechanically stressed formats |
| PE / AL / EVOH / PE | Combines aluminum with additional functional polymer barrier layers | Application-specific structures requiring customized seal and barrier performance |
| Custom Multilayer Structure | Layers selected around processing and equipment requirements | Custom aseptic pouch, liner or bag-in-box developments |
The aluminum foil layer provides the principal opaque barrier against light and very high resistance to oxygen and moisture transmission when the metallic layer remains continuous and undamaged.
Finished-package barrier can still be affected by pinholes, flex cracks, seal defects, spout interfaces and conversion damage.
PET can provide printability, dimensional stability, tensile strength and external abrasion resistance in flexible package constructions.
PA can improve puncture, impact and flex resistance where the package must withstand demanding filling, handling or distribution conditions.
PE can provide the internal sealing and product-contact layer. Resin grade, seal initiation temperature and seal strength should match the filling system and intended product.
EVOH can provide additional oxygen-barrier functionality in selected multilayer designs. Its performance depends on layer arrangement and moisture exposure and should be considered as part of the complete structure.
Packaging material used on an aseptic line must be compatible with the sterilization process used by that filling system.
Some web-fed aseptic systems sterilize packaging material using hydrogen peroxide together with controlled heat or hot sterile air. Laminate, ink and seal layers should withstand the actual sterilant concentration, temperature and exposure time used by the machine.
Where eBeam sterilization is used, the complete laminate structure and printed surface should be reviewed for compatibility with the applicable irradiation and filling process.
Some aseptic bag and bag-in-box systems use pre-sterilized bags or liners. Where irradiation or another sterilization method is specified, the laminate, fitment and fabricated bag should be qualified as a complete package.
For oxygen-sensitive dairy, juice, coffee or nutritional beverages, buyers should specify the required OTR together with temperature and relative-humidity test conditions.
WVTR should be defined numerically where moisture-barrier performance is part of the product shelf-life specification.
A continuous aluminum foil layer is opaque and provides very high light-barrier performance, which can help protect light-sensitive flavors, colors, vitamins and other product components.
High-barrier structures can reduce transfer of oxygen and volatile compounds, but final flavor retention should be confirmed through product-specific package and shelf-life testing.
Seal integrity is critical in an aseptic package because an inadequate seal can compromise the barrier and microbiological integrity of the finished pack.
The seal layer should be selected around the actual machine temperature, line speed, pressure and dwell time rather than using one universal sealing temperature.
Buyers can specify minimum seal strength together with the sealing and test conditions used to produce the sample.
Liquid filling can contaminate the seal area if the package and filling system are not properly controlled. Sealant selection and filler operation should therefore be evaluated together.
Flexible aluminum laminate can be converted into compatible bag-in-box liners for liquid foods and beverages where the barrier, bag construction and fitment are qualified for the aseptic filling system.
The flexible bag provides product containment and barrier protection. Film thickness, flex resistance and sealing performance should reflect package capacity and transport conditions.
The fitment is a critical part of the complete aseptic package. Fitment resin, seal-to-film compatibility and sterilization method should be validated together with the bag.
The outer carton or container provides mechanical support during distribution but does not replace the barrier and seal functions of the inner flexible bag.
PET/AL/PE and reinforced PET/AL/PA/PE structures can be evaluated for compatible aseptic liquid pouches and sachets where the filling line is designed for flexible packaging.
Pouch size, fill volume, drop resistance, seal geometry, sterilization process and final distribution environment should be considered during laminate development.
The flexible PE/AL/PE and PET/AL/PE structures listed on this page are not by themselves complete paperboard aseptic carton structures.
Conventional aseptic beverage cartons typically combine structural paperboard with polymer layers and a thin aluminum barrier layer. Where a customer requires a complete carton laminate, the paperboard grade, grammage, polymer arrangement, aluminum layer and converting system should be specified separately.
High-barrier aseptic laminate can be evaluated for UHT milk packaging where the complete package is compatible with the filling equipment, package sterilization method and shelf-life validation program.
Flavored dairy beverages may have additional oxygen, aroma, light and ingredient-sensitivity requirements that should be reflected in the barrier and seal specification.
Fat-containing products can require specific sealant, migration and aroma-resistance considerations. The actual product composition should therefore be identified when selecting a laminate.
Fruit juices and juice beverages can be sensitive to oxygen, light and aroma loss. Aluminum foil laminate can provide strong barrier protection when used in a properly designed aseptic package.
Acid level, fruit solids, essential oils and filling conditions should be considered when selecting the internal polymer layer, adhesive and printing system.
Compatible laminate structures can be developed for oat, soy, almond, coconut, protein and other plant-based beverages processed and filled through validated aseptic systems.
Fat content, protein content, flavor system and oxygen sensitivity should be considered when setting barrier and food-contact requirements.
High-barrier laminate can be evaluated for compatible nutritional and meal-replacement drinks where protection from oxygen and light is important to product quality.
Products marketed for clinical or specialized nutritional use can have additional regulatory, migration and package-validation requirements that should be identified during material qualification.
Aseptic aluminum laminate can contribute to long ambient shelf life by limiting oxygen, moisture and light exposure after filling.
However, no universal shelf-life period should be assigned to the film alone. Finished product shelf life depends on product formulation, UHT or sterilization process, package sterilization, filling conditions, barrier properties, seal integrity and storage temperature.
Product-specific shelf-life studies should be used to confirm commercial storage requirements.
Custom gravure printing is available for compatible structures used in branded beverage and liquid-food packaging.
Where the laminate design permits, reverse printing can position the printed image between layers to reduce external abrasion and direct product contact.
The selected ink and primer should remain compatible with the lamination adhesive and packaging-material sterilization conditions.
Artwork direction, registration tolerance, color standard, barcodes and variable marking areas should be confirmed before production.
Food-contact suitability should be evaluated for the complete laminate construction rather than for the aluminum foil alone.
Components requiring review can include:
Inner PE, CPP or other product-contact sealant layer
Laminating adhesives and residual components
Printing inks, primers and coatings
PET, PA, EVOH and other polymer films
Aluminum foil
Fitment or spout materials where applicable
Destination market, product type, contact duration, filling conditions and sterilization method should be identified so the applicable documentation and migration requirements can be reviewed.
High barrier is only one part of an aseptic package. Seals, spouts, fitments, folds, seams and handling damage can create potential leakage or contamination paths.
Seal width, seal appearance and seal strength should be evaluated according to the approved package design and filling-machine conditions.
Finished bags or pouches can be evaluated using an appropriate leak or package-integrity method where required by the customer's validation program.
For bag-in-box applications, the interface between film and fitment is part of the sterile barrier and should be validated together with the filling connector and closure.
| Test Item | What to Confirm |
|---|---|
| Total Thickness | Nominal thickness, tolerance and sampling method |
| Aluminum Thickness | Specified foil gauge and tolerance |
| Interlayer Bond Strength | Layer pair, peel method and minimum acceptance value |
| Seal Strength | Sealing temperature, pressure, dwell time and minimum strength |
| OTR | Required oxygen-transmission value and test conditions |
| WVTR | Required moisture-transmission value and test conditions |
| Puncture / Tensile Performance | Required method where mechanical durability is critical |
| Printing Quality | Color, registration, adhesion and visual appearance |
| Sterilization Compatibility | Actual H2O2, heat, eBeam, irradiation or other specified exposure conditions |
| Food-Contact Documentation | Applicable declarations, migration data or supporting documents for the destination market |
| Roll Quality | Width, edge quality, winding, telescoping, core and splice requirements |
Aseptic laminate can be supplied in roll form with moisture-resistant export protection according to roll dimensions and transport requirements.
Eye-to-sky or eye-to-wall packing can be discussed according to core dimensions, lifting method and customer converting equipment.
The current published lead-time reference is 10–20 days depending on specification and order quantity. Final delivery schedule should be confirmed at quotation.
Wooden Case Packing
Pallet Coil Packing
Aluminum Foil Barrier Bag
To receive an accurate aseptic-laminate recommendation and quotation, please provide as much of the following information as possible:
Product type: milk, juice, plant-based beverage, nutritional drink or other liquid food
Product pH and formulation where relevant
UHT or other product-processing conditions
Aseptic filling-machine manufacturer and model
Packaging format: pouch, sachet, liner, bag-in-box or other format
Required PE/AL/PE, PET/AL/PE, PET/AL/PA/PE, PE/AL/EVOH/PE or custom structure
Individual layer thicknesses, if specified
Required aluminum foil thickness
Required total laminate thickness
Required OTR and test conditions
Required WVTR and test conditions
Required tensile, puncture or flex resistance
Sealant type
Required seal strength
Sealing temperature, pressure and dwell time
Packaging-material sterilization method
Hydrogen peroxide concentration and exposure conditions, if applicable
eBeam or irradiation requirement, if applicable
Fitment or spout specification for bag-in-box applications
Required package-integrity or leak test
Gravure-printing requirement and number of colors
Artwork and registration requirements
Glossy or matte finish
Required roll width and tolerance
Core inner diameter
Maximum roll outside diameter
Maximum or preferred roll weight
Winding direction
Splice requirement
Target shelf-life program
Destination food-contact market
Required migration or food-contact documentation
Required sterilization-compatibility documentation
Order quantity
Destination country or delivery port
Send Your Aseptic Packaging Requirements
It is a multilayer flexible packaging material combining aluminum foil with polymers such as PE, PET, PA or EVOH for use in compatible aseptic liquid-food packaging systems.
No. UHT is a product heat-treatment process, while aseptic packaging fills a commercially sterile product into sterilized packaging under controlled sterile conditions.
Not normally. Packaging material is sterilized through the method specified by the aseptic filling system, which can differ from the thermal treatment applied to the food product.
Suitable laminate structures can be evaluated for UHT milk when they are compatible with the package format, sterilization process, filler and required shelf-life program.
Yes, suitable high-barrier structures can be developed for compatible fruit juice and beverage packaging. Product acidity, aroma and oxygen sensitivity should be included in material selection.
The current range includes PE/AL/PE, PET/AL/PE, PET/AL/PA/PE and PE/AL/EVOH/PE structures, with customized multilayer configurations available.
The published aluminum foil thickness range is 6μm to 20μm.
The current published total thickness range is 60μm to 180μm.
The published width range is 100mm to 2000mm, with custom roll length and slitting available according to production requirements.
An intact continuous aluminum layer provides extremely high barrier performance through the metallic layer, but finished package performance can still be affected by pinholes, flex cracks, seams, seals, fitments and conversion damage.
Yes, where oxygen or moisture barrier is critical. The numerical target should be stated together with the applicable test method and environmental conditions.
Hydrogen-peroxide compatibility can be evaluated for structures intended for filling systems that use this sterilization method. Concentration, temperature, exposure time and drying conditions should be provided during qualification.
Compatibility should be evaluated for the specific eBeam system and exposure conditions because the complete laminate, print and seal layers must remain suitable after treatment.
Suitable flexible structures can be developed for bag-in-box liners, but the film, seals, fitment and sterilization system should be qualified together as a complete package.
Not by itself. Conventional aseptic cartons normally include structural paperboard in addition to polymer and aluminum layers. Complete carton constructions require a separate paperboard-based specification.
PA can increase puncture resistance, impact strength and flex durability for larger or mechanically demanding flexible packages.
EVOH can add oxygen-barrier functionality to selected multilayer structures. Its actual contribution depends on layer design and moisture exposure.
Yes. Custom gravure printing is available for compatible laminate constructions. Ink and adhesive systems should be qualified for the intended sterilization and filling conditions.
No universal shelf-life figure should be assigned to the film alone. Shelf life depends on product processing, aseptic conditions, package sterilization, barrier properties, seal integrity and storage conditions.
No. Food-contact suitability should cover the complete intended package construction, including sealant polymers, adhesives, inks, coatings and any fitment that contacts the product.
Food aseptic packaging material should not automatically be treated as qualified pharmaceutical primary packaging. Pharmaceutical applications require separate material, process and regulatory qualification appropriate to the specific drug or medical product.
Sample availability can be confirmed according to structure, thickness, width, printing and sterilization requirements. Filling-line and package-integrity trials are recommended before commercial approval.
Please provide liquid product type, aseptic filler model, package format, laminate structure, aluminum thickness, total thickness, sterilization method, OTR/WVTR targets, seal requirements, printing, roll dimensions, food-contact market, quantity and destination.
