Anti-UV Aluminum Composite Film for Outdoor Packaging, Weather-Resistant Insulation & Industrial Protective Applications

Anti-UV aluminum composite film for outdoor equipment packaging, insulation facing and weather-resistant industrial protection, with PET/AL/PE, PET/AL/PA/PE and custom UV-stabilized structures.
  • Aluminum Laminated foil

  • Dingang

Availability:
Quantity:

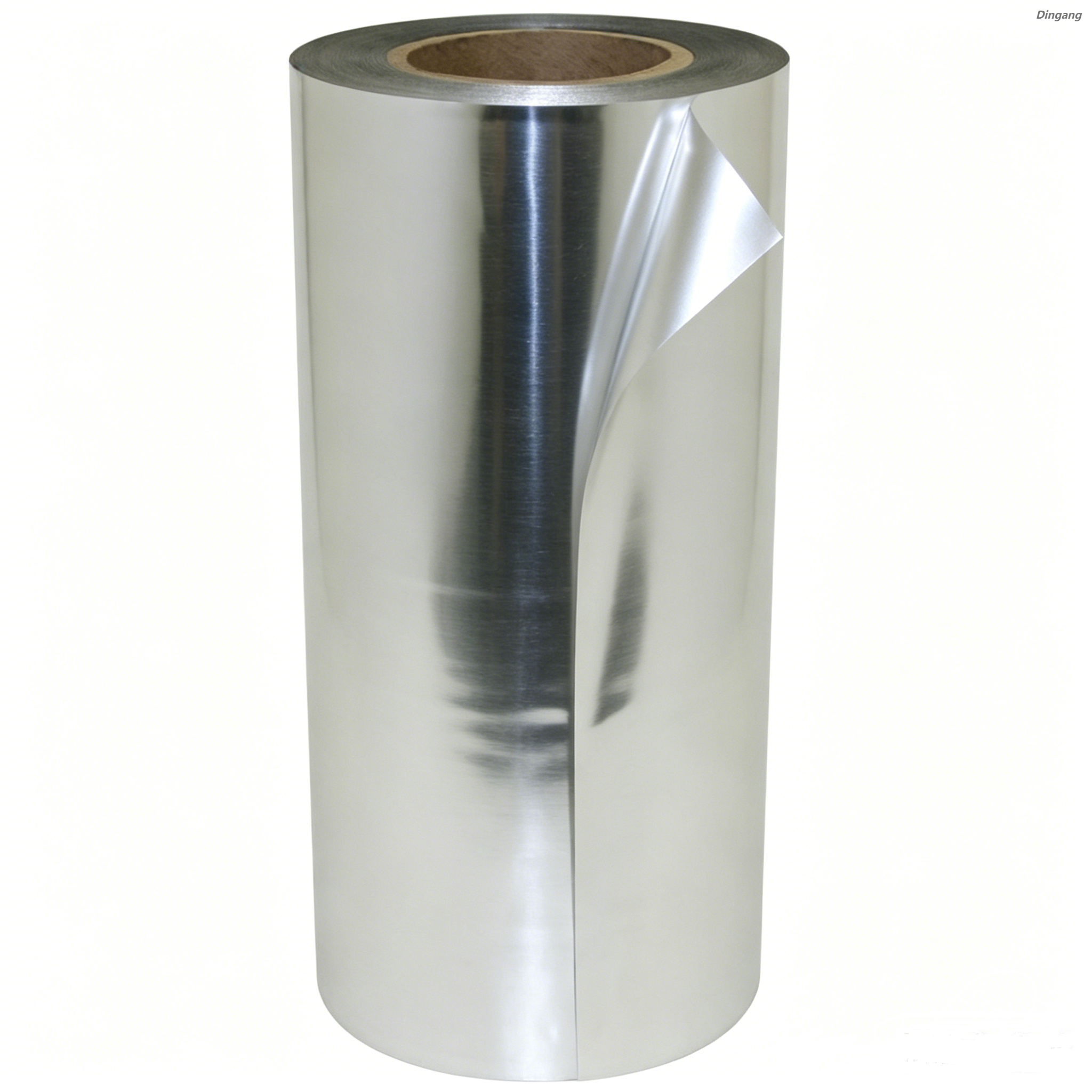

Anti-UV Aluminum Composite Film for Outdoor Protection

Anti-UV aluminum composite film is a multilayer flexible laminate developed for outdoor equipment protection, insulation facing, industrial packaging and other applications exposed to sunlight, moisture and changing environmental conditions.

Typical structures combine aluminum foil with PET, PA, PE, CPP, PP or application-specific polymer layers. The aluminum layer provides the principal light, oxygen and water-vapor barrier, while the outer polymer and UV-resistant coating provide mechanical protection and help improve resistance to outdoor weathering.

The current product range includes PET/AL/PE, PET/AL/PA/PE, AL/PE/AL and PET/AL/CPP constructions, aluminum foil thicknesses from 6μm to 40μm, total laminate thicknesses from 60μm to 300μm and finished widths from 100mm to 2200mm.

                   Request an Anti-UV Film Quotation

Technical Specifications

Item Published / Available Specification Purchasing Consideration
Product Type Anti-UV aluminum composite film For outdoor protection, insulation facing and compatible industrial packaging
Typical Structures PET/AL/PE, PET/AL/PA/PE, AL/PE/AL, PET/AL/CPP, customized Select according to UV exposure, puncture, sealing, barrier and installation requirements
Aluminum Foil Thickness 6μm–40μm Foil gauge affects pinhole robustness, flex behavior, barrier and cost
Total Thickness 60μm–300μm Final thickness should reflect mechanical exposure and converting requirements
Width 100mm–2200mm Custom slitting available according to wrapping, laminating or insulation-converting equipment
Roll Length Customized Specify core ID, OD, roll weight and winding direction
Surface Finish Glossy / Matte / UV-coated The exposed surface should be selected for the actual weathering environment
Functional Coating UV-resistant coating available Specify UV aging method, exposure cycle and required property retention
Lamination Process Dry / Solvent-free / Extrusion lamination Final process depends on structure, adhesive system and service environment
Heat-Seal Layer PE / CPP / PP Select according to pouch making, product contact and sealing equipment
Oxygen Barrier High-barrier aluminum-containing structure Specify numerical OTR and test conditions where contract-critical
Moisture Barrier High-barrier aluminum-containing structure Specify WVTR / permeance and test conditions for vapor-control applications
UV Resistance UV-stabilized structures available Define exposure test, irradiance, temperature, moisture cycle and acceptance values
OEM / ODM Supported Structure, coating, width, printing and roll format can be customized subject to feasibility

Descriptions such as “high UV resistance,” “excellent barrier” or “weather resistant” should be converted into measurable acceptance criteria when they are important to the final application.

                   Request Technical Data & Samples

How the Multilayer Structure Works

Outer PET or UV-Stabilized Polymer Layer

The exterior polymer layer provides mechanical protection, printability and an interface for UV-stabilized coatings or additives where required.

For direct outdoor exposure, the weathering resistance of this outermost layer is critical because polymer degradation, chalking, cracking or embrittlement can compromise the complete laminate even when the internal aluminum layer remains intact.

Aluminum Foil Barrier

The continuous aluminum layer is opaque and provides very high resistance to light, oxygen and water-vapor transmission when it remains intact.

Barrier performance can decrease if thin foil develops pinholes, flex cracks, punctures or damage at folds and seams.

PA / Nylon Reinforcement

PA-containing structures can improve puncture, tear, impact and flex resistance for heavy-duty equipment covers, export packaging and other mechanically demanding applications.

PE, CPP or PP Layer

PE, CPP or PP can provide heat-sealing, lamination or product-contact functions depending on the final construction and converting process.

Material Structure Options

Structure Primary Characteristics Typical Selection Direction
PET / AL / PE Printable outer film, aluminum barrier and PE sealing or bonding layer General outdoor protective packaging and compatible industrial laminates
PET / AL / PA / PE Adds Nylon reinforcement for puncture and flex resistance Heavy-duty equipment covers, machinery protection and export packaging
AL / PE / AL Dual aluminum layers with polymer bonding layer Selected insulation facings, opaque barriers and specialized reflective constructions
PET / AL / CPP Aluminum barrier with CPP sealing surface Compatible pouch or protective packaging requiring CPP sealing
Custom UV-Resistant Structure Application-specific outer layer, reinforcement, barrier and sealing construction Projects with defined outdoor exposure, mechanical and barrier targets

UV Resistance and Outdoor Weathering

UV resistance should be evaluated as retention of useful material properties after a defined exposure rather than as a simple pass/fail description.

Accelerated UV Exposure

Fluorescent UV and xenon-arc weathering procedures can be used to expose polymer and coating specimens to controlled combinations of radiation, heat and moisture.

The purchase specification should state the exposure procedure, lamp type or filter, irradiance, black-panel or chamber temperature, condensation or spray cycle and total test duration.

No Universal Hours-to-Years Conversion

Accelerated weathering hours should not automatically be converted into a fixed number of outdoor service years. Real exposure depends on latitude, altitude, UV intensity, temperature, humidity, rainfall, salt, pollution, orientation and installation conditions.

Property Retention After UV Exposure

For demanding outdoor applications, buyers can specify retained tensile strength, elongation, lamination bond strength, coating adhesion, color change, cracking and barrier performance after the agreed exposure cycle.

Recommended Weathering Qualification Items

Performance Item What to Define
Accelerated UV / Weathering Test method, exposure cycle, irradiance, temperature and hours
Visual Appearance Cracking, chalking, blistering, delamination and surface erosion
Color Change Required ΔE or other agreed visual limit after exposure
Tensile Retention Minimum retained MD/CD strength after exposure
Elongation Retention Minimum retained flexibility after exposure
Interlayer Peel Strength Minimum retained bond strength between laminate layers
WVTR / Permeance Maximum permitted value before and after weathering where critical
OTR Maximum oxygen transmission before and after exposure where relevant
Puncture / Tear Minimum mechanical performance after aging

Weather Resistance Beyond UV

UV exposure is only one part of outdoor weathering. A laminate can perform well in an accelerated UV test but still require additional qualification for the actual environment.

Rain and Humidity

Moisture can affect polymers, adhesives, printed layers, cut edges and seams. Outdoor qualification should consider repeated wetting, condensation and drying where relevant.

Temperature Cycling

Different laminate layers expand and contract at different rates. Repeated hot/cold cycling can place stress on adhesive bonds and should be considered for exposed outdoor service.

Salt and Coastal Exposure

Coastal environments introduce salt deposition that is not represented by a UV test alone. Cut edges, exposed metal, seams and fasteners should be evaluated separately where salt exposure is expected.

Industrial Pollution

Acidic, alkaline or solvent-containing pollutants can affect coatings and polymers independently of UV radiation. The actual industrial environment should be identified before material approval.

Barrier Performance

Water Vapor Barrier

Continuous aluminum foil can provide very low water-vapor transmission when the foil remains intact.

Where vapor control is important, buyers should specify a numerical WVTR or permeance requirement together with the test temperature, humidity and specimen construction.

Oxygen Barrier

The aluminum layer provides strong resistance to oxygen transmission. For sensitive industrial packaging, OTR should be defined numerically rather than only described as excellent.

Light Barrier

An intact solid aluminum foil layer is opaque and can shield packaged components or insulation layers from direct light transmission.

Flex Cracking and Barrier Retention

Thin aluminum foil can develop microcracks when repeatedly folded, flexed or sharply creased. Barrier performance measured on a new flat laminate may therefore differ from the performance of a heavily flexed finished package.

For equipment covers, liners or flexible packages that experience repeated handling, post-flex WVTR or OTR can be included in the qualification program.

Puncture and Tear Resistance

Outdoor covers and equipment packaging can contact corners, fasteners, machinery frames and irregular components. Puncture and tear resistance can therefore be as important as barrier performance.

PET/AL/PA/PE structures can be considered where additional mechanical reinforcement is required compared with a simpler PET/AL/PE laminate.

Insulation Facing and Jacketing Applications

Anti-UV aluminum composite film can be used as a facing, vapor-control layer or protective jacketing component in selected HVAC duct, pipe and equipment insulation systems.

HVAC Duct Insulation

UV-resistant foil laminates can protect compatible exterior insulation facings from sunlight, moisture and mechanical exposure when installed as part of an appropriate jacketing system.

Pipe Insulation

Pipe insulation facing requires careful treatment of longitudinal seams, circumferential joints, elbows, valves, penetrations and terminations so the completed jacket maintains continuity.

Insulated Tanks and Equipment

Flexible aluminum laminates can be evaluated as protective facings over suitable insulation on tanks, vessels and equipment, subject to temperature, adhesion, fire and environmental requirements.

Vapor Barrier and Seam Integrity

A foil laminate can have very low vapor transmission in laboratory testing, but a complete insulation jacket includes seams, overlaps, penetrations and repairs.

System-level vapor control therefore depends on:

  • Overlap width

  • Compatible tape or adhesive

  • Seam pressure and installation quality

  • Pipe and duct penetrations

  • Terminations

  • Fasteners and punctures

  • Damage repair

The rollstock laminate should not be described as a complete waterproof or vapor-barrier system unless the installed assembly has been qualified accordingly.

Reflective Function and Thermal Insulation

The aluminum surface can provide useful radiant-reflection characteristics, but the composite film itself should not be treated as the primary thermal insulation layer.

Thermal resistance in HVAC, pipe or building applications is normally provided by insulation such as mineral wool, fiberglass, PU, PIR, elastomeric foam or another insulating material.

Radiant Barrier Function

A reflective foil surface can reduce radiant heat transfer when it faces an appropriate air space. A reflective film tightly sandwiched between solid layers does not provide the same radiant-barrier effect.

AL / PE / AL Construction

Dual-aluminum structures can provide opacity and barrier redundancy for selected insulation-facing applications, but they should not be assigned a fixed insulation R-value from laminate composition alone.

Outdoor Equipment Packaging

Anti-UV aluminum laminate can be used for compatible protective covers, barrier bags and export wraps for machinery, spare parts, instruments and metal equipment requiring protection from sunlight, humidity and environmental exposure.

Short-Term Outdoor Transit

For temporary outdoor transit or staging, the required UV durability should reflect the expected exposure duration, geographic climate and package orientation.

Long-Term Outdoor Storage

Long-term outdoor storage places greater demands on UV stability, water shedding, seam integrity, puncture resistance and repairability. A structure approved for indoor barrier packaging should not automatically be used for prolonged exposed storage.

Corrosion Protection

Barrier film can reduce exposure of packaged metal equipment to external moisture, but effective corrosion-control packaging may also require desiccants, humidity indicators, VCI materials, sealed enclosures or other preservation measures depending on the equipment and storage period.

Photovoltaic Equipment Protection

Anti-UV aluminum laminate can be evaluated for protective packaging, temporary covers and transportation protection for photovoltaic equipment, solar accessories and related components.

General PET/AL/PE or PET/AL/PA/PE laminate should not automatically be used as a photovoltaic-module backsheet, frontsheet, encapsulant or electrical insulation component.

Materials incorporated into the PV module construction require dedicated electrical, mechanical, thermal, UV-aging and safety qualification appropriate to the module design.

Energy Storage Equipment Protection

High-barrier laminates can be used for compatible transportation, storage and protective packaging around energy-storage equipment and selected components.

This industrial anti-UV laminate should not automatically be treated as lithium-ion battery pouch film, separator material or qualified electrical insulation for battery cells. Those applications require dedicated material structures and qualification.

Agricultural and Outdoor Product Protection

UV-resistant composite film can be evaluated for compatible outdoor tools, irrigation components, seeds, construction products and other goods requiring light and moisture protection.

Agricultural Chemicals

Fertilizers, pesticides and crop-protection chemicals can have specialized chemical-compatibility and dangerous-goods packaging requirements. The laminate should only be used after the actual formulation and applicable transport requirements have been reviewed.

Heat Sealing and Pouch Making

PE, CPP and PP sealant layers can support compatible pouch-making and converting operations.

Seal Strength

Seal strength should be specified with the actual sealant structure, temperature, pressure, dwell time and test method.

Outdoor Seal Durability

For exposed outdoor packages, seal performance should remain acceptable after the relevant UV, heat, moisture and temperature-cycling conditions.

Printing and Technical Marking

Custom gravure printing can be used for branding, installation instructions, handling marks, batch identification and technical information according to the selected laminate structure.

Where printing will remain outdoors, ink and overprint-coating weather resistance should be qualified separately from the structural laminate because printed colors can fade even when the underlying laminate remains functional.

Fire Performance for Building and Insulation Applications

A laminate containing aluminum foil should not automatically be described as a fire-rated insulation facing or cladding system.

Polymer films, adhesives, coatings, insulation and installation materials can influence flame spread, smoke generation and complete-system fire performance.

Where a building project requires a specific fire classification, the exact finished laminate and insulation assembly should be supported by the applicable test or certification documentation.

Quality Control

Inspection Item What to Confirm
Laminate Structure Exact polymer / aluminum / sealant layer construction
Aluminum Foil Thickness Nominal 6–40μm foil gauge and agreed tolerance
Total Thickness Required 60–300μm total laminate and tolerance
Width Finished width and tolerance
UV Aging Exposure method, cycle, hours and post-aging acceptance criteria
Interlayer Peel Strength Layer pair, test method and minimum value
Tensile Strength MD/CD method and minimum performance where specified
Elongation Required initial and post-weathering performance where relevant
Puncture Resistance Required method for heavy-duty protective applications
Tear Resistance Required MD/CD performance where critical
Heat-Seal Strength Sealant, sealing conditions and peel-test method
WVTR / Permeance Numerical target and test environment
OTR Numerical oxygen-transmission target where required
Surface Appearance Cracks, wrinkles, delamination, coating defects and contamination
Roll Quality Core, OD, winding, telescoping, edge condition and splice limits

Packaging and Delivery

Anti-UV aluminum composite film can be supplied in roll form with moisture-resistant export protection according to roll dimensions, weight and transportation requirements.

Eye-to-sky or eye-to-wall packing can be discussed according to handling and converting equipment.

The current published lead-time reference is 10–20 days depending on specification and order quantity. Final production schedule should be confirmed during quotation.

Wooden case packing for anti-UV aluminum composite film

Wooden Case Packing

Pallet coil packing for UV-resistant aluminum composite film

Pallet Coil Packing

Aluminum foil barrier bag for outdoor protective packaging

Aluminum Foil Barrier Bag

Information Required for a Quotation

To receive an accurate Anti-UV aluminum composite film proposal, please provide as much of the following information as possible:

  • Final application: equipment packaging, insulation facing, duct jacketing, pipe insulation, outdoor cover or other use

  • Indoor, sheltered outdoor or fully exposed outdoor service

  • Expected outdoor exposure duration

  • Project country, climate and installation location

  • Required laminate structure

  • Required aluminum foil thickness

  • Required total thickness

  • Finished width and tolerance

  • Roll length

  • Glossy, matte or UV-coated surface

  • Required outer polymer or UV-stabilized coating

  • Required UV/weathering test method

  • Exposure cycle and required test hours

  • Required tensile retention after UV aging

  • Required elongation retention after UV aging

  • Required peel-strength retention after weathering

  • Allowed color change after aging

  • Required OTR

  • Required WVTR or vapor permeance

  • Required puncture and tear performance

  • PE, CPP or PP heat-seal requirement

  • Sealing temperature, pressure and dwell time

  • Insulation material, where applicable

  • Required seam tape, adhesive or joining system

  • Maximum service temperature

  • Minimum service temperature

  • Coastal, industrial or chemical exposure conditions

  • Fire-performance requirement for building applications

  • Printing and number of colors

  • Core inner diameter

  • Maximum roll outside diameter

  • Maximum roll weight

  • Winding direction

  • Splice limits

  • Required test reports or certificates

  • Order quantity

  • Destination country or delivery port

                   Send Your Outdoor Protection Specifications

FAQ

What is Anti-UV aluminum composite film?

It is a multilayer laminate combining aluminum foil with polymer films and, where required, UV-stabilized exterior layers or coatings for outdoor protective and insulation-facing applications.

What structures are available?

The current range includes PET/AL/PE, PET/AL/PA/PE, AL/PE/AL, PET/AL/CPP and customized multilayer structures.

What aluminum foil thickness is available?

The current published aluminum foil thickness range is 6μm to 40μm.

What total laminate thickness is available?

The current published total thickness range is 60μm to 300μm.

What is the maximum width?

The current range covers finished widths from 100mm to 2200mm, subject to structure and production feasibility.

How is UV resistance achieved?

UV resistance can be improved through UV-stabilized outer polymer layers, functional coatings and a laminate construction selected for the expected outdoor exposure.

Does the aluminum layer itself block UV light?

An intact aluminum foil layer is opaque and blocks light transmission through the laminate, but the exterior polymer, adhesive and coating can still degrade when directly exposed to sunlight.

How should UV resistance be tested?

An accelerated weathering procedure can be specified together with lamp or filter type, irradiance, temperature, moisture cycle, exposure duration and required property retention.

Does 1000 hours of UV testing equal a fixed number of outdoor years?

No. Accelerated exposure does not provide a universal hours-to-years conversion because real outdoor weathering varies greatly with climate, orientation, temperature, rainfall, salt and pollution.

Can the film remain outdoors permanently?

Long-term outdoor suitability depends on the exact laminate structure, outer coating, exposure environment, installation and qualification data. A service duration should be agreed from project-specific requirements rather than assumed from the product name alone.

Is the film waterproof?

The laminate can provide strong water and water-vapor resistance, but the waterproof performance of a completed cover or insulation jacket also depends on seams, joints, penetrations and installation details.

Can it be used as a vapor barrier?

Foil laminates can provide very low vapor transmission when intact. Where formal vapor-barrier performance is required, specify the permitted permeance together with the installation and seam requirements.

Can it be used for HVAC duct insulation?

It can be used as a facing or jacketing component in compatible HVAC insulation systems when the structure, temperature, seams, adhesives and fire requirements have been qualified.

Can it be used for pipe insulation?

Yes, suitable structures can be evaluated for pipe-insulation facing or jacketing. Elbows, valves, penetrations and seams require suitable installation details to maintain continuity.

Is the film itself thermal insulation?

No. The laminate is primarily a facing, barrier or protective layer. Most thermal resistance comes from the insulation material and complete system construction.

Does reflective aluminum provide an R-value?

The film should not be assigned a fixed insulation R-value from its aluminum surface alone. Radiant-reflection performance depends on surface emittance, orientation and the presence of an appropriate air space.

Why use PET/AL/PA/PE instead of PET/AL/PE?

The PA layer can improve puncture, impact and flex durability, making the reinforced structure useful for heavy-duty equipment packaging and demanding transportation.

Why use an AL/PE/AL structure?

A dual-aluminum construction can provide additional opacity and barrier redundancy for selected facing or protective applications, subject to flexibility and converting requirements.

Can severe folding reduce barrier performance?

Yes. Repeated flexing or sharp folds can create microcracks in thin aluminum foil, so post-flex barrier testing can be important for heavily handled packages.

Can the film protect machinery during export?

Yes, suitable structures can be used for machinery and equipment protection. Long-term corrosion protection may also require desiccants, VCI materials or other preservation measures.

Can it be used for photovoltaic equipment?

It can be evaluated for protective packaging or temporary covers for photovoltaic equipment. Generic aluminum laminate should not automatically be treated as a qualified PV-module backsheet or electrical insulation component.

Can it be used as lithium battery pouch film?

No automatic equivalence should be assumed. Lithium-ion battery pouch film requires dedicated deep-drawing, electrolyte-resistance, insulation, sealing and safety qualification.

Can the film be printed?

Yes. Gravure printing can be supplied for branding, instructions and technical markings according to laminate construction and production capability.

Does outdoor printing also need UV resistance?

Yes. Outdoor ink and overprint coating should be selected and tested for the required sunlight exposure because printed graphics can fade independently of the laminate structure.

Can custom UV-resistant structures be developed?

Yes. Outer polymer, reinforcement layer, aluminum gauge, total thickness, UV coating and sealing layer can be adjusted according to the application and production feasibility.

Can samples be supplied for outdoor exposure testing?

Sample availability can be confirmed according to laminate structure, thickness, width and coating. Representative UV, weathering, mechanical and barrier testing is recommended before commercial approval.

What information should I provide for a quotation?

Please provide the final application, outdoor exposure conditions, required structure, aluminum gauge, total thickness, width, UV test requirement, WVTR/OTR targets, mechanical performance, sealing or installation method, printing, quantity and destination.

                   Contact Us for Anti-UV Film Samples & Pricing

Previous:
Next:

Product Category

Related Products

Consult Us To Get Your Customized Aluminum Solution

We help you specify and source the coated aluminum you need, on time and within budget.

Products

Application

Quick links

Follow Us

Contact Us

    joey@cnchangsong.com
    +86-18602595888
   Building 2, Zhixing Business Plaza, No.25 North Street, Zhonglou District, Changzhou City, Jiangsu Province, China
    Chaoyang road, Konggang economic development area, Lianshui, Huai'an city, Jiangsu,China
© COPYRIGHT 2026 CHANGZHOU DINGANG METAL MATERIAL CO., LTD. ALL RIGHTS RESERVED.
