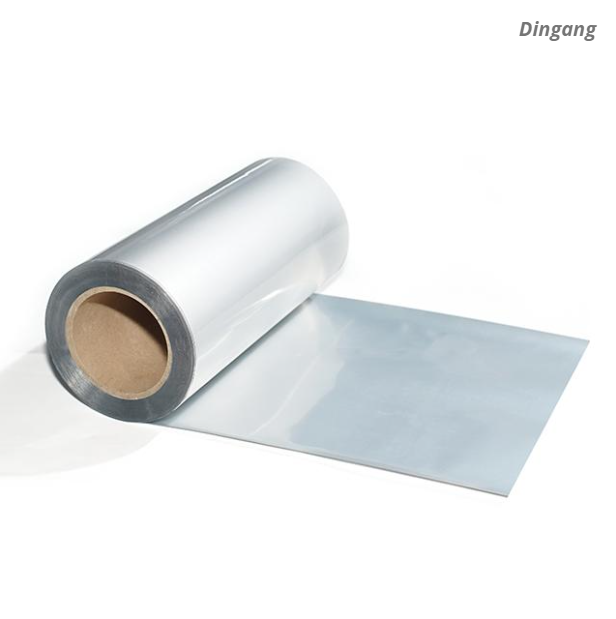

Leak-resistant aluminum plastic packaging film is a multilayer flexible barrier laminate developed for liquid, viscous and semi-liquid products requiring strong heat-seal performance, moisture and oxygen protection, puncture resistance and controlled package integrity during filling, storage and transportation.
Typical structures include PET/AL/PE, PET/AL/PA/PE, PET/AL/CPP and PA/AL/PP. The outer polymer layer provides printing and mechanical protection, the aluminum foil layer provides the principal oxygen, moisture and light barrier, and the PE, CPP or PP inner layer provides the heat-sealing and product-contact surface.
The current product range includes aluminum foil thicknesses from 6μm to 25μm, total laminate thicknesses from 60μm to 220μm and widths from 100mm to 2000mm. Laminate structure, sealant layer, mechanical reinforcement, printing and roll configuration can be customized according to the packed product and filling equipment.
Request a Liquid Packaging Film Quotation
| Item | Published / Available Specification | Purchasing Consideration |
|---|---|---|
| Product Type | Aluminum plastic high-barrier laminate film | For compatible liquid, viscous, lubricant, food, personal-care and industrial packaging applications |
| Typical Structures | PET/AL/PE, PET/AL/PA/PE, PET/AL/CPP, PA/AL/PP | Final structure should match chemical compatibility, puncture, barrier, filling and sealing requirements |
| Aluminum Foil Thickness | 6μm–25μm | Select according to barrier requirement, flexing and mechanical handling |
| Total Laminate Thickness | 60μm–220μm | Higher puncture or liquid-load requirements may require reinforced structures |
| Width Range | 100mm–2000mm | Custom slitting according to pouch, sachet and form-fill-seal equipment |
| Roll Length | Customized | Confirm core ID, maximum OD, roll weight and winding direction |
| Surface Finish | Glossy / Matte | Approve physical samples where appearance is important |
| Printing | Up to 10-color gravure printing | Specify artwork, ink system, repeat length and winding direction |
| Heat-Seal Layer | PE / CPP / PP | The product-contact sealant must be chemically compatible with the packed liquid |
| Oxygen Barrier | High barrier aluminum-containing structure | Specify OTR and test conditions when contract-critical |
| Moisture Barrier | High barrier aluminum-containing structure | Specify WVTR and environmental test conditions when required |
| Leak Resistance | Structure and seal dependent | Validate on the finished pouch using an appropriate package-integrity test |
| Chemical Resistance | Application-specific | Test the exact liquid against the sealant, adhesive and complete laminate before use |
| Food-Contact Structures | Available where specified | Documentation must match the exact structure, food type and conditions of use |
| Customization | OEM / ODM supported | Structure, gauge, seal layer, printing and performance targets can be customized |
Terms such as high barrier, chemical resistance and leak resistance should be converted into measurable test requirements where they are important to the finished package.
Get Technical Specifications & Samples
PET can provide printability, surface toughness, dimensional stability and heat resistance during converting and sealing.
The aluminum foil layer provides the principal opaque barrier to light and very high resistance to oxygen and water-vapor transmission when the metallic layer remains intact.
Finished package performance can still be affected by pinholes, flex cracking, folds, punctures, spouts, seals and mechanical damage.
PA can improve puncture, impact and flex resistance for heavy liquids, larger pouches, sharp closures or demanding transportation conditions.
The inner polymer layer provides the heat-sealing surface and normally forms the direct interface with the packed liquid.
Because this layer is directly exposed to the product, its chemical resistance and sealability must be evaluated against the exact liquid, concentration, temperature and contact duration.
| Structure | Primary Characteristics | Application Direction |
|---|---|---|
| PET / AL / PE | Printable PET + aluminum barrier + PE sealing layer | Compatible liquid-food, personal-care and general liquid packaging |
| PET / AL / PA / PE | Adds PA for higher puncture and flex resistance | Industrial fluids, lubricants and heavy-duty liquid pouches where compatibility is confirmed |
| PET / AL / CPP | Aluminum barrier with polypropylene-family sealing layer | Selected food, healthcare or industrial applications requiring compatible CPP sealing |
| PA / AL / PP | Reinforced structure with PP sealing surface | Selected demanding liquid or industrial applications after product compatibility testing |
| Custom Multilayer Structure | Layer arrangement selected around the packed product and process | Application-specific chemical, mechanical or barrier requirements |
Liquid containment depends on more than nominal laminate thickness. The sealant resin, sealing temperature, pressure, dwell time, pouch design and cleanliness of the sealing area all influence finished-package integrity.
Seal strength can be measured using an applicable flexible-package peel test when required. Results should identify sample width, sealing conditions, conditioning and failure mode.
A strong peel result does not by itself prove that the completed pouch is leak-tight because leakage can occur through channels, wrinkles, pinholes, fitment interfaces or other package defects.
The PE, CPP or PP sealant should reach an appropriate sealing temperature without excessive thinning, distortion or damage to the outer laminate.
Heat-seal formation depends on the combined effect of jaw temperature, pressure and contact time. High-speed filling lines should establish an operating window using actual production material.
Liquids, oils, powders or product residues trapped in the sealing area can reduce seal continuity. Filled-package trials should therefore evaluate realistic contamination conditions where they are likely to occur.
A leak-resistant laminate should be validated at finished-package level rather than by material inspection alone.
| Test Area | Purpose |
|---|---|
| Seal Peel Strength | Measures strength and consistency of an individual seal area |
| Bubble / Vacuum Leak Test | Helps identify gross package leakage where the selected method is suitable |
| Burst / Creep Test | Evaluates the complete package under internal pressure |
| Drop / Transportation Test | Assesses pouch and closure durability during distribution handling |
| Storage Compatibility Test | Checks whether the product weakens the sealant or laminate over time |
Aluminum foil creates a strong external barrier, but it does not make the complete laminate universally resistant to all chemicals.
The packed liquid normally contacts the PE, CPP or PP inner layer first. The liquid can also influence seals, cut edges, fitment interfaces and potentially the laminating adhesive if migration, swelling or stress creates access pathways.
Acidic and alkaline liquids should be evaluated according to concentration, temperature and contact duration. Strong corrosive products can require specialized sealants, liners or alternative packaging materials.
Some solvents can permeate, swell or soften conventional polymer layers and can weaken adhesive bonds. Solvent-containing products therefore require dedicated compatibility testing before commercial use.
Lubricants, oils and additive packages can vary widely in chemical composition. The product should be tested with the proposed inner sealant and laminate rather than assuming that all oil-based products behave similarly.
Surfactants, fragrances, solvents, alkaline builders and other ingredients can alter polymer and seal performance. Representative filled-package storage tests are recommended.
Reactive, oxidizing or highly hazardous chemicals require a separate packaging and regulatory review. Standard PET/AL/PE or PET/AL/PA/PE should not automatically be assumed suitable.
Compatibility testing should use the actual commercial product whenever possible because concentration, impurities and formulation additives can affect packaging performance.
A qualification program can review:
Sealant swelling or softening
Changes in tensile or puncture performance
Seal-strength retention
Interlayer peel strength
Stress cracking
Discoloration or surface changes
Permeation through the inner polymer
Odor or product-quality changes
Pouch swelling or distortion
Finished-package leakage after storage
Where the packed chemical is regulated as dangerous goods or hazardous material for transport, packaging selection must follow the applicable transport classification and packing instruction.
A flexible aluminum laminate should not be described as UN-approved, DOT-approved or suitable for regulated dangerous goods unless the completed packaging system has the required design approval, testing and documentation.
Compatibility with the lading is particularly important for corrosive liquids, solvents and other substances that can cause permeation, softening, premature aging or embrittlement of polymer packaging components.
Some regulated liquids may require an approved inner packaging combined with cushioning, absorbent material, secondary containment or a tested outer package. Requirements depend on classification, packing group, quantity and transport mode.
Air transport can impose additional closure, pressure-differential and secondary-containment requirements for liquid hazardous materials. These requirements should be verified separately from ordinary commercial flexible packaging.
Liquid pouches are exposed to flexing and localized stress during filling, cartoning, palletizing and transportation. Mechanical damage can reduce package integrity even when the laminate has excellent barrier properties in flat-sheet testing.
PET/AL/PA/PE and PA/AL/PP structures can be considered where additional puncture and flex resistance is needed for larger packs, heavy liquids or demanding distribution.
Spouted pouches add a rigid component to the flexible package. Fitment resin, flange geometry, seal-to-film interface and filling method should be evaluated together with the laminate.
Sharp folds and gusset intersections can concentrate stress. Pouch geometry should therefore be included in flex and leakage evaluation.
Where oxidation affects the packed product, the required OTR should be stated numerically together with temperature and relative-humidity conditions.
WVTR should be specified numerically where water-vapor ingress or loss affects product stability or concentration.
A continuous aluminum foil layer is opaque and provides strong protection for light-sensitive products when the foil remains intact.
Flat-film OTR and WVTR values do not automatically represent the barrier of a fabricated pouch. Seams, folds, flex cracks, spouts and closures can affect finished-package transmission and shelf life.
Suitable laminate structures can be developed for compatible sauces, syrups, concentrates, beverages and other liquid foods where the required barrier, process and food-contact conditions are defined.
Food-contact suitability applies to the complete intended package, including inner sealant, laminating adhesive, inks and coatings, rather than the aluminum foil alone.
Ketchup, mayonnaise, cooking sauces, syrups and seasoning products can vary in acidity, oil content and filling temperature. These factors should be considered when selecting the sealant and adhesive system.
Beverage concentrates and liquid ingredients can require strong oxygen, aroma or light protection. Filling method and package format should be included in material qualification.
Reinforced aluminum laminates can be evaluated for selected lubricants, oils, additives and specialty fluids where low package weight and high barrier are required.
Oil resistance should be confirmed against the complete lubricant formulation because base oil, additives and solvent content can change polymer and adhesive compatibility.
Suitable structures can be evaluated for refill pouches containing shampoos, lotions, creams, gels, detergents and other compatible liquids.
Fragrance oils, surfactants, alcohols, solvents and alkaline ingredients should be included in compatibility testing because they can influence sealant and adhesive performance.
Selected laminate structures can be developed for compatible healthcare and pharmaceutical liquid applications, but general industrial laminate should not automatically be treated as qualified pharmaceutical primary packaging.
Pharmaceutical applications can require specific extractables, leachables, migration, GMP, container-closure integrity and regulatory documentation beyond ordinary commercial liquid packaging.
Selected liquid fertilizers, additives and agricultural formulations can be evaluated for flexible laminate packaging where the product chemistry is compatible with the sealant and complete package structure.
Crop-protection chemicals, concentrated pesticides or other regulated agricultural chemicals may have specific dangerous-goods, chemical-resistance and registration requirements and should be reviewed independently.
Stand-up pouches
Spouted pouches
Flat pouches
Three-side seal bags
Four-side seal sachets
Gusseted pouches
Refill packs
Form-fill-seal rollstock
Industrial barrier liners
Custom liquid packaging formats
The laminate can be supplied for compatible pouch-making, vertical or horizontal form-fill-seal and other automatic packaging equipment.
Web handling can be affected by surface friction. Where machine speed is high, coefficient-of-friction requirements can be included in the material specification.
Stable winding, edge alignment and roll geometry help reduce tracking and feeding problems during automatic converting.
Printed rollstock should specify repeat length, eye marks, registration tolerance, artwork direction and winding orientation according to the filling machine.
The current product range supports up to 10-color gravure printing for compatible rollstock packaging.
Ink and adhesive systems should be selected according to product contact requirements, filling temperature, laminate structure and any chemical exposure expected during storage.
| Inspection Item | What to Confirm |
|---|---|
| Total Thickness | Nominal thickness, tolerance and sampling method |
| Aluminum Thickness | Required foil gauge and applicable tolerance |
| Interlayer Peel Strength | Layer pair, test method and minimum result |
| Seal Strength | Sealant type, temperature, pressure, dwell time and test method |
| Leak Resistance | Finished-package leak test and acceptance criteria |
| OTR | Required oxygen-transmission limit and test environment |
| WVTR | Required water-vapor-transmission limit and test environment |
| Puncture / Impact | Required method where heavy liquids or demanding transport conditions apply |
| Chemical Compatibility | Product concentration, contact temperature, duration and acceptance criteria |
| Printing Quality | Color, registration, adhesion and surface appearance |
| Roll Quality | Width, edge condition, winding, core, OD and splice requirements |
The aluminum composite film can be supplied in roll form with moisture-resistant export packaging according to roll dimensions, weight and transportation requirements.
Eye-to-sky or eye-to-wall packing can be discussed according to customer handling and converting equipment.
The current published lead-time reference is 10–20 days depending on specification and order quantity. Final production and delivery schedule should be confirmed during quotation.
Wooden Case Packing
Pallet Coil Packing
Aluminum Foil Barrier Pouch
To receive an accurate laminate recommendation and quotation, please provide as much of the following information as possible:
Exact packed product name and formulation type
Liquid, gel, oil, detergent, food, chemical or other application
Product concentration
pH, where relevant
Solvent, surfactant, oil or active-chemical content where relevant
Filling temperature
Storage temperature range
Required commercial shelf life
Required laminate structure
Required aluminum foil thickness
Required total laminate thickness
PE, CPP or PP sealant requirement
PA reinforcement requirement
Required OTR and test conditions
Required WVTR and test conditions
Required interlayer peel strength
Required heat-seal strength
Sealing temperature, pressure and dwell time
Required chemical-compatibility test
Puncture, impact or flex requirements
Pouch format
Spout or fitment specification
Required finished-pouch leak test
Form-fill-seal or pouch-making equipment
Printing artwork and number of colors
Roll width and tolerance
Core inner diameter
Maximum roll outside diameter
Maximum roll weight
Winding direction
Splice limits
Food-contact, pharmaceutical or industrial documentation required
Dangerous-goods classification, if applicable
Required UN/DOT/ADR or other transport packaging approval, if applicable
Order quantity
Destination country or delivery port
Send Your Liquid Packaging Specifications
It is used for compatible high-barrier liquid, viscous, lubricant, food, personal-care and industrial packaging where heat-seal performance, moisture protection and oxygen barrier are required.
No flexible laminate should be assumed to be absolutely leak-proof without finished-package validation. Leakage performance depends on seals, pouch design, fitments, filling conditions, puncture damage and transport handling.
The current range includes PET/AL/PE, PET/AL/PA/PE, PET/AL/CPP and PA/AL/PP, with customized structures available according to application requirements.
The published aluminum foil thickness range is 6μm to 25μm.
The current published total thickness range is 60μm to 220μm.
PA can improve puncture resistance, flex durability and mechanical toughness for larger liquid packs or demanding distribution conditions.
It can be evaluated for compatible chemicals, but chemical suitability must be tested using the actual formulation, concentration, temperature and contact duration.
Only after specific compatibility testing. Highly corrosive products can require specialized inner liners or alternative packaging systems.
Only where the solvent has been shown to be compatible with the inner polymer, laminating adhesive and complete package. Some solvents can cause swelling, permeation or adhesive weakening.
Suitable structures can be evaluated for lubricants and oils. Compatibility should use the actual commercial formulation because additive packages can influence polymer and adhesive resistance.
Seal strength depends on sealant resin, laminate construction, jaw temperature, pressure, dwell time, sealing-area cleanliness and test conditions.
No. Seal peel strength is only one package characteristic. Finished pouches should also be evaluated for leakage, burst, puncture, spout integrity and transport durability where applicable.
Yes, where oxygen or moisture barrier is important. The numerical target should include the applicable test method, temperature and relative humidity.
Suitable laminate structures can be used for spouted pouches, but the fitment resin, flange design and seal-to-film interface should be validated with the actual product.
Yes, compatible rollstock can be supplied for automatic packaging systems. Roll dimensions, friction, sealing window, registration and web handling should match the machine.
Yes. The current product range supports gravure printing up to 10 colors for compatible structures and applications.
Suitable food-contact structures can be developed, but the exact inner sealant, adhesive, ink, coating, food type and processing conditions should have appropriate documentation for the intended market.
Selected structures can be evaluated, but generic liquid packaging film should not automatically be treated as qualified pharmaceutical primary packaging. Pharmaceutical applications require additional material and regulatory qualification.
Not automatically. Dangerous-goods packaging approval applies to a tested and approved completed packaging system and must match the substance, packing group, quantity and transport mode.
Yes. Laminate structure, foil gauge, total thickness, seal layer, width, printing and selected performance requirements can be customized according to production feasibility.
Sample availability can be confirmed according to structure, thickness, width and sealant. Product-contact, sealing, storage and finished-package trials are recommended before commercial approval.
Please provide the exact packed product, chemical composition where relevant, filling and storage conditions, laminate structure, thickness, sealant, OTR/WVTR targets, seal requirements, pouch format, printing, roll dimensions, regulatory requirements, quantity and destination.
