Why Are Automated Stamping Lines Demanding AI-Inspected Roller Coated Aluminum Coils?

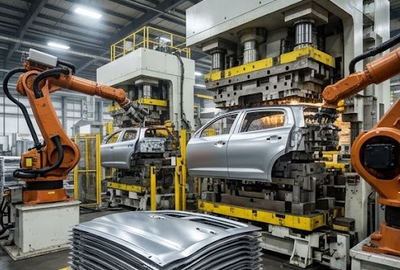

Across the globe, industrial manufacturing is undergoing a transformation driven by high-speed automation. Tier-1 automotive press shops, electric vehicle battery module fabricators, consumer electronics brands, and clean-energy hardware producers are running continuous multi-station transfer and progressive die presses at 60 to 200 strokes per minute.

At these cycling speeds, human visual quality checks are impossible, and legacy uninspected coil stock introduces catastrophic financial risks:

Microscopic coating defects, foreign inclusions, or dry-film thickness spikes pass unnoticed into high-tonnage dies. A single hard-particle inclusion or heavy paint ridge can imprint into polished carbide tooling, scoring expensive stamping dies, causing millions of repeated part defects, and forcing emergency press shutdowns that cost thousands of dollars per hour.

Micro-cracking and unspotted blister spots along outer corner draws lead to instant component splitting, ruining Overall Equipment Effectiveness (OEE) and sending defect rates soaring past acceptable parts-per-million (PPM) thresholds.

Traditional post-stamping batch painting creates massive multi-day factory floor bottlenecks, requires dangerous chemical wash lines, and risks uneven paint coverage on intricate stamped profiles.

AI-inspected roller-coated aluminum coils solve this manufacturing crisis. By integrating continuous multi-axis artificial intelligence line-scan inspection systems onto high-speed coil coating and tension-leveling lines, every millimeter of the pre-painted aluminum strip is scanned, categorized, and certified before it ever reaches the uncoiler. This technology delivers verified surface defect eradication, protects multi-million-dollar progressive dies, eliminates the post-stamping paint booth, and cuts finished stamping scrap rates by over 40%.

Structural Aluminum Alloys for High-Speed Progressive Stamping

Automated transfer presses demand extreme thickness consistency, zero residual coil stress, and uniform elongation:

High-Formability Alloy Chemistries (1000, 3000, and 5000 Series): Deep-drawing grades (such as 3003-O, 3105-H14, 5052-O, and 5052-H32) provide uniform grain structures and elongation ratings exceeding 15% to 25%. This mechanical ductility allows multi-stage deep draws, louver forms, and tight perimeter hems without material necking or tearing.

Tension-Leveled Strip Flatness: Continuous stretch-bend leveling under high line tension eliminates longitudinal crossbow, coil set, and edge waves. Strips feed into high-speed electronic servo feeders without jamming guide rails or buckling between die stations.

Substantial Mass Reduction for High-Speed Transfer Feeds: Aluminum’s density (2.70 g/cm³) is one-third that of steel. This lower mass reduces the inertial burden on robotic transfer arms and high-speed feeder grippers, enabling faster strokes per minute without mechanical vibration or lost transfer registration.

High-Flexibility Factory Roller Coatings

Standard post-applied paints crack during rapid stamping. Advanced continuous roller coatings are engineered for dynamic press work:

High-Elasticity Thermoset Formulations: High-performance polyurethane, polyester, and PVDF coatings are molecularly cross-linked to achieve superior elongation. During deep-draw stamping, the coating stretches synchronously with the underlying aluminum grain without crazing, micro-cracking, or losing adhesion.

Built-In Dry Lubricity for Tool Protection: Factory-cured coatings incorporate microscopic wax and slip additives that provide uniform surface lubricity. This minimizes frictional drag across draw beads, prevents die galling, and often eliminates the need for messy liquid stamping oils on the shop floor.

Technical Validation & Practical Performance

Global Manufacturing Vision & B2B Commercial Payoff

Fueling National Smart Manufacturing Sovereignty

Enabling Sovereign Industrial Automation: Modern industrial nations are modernizing their manufacturing sectors with Lights-Out smart factories and automated press cells to produce electric vehicle battery enclosures, autonomous mobility brackets, and robotics chassis. Supplying verified, zero-defect AI-inspected aluminum coils provides press shops with a predictable raw material supply, keeping automated lines running 24/7 without human intervention.

Accelerating Net-Zero Supply Chain Targets: Aluminum is an infinitely recyclable green metal requiring only 5% of the energy needed for primary smelting during secondary refining. Eliminating solvent-based post-stamping paint lines drastically lowers plant carbon emissions, helping global tier-1 suppliers secure major automotive and electronics contracts under strict ESG mandates.

View More >>

Factory Floor Economics: High Throughput and Tooling Longevity

Eliminating the 3- to 5-Day Paint Shop Bottleneck: Moving millions of stamped parts through an off-line liquid paint or powder-coating line creates massive inventory logjams and parts-handling scrap. Utilizing pre-painted coil stock allows stamped parts to move directly from the press ejector belt to final assembly, cutting production lead times by days.

Dramatically Lower Tooling and Die Repair Costs: Eliminating hard inclusions and surface paint ridges prevents die gouging and punch chipping, saving press shops tens of thousands of dollars in annual tooling replacement costs and emergency die-maker overtime.

View More >>

Long-Term Fleet Reliability & Low Warranty Overhead

Infinitely Recyclable Circular Metallurgy: Pre-painted aluminum scrap generated during skeleton stamping is fully recyclable, maintaining high secondary scrap resale value and lowering net material acquisition costs.

Zero In-Field Coating Delamination: Factory coil coatings cured in high-precision ovens provide consistent film thickness and cross-linking density, preventing the paint peeling, blistering, and chalking common to field-painted parts over decades of end-use service.

View More >>

The Destructive Chain of Uninspected Coil Stock

In high-output automated press lines, uninspected raw or pre-painted coil stock triggers a cascade of costly production failures:

Undetected Surface Inclusions: A microscopic airborne contaminant, paint droplet, or metal flake trapped on the coil surface enters the stamping station.

Die Imprint & Progressive Tool Scoring: Under 200 to 500 tons of clamping pressure, the hard particle embeds into the polished punch or cavity steel. Every subsequent press stroke imprints this defect onto parts, ruining thousands of stampings before operators detect the issue.

Coating Splitting and Flaking: Inconsistent paint thickness or under-cured coating patches crack under sharp draw radii. Paint flakes fall into the lower die cavity, creating localized pressure spikes that punch holes through thin aluminum walls.

The AI-Inspected Defense: AI-powered visual inspection systems detect, map, and flag every defect during coil processing. The automated system syncs digital defect maps directly with the press feeder’s programmable logic controller (PLC), automatically cycling defective strip segments past the main die or sorting stamped scrap into reject bins without stopping production.

Preserving Edge Sealing & Corrosion Barriers

Zero Micro-Cracks Along Shear Edges: The flexible, pre-applied coating wraps tightly around high-speed sheared margins, preventing bare aluminum exposure and stopping filiform corrosion in outdoor or high-humidity applications.

Elimination of Secondary Cleaning Lines: Stamping pre-coated coil with dry-film lubricity eliminates post-stamping trichloroethylene or aqueous degreasing baths, keeping stamped components clean and ready for instant adhesive bonding or mechanical clinching.

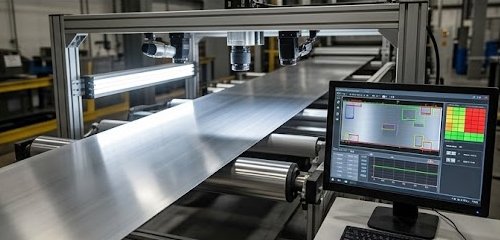

Continuous Multi-Angle Line-Scan Camera Deployment

Ultra-High-Resolution Line-Scan Arrays: Coating lines integrate multi-spectral line-scan cameras positioned at specular and diffuse reflection angles. Operating under high-frequency LED illumination, these cameras capture continuous 8K surface data across both the top and bottom of the moving aluminum strip.

Deep Learning Neural Classification: Cloud- and edge-based AI models classify surface anomalies in real time—distinguishing between harmless surface dust and critical structural defects such as pinholes, paint blisters, skin scratches, inclusions, and coating thickness variations.

Dynamic Tension Leveling & Continuous Chemical Passivation

Closed-Loop Stretch-Bend Leveling: Coils undergo automated continuous leveling, eliminating residual stresses that cause stamped parts to twist or spring back out of dimensional tolerance.

Inorganic Nano-Conversion Pretreatment: Multi-stage alkaline cleaning strips all rolling lubricants, followed by a titanium-zirconium passivation wash that raises surface wetting tension above 56 dynes/cm, ensuring covalent paint adhesion during high-draw press strokes.

Automated Defect Tagging & Digital Coil Mapping

Real-Time Edge Hole-Punching & Ink-Jet Tagging: When the AI vision system detects an out-of-spec defect, an in-line high-speed punch clips a small tracking notch on the strip edge or sprays an optical tracking barcode, alerting automated press decoilers downstream.

Digital Twin XML/JSON Coil Maps: Every finished coil is shipped with a comprehensive digital defect map detailing the exact meter mark, size, and category of every surface variation. This allows smart press uncoilers to adjust feed rates or automate part sorting on the fly.

FAQ

Q1:Why can't automated stamping lines rely on human visual inspection of incoming coils?

A:Modern automated presses run at speeds between 60 and 200 strokes per minute, feeding strip at 50 to 150 meters per minute. The human eye cannot detect sub-millimeter coating voids, blisters, or fine scratches at these speeds. AI line-scan vision systems capture thousands of image frames per second, catching and categorizing micro-defects that humans miss.

Q2:How does pre-painted aluminum foil or sheet protect stamping dies from wear?

A:Factory roller coatings incorporate microscopic slip agents and wax additives that provide uniform dry surface lubricity. This lowers frictional resistance as the metal slides over draw beads and die cavities, preventing the metal-to-metal galling common to bare aluminum and extending carbide tool life by up to four times.

Q3:Will high-speed progressive die stamping crack or chip the pre-applied paint?

A:No, provided coils engineered with high-elongation thermoset coatings rated for 0T to 1T bending are specified. The cross-linked polymer coating flexes synchronously with the ductile aluminum substrate during deep draws, hemming, and punching, leaving crisp edges without paint delamination.

Q4:How does a digital defect map connect with the stamping press controls?

A:The coil supplier's AI inspection system generates a synchronized digital map tracking defects by linear meter. When the coil is loaded onto the press uncoiler, an optical sensor or barcode scanner reads the coil ID and syncs the map with the press PLC. When a flagged defect enters the press, the PLC automatically diverts the stamped blank to a scrap chute or cycles the feeder to prevent die damage.

Q5:What makes pre-painted aluminum more economical than painting parts after stamping?

A:Post-stamping painting requires massive capital investment in wash lines, spray booths, and curing ovens, along with multi-day handling delays and high defect rates from dust and paint runs. Pre-painted coils arrive ready to stamp, allowing parts to bypass the paint shop entirely and saving 3 to 5 days of manufacturing turnaround.

Conclusion

To successfully integrate AI-inspected roller-coated aluminum coils into your automated press operations:

Mandate Digital XML/JSON Defect Maps with Every Coil: Require purchase contracts to stipulate the delivery of full-length digital defect maps detailing surface quality, with automated edge-marking notches on out-of-spec sections to integrate with your press feeder’s scrap-ejection system.

Specify 0T to 1T T-Bend Formability Certification: Ensure pre-painted coil specifications guarantee 0T to 1T cold bending and deep-draw elasticity without coating micro-cracking, backed by certified laboratory impact and draw-bead test reports.

Lock in Alloy Temper and Tension-Leveling Tolerances: Order deep-drawing alloys (such as 3003-O or 5052-H32) with mill test certificates confirming tension-leveled flatness (under 3 I-units of residual waviness) to prevent feed jams in progressive die stock lifters.
