How Heat-Curing Cycles Affect Lacquer Adhesion on Coated Aluminum Packaging Foil

In modern flexible and semi-rigid aluminum packaging—such as pharmaceutical blister packs, yogurt lidding, retort pouches, and canned food containers—the protective and decorative lacquers applied to thin aluminum foil ($6 \text{ to } 100\,\mu\text{m}$) must withstand rigorous mechanical forming, deep drawing, thermal sealing, and chemical sterilization.

The integrity of this barrier depends on lacquer adhesion to the aluminum substrate. While surface pre-treatment and wetting tension are essential baseline factors, the single most critical processing variable dictating long-term interfacial bond strength is the heat-curing cycle (the relationship between Peak Metal Temperature, dwell time, and thermal ramp rates).

The Fundamentals of Thermal Curing on Coated Aluminum Foil

Applying liquid lacquer (solvent-borne or water-borne) onto aluminum foil involves two distinct physical and chemical phases: solvent drive-off and polymer conversion. Heat curing supplies the activation energy required to drive these processes to completion.

Thermal Energy Transfer Mechanics

Continuous coil coating lines utilize three primary methods for transferring heat into thin aluminum foil substrates:

Forced Air Convection Ovens: High-velocity heated air transfers thermal energy directly to the coating surface and foil substrate.

Near-Infrared (NIR) & Far-Infrared (IR) Ovens: Electromagnetic radiation directly excites organic resin molecules and heats the underlying foil rapidly, reducing required oven tunnel lengths.

Induction Heating: Electromagnetic fields generate eddy currents inside the conductive aluminum foil, heating the substrate from the inside out. This drives solvents outward without skinning the outer coating surface.

Solvent Evaporation Kinetics vs. Cross-Linking Thresholds

Thermal cycles must be structured to prevent surface skinning—a condition where the top layer of coating cures prematurely, trapping volatile solvents beneath it.

If the heating ramp rate (Δ T / Δt) is too steep before initial flash-off is complete, trapped solvent vaporizes violently at elevated temperatures, forming pinholes, micro-blisters, and weak boundary layers at the foil-lacquer interface.

Matrix: Heat-Curing Profiles vs. Lacquer Performance Metrics

The table below outlines typical curing parameters for standard aluminum packaging foil lacquers and their corresponding performance trade-offs:

Testing & QA Methodologies for Lacquer Adhesion Verification

To verify that heat-curing profiles deliver the required adhesion performance, coating plants employ a combination of destructive mechanical and analytical testing.

Standardized Adhesion Testing

Cross-Hatch Tape Test (ASTM D3359 / ISO 2409): A lattice pattern with 1 mm spacing is cut through the lacquer to the aluminum foil substrate. Certified pressure-sensitive tape is applied and peeled off at a 180° angle. A 5B rating indicates zero square separation.

Mandrel Bend & Cupping Tests (ISO 1520): Evaluates lacquer adhesion under rapid mechanical deformation, mimicking downstream blister thermoforming or lid stamping.

View More >>

Chemical Resistance & Sterilization Tests

Methyl Ethyl Ketone (MEK) Solvent Rubs (ASTM D5402): A cotton swab saturated with MEK is rubbed across the lacquered surface under controlled pressure. The number of double-rubs required to break through or soften the coating directly correlates with cross-link density (under-cured films fail in < 20 rubs; optimal films withstand > 100 rubs).

Autoclave Sterilization Resistance: Coated foil samples are immersed in simulant solutions (3% acetic acid, 2% NaCl) inside an autoclave at 121°C under 1.0 bar pressure for 30–60 minutes. Adhesion is re-tested immediately after removal to ensure no steam-induced delamination occurs.

View More >>

Differential Scanning Calorimetry (DSC)

Differential Scanning Calorimetry analyzes the residual heat of reaction (Δ Hᵣ) in cured lacquer samples. By comparing the residual heat of a cured coating against an uncured baseline, quality engineers calculate the exact Degree of Cure (α):

An optimal heat-curing cycle targets a degree of cure between 92% and 98%, balancing cross-linking density with substrate flexibility.

View More >>

Thermosetting Resin Systems

Different coating chemistries require distinct thermal profiles to achieve cross-linking:Epoxy-Phenolic Systems: Require high thermal activation energy (190°C - 210°C PMT for 10 - 30 seconds) to drive condensation reactions between hydroxyl groups and phenolic rings, forming a dense, chemically resistant network suitable for food cans and retort pouches.

Vinyl & Polyester Organosols: Require thermal energy primarily to fuse dispersed resin particles (180°C - 200°C PMT). Curing time is shorter as it relies on thermoplastic fusion rather than condensation cross-linking.

Polyurethanes (PU): Require precise thermal windows (160°C - 180°C) for polyol-isocyanate reaction without causing thermal degradation of heat-sensitive blocking agents.

Interfacial Bond Formation

During heat curing, the viscosity of the liquid coating drops to its minimum point before gelation occurs. This low-viscosity phase allows the resin to wet the aluminum surface, filling the microscopic topography of the native aluminum oxide (Al₂O₃)layer.

Thermal energy facilitates:Hydrogen Bonding: Hydroxyl (-OH) and carboxyl (-COOH) groups in the curing resin align with hydrated hydroxyl sites (Al-OH) on the foil surface.

Covalent / Coordination Bonding: At peak temperature, functional groups form direct chemical bonds with the passivation layer, maximizing adhesion strength.

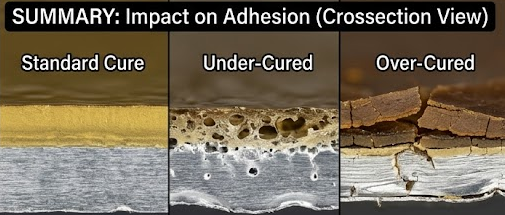

Under-Curing: Solvent Retention & Unreacted Groups

Residual Solvent Retention: Inadequate PMT or insufficient dwell time traps solvent molecules within the coating matrix. These act as plasticizers, lowering the glass transition temperature (T��) and reducing cohesive film strength.

Low Cross-Link Density: Insufficient heat leaves unreacted functional groups. During downstream retort sterilization or chemical contact (acids, salts), liquid molecules easily penetrate the under-cured polymer network, causing blistering, loss of adhesion, and corrosion.

Peak Metal Temperature (PMT) vs. Dwell Time Window

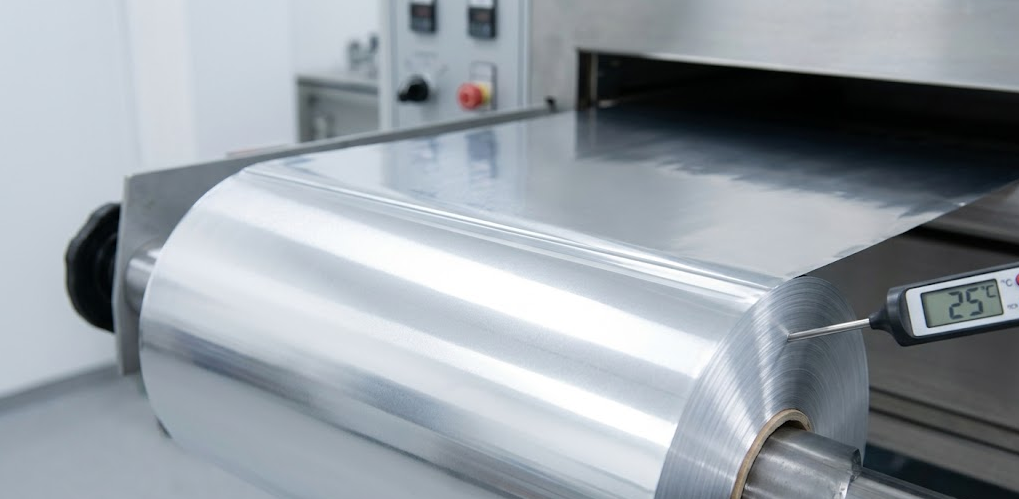

In coil coating, heat input is expressed as PMT—the actual temperature reached by the aluminum strip—rather than ambient oven temperature. Because thin aluminum foil has high thermal conductivity (~ 237 W/m · K) and low thermal mass, PMT is reached rapidly, narrowing the allowable time window for cross-linking.

Over-Curing: Thermal Degradation & Embrittlement

Polymer Chain Scission: Exceeding maximum allowable PMT limits (> 220°C for standard epoxies) breaks down polymer backbones, reducing molecular weight and creating a brittle coating.

Substrate Oxidation: Excessive heat thickens the friable aluminum oxide layer at the interface, causing the lacquer to shear off along with the weak oxide scale during deep drawing or stamping.

Micro-Cracking During Forming: Over-cured, hyper-cross-linked lacquers lose elongation capability. When the foil is stamped or folded into packaging (e.g., blister pockets), the brittle coating micro-fractures along bend radii.

FAQ

Q1:Why does lacquer delaminate from aluminum foil during heat sealing?

A:Delamination during heat sealing typically occurs because the underlying primer/lacquer was under-cured (low cross-link density leads to cohesive failure when heated) or over-cured (excessive thermal exposure rendered the coating brittle, causing it to shear under seal bar pressure).

Q2:What is the difference between oven air temperature and Peak Metal Temperature (PMT)?

A: Oven air temperature is the ambient temperature inside the heating tunnel, whereas PMT is the maximum temperature reached by the aluminum foil strip itself. Because heat transfer depends on line speed, foil thickness, and oven air velocity, PMT must be measured using trailing thermocouples or calibrated IR pyrometers.

Q3:How does aluminum foil surface tension (dyne level) affect heat-curing adhesion?

A:AHigh surface tension (≥ 38 dynes/cm) ensures the liquid lacquer wets the foil surface uniformly during the initial wet-film application. Proper wetting allows the coating to flow into the oxide topography before curing, maximizing chemical and mechanical adhesion once cured.

Q4:Can heat curing affect the tensile strength or temper of thin aluminum foil?

A:Yes. Exposing cold-rolled aluminum foil (e.g., H18 hard temper) to high PMT profiles (> 200°C) for extended durations can induce partial annealing or recovery, slightly reducing tensile strength while increasing elongation. Curing cycles must be calculated to preserve required substrate mechanical properties.

Q5:How does Changzhou Dingang Metal Material Co., Ltd. (China) ensure uniform lacquer adhesion across wide foil coils?

A:Dingang Metal Material Co., Ltd. utilizes automated closed-loop PMT profiling across the entire strip width, coupled with continuous surface corona pre-treatment and in-line coat weight monitoring systems to ensure consistent adhesion performance from edge to center.

Conclusion

Optimizing the heat-curing cycle is crucial for producing high-performance lacquered aluminum packaging foil. By carefully balancing Peak Metal Temperature, oven dwell time, and solvent evaporation kinetics, converters and packaging manufacturers can ensure maximum lacquer adhesion, superior drawability, and robust barrier protection against aggressive fill goods and sterilization processes.
