The Secret Behind the Golden Façades: Why 3003-H14 Color Coated Aluminum is Replacing Steel in GCC Infrastructure

The Secret Behind the Golden Façades: Why 3003-H14 Color Coated Aluminum is Replacing Steel in GCC Infrastructure

The Application of Reliability in Color Coated Aluminum

In the GCC, "Reliability" is measured by a material's ability to survive the RUV4 UV index and the high-salinity air of coastal cities like Jeddah and Doha. For decades, galvanized steel was the standard. However, once the zinc coating on steel is scratched or weathered, the core rusts rapidly.

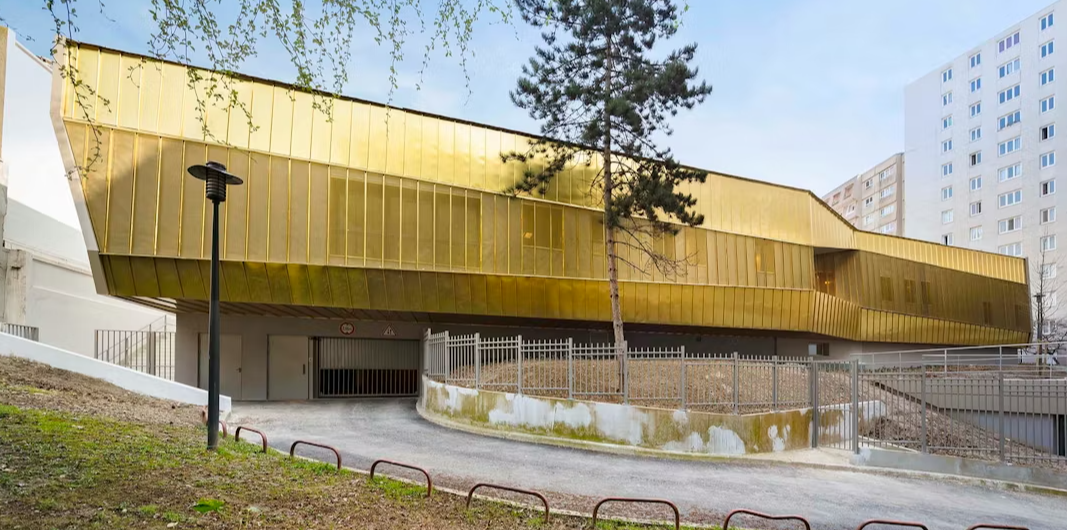

Color-coated aluminum offers a different kind of reliability: Intrinsic Corrosion Resistance. Even if the paint is compromised, the aluminum substrate forms a natural oxide layer that prevents structural failure. This "Self-Healing" nature is the secret behind the enduring "Golden Façades" seen across the new Middle Eastern skyline.

What is the Definition of 3003-H14 Color Coated Aluminum?

3003-H14 is an aluminum-manganese alloy (Al-Mn).

3003 Alloy: The addition of manganese increases strength by approximately 20% over 1100 series aluminum while maintaining excellent workability.

H14 Temper: Indicates the metal has been strain-hardened to a "half-hard" state. This provides the perfect balance—stiff enough to resist wind loads on a skyscraper, yet flexible enough to be roll-formed into complex roof profiles without cracking.

Color Coated: The surface is treated with a high-performance resin (typically PVDF or PUPA) to provide aesthetic brilliance and environmental protection.

How to Choose the Right Suppliers in the Middle East

Choosing a supplier for a Giga-project requires more than a price list. You must evaluate:

Compliance Literacy: Can they provide SASO 2656 certificates and facilitate SABER registration?

Coating Technology: Do they offer 70% PVDF (Kynar 500) for outdoor use and BPA-NI for food contact?

Logistics Agility: For projects like NEOM, lead times are critical. A supplier with an optimized GCC supply chain is worth more than a discount.

Key Selection Criteria (The "Professional" Checklist)

T-Bend Performance: Should be 0T to 1T for architectural cladding to ensure no micro-cracking at the folds.

MEK Resistance: Over 100 double rubs to ensure the coating is fully cured.

Color Consistency: A △E of < 0.5 between batches to ensure the entire building looks uniform.

Focus On

In the wake of Saudi Vision 2030 and the UAE’s Urban Master Plan 2040, procurement hubs in Riyadh and Dubai have moved past "low-cost" steel toward "high-performance" aluminum. The market is currently dominated by:

3003-H14 Prepainted Coils: For standing seam roofing and architectural "Golden" façades.

Insulated Sandwich Panels: Utilizing aluminum skins for cold storage and logistics hubs.

8011/3003 Lacquered Foils: For the burgeoning local food-service and airline catering sectors.

Perforated Prepainted Sheets: For natural ventilation in "Green Riyadh" infrastructure projects.

Evaluating Long-Term Costs: The Aluminum ROI

While 3003-H14 aluminum has a higher initial purchase price than galvanized steel, its Return on Investment (ROI) in the Middle East is superior:

Weight Savings: Aluminum is 1/3 the weight of steel. This reduces the cost of the supporting sub-structure and lowers shipping/installation labor costs.

Zero Maintenance: No repainting or rust-treatment required for 30-year lifecycles.

Scrap Value: At the end of the building's life, aluminum scrap retains up to 60-70% of its primary metal value, whereas rusted steel is often a liability.

The Future of Pre-painted Aluminum Food Packaging Manufacturing in the Middle East

The shift to aluminum isn't limited to buildings. As the Middle East becomes a global hub for food processing, pre-painted aluminum is replacing plastic and tinplate.

The Trend: Moving toward BPA-NI (Bisphenol A Non-Intent) lacquered aluminum for ready-to-eat meal containers.

Market Driver: Increasing health regulations from the SFDA and the regional ban on single-use plastics.

Sustainability: Pre-painted foil containers are 100% recyclable, fitting into the "Circular Economy" goals of the UAE and Saudi Arabia.

Tender Presentation Asset: Material Comparison Matrix

Project Focus: Middle East Industrial & Architectural Infrastructure

Emerging Pre-painted Aluminum Coil Technologies

1. Antimicrobial Coatings: Utilizing silver-ion technology to kill surface bacteria, ideal for GCC hospitals.

2. Solar-Reflective (Cool Roof): Coatings that reflect infrared heat to reduce building AC energy by 15%.

3. Digital Printing on Coil: Allowing for ultra-realistic wood or stone textures on aluminum façades without the weight of the real material.

Professional Pitch: Winning the "Total Cost of Ownership" (TCO) Argument

When presenting to a KSA architectural firm, the most persuasive argument is not the Initial Purchase Price, but the 30-Year Lifecycle Cost.

1. Structural Savings: Because 3003-H14 aluminum is significantly lighter, the engineering team can reduce the amount of structural steel required for the building's frame. This "cascading saving" often offsets the higher cost of the aluminum panels themselves.

2. Maintenance-Free Legacy: In the humid, salty air of Jeddah or Dammam, galvanized steel requires periodic inspections and potential repainting. Dingang’s 70% PVDF-coated aluminum is virtually maintenance-free, preserving the client's "Asset Value" without recurring OPEX costs.

3. Climate-Responsive Design: By using aluminum with a high Solar Reflectance Index (SRI), the building stays cooler naturally. This is a critical metric for Mostadam (Saudi’s green building rating system) and LEED certifications.

FAQ

الأسئلة الشائعة: توضيحات تقنية للمناقصات

Q1: How does 3003-H14 aluminum handle high-velocity sandstorms?

كيف يتعامل ألومنيوم 3003-H14 مع العواصف الرملية عالية السرعة؟

EN: When paired with our high-hardness PUPA or PVDF coatings, the surface resists the abrasive "sandblasting" effect better than steel, which tends to pit and then corrode.

AR: عند دمجه مع طلاءاتنا عالية الصلابة مثل (PUPA) أو (PVDF)، يقاوم السطح تأثير "الصنفرة الرملية" بشكل أفضل من الفولاذ، الذي يميل إلى التنقر ثم التآكل.

Q2: Is the color matching consistent for large-scale projects like Riyadh Metro?

هل مطابقة الألوان متسقة للمشاريع الكبيرة مثل مترو الرياض؟

EN: Yes. Dingang utilizes advanced Spectrophotometry to ensure a color variance of $\Delta E < 0.5$, ensuring a seamless look across thousands of square meters.

AR: نعم. تستخدم "دينغانغ" قياس ألوان متطور لضمان تباين لوني أقل من 0.5، مما يضمن مظهراً متناسقاً عبر آلاف الأمتار المربعة.

Q3: Why is 3003-H14 preferred over 1100 for Saudi roofing? لماذا يفضل 3003-H14 على 1100 لأسقف السعودية؟

EN: 3003-H14 is stronger and more resistant to the high wind loads found in open desert areas.

AR: سبيكة 3003-H14 أقوى وأكثر مقاومة لأحمال الرياح العالية الموجودة في المناطق الصحراوية المفتوحة.

Q4: Can color-coated aluminum withstand the humidity in Dubai? هل يمكن للألومنيوم الملون تحمل الرطوبة في دبي؟

EN: Yes, especially when coated with PVDF, which provides an inert barrier against moisture and salt-mist.

AR: نعم، خاصة عند طلائه بـ (PVDF)، الذي يوفر حاجزاً خاملاً ضد الرطوبة والرذاذ الملحي.

Q5: Is the paint on food-grade aluminum safe for high-temperature reheating? هل الطلاء الموجود على الألومنيوم المخصص للأغذية آمن لإعادة التسخين بدرجات حرارة عالية؟

EN: Yes, our food-grade coatings are designed to be stable during "Retort" sterilization and oven reheating up to 250°C.

AR: نعم، تم تصميم طلاءاتنا المخصصة للأغذية لتكون مستقرة أثناء تعقيم (Retort) وإعادة التسخين في الفرن حتى 250 درجة مئوية.

Q6: How does aluminum help with LEED certification in the Middle East? كيف يساعد الألومنيوم في الحصول على شهادة "ليد" (LEED) في الشرق الأوسط؟

EN: Its high recyclability and the use of heat-reflective coatings earn critical points for sustainability and energy efficiency.

AR: إن قابليته العالية لإعادة التدوير واستخدام الطلاءات العاكسة للحرارة تمنح نقاطاً حاسمة للاستدامة وكفاءة الطاقة.

Q6: What is the typical lifespan of 3003-H14 in a desert environment? ما هو العمر الافتراضي النموذجي لـ 3003-H14 في البيئة الصحراوية؟

EN: With a 25-micron PVDF coating, the lifespan often exceeds 30 years without significant fading or corrosion.

AR: مع طلاء (PVDF) بسمك 25 ميكرون، غالباً ما يتجاوز العمر الافتراضي 30 عاماً دون بهتان ملحوظ أو تآكل.

Q7: Is Dingang aluminum compliant with the SABER system? هل ألومنيوم "دينغانغ" متوافق مع نظام سابر؟

EN: Yes, we provide all necessary technical documents and test reports to ensure smooth SABER registration for Saudi importers.

AR: نعم، نحن نوفر جميع المستندات الفنية وتقارير الاختبار اللازمة لضمان التسجيل السلس في نظام سابر للمستوردين السعوديين.

Q8: Can you match the "Desert Gold" color for Saudi Giga-projects? هل يمكنك مطابقة لون "ذهبي الصحراء" للمشاريع السعودية الكبرى؟

EN: Yes, we offer professional digital color matching for any RAL or custom architectural shade.

AR: نعم، نحن نقدم مطابقة ألوان رقمية احترافية لأي درجة لون (RAL) أو تدرج معماري مخصص.

Conclusion

For the developers of Vision 2030, the choice is clear. Steel is a material of the past; 3003-H14 Color Coated Aluminum is the material of the future. It offers the resilience to survive the desert, the flexibility to realize ambitious designs, and the economic logic to protect the  long-term investment.
