Which Grade of Aluminum Alloy Substrate Should Be Selected for Color-coated Aluminum Used in Vehicles?

Abstract

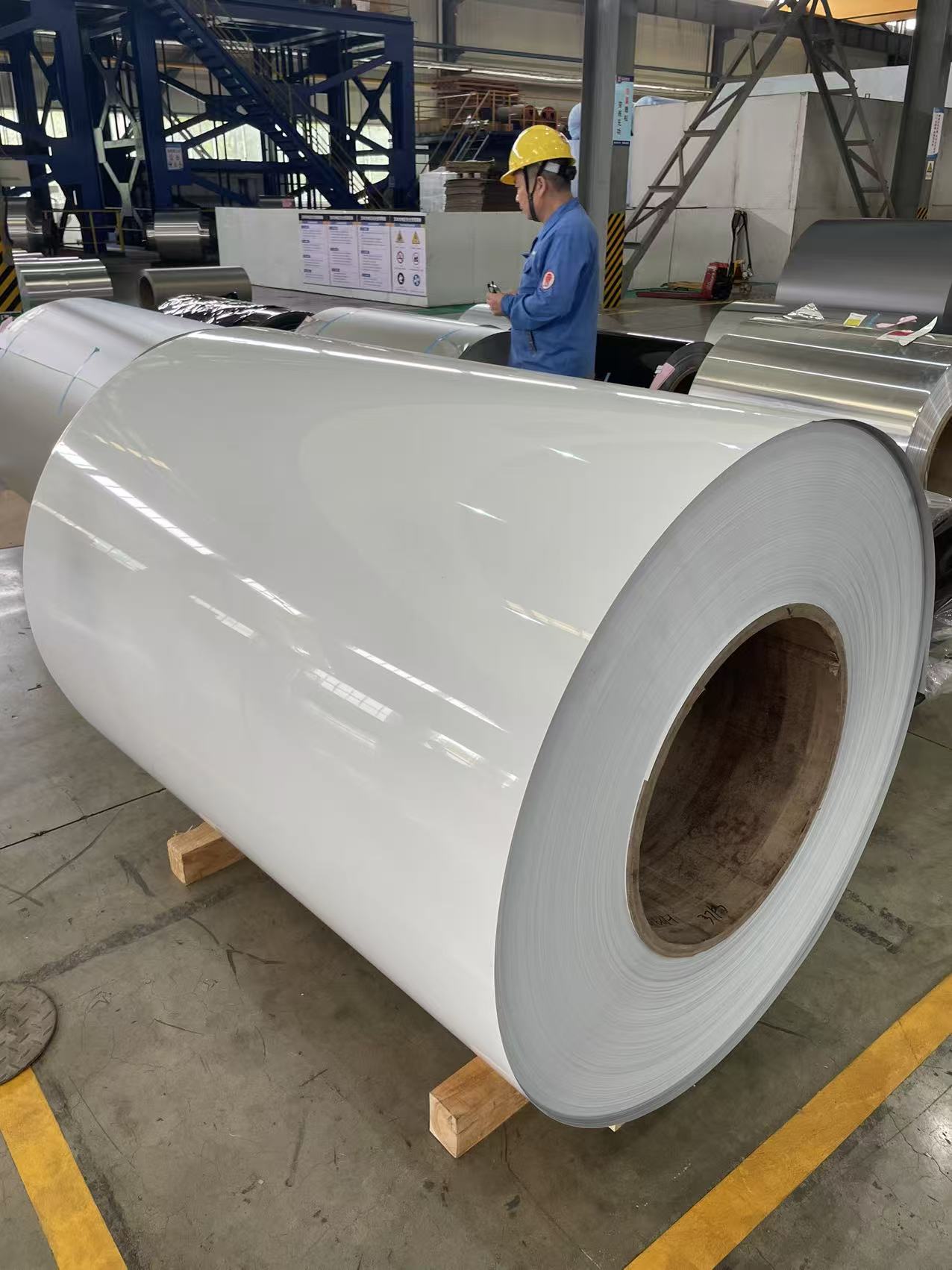

Color-coated aluminum has become a key lightweight and decorative material for modern vehicles, widely applied in automotive exterior trim, interior decorative panels, carriage body panels, license plates, and protective accessories. The performance of the aluminum alloy substrate directly determines the coating adhesion, weather resistance, formability, and service life of color-coated aluminum products. This paper systematically analyzes the performance requirements of vehicle-used color-coated aluminum for base materials, compares the characteristics of mainstream aluminum alloy grades, and clarifies the optimal substrate selection schemes for different automotive application scenarios, providing a reliable reference for automotive color-coated aluminum material selection and production optimization.

1. Introduction

With the rapid development of automotive lightweighting and high-end decoration, traditional steel and ordinary aluminum materials can no longer meet the dual requirements of vehicle body energy conservation and appearance aesthetics. Color-coated aluminum, which integrates lightweight, high corrosion resistance, rich color diversity, and excellent processability, has gradually replaced traditional materials and become the preferred material for automotive decorative and partial structural components.

Unlike architectural color-coated aluminum, vehicle-used color-coated aluminum faces more stringent service conditions, including complex road vibration, alternating high and low temperatures, ultraviolet radiation, rainwater erosion, and mechanical bending and stamping during processing and installation. Therefore, the aluminum alloy substrate for automotive color coating must balance formability, coating compatibility, weather resistance, and moderate structural strength. Improper selection of alloy grades will easily cause problems such as coating peeling, substrate deformation, corrosion and discoloration, and cracking of processed parts. Based on automotive industry application standards and actual working conditions, this paper summarizes the applicable aluminum alloy substrates for vehicle color-coated aluminum and analyzes their application advantages and scope.

2. Core Performance Requirements for Automotive Color-Coated Aluminum Substrates

The aluminum alloy substrate for vehicle color coating must meet the special matching requirements of the color coating process and automotive service scenarios, with the following core performance indicators:

Excellent Coating Adhesion and Surface Uniformity

The substrate surface needs to be flat, dense, and free of obvious grain defects, oxide inclusions, and surface streaks, ensuring stable bonding with organic coating layers. The alloy composition should be uniform to avoid inconsistent surface roughness, which leads to uneven color difference and poor coating adhesion after color coating, preventing coating falling off during vehicle operation and vibration.

Superior Formability and Stamping Performance

Most automotive color-coated parts such as body decorative strips, inner door panels, and carriage shells require bending, deep drawing, and stamping forming. The substrate must have good ductility and low yield strength fluctuation to avoid cracking, wrinkling, and deformation during secondary processing, and adapt to the complex shape design of automotive parts.

Outstanding Weather and Corrosion Resistance

Automotive exterior parts are exposed to outdoor environments for a long time, resisting ultraviolet aging, rainwater, dust, and slight acid-base corrosion. The substrate itself needs good natural corrosion resistance to cooperate with the color coating layer to form a dual anti-corrosion system, avoiding substrate oxidation and rust penetration caused by coating micro-scratches.

Moderate Strength and Lightweight Characteristics

On the premise of meeting the processing and anti-corrosion performance, the substrate should have moderate tensile strength and rigidity to resist minor impact and vibration deformation of the vehicle body, while maintaining the lightweight advantage of aluminum materials to reduce vehicle energy consumption.

3. Mainstream Aluminum Alloy Grades for Automotive Color-Coated Aluminum Substrates

Combined with the process characteristics of color-coated aluminum and automotive working condition requirements, the automotive industry mainly selects 3-series aluminum-manganese anti-rust aluminum and 5-series aluminum-magnesium high-formability aluminum as color-coated substrates. High-strength 6-series aluminum is used for individual structural decorative parts. The detailed performance and application characteristics of each grade are as follows:

3003 Aluminum Alloy (First Choice for Conventional Automotive Decorative Parts)

3003 aluminum alloy is a typical Al-Mn anti-rust aluminum, which is the most widely used substrate for vehicle color-coated aluminum. It has the advantages of uniform texture, excellent weather resistance, stable chemical properties, and low production cost. Its manganese element effectively improves the anti-corrosion ability of the alloy, enabling it to resist outdoor atmospheric corrosion and daily environmental erosion of vehicles for a long time.

In terms of processing performance, 3003 aluminum has good ductility and stamping adaptability, suitable for flat rolling, bending, and surface color coating treatment. The surface after finishing is smooth and uniform, with high coating bonding stability, no color difference and peeling problems after long-term use. It is the standard substrate for automotive license plates, exterior decorative strips, body marking panels, and lightweight interior decorative parts.

5754 Aluminum Alloy (Preferred for Automotive Carriage and Large Shell Parts)

5754 aluminum alloy belongs to medium-strength Al-Mg alloy, with higher strength, better formability and fatigue resistance than 3-series aluminum. It has ultra-high corrosion resistance, especially suitable for vehicle carriage bodies, cargo box panels, and large-area color-coated shell parts of commercial vehicles.

This alloy has excellent deep drawing and bending performance, which can adapt to the complex curved surface forming of automotive carriage parts. After color coating, it maintains stable structural rigidity, and is not easy to deform under long-term vehicle vibration and load conditions. Its excellent anti-corrosion performance can effectively resist the erosion of cargo moisture and road sediment, greatly extending the service life of vehicle carriage color-coated parts.

5182 Aluminum Alloy (Special for Automotive Body Stamping Parts)

5182 aluminum alloy is a high-formability aluminum-magnesium alloy, which is superior to 5754 in deep drawing performance and is specially used for stamping and forming of automotive inner and outer body panels. It has ultra-high ductility and low processing cracking rate, which can meet the precise forming requirements of complex automotive body structures.

After color coating treatment, 5182 aluminum alloy retains good mechanical stability, with strong coating impact resistance, and is suitable for high-demand color-coated parts such as automobile door panels, heat insulation baffles, and body inner decorative stamping parts. It is a high-end substrate for passenger car body color-coated aluminum parts.

 6063 Aluminum Alloy (For High-Grade Extruded Decorative Parts)

6063 aluminum alloy is a typical heat-treatable reinforced aluminum alloy with excellent extrusion performance and high surface finish. It is mainly used for color-coated extrusion profiles of automotive decorative parts, such as roof racks, window trim strips, and body edge-sealing decorative strips.

This alloy has smooth extrusion surface and uniform texture, which can present high gloss and high flatness color coating effect after color coating. It has moderate strength and good wear resistance, suitable for small and medium-sized automotive decorative profile parts with high appearance requirements.

4. Graded Selection Scheme for Vehicle Color-Coated Aluminum Substrates by Scenario

Lightweight Decorative Parts (License Plates, Markings, Interior Trim)

Priority selection: 3003 aluminum alloy. This grade meets the basic anti-corrosion and flatness requirements of conventional decorative parts, with low cost and stable color coating effect, and is the most cost-effective substrate for ordinary automotive color-coated decorative parts.

Commercial Vehicle Carriage and Large-Area Shell Parts

Priority selection: 5754 aluminum alloy. Relying on its high strength, vibration resistance and excellent anti-corrosion performance, it solves the problems of deformation and corrosion failure of large-area color-coated parts of commercial vehicles under long-term service conditions.

Passenger Car Body Stamping Color-Coated Parts

Priority selection: 5182 aluminum alloy. Its super deep drawing formability ensures no cracking in complex stamping processes, and the matching color coating process can meet the high appearance and high durability requirements of passenger car body parts.

Automotive Extrusion Decoration Profiles

Priority selection: 6063 aluminum alloy. Its excellent extrusion molding and surface finishing performance can realize high-precision and high-appearance color coating decoration of automotive profile parts.

5. Conclusion

The selection of aluminum alloy substrates for vehicle-used color-coated aluminum must be matched according to specific automotive application scenarios, processing technologies and performance requirements. For conventional lightweight decorative parts with low load requirements, 3003 aluminum alloy is the optimal choice with high cost performance. For commercial vehicle carriage and large bearing color-coated parts, 5754 aluminum alloy with high strength and high corrosion resistance is preferred. For passenger car body precision stamping color-coated parts, 5182 aluminum alloy with superior formability should be selected. For automotive decorative extrusion profiles, 6063 aluminum alloy can ensure excellent surface coating effect and structural stability.

Reasonable selection of alloy grades can maximize the matching performance of the substrate and color coating layer, effectively improving the weather resistance, processability and service life of vehicle color-coated aluminum products, and meeting the dual development needs of automotive lightweighting and high-end decorative upgrading.
