Can FEVE Coated 5083 Aluminum Coils Withstand 5,000+ Hours of Ocean Salt Spray Without Pitting?

Offshore energy platforms, coastal architectural facades, port infrastructure, and naval support facilities operate in some of the world's most destructive atmospheric environments. High concentrations of atmospheric chloride ions ($\text{Cl}^-$), continuous ultraviolet exposure, and high relative humidity accelerate intergranular corrosion and localized pitting on unprotected structural metals.

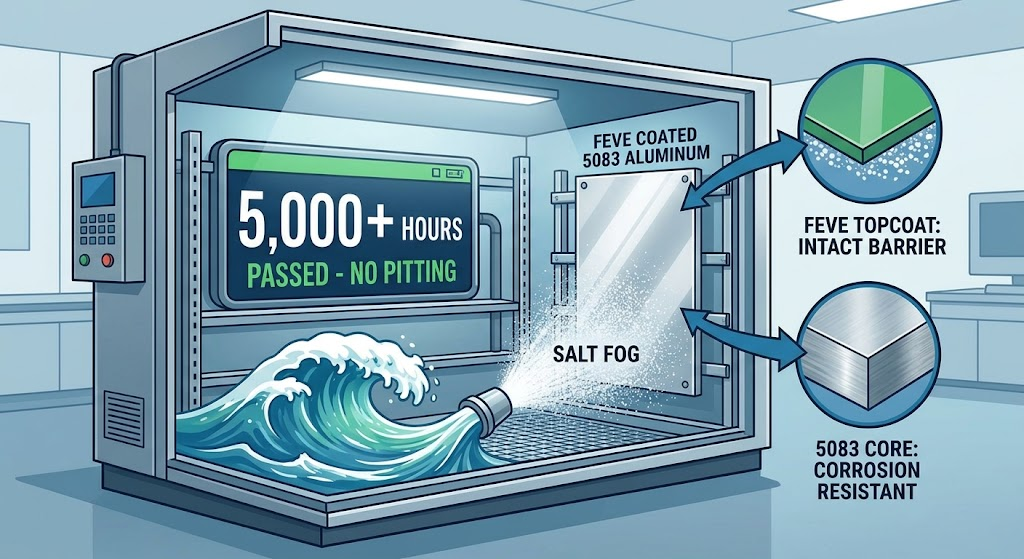

FEVE (Fluoroethylene Vinyl Ether) coated 5083 aluminum coils combine high-magnesium marine-grade structural aluminum with a high-durability fluoropolymer surface chemistry. When processed through continuous pre-treatment and precision roller coating, this composite material system reliably withstands 5,000+ hours of continuous salt spray testing (ASTM B117 / ISO 9227) with zero localized pitting, blistering, or delamination.

Structural Properties of 5083 Marine-Grade Substrate

Unlike standard 3003 or 1100 series architectural alloys, 5083 aluminum delivers high load-bearing capability and intrinsically low seawater reactivity:

High Yield Strength & Wind-Load Resistance: Reaches yield strength levels above 215 MPa, preventing elastic deformation under coastal storm winds and severe atmospheric pressures.

Exfoliation Resistance (H116 / H321 Tempers): Thermomechanically controlled processing suppresses continuous grain-boundary precipitation of β-phase (Mg₂Al₃), preventing intergranular cracking under long-term marine exposure.

Polymer Cross-Linking Mechanism

FEVE fluoropolymer resins feature an alternating molecular structure of fluoro-monomers and functional vinyl ethers:

High Fluorine Bond Energy: The stable C-F chemical bond (485 kJ/mol) prevents photodegradation from ultraviolet rays, maintaining gloss and color stability.

Isocyanate Hydroxyl Cross-Linking: Unlike thermoplastic PVDF coatings that rely on physical fusion, FEVE forms a dense, three-dimensional polyurethane network that blocks salt water diffusion and atmospheric chloride ion migration.

Technical Validation & Performance Standards

The performance matrix below outlines key laboratory testing benchmarks for FEVE-coated 5083 coils:

Key Professional Advantages in Marine & Architectural Engineering

Long-Term Lifecycle Cost Reduction

Elimination of Mid-Life Refinishing: Maintenance intervals for coastal building envelopes and offshore living quarters are extended from 10–12 years to over 25–30 years, significantly reducing operational expenditure.

Field Touch-Up Compatibility: Unlike thermoplastic PVDF coatings that require factory thermal baking, FEVE surfaces can be touch-up repaired or recoated on-site using ambient-cure FEVE formulations.

View More >>

Structural Mass Reduction & Load Optimization

Weight Advantage vs. Marine Steel: Weighing roughly one-third of stainless steel (2.73 g/cm³), 5083 coil drastically cuts deadweight on floating offshore platforms and cantilevered architectural facades.

High Structural Integrity: Elevated yield strength (>215 MPa) allows for thinner gauge panel specifications without sacrificing wind-load resistance.

View More >>

Superior Aesthetic Flexibility & Environmental Resistance

Broad Gloss Range (10% - 85%): FEVE resins support high-gloss architectural finishes and vibrant colors that remain stable under relentless tropical sun and marine atmosphere exposure.

Non-Porous Chalking Resistance: High molecular density prevents atmospheric dirt accumulation and chalking, maintaining original surface appearance with minimal maintenance.

View More >>

The Electrochemical Mechanics of Anti-Pitting Performance

Unprotected aluminum alloys in marine air develop localized pitting corrosion via chloride ion penetration.

The FEVE coating system blocks this mechanism through a multi-tier barrier:Impermeable Chemical Barrier:

The dense C-F polymer network prevents water molecules (H₂O) and chloride ions (Cl⁻) from reaching the aluminum oxide boundary layer.

Chromate-Free Zirconium/Titanium Pre-treatment: Passivates the raw 5083 surface with a nano-scale conversion layer (20 nm - 50 nm), guaranteeing chemical adhesion (Class 0 Cross-Hatch) and preventing sub-film creep.

High-Build Polyurethane/Epoxy Primer (10μm - 15μm): Contains active anti-corrosive inhibitors that passivate the interface even if the outer layer experiences mechanical abrasion.

Sub-Film Creep Prevention

Covalent Interfacial Bonding: The nanometer conversion layer forms direct inorganic chemical bonds with the substrate surface, eliminating pathways for moisture accumulation and stopping lateral corrosion creep beneath the primer layer.

Surface Preparation & Nano-Conversion Pretreatment

Alkaline & Acid Degreasing: The continuous 5083 coil substrate undergoes multi-stage alkaline washing and acid micro-etching to completely remove rolling oils, oxides, and surface impurities.

Zirconium-Titanium Passivation: A uniform, chromate-free Zr/Ti oxide film (20 nm - 50 nm) is chemically deposited onto the cleaned substrate, optimizing surface tension (≥ 52 dynes/cm) for permanent coating adhesion.

Precision Continuous Roll Coating Dynamics

Three-Roll Reverse Coating Heads: High-precision coating apparatus applies a anti-corrosive flexible primer (12μm) followed by an FEVE fluoropolymer topcoat (28μm).

Dry Film Thickness (DFT) Uniformity: Automated laser thickness gauge monitors ensure a precise total coating profile of 40μm ± 2μm across the entire coil width (1000 mm - 1600 mm).

Thermal Curing & Quality Control Standards

Peak Metal Temperature (PMT) Control: The coated coil passes through multi-zone catenary convection ovens, reaching a tight PMT window of 240°C - 250°C to complete resin cross-linking.

On-Line Defect Auditing: Every production lot undergoes continuous optical inspection to guarantee zero pinholes, micro-voids, or surface blemishes before coiling.

FAQ

Q1:Why is 5083 alloy chosen over 3003 or 5052 for severe marine applications?

A:5083 alloy contains higher magnesium content (4.0% - 4.9%), delivering significantly higher yield strength and superior intrinsic resistance to seawater corrosion compared to general-purpose 3003 or 5052 alloys.

Q2: How does the FEVE resin system achieve 5,000+ hours of salt spray resistance without pitting?

A:FEVE forms a dense, thermosetting three-dimensional polymer network through covalent polyurethane cross-linking. This non-porous chemical barrier prevents moisture and aggressive chloride ions (Cl⁻) from contacting the aluminum substrate.

Q3: Can FEVE-coated 5083 coils be roll-formed or bent without cracking the coating?

A:Yes. Cured FEVE coatings offer an optimal balance of surface hardness (2H - 3H) and elongation flexibility, allowing panels to undergo 1T - 2T bends and automated roll-forming without micro-fissuring.

Q4: What is the main operational difference between FEVE and PVDF coatings in marine environments?

A:FEVE forms a thermoset cross-linked coating that offers higher gloss options (10% - 85%), greater film hardness, ambient field-repairability, and superior salt spray resistance compared to thermoplastic PVDF coatings.

Q5: How should exposed cut edges be handled during field installation?

A:While 5083 alloy naturally passivates, best practices for long-term marine installations involve applying an air-curing FEVE or epoxy edge sealer to sheared edges to eliminate sub-film creep risks.

Conclusion

FEVE coated 5083 aluminum coils provide an exceptionally durable, lightweight, and corrosion-resistant material solution capable of passing 5,000+ hours of continuous salt spray testing without pitting or film failure.

To optimize material selection for marine and coastal projects:

Specify Marine-Grade Alloy & Temper (5083-H116 / H321): Ensure the core substrate uses H116 or H321 temper to prevent intergranular and exfoliation corrosion in saline environments.

Mandate Minimum Coating Thickness (40μm DFT): Enforce a two-coat system consisting of a high-build primer (≥  12μm) and an FEVE topcoat (≥ 28μm) for complete barrier integrity.

Verify Compliance Testing Standards: Require certified laboratory reports confirming 5,000-hour ASTM B117 salt spray endurance and ASTM G154 QUV weatherability.
