Is 0.2mm Precision Slit Lacquered Foil the Best Solution for Humanoid Finger Actuator Wiring?

As the international robotics industry races to commercialize dexterous, human-level manipulation, the robotic hand has become the ultimate test of engineering integration. For bipedal humanoid robots to perform delicate factory assembly, hazardous ordnance handling, complex surgical support, or fine domestic tasks, each multi-articulated finger must house micro-coreless motors, strain gauges, tactile tactile-array sensors, and position encoders within dimensions identical to human anatomy.

In this hyper-compact space, routing electrical power and high-speed signal pathways through continuously flexing knuckle joints creates a severe hardware bottleneck: dynamic fatigue wire breakage and fingertip inertia overloads.

Traditional wiring methods are reaching their physical and commercial limits in five-finger hands:

Conventional round copper wire harnesses require thick bundle cross-sections. When packed into 3-axis finger joints, round bundles generate high bending stiffness that resists knuckle flexion, forcing finger motors to expend up to 30% of their rated torque just overcoming wire bundle resistance.

Standard copper polyimide flexible printed circuits (FPC) suffer from copper work-hardening. Under millions of high-frequency curling cycles at tight bend radii (under 1.5mm), the laminated copper foil micro-cracks and snaps, causing catastrophic sensor signal loss and motor shutdown. Furthermore, multi-layer copper FPCs add excessive deadweight to the fingertip, amplifying hand inertia and slowing down high-speed grasp reflexes.

Hand-soldered individual micro-cables require meticulous manual cleanroom routing, leading to inconsistent assembly times, high rework scrap rates, and severe production bottlenecks during volume manufacturing.

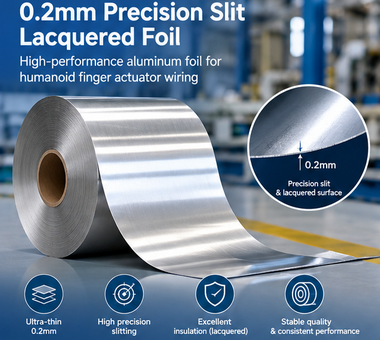

0.2mm precision slit lacquered aluminum foil delivers a proven, scalable material platform for next-generation humanoid hands. By combining ultra-pure annealed aluminum foil (1000 and 8000 series) with a factory-cured, sub-micron high-dielectric polymer lacquer and burr-free micro-slitting, this engineered flat conductor eliminates flexural fatigue failures, reduces finger wiring thickness by more than 50%, slashes moving distal mass by over 60% compared to copper, and transitions humanoid hand manufacturing from slow hand-wiring to automated high-throughput assembly.

Structural Properties of High-Purity Aluminum Micro-Foil

Packing high-current motor drive lines and multi-channel sensor buses into a 15mm-wide humanoid finger requires conductor geometries engineered for tight spaces:

High-Purity 1085/8011 Annealed Substrates: Using aluminum purity exceeding 99.85% in fully soft O-temper provides uniform elongation ratings over 15% to 20%. This grain structure prevents localized necking and allows the 0.2mm flat foil to conform to dynamic knuckle contours without structural springback.

The Physics of Flat vs. Round Geometry: A 0.2mm flat foil conductor provides the same current-carrying cross-sectional area as a bulky 0.5mm round wire bundle while slashing total vertical height by more than 60%. This ultra-thin profile routes smoothly through knuckle hinge channels that would pinch and sever conventional round cables.

Slashing Distal Finger Inertia: In high-speed bionic grasping, inertial mass at the fingertips acts like a pendulum, magnifying mechanical strain on miniature tendons and micro-gearboxes. Aluminum’s density is nearly one-third that of copper (2.70 g/cm³ vs. 8.96 g/cm³). Swapping copper for aluminum strips removes crucial grams from the distal phalanges, speeding up finger response times and cutting motor drive heat.

High-Dielectric Factory-Applied Barrier Lacquer

Traditional wire insulation relies on thick extruded plastic sleeves that stiffen joints. Advanced lacquered foil integrates sub-micron dielectric coatings directly onto the metal strip:

Pinhole-Free Modified Polyamide-Imide / Polyurethane Matrix: Applied at continuous dry film thicknesses between 2.0 µm and 4.0 µm, the cross-linked lacquer delivers high electrical breakdown protection without adding mechanical stiffness.

Thermal Dissipation Along Narrow Channels: Micro-actuator drivers generate localized heat inside the finger housing. Aluminum’s high thermal conductivity (exceeding 210 W/m·K) dissipates operational heat away from finger motors and channels it toward the structural palm chassis, preventing motor thermal cutoffs during heavy gripping.

Technical Validation & Practical Performance

Sovereign Robotics Vision & B2B Commercial Payoff

Fueling National High-Rate Humanoid Manufacturing

Enabling Sovereign Bionic Manufacturing: Nations worldwide are racing to commercialize humanoid robots to secure industrial leadership and overcome demographic labor shortages. Transitioning from artisanal, hand-soldered wire bundles to mass-producible, precision-slit lacquered aluminum foil removes the primary assembly bottleneck in robotic hands, allowing manufacturers to scale from dozens of prototypes to thousands of commercial units per month.

Driving Robot BOM Cost Down to Mass-Market Targets: Slashing the manufacturing cost of complex hand wiring harnesses by over 50% helps robotics builders achieve aggressive overall bill-of-materials targets (sub-$20,000 total robot cost), accelerating adoption across logistics, automotive, and domestic service sectors.

View More >>

Factory Floor Economics: High Assembly Yields and Zero Rework

Eliminating the Hand-Soldering Bottleneck: Traditional hand assembly requires technicians to thread dozens of loose wires through microscopic finger pulleys with tweezers—a process that takes 4 to 8 hours per hand and generates high defect rates. Pre-slit lacquered foil ribbons integrate seamlessly with automated pick-and-place robots and laser micro-welding stations, slashing hand assembly time to under 30 minutes.

Zero Dielectric Short-Circuit Scrap: Eliminating manual wire stripping and crimping prevents stray wire strands and damaged insulation jackets, dropping electrical testing scrap rates on final hand sub-assemblies to under 0.2%.

View More >>

Long-Term Fleet Reliability & Sustainable Metallurgy

Infinitely Recyclable Clean Metal: Aluminum is an infinitely recyclable green metal requiring only 5% of the energy needed for primary smelting during secondary refining. Utilizing recyclable aluminum conductors provides an environmentally responsible manufacturing platform that aligns with international ESG mandates.

Maintenance-Free Grasping Over Decades: The fatigue-resistant alloy core and bonded polymer lacquer resist degradation from grease, sweat, and millions of dynamic grasp cycles, eliminating field service calls for broken finger wiring and protecting robot builders from costly warranty claims.

View More >>

The Failure Sequence of Copper Wire in Continuous Finger Flexure

In high-dexterity humanoid hands, standard copper wiring follows a predictable path to electrical failure:

Repetitive Tight-Radius Bending: When a robotic finger curls around tools or parts, wires bend across sharp radii under 2.0mm.

Copper Work-Hardening: Copper's crystalline structure work-hardens rapidly under cyclic strain. Within several hundred thousand cycles, the copper becomes brittle, developing micro-cracks along outer bend margins.

Conductor Snapping & Intermittent Sensor Loss: The work-hardened copper snaps, severing power to micro-motors or causing intermittent feedback drops that drop held objects and trip safety shutdowns.

The Annealed Aluminum Foil Defense: Fully annealed aluminum foil absorbs cyclic mechanical strain through uniform lattice slip without brittle strain hardening. Paired with an elastic lacquer that stretches synchronously with the metal, the foil survives millions of tight-radius curl cycles without resistance spikes or conductor fracture.

Immunity to Mechanical Pinching and Electromagnetic Noise

Resistance to Joint Hinge Pinching: Knuckle joints articulate through complex 3D sweeps where loose round wires risk getting pinched between mechanical stops. Flat, precision-slit foil mounts flush inside recessed joint tracks, completely out of the mechanical pinch zone.

Integrated Grounding and EMI Shielding: Alternating layers of lacquered foil can be stacked into ultra-thin multi-conductor buses where designated outer foil strips serve as electrical ground planes, shielding low-voltage tactile sensor signals from high-frequency motor switching noise.

Tension-Leveling & Continuous Cleanroom Pretreatment

Continuous Multi-Roll Tension Leveling: Aluminum master coils pass through automated tension-leveling lines to remove edge waves, crossbow, and residual rolling stresses. The uncoiled foil stays completely flat, ensuring uniform feeding into automated robotic hand routing fixtures.

Nano-Ceramic Passivation Pretreatment: Strip stock undergoes multi-stage alkaline cleaning to strip rolling oils, followed by an automated titanium-zirconium conversion wash that raises surface wetting tension above 56 dynes/cm, ensuring covalent coating adhesion.

Automated Reverse-Roll Micro-Lacquering

Class 1000 Cleanroom Application: High-dielectric lacquer is applied inside positive-pressure cleanroom bays using high-precision reverse micro-gravure coaters, preventing airborne dust particles from creating dielectric pinholes.

Controlled Curing Windows: Computer-monitored catenary ovens achieve optimal resin cross-linking, providing high elasticity without over-baking or reducing the annealed ductility of the aluminum core.

Rotary Carbide Micro-Slitting & Zero-Burr Edge Inspection

Precision Rotary Carbide Slitting: Master lacquered coils are slit into narrow ribbon widths (ranging from 1.5mm to 6.0mm) using mirror-polished carbide rotary knives. Edge burr height is held strictly below 3% of foil thickness.

100% In-Line Spark & Dimension Verification: The moving slit web passes through non-destructive high-voltage roller spark testers (tested at 1,000V DC) alongside laser width micrometers, guaranteeing zero conductive edge pinholes and width tolerances within ±0.05mm.

FAQ

Q1:Why is aluminum foil better than thin copper strips for humanoid finger wiring?

A:Copper work-hardens rapidly under tight cyclic bending, making it prone to fatigue cracking and snapping across tight knuckle joints. Annealed high-purity aluminum foil absorbs repetitive flexure through ductile lattice slip without becoming brittle. Furthermore, aluminum is two-thirds lighter than copper, which significantly reduces moving fingertip mass and improves grasping response times.

Q2:Can a 0.2mm aluminum conductor carry enough current for finger actuators?

A:Yes. Modern humanoid fingers utilize high-efficiency, low-current micro-coreless motors and brushless DC actuators operating at 24V to 48V. A 0.2mm thick by 3.0mm wide aluminum strip provides a generous 0.6 mm² cross-section, easily handling continuous operating currents of 2A to 4A with minimal voltage drop or resistive heating.

Q3:Does the insulating lacquer crack or flake when bent around tight finger joints?

A:No, provided factory-applied modified polyurethane or polyamide-imide lacquer systems are specified. These coatings stretch elastically along with the underlying aluminum substrate, withstanding 0T tight bends and millions of dynamic flex cycles without micro-crazing, flaking, or losing dielectric adhesion.

Q4:How are electrical connections made to the lacquered aluminum foil?

A:Connections are typically made using automated ultrasonic metal welding, micro-laser welding, or insulation-displacement micro-crimp terminals. Ultrasonic welding penetrates the thin lacquer layer cleanly in milliseconds, creating a solid-state metallurgical bond between the aluminum foil and terminal pads without requiring manual stripping or chemical flux.

Q5:How does switching to flat aluminum foil lower humanoid hand production costs?

A:Manual routing of loose round wires takes hours of tedious manual cleanroom labor and suffers from high scrap rates due to pinched insulation. Pre-slit lacquered foil ribbons can be placed and welded using automated robotic assembly lines, cutting hand assembly labor costs by over 70% while eliminating expensive custom polyimide FPC tooling charges.

Conclusion

To successfully integrate 0.2mm precision slit lacquered aluminum foil into humanoid finger actuator designs:

Specify 1085-O or 8011-O Fully Annealed Stock: Avoid work-hardened tempers; mandate certified mill test reports confirming tensile strength between 75 MPa and 105 MPa and elongation ≥ 18% to ensure high flexural fatigue life at tight knuckle bend radii.

Lock in Rotary Carbide Burr-Free Edge Specifications: Ensure purchasing agreements require precision rotary shear slitting with edge burr heights held strictly below 3% of foil gauge (< 6 µm) to eliminate microscopic tear notches that could initiate flexural cracking.

Mandate 100% In-Line Spark Testing Certification: Require suppliers to verify continuous non-destructive spark testing at 1,000V DC across every linear meter of slit coil stock, guaranteeing complete dielectric insulation integrity before automated winding or stacking.
