How Does Flexible Polyurethane Coating Prevent Chipping on Dynamic Humanoid Knee Joints?

As global robotics manufacturers shift bipedal humanoid platforms from research laboratories into commercial factory deployment, autonomous logistics, and eldercare, the mechanical demands on lower-limb articulation are increasing dramatically. During continuous 8- to 12-hour operational shifts, a humanoid robot's knee joint performs millions of high-frequency flexural cycles—bending between 0° and 135° under dynamic inertial acceleration and sudden ground-impact shock.

Around these high-torque knee actuators, protective fairings and telescoping seal strips must shield harmonic drives, cycloidal gearboxes, and multi-axis torque sensors from outside debris. However, this dynamic articulation creates an intense surface-contact challenge: severe friction chipping, edge flaking, and abrasive paint wear.

Standard industrial finishes fail rapidly under continuous robotic knee articulation:

Conventional rigid powder coatings and standard architectural paints lack elastic elongation. Under high-frequency mechanical deflection, micro-shocks, and telescoping blade-on-blade rubbing, rigid coatings crack and flake away. These dislodged paint chips fall directly into precision planetary roller screws and optical joint encoders, causing mechanical binding and joint positioning errors.

Bare, mill-finish aluminum strips lack lubricity. When telescoping joint plates slide against one another, bare aluminum galls, creating friction noise and high abrasive drag that overworks knee motors and drains battery reserves.

Heavy steel or titanium stamped fairings add substantial reciprocating mass to the lower leg, increasing the pendulum moment of inertia and degrading high-speed balance control algorithms.

Flexible polyurethane (PU) coated aluminum strip delivers the verified engineering answer. Combining strain-hardened, high-fatigue aluminum strip alloys (such as 5052-H34 or 5754-H22) with factory-applied, elastomeric cross-linked polyurethane-polyester hybrid coatings, this composite material flexes dynamically without micro-cracking, provides built-in dry-film sliding lubricity, prevents paint particle shedding, and slashes dynamic lower-limb reciprocating weight by more than 65% compared to steel.

Structural Properties of 5052-H34 and 5754-H22 Substrates

Dynamic humanoid knee fairings require materials capable of absorbing repetitive cyclic bending and sudden impact shocks without permanent distortion:

High-Fatigue Magnesium-Stabilized Alloys: Alloys in the 5000-series (containing 2.2% to 3.6% magnesium) deliver high work-hardened yield strength (180 MPa to 215 MPa) while retaining 12% to 16% elongation. This balanced mechanical temper allows knee protective strips to absorb accidental lateral kicks or collisions, flexing elastically without taking a permanent bend.

Slashing Reciprocating Pendulum Inertia: During dynamic walking and running, every gram added below the knee creates high inertial torque at the hip actuator. Aluminum’s low density (2.68 g/cm³) removes two-thirds of the deadweight compared to steel, allowing control algorithms to drive high-frequency foot swing cycles with minimal motor heat.

Resistance to Vibration-Induced Micro-Cracking: Unlike brittle heat-treated alloys that develop fatigue cracks around fastener holes during high-vibration locomotion, partially annealed H22/H34 tempers dissipate cyclic shock waves smoothly through their crystalline structure.

The Chemistry of Flexible Polyurethane Coil Coatings

Traditional industrial coatings rely on rigid, highly cross-linked polyester or acrylic bonds that crack under deflection. Advanced flexible coil-applied polyurethane uses tailored polymer mechanics:

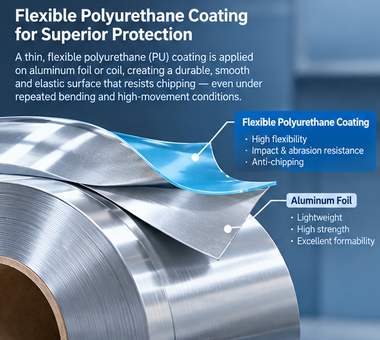

Elastomeric Block Copolymer Structure: The polyurethane matrix incorporates alternating flexible polyol segments and rigid isocyanate blocks. This structure acts like a microscopic coil spring: when bent, stamped, or rubbed, it stretches elastically and recovers its original surface profile without micro-fracturing.

Interfacial Molecular Covalence: Applied over continuous nano-ceramic titanium-zirconium conversion layers, the polyurethane primer forms covalent chemical bonds with the aluminum base metal, preventing interfacial peeling even along high-speed punched edges and tightly curled hinge loops.

Technical Validation & Practical Performance

Sovereign Robotics Vision & B2B Commercial Payoff

Powering Sovereign Automation and Advanced Robotics Leadership

Accelerating Domestic Humanoid Mass Production: Industrial nations worldwide are investing heavily in automated humanoid workforces to address aging populations and secure manufacturing supply chains. Replacing heavy steel stampings and slow anodizing processes with mass-producible, pre-coated aluminum strip gives robotics builders a predictable domestic raw material pipeline, accelerating factory ramp-up schedules.

Advancing Workplace Cleanliness & Safety: Eliminating paint particulate flaking allows humanoid robots to operate safely in sensitive environments—such as semiconductor cleanrooms, lithium battery dry rooms, and food processing lines—qualifying robot builders for high-value industrial contracts.

View More >>

Factory Floor Economics: High Stamping Yields and Zero Paint Queues

Elimination of the Secondary Paint Shop: Fabricating dynamic knee covers from pre-coated coil stock allows parts to move directly from the stamping press into final leg sub-assemblies. This eliminates in-house liquid spray booths, powder-coating lines, and multi-day curing queues, cutting manufacturing cycle times significantly.

Lower Tooling Wear and Extended Die Life: Aluminum strips with built-in dry-film lubricity shear and form smoothly, reducing punch friction and extending progressive stamping die life by up to four times compared to stamping stainless steel.

View More >>

Long-Term Fleet Reliability & Low Warranty Overhead

Infinitely Recyclable Green Metal: Aluminum is an infinitely recyclable material requiring only 5% of the energy needed for primary smelting during secondary refining. Deploying recyclable aluminum delivers a low-embodied-carbon structural platform that aligns with international corporate ESG mandates.

Maintenance-Free Joint Protection: The wear-resistant polyurethane coating maintains its adhesion and low-friction finish across millions of high-speed walking strides, eliminating field service calls for joint cleaning and protecting equipment builders from costly warranty claims.

View More >>

The Failure Sequence of Rigid Paints in Robotic Knees

In dynamic bipedal platforms, standard coatings trigger a predictable chain of mechanical failures:

Repetitive Sliding Contact: As the knee flexes from 0° to 135°, overlapping fairing plates slide across one another under spring-loaded tension to keep dust out of the joint cavity.

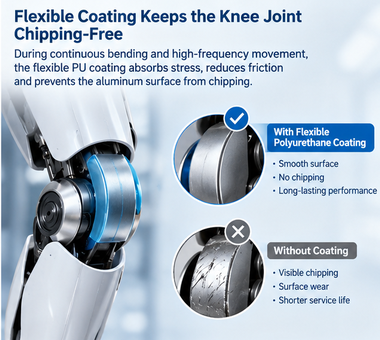

Micro-Crazing & Chipping: Friction and dynamic vibration create localized stress concentrations. Rigid paint films develop micro-fissures, which quickly turn into loose paint flakes.

Internal Mechanism Contamination: Flaked paint debris migrates into the knee cavity, lodging between roller screws, encoder readheads, and cycloidal gear teeth. This particulate contamination leads to sensor jitter, encoder misreads, and eventual joint seizure.

The Flexible Polyurethane Defense: The elastomeric coating deforms smoothly under sliding contact. It will not chip, scratch, or generate dust, keeping the internal actuator cavity clean across millions of continuous walking cycles.

Resistance to Lubricants, Coolants, and Washdown Chemicals

Immunity to Synthetic Gear Greases: Knee gearboxes utilize specialized synthetic polyalphaolefin (PAO) or ester greases. The cross-linked polyurethane surface resists oil softening, swelling, and blistering if internal grease migrates onto the fairings during maintenance.

Disinfectant & Environmental Resistance: Whether operating in dusty industrial plants or sterile hospital corridors, the non-porous polyurethane coating resists daily alcohol wipes, sanitizing sprays, and atmospheric humidity without losing gloss or flexibility.

Tension-Leveling & Continuous Chemical Passivation

Zero-Stress Tension Leveling: Aluminum master coils pass through automated stretch-bend leveling equipment to eliminate longitudinal crossbow, coil set, and edge waves. This ensures that slit strips uncoil completely flat, preventing binding during automated stamping.

Nano-Ceramic Passivation Pretreatment: Strip stock passes through multi-stage alkaline degreasing to remove rolling lubricants, followed by an automated titanium-zirconium conversion wash that raises surface wetting tension above 56 dynes/cm, ensuring covalent coating adhesion.

High-Precision Reverse-Roll Coil Coating

Automated Cleanroom Film Application: Flexible polyurethane primers and topcoats are applied in enclosed cleanroom lines using reverse-roll coaters, holding total dry film thickness strictly within 25 µm to 35 µm (±1.5 µm tolerance).

Controlled Curing Windows: Computer-monitored catenary ovens achieve optimal polyurethane cross-linking, providing high elasticity without over-baking or reducing the work-hardened temper of the underlying aluminum alloy.

Dynamic Flexure & Zero-Chipping Quality Audits

0T Tight Hemming & Hinge Curl Audits: Production lots undergo 0T 180° hem-bend testing and progressive die hinge curling to confirm that mounting loops and edge returns form cleanly with zero paint crazing.

Accelerated Multi-Million Cycle Abrasion Testing: Coated sample strips are mounted on oscillating robotic knee simulators and subjected to 2,000,000 sliding cycles under mechanical contact pressure, verifying zero paint chipping, zero galling, and zero particulate shedding.

FAQ

Q1:Why do standard powder coatings chip off robot knee covers during walking cycles?

A:Standard powder coatings cure into a rigid, highly cross-linked polymer network. When knee covers experience rapid mechanical flexure and edge-to-edge sliding during walking, the rigid coating cannot stretch to accommodate dynamic surface strain. Micro-cracks develop, causing the paint to flake off along cut edges and sliding interfaces.

Q2:How does flexible polyurethane coating stop paint flakes from entering internal actuators?

A:The polyurethane formulation incorporates an elastomeric polymer backbone that stretches elastically up to 30% without cracking. When fairings slide, flex, or take light impacts, the coating yields elastically and recovers its shape. It will not chip or shed paint debris, keeping internal roller screws and encoders clean.

Q3:Does the coating add thickness that could cause telescoping covers to bind?

A:No. Factory coil coating applies a uniform dry film thickness of only 25 µm to 35 µm with tight tolerances (±1.5 µm). Because the coating includes integrated slip agents, it provides a smooth, low-friction surface that allows telescoping covers to glide over one another without sticking or binding.

Q4:How does switching from steel to coated aluminum improve robot battery runtime?

A:Aluminum has one-third the density of steel (2.68 g/cm³ vs. 7.85 g/cm³). Lowering the mass of moving components below the knee significantly reduces reciprocating inertia, allowing knee motors to accelerate and reverse with less electrical power, which extends operational runtime per charge.

Q5:Can the coated aluminum strip withstand joint greases and industrial cleaning chemicals?

A:Yes. Cured polyurethane coatings form a chemically resistant cross-linked matrix. They resist continuous exposure to synthetic polyalphaolefin (PAO) gear lubricants, hydraulic mists, alcohol sanitizers, and mild alkaline washdowns without softening, blistering, or peeling.

Conclusion

To successfully implement flexible polyurethane-coated aluminum strip in humanoid robot knee assemblies:

Specify Certified 5052-H34 or 5754-H22 Alloy Strip: Avoid uncertified general-purpose alloys; require mill test certificates confirming tensile strength between 220 MPa and 270 MPa, yield strength between 160 MPa and 200 MPa, and elongation ≥ 12% for optimal balance of rigidity and fatigue life.

Mandate Elastomeric Polyurethane Coating Chemistry: Ensure purchasing specifications require flexible polyurethane-polyester hybrid formulations with certified elongation (> 25%) and built-in dry-film slip additives, strictly avoiding brittle architectural polyesters.

Require 0T Bend and Dynamic Abrasion Verification: Request supplier test reports verifying 0T 180° hem-bend adhesion and dynamic sliding wear test data confirming zero particulate flaking across 1,000,000 articulation cycles.
