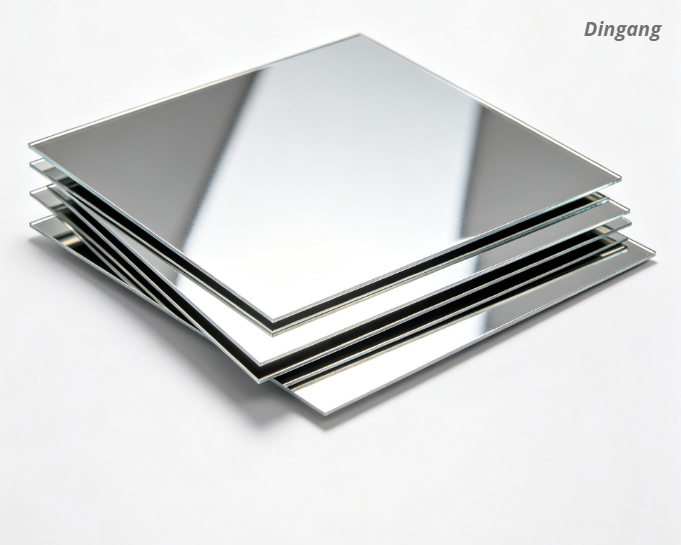

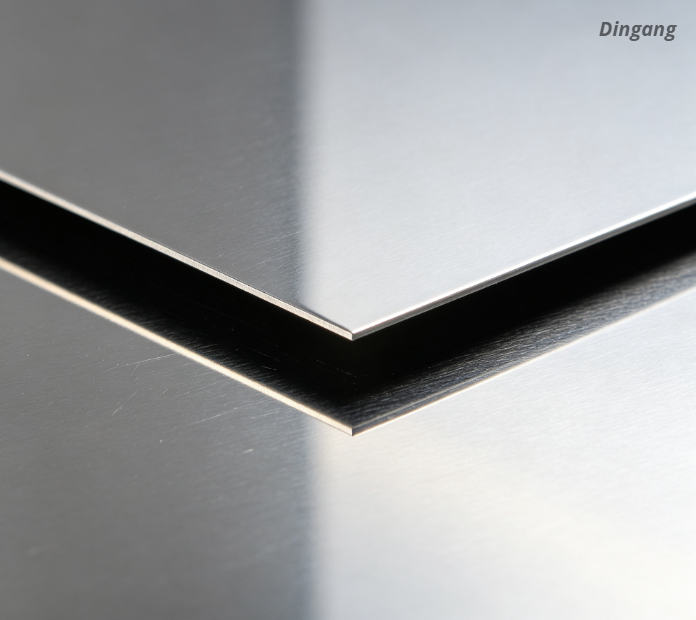

High reflective mirror aluminum sheet is a decorative and functional aluminum material engineered to provide a bright reflective surface for lighting reflectors, optical components, solar applications, interior decoration, displays, signs and fabricated reflective parts.
The published product range includes 1050, 1060, 1100 and 3003 aluminum, with thicknesses from 0.3mm to 3.0mm. Polished mirror, anodized mirror and vacuum-coated mirror surface options are available according to the required appearance, reflectance level, environmental exposure and fabrication process.
Current published reflectivity grades include 80%, 85%, 90% and 95%. For optical or solar applications, buyers should additionally define whether the requirement refers to total light reflectance, specular reflectance, hemispherical reflectance or solar-weighted reflectance and specify the applicable test method.
Item | Published / Available Specification | Purchasing Consideration |
|---|---|---|
Product Type | High reflective mirror aluminum sheet / plate | Select optical or decorative grade according to final application |
Base Alloys | 1050 / 1060 / 1100 / 3003 | Alloy selection affects forming, strength and surface consistency |
Thickness Range | 0.3mm–3.0mm | Final thickness should match reflector geometry, panel size and forming requirements |
Standard Sizes | 1000×2000mm / 1220×2440mm / 1250×2500mm | Confirm dimensional tolerances before production |
Custom Size | Custom width and length according to drawing | Provide finished blank or panel dimensions |
Mirror Surface Types | Polished / anodized / vacuum-coated mirror | Reflectance and durability vary significantly by surface construction |
Published Reflectivity Grades | 80% / 85% / 90% / 95% | Confirm reflectance definition, wavelength range and test method |
Published Surface Hardness | 1H–3H depending on surface treatment | Confirm applicable hardness method and surface construction |
Colors | Silver / gold / bronze / rose gold / black / blue / custom | Colored mirror surfaces are primarily selected for decorative applications unless optical performance is separately verified |
Protective Film | Double-side PE protective film published as standard | Film type, tack and removal timing should match processing and storage conditions |
Processing | Cutting / bending / punching / stamping / laser processing | Processing capability depends on alloy, temper, thickness and mirror surface construction |
Reflectivity values should be linked to the exact mirror surface and test method. A polished aluminum sheet, anodized mirror sheet and PVD or vacuum-enhanced reflector should not be assumed to provide identical optical performance.
Get Reflectivity Specifications & Pricing
A single reflectivity percentage does not completely describe the optical performance of a mirror aluminum surface. Different applications require different ways of measuring reflected light.
Total reflectance measures the overall amount of incident light reflected by the surface, including both directional and scattered reflected light. It is an important parameter for many lighting applications.
Specular reflectance describes the portion of light reflected in a controlled mirror-like direction. This parameter is important for narrow-beam lighting, optical reflectors and concentrating solar systems.
Diffuse reflection describes light scattered over a wider angular range. Some lighting designs intentionally require diffuse or semi-specular surfaces rather than the highest possible mirror clarity.
For solar applications, reflectance should be evaluated across the solar spectrum and weighted according to solar energy distribution. Solar concentrators may additionally require a defined specular reflectance and acceptance angle.
Published Grade | General Selection Direction | What to Confirm |
|---|---|---|
80% | Decorative and general reflective applications | Surface type and optical test definition |
85% | Decorative or general lighting reflector applications | Total versus specular reflection requirement |
90% | Higher-reflectance lighting and technical reflector applications | Measured reflectance, surface construction and forming requirements |
95% | High-reflectance grades requiring an enhanced mirror surface | Exact optical measurement, specularity, wavelength range and protective layer |
These percentages are published grade references and should not be used alone to qualify a material for an optical or solar design. The relevant optical property and test conditions should be included in the order specification.
Polished mirror aluminum is produced through mechanical surface finishing to create a smooth, bright and highly reflective metallic appearance.
It can be used for decorative panels, signs, displays and suitable reflector components where the required surface protection and optical performance are compatible with the polished construction.
Mechanical polishing alone should not automatically be considered equivalent to a protected anodized or PVD-enhanced optical reflector, particularly where long-term oxidation, humidity or outdoor exposure is expected.
Anodized mirror aluminum combines a bright prepared aluminum surface with a controlled anodic oxide layer. The oxide layer can provide additional surface protection while retaining a metallic reflective appearance.
Optical performance depends on aluminum purity, surface preparation, anodic-film construction, sealing and surface roughness.
Where an anodized mirror is required for technical use, buyers should specify reflectance requirements together with anodic-film thickness, sealing condition and environmental exposure.
Vacuum-deposited or PVD-enhanced reflective surfaces can be used where higher optical reflectance is required than conventional mechanically polished or standard anodized aluminum can provide.
The complete reflective system can include a prepared aluminum substrate, bonding or anodized layers, a high-reflectance metallic layer and one or more protective or optical enhancement layers.
The exact layer construction should be confirmed when a specific total or specular reflectance is contract-critical.
Surface Type | Main Characteristic | Typical Selection Direction |
|---|---|---|
Polished Mirror | Mechanically polished metallic surface | Decoration, displays and compatible reflector parts |
Anodized Mirror | Reflective aluminum surface with anodic oxide protection | Lighting, architectural and suitable technical reflectors |
Vacuum / PVD Enhanced Mirror | Enhanced multilayer reflective construction | High-efficiency lighting and applications requiring higher verified reflectance |
Mirror aluminum sheet can be formed into reflectors for compatible LED luminaires, downlights, linear lighting, stage lighting, commercial lighting and other light-management components.
Higher total reflectance can reduce optical losses, but reflector efficiency also depends on geometry, light-source position, surface distribution and the required beam pattern.
A narrow-beam luminaire may require a highly specular surface, while some general lighting systems benefit from semi-specular or diffuse reflection to achieve more uniform light distribution.
Where the sheet will be stamped or deep formed into a reflector, buyers should provide the reflector geometry, forming depth, bend radius and required post-forming optical appearance.
High reflective aluminum can be evaluated for suitable solar thermal collectors, secondary reflectors and low- or medium-concentration solar systems when its optical and environmental performance meet the project requirements.
For concentrating solar applications, total reflectivity alone is not sufficient. The project may require solar-weighted hemispherical reflectance, specular reflectance at a defined acceptance angle, angular scattering and long-term optical durability.
A solar concentrator must direct reflected sunlight toward a receiver. Therefore, a material with high total reflectance but excessive scattering may perform differently from a highly specular reflector.
Solar reflectors can be exposed to humidity, pollution, UV radiation, dust and cleaning cycles. The selected surface should therefore be evaluated for the expected climate rather than relying only on its initial reflectance value.
Where the material is intended for solar concentration, buyers should provide the required solar-weighted reflectance, specular requirement, acceptance angle, outdoor exposure and expected forming geometry before selecting a mirror grade.

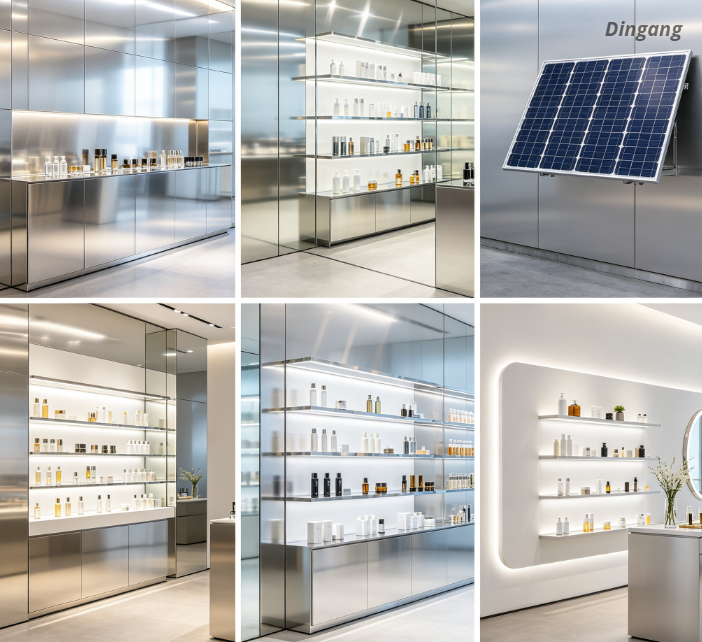

Mirror aluminum can be used for interior wall panels, ceilings, column covers, hotel decoration, retail interiors, displays and other applications requiring a bright metallic appearance.
Decorative applications may prioritize mirror clarity, color, surface uniformity and scratch protection rather than laboratory optical efficiency.

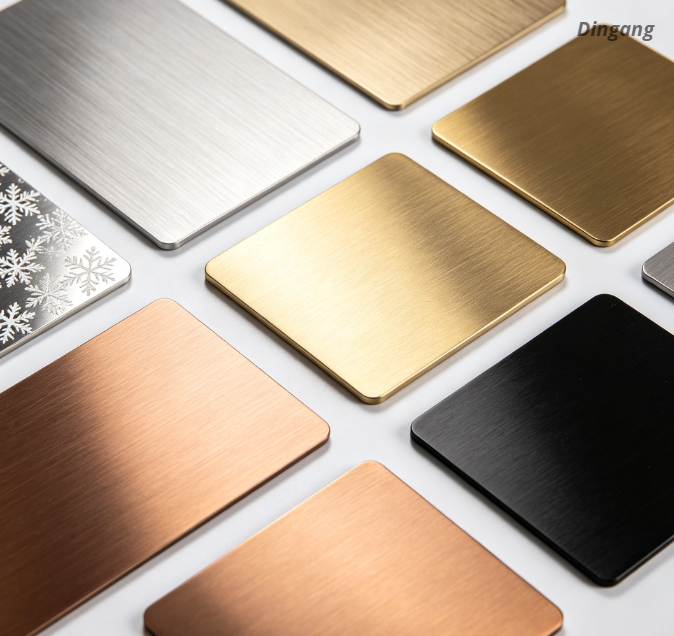

Silver is the standard bright metallic mirror appearance and can be used for both decorative and suitable reflector applications depending on the exact surface construction.
Gold, bronze and rose-gold mirror surfaces are primarily decorative finishes for architectural panels, retail displays, signs, furniture and interior design components.
Black, blue and other colored mirror surfaces can be produced for decorative projects according to the selected coating or surface-treatment system.
Colored decorative mirror products should not automatically be assigned the same optical reflectance as a silver high-reflectance technical reflector.
Property | Mirror Aluminum Sheet | Conventional Glass Mirror |
|---|---|---|
Substrate | Aluminum sheet | Glass |
Breakage Behavior | Metallic sheet is not brittle like glass | Brittle material that can fracture |
Formability | Can be fabricated into compatible curved or formed components | Limited conventional forming after manufacture |
Image Quality | Depends strongly on surface flatness and mirror finish | Commonly preferred for accurate visual mirror images |
Technical Reflector Use | Available in specialized optical reflector grades | Silvered glass is also used in high-performance optical and solar systems |
Weight comparisons should be based on the actual thickness and complete component construction rather than assuming a fixed weight ratio between aluminum sheet and glass mirror.
Alloy | General Characteristic | Selection Direction |
|---|---|---|
1050 | High aluminum content and useful formability | Decorative and compatible reflective applications |
1060 | Commercially pure aluminum with good forming characteristics | Reflective and formed decorative components |
1100 | Commercially pure aluminum suitable for general fabrication | Lighting, decoration and fabricated reflector components |
3003 | Aluminum-manganese alloy with greater strength than 1xxx series | Decorative or reflector panels requiring additional rigidity |
Where very high optical reflectance is required, the complete reflective surface system is often more important than the nominal base alloy alone.
Mirror aluminum can be bent for compatible applications, but minimum bend radius depends on alloy, temper, thickness and reflective surface construction.
Where the sheet will be stamped or deep formed into lighting reflectors, the forming depth, corner radius and required post-forming optical quality should be evaluated on representative material.
Severe forming can alter surface smoothness, local gloss and optical distribution. A flat-sheet reflectance value should therefore not automatically be assumed to remain identical after aggressive forming.
For optical reflectors or complex decorative components, production trials are recommended before bulk ordering.
Mirror surfaces show scratches, pressure marks and contamination more readily than conventional mill-finish aluminum, so protective film is important during fabrication, packing and installation.
The current product specification lists double-side thick PE protective film. Film type and adhesion level should be matched to the surface treatment and expected storage period.
Protective film should generally remain in place during compatible cutting and handling operations where practical, but it should be removed within the film supplier's recommended storage and installation period.
Clean gloves and non-abrasive handling equipment are recommended for exposed optical and decorative mirror surfaces.
Inspection Item | What to Specify |
|---|---|
Reflectance | Total, specular, hemispherical or solar-weighted value with test method |
Mirror Uniformity | Approved visual sample and permitted variation |
Surface Defects | Scratch, dent, stain, roll mark and other agreed acceptance limits |
Surface Roughness | Specify where optical specularity depends on surface smoothness |
Flatness | Required tolerance for large mirror or optical panels |
Color | Approved physical sample for decorative colored mirror |
Protective Film | Film type, coverage, tack and removal requirement |
LED lighting reflectors
Downlight reflectors
Commercial lighting components
Stage-lighting reflectors
Street-light reflector components
Lampshades and optical housings
Solar thermal reflector components
Secondary solar reflectors
Compatible solar concentrator components
Interior decorative wall panels
Column covers
Ceiling decoration
Storefront decoration
Hotel and retail interiors
Cosmetic displays
Jewelry showcases
Exhibition displays
Signboards and light boxes
Decorative nameplates
Compatible equipment reflector panels
Discuss Your Reflector Application
Depending on the required product, manufacturing can include aluminum-sheet preparation, surface grinding or brightening, polishing, cleaning and degreasing, anodizing or vacuum-deposited reflective treatment, protective-layer application, surface inspection, protective-film lamination, cutting and packaging.
The production route varies between polished, anodized and enhanced reflective grades, so the finished optical properties should be confirmed for the actual supplied surface rather than inferred only from the process name.
Inspection can include alloy and thickness verification, sheet dimensions, reflectance measurement, mirror-surface uniformity, visual surface inspection and dimensional tolerances according to the agreed order specification.
Where optical performance is critical, the inspection plan should identify the reflectance type, measuring instrument, wavelength or spectral range and acceptance value.
For solar reflector applications, additional requirements can include solar-weighted reflectance, specular reflectance and environmental durability testing where specified.
For decorative mirror products, approved color, mirror clarity, gloss and appearance samples can be retained for batch comparison.
Mirror aluminum requires careful surface protection because scratches and pressure marks can be highly visible on reflective finishes.

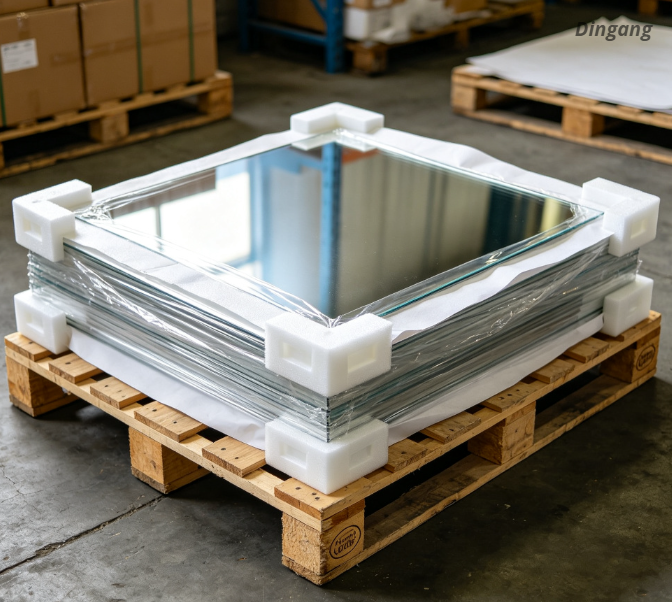

The current packing specification includes PE protective film on the mirror surface, EPE foam separation between sheets and protective corner materials to reduce handling damage.
Sheet stacks can be wrapped with moisture-resistant packaging and secured on export pallets according to size, weight and transportation requirements.
Pallet labels can identify mirror type, published reflectivity grade, color, thickness, size, quantity and production batch according to the agreed packing list.
To receive an accurate material recommendation and quotation, please provide as much of the following information as possible:
Required alloy: 1050, 1060, 1100, 3003 or specified grade
Required temper, if specified
Thickness and tolerance
Sheet width and length
Polished, anodized or vacuum/PVD-enhanced mirror surface
Required total reflectance
Required specular reflectance, if applicable
Required diffuse reflectance, if applicable
Solar-weighted reflectance requirement, if applicable
Required wavelength range or optical test method
Silver or decorative mirror color
Surface hardness requirement, if applicable
Flatness or surface-roughness requirement, if applicable
Protective-film requirement
Lighting, solar, decoration, display or other final application
Reflector or component drawing
Required bend radius
Stamping or deep-forming requirement
Indoor or outdoor exposure
Required optical or environmental test reports
Order quantity
Destination country or delivery port
Special inspection, labeling or packing requirements
Send Your Mirror Aluminum Specifications
It is aluminum sheet with a polished, anodized or enhanced reflective surface designed to reflect a high proportion of incident light for decorative or technical applications.
The current published grades are 80%, 85%, 90% and 95%. The applicable measurement method should be confirmed for each ordered surface.
No. Total, hemispherical, diffuse and specular reflectance describe different optical characteristics. A 95% requirement should identify exactly which reflectance value is required.
The correct surface depends on the luminaire optical design. Highly specular surfaces can be suitable for directional reflectors, while semi-specular or diffuse surfaces may be preferred for wider light distribution.
It can be suitable for some designs, but reflector efficiency depends on total reflection, specularity, reflector geometry and the light source. The luminaire designer should define the optical requirement.
A 95% published reflectivity value alone does not qualify a material for a solar concentrator. Solar-weighted and specular reflectance, angular scattering and environmental durability may also need to be verified.
Polished aluminum obtains its mirror appearance primarily from mechanical surface finishing. Anodized mirror aluminum additionally uses a controlled oxide layer to provide surface protection.
It uses a vacuum-deposited or similar enhanced reflective layer system to achieve optical properties that can be higher than conventional polished or standard anodized aluminum.
Not necessarily. Household glass mirrors are optimized for image reflection, while mirror aluminum may be optimized for light reflection, formability, low weight or decorative metallic appearance.
The final weight depends on the thickness and construction of each product. Aluminum can enable lightweight reflector structures, but a fixed weight ratio should not be assumed without comparing actual component designs.
Yes, for compatible alloy, temper and thickness combinations. The reflective surface and bend radius should be evaluated because severe forming can affect appearance and optical properties.
Some mirror aluminum constructions can be formed into reflector shapes, but deep-drawing suitability depends on substrate temper, coating system and forming depth. Representative trials are recommended.
Not necessarily. Forming can change local surface geometry and optical distribution, especially in highly specular materials. Post-forming optical requirements should be verified where critical.
Outdoor suitability depends on the reflective layer, protective coating, anodizing, climate, humidity, pollution and cleaning conditions. The specific mirror construction should be qualified for the intended environment.
Published colors include silver, gold, bronze, rose gold, black and blue, with customized decorative colors available according to the surface-treatment process.
Protective film should remain on the decorative surface during compatible cutting and handling where possible. Clean gloves, clean tooling and non-abrasive contact surfaces help reduce scratching.
Standard sizes include 1000×2000mm, 1220×2440mm and 1250×2500mm. Custom dimensions can be discussed according to production capability.
The current published thickness range is 0.3mm to 3.0mm.
Required optical documentation should be specified during quotation, including the reflectance property, test method and acceptance value needed for the project.
Sample availability can be confirmed according to alloy, thickness, mirror type and reflectivity grade. Optical and forming trials are recommended for new reflector applications.
Please provide alloy, thickness, sheet size, mirror surface type, required reflectance and test method, color, forming requirements, final application, protective-film requirement, quantity and destination.
