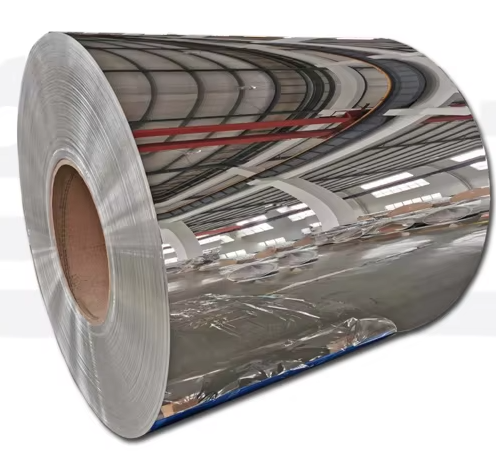

95%+ High Reflective Aluminum Mirror Sheet Lighting Grade Material with Mirror Surface

95%+ High Reflective Aluminum Mirror Sheet for Lighting

95%+ high reflective aluminum mirror sheet is a lighting-grade reflector material for LED downlights, commercial luminaires, industrial lighting, linear lighting, display lighting and other optical systems requiring efficient light reflection and a smooth mirror-like surface.

The premium reflective grade is designed for applications requiring total visible-light reflectance of at least 95% when supplied to the agreed optical specification. Reflectance type, wavelength range, measurement geometry and test method should be stated in the purchase specification so the optical value is clearly defined.

The current product range lists 1050, 1100 and customized aluminum substrate options, thicknesses from 0.10 to 3.00 mm and a mirror-surface roughness reference of Ra ≤0.1 μm. Final alloy, temper, reflective surface system, thickness, dimensions and forming requirements should be confirmed according to the luminaire design.

Standard decorative anodizing, PE film or PVDF coating should not automatically be treated as equivalent to the 95%+ lighting-grade reflective surface. Where ≥95% reflectance is required, the exact optical surface construction and corresponding test report should be confirmed before production.

Request 95%+ Reflective Aluminum Price

Technical Specifications

Why 95%+ Reflectance Matters in Lighting

Every reflection inside a luminaire produces some optical loss. A reflector material with higher total reflectance can reduce these losses, particularly in fixtures where light undergoes multiple reflections before leaving the luminaire.

However, reflector-sheet reflectance alone does not determine the efficiency of the finished lamp. LED position, reflector geometry, surface directionality, optical distance, diffuser, lens, thermal design and luminaire construction all affect final lumen output and beam distribution.

For this reason, ≥95% material should be selected as one component of the complete optical design rather than treated as a guaranteed percentage increase in fixture efficiency.

Total, Specular and Diffuse Reflectance

The statement “95% reflectivity” is incomplete unless the type of reflection is defined. Lighting designers should distinguish total reflectance from the way that reflected light is distributed.

Discuss Your Optical Reflectance Requirement

95%+ Optical Grade vs. Standard Mirror Aluminum

Mirror-Like Surface and Surface Roughness

A smooth optical surface helps control unwanted scattering and supports consistent reflection. The current product data reference a mirror-like finish with Ra ≤0.1 μm.

For an optical reflector project, surface roughness should be considered together with total reflectance, specular reflectance, forming marks and surface flatness. A low Ra value by itself does not guarantee the required lighting performance.

Scratch Control

Fine scratches can alter both mirror appearance and local light distribution. Reflector blanks should therefore be handled on clean surfaces and protected throughout downstream processing.

Flatness

Flatness is important for sheet-fed reflector production and for components where unintended waviness changes the reflected light direction. Required flatness should be stated for precision optical applications.

Surface Uniformity

Brightness variation, haze, coating marks or local defects can create uneven reflection. High-performance lighting projects should approve a representative material sample together with the optical test data.

Selecting the Aluminum Substrate

The current product range lists 1050 and 1100 aluminum, with customized substrates also available. These commercially pure aluminum grades offer useful formability and are commonly used for thin fabricated components.

For the premium ≥95% optical grade, however, the final reflection performance is determined by the combination of substrate, surface preparation and high-reflective layer. Buyers should therefore approve the finished optical construction rather than specifying alloy alone.

Reflective Surface Options Must Be Selected by Application

Enhanced High-Reflective Optical Surface

Use the specified high-reflective grade when the project requires ≥95% measured light reflectance. The actual reflective layer and test report should be confirmed before ordering.

Anodized Mirror Surface

Anodized mirror aluminum combines a reflective metallic surface with an integral aluminum oxide layer. It can be suitable for general reflector and decorative applications, but standard anodizing should not automatically be assumed to reach the ≥95% optical grade.

PE or PVDF Surface Options

PE- or PVDF-based surfaces may be relevant to selected decorative or protective applications. Their reflectance, gloss and optical suitability should be evaluated separately from the 95%+ lighting reflector grade.

Indoor and Outdoor Lighting Require Different Surface Systems

A high-reflective material designed for enclosed indoor luminaires should not automatically be used outdoors. Moisture, UV exposure, condensation, salt, pollutants and cleaning agents can affect some enhanced reflective surface systems.

If the reflector will be used in street lighting, exterior architectural lighting, horticultural installations or another humid or exposed environment, specify the exposure conditions and request a surface system qualified for that environment.

Discuss Indoor or Outdoor Reflector Use

Fabrication for Lighting Reflectors

Cutting and Blanking

Mirror sheet can be cut into reflector blanks using compatible tooling. The optical face should remain protected from swarf, metal particles and contact with abrasive work surfaces.

Bending

Bend performance depends on substrate alloy, temper, sheet thickness, bending direction, radius and reflective coating construction. A production trial is recommended for tight-radius reflectors.

Stamping and Forming

Curved and three-dimensional reflector parts can be evaluated for compatible stamping or forming. Optical performance should be checked after forming because stretching, tooling marks and surface distortion can change reflected-light distribution.

Protective Film During Processing

Where compatible with the process, protective film can remain on the optical face during cutting and forming to reduce scratches. Film adhesion and removal conditions should be matched to the actual reflector surface.

Typical Lighting Applications

LED Downlights

High-reflective sheet can be formed into reflector cups or internal reflector components for compatible downlight designs requiring efficient light redirection.

Linear Lighting

Reflective inserts can reduce light losses inside linear fixtures and help control light distribution around LED boards and diffusers.

Commercial Lighting

Retail, office and hospitality luminaires can use mirror or controlled-reflection aluminum where optical efficiency and precise light distribution are required.

Industrial and High-Bay Lighting

Reflector components can be incorporated into industrial luminaires where the optical design requires efficient redirection of LED light over a defined working area.

Display and Retail Lighting

Mirror aluminum can also be used in illuminated displays, showcase lighting and retail fixtures where reflection efficiency and a bright metallic appearance are both useful.

Quality Checks Before Reflector Production

Verify the Optical Test Report

Confirm that the test report identifies the measured reflectance, wavelength range, measurement method and whether the reported value is total, specular or another defined optical parameter.

Verify Thickness and Dimensions

Check sheet or strip dimensions against the reflector drawing before blanking or forming.

Inspect the Mirror Surface

Inspect for scratches, dents, fingerprints, haze, coating marks, pressure damage and other defects that could affect optical appearance or reflected-light distribution.

Check Flatness and Coil Shape

For sheet-fed production, inspect bow, edge wave and local distortion. For strip or coil, check winding and shape stability according to the downstream feeding process.

Run a Forming Trial

For a new reflector geometry, form representative components using the intended tooling and inspect the reflective surface and light distribution after processing.

Request Material for a Reflector Trial

How to Specify 95%+ Reflective Aluminum Sheet

1. Define the Lighting Application

State whether the material is for a downlight, linear luminaire, industrial reflector, retail fixture, display lighting or another optical system.

2. Define Reflectance Correctly

Specify the required total reflectance and, where relevant, specular or diffuse reflectance. Include the wavelength range and accepted measurement method.

3. Confirm Alloy and Temper

Specify 1050, 1100 or another required substrate together with the temper if known. If the reflector will be formed, provide bend or stamping details.

4. Confirm Thickness and Dimensions

The current product range lists 0.10–3.00 mm. Final availability depends on the optical surface, alloy, temper and supply form.

5. Define Surface Roughness and Flatness

For precision reflectors, provide required surface roughness, flatness and appearance criteria rather than approving the material only by visual gloss.

6. Confirm Indoor or Outdoor Exposure

State humidity, UV exposure, operating temperature and any chemical or cleaning exposure so an appropriate reflective surface can be selected.

7. Confirm Forming Requirements

Provide bend radius, forming direction, stamping depth or reflector drawing so material formability can be reviewed before production.

8. Request the Applicable Documentation

If optical reports, material certificates, RoHS, REACH or other documentation is required, state the requirement before ordering and confirm that the supplied document applies to the exact product variant.

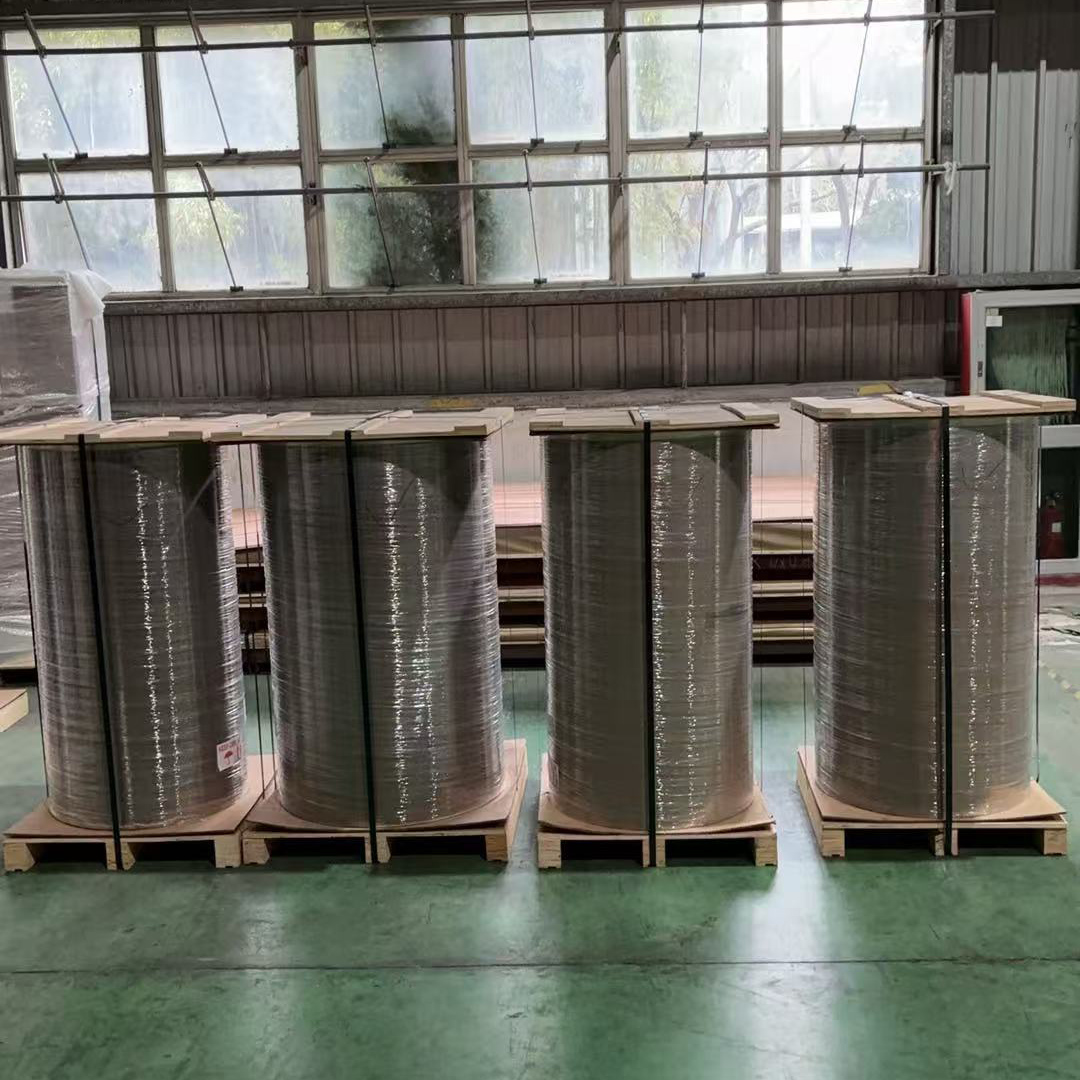

Packaging and Delivery

Mirror-finish reflector material requires protection against scratching, moisture, edge damage and pressure marks during storage and international transportation.

Protective film or suitable interleaf material can be used on the optical surface, with the material secured in export wooden packing according to sheet or coil dimensions.

The current product information lists a reference lead time of approximately 7–15 working days, depending on order quantity, thickness, dimensions, reflective surface and customization. Final delivery date should be confirmed with the order.

Information to Provide for a Quotation

For an accurate quotation, please provide the lighting application, required total reflectance, specular or diffuse requirement if applicable, wavelength range, preferred alloy and temper, thickness, width and length, surface roughness, flatness, forming process, indoor or outdoor exposure, protective-film requirement, quantity, required technical documents and destination.

For a new reflector design, a drawing or sample part is useful for reviewing bend radius, stamping depth and surface-protection requirements before bulk production.

Get a 95%+ Reflective Aluminum Quote

Frequently Asked Questions

What does 95%+ reflectivity mean?

For the premium lighting-grade product, it means the agreed reflective grade is specified to achieve at least 95% measured reflectance under the defined optical test conditions. The purchase specification should state whether the value is total reflectance and identify the wavelength range and measurement method.

Is 95% total reflectance the same as 95% specular reflectance?

No. Total reflectance includes both specular and diffuse components. A material can have high total reflectance while its directional mirror component is lower.

Which reflectance value matters for an LED reflector?

Total reflectance is important for reducing optical loss, while the balance between specular and diffuse reflection determines how the light is distributed. The correct combination depends on the luminaire geometry.

Can ordinary anodized mirror aluminum reach 95% reflectance?

Standard anodized mirror aluminum should not automatically be assumed to achieve the same performance as an enhanced 95%+ optical grade. Confirm the actual reflective system and test report.

What aluminum alloys are listed for this product?

The current product information lists 1050 and 1100 aluminum with customized substrate options. The exact substrate used for a ≥95% grade should be confirmed with the optical surface specification.

What thickness range is available?

The listed range is 0.10–3.00 mm. Not every reflective surface system is necessarily available across the entire range, so final availability should be confirmed by thickness and optical grade.

What does Ra ≤0.1 μm mean?

Ra is an arithmetic surface-roughness parameter. The current product data list Ra ≤0.1 μm as a surface reference. Optical approval should still include measured reflectance and visual surface quality.

Can the sheet be bent into a curved reflector?

Yes, compatible bending can be evaluated. Minimum bend radius depends on alloy, temper, thickness and reflective surface construction, so a representative forming trial is recommended.

Can the material be stamped?

Stamping and shallow forming can be evaluated for suitable grades. Reflectance and surface condition should be checked after forming because tool contact and deformation can affect the optical face.

Is the material suitable for outdoor lighting?

Outdoor suitability depends on the exact reflective surface system. Specify UV exposure, moisture, condensation, salt, pollution and operating temperature so the appropriate grade can be confirmed.

Does a 95% reflector automatically make a luminaire 95% efficient?

No. Luminaire efficiency also depends on the LED source, reflector geometry, lenses, diffuser, thermal conditions and the number and angle of reflections inside the fixture.

Is protective film available?

Yes, protective film can be used where compatible with the reflective surface and downstream process. Film adhesion and removal conditions should be confirmed before ordering.

Can RoHS or REACH documents be provided?

Where RoHS, REACH or other compliance documents are required, specify them before ordering so documentation for the exact substrate and reflective surface system can be confirmed.

What is the delivery time?

The current product information lists approximately 7–15 working days. Actual delivery time depends on optical grade, thickness, dimensions, quantity and customization.

Can I request a sample before production?

Sample availability can be discussed. For a new lighting design, evaluating both a flat material sample and a formed reflector sample is recommended where optical performance is critical.

What information should I provide for a quotation?

Please provide lighting application, required total reflectance, specular or diffuse requirement if applicable, wavelength range, alloy and temper if specified, thickness, dimensions, surface roughness, forming process, operating environment, protective film, quantity, required documentation and destination.
