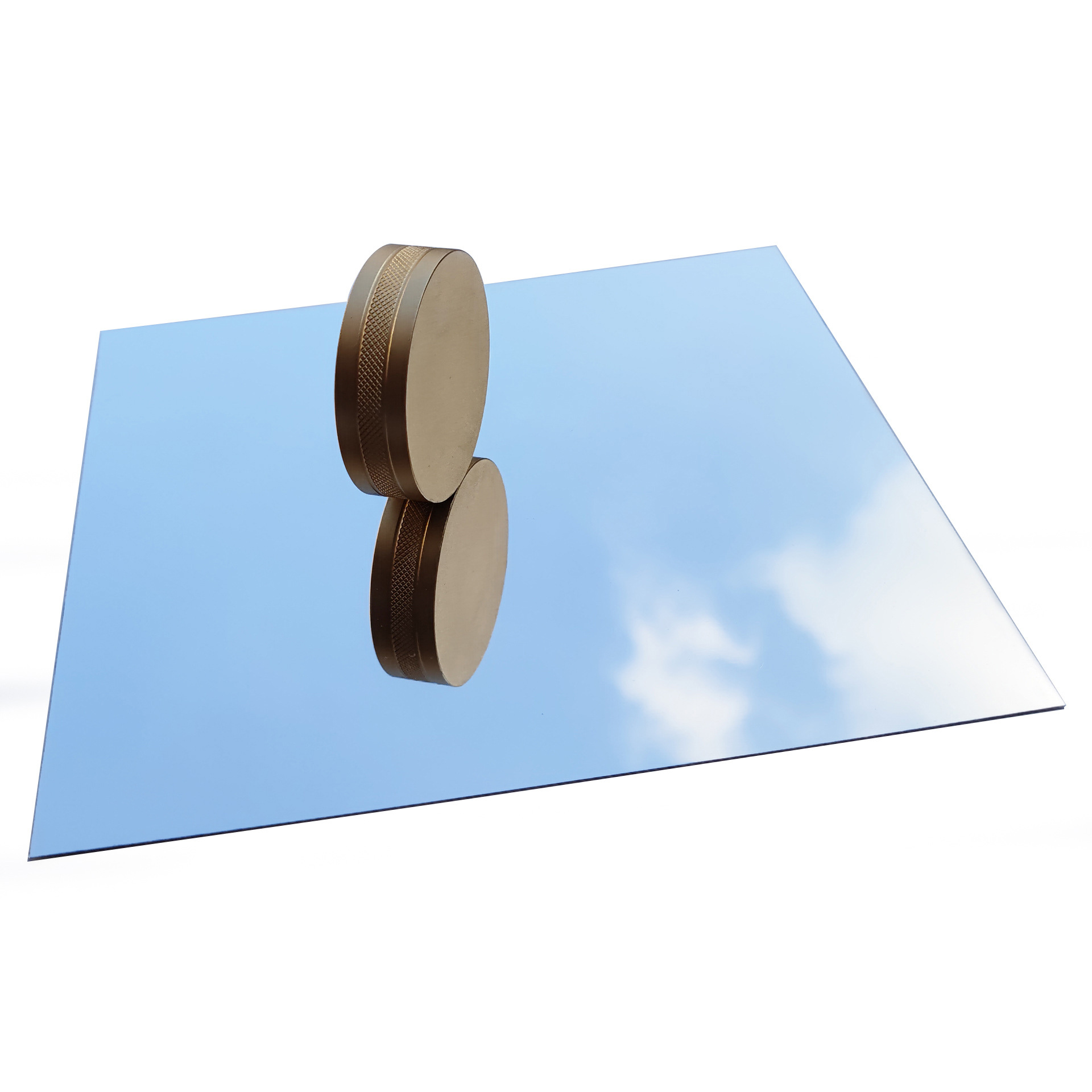

96% High Reflective Aluminum Mirror Sheet for LED Fixtures

96% high reflective aluminum mirror sheet is an optical reflector material for LED downlights, spotlights, linear luminaires, high-bay fixtures, commercial lighting and other lighting equipment requiring efficient light reflection and controlled beam distribution.

The current product is centered on a 1085-series aluminum substrate with thicknesses from 0.20 to 1.50 mm. Existing product data reference reflectance of at least 96% in the 450–650 nm range and surface roughness of Ra ≤0.1 μm for the specified optical grade.

For professional LED reflector applications, the 96% value should be defined by the exact optical surface, wavelength range, measurement geometry and test method. Standard anodized aluminum should not automatically be assumed to provide the same reflectance as an enhanced high-reflective optical grade.

Request 96% LED Reflector Aluminum Price

LED Reflector Aluminum Technical Specifications

What Does 96% Reflectance Mean?

A 96% optical specification should describe a measured property rather than visual brightness alone. A surface can appear mirror-like while having different total, specular and diffuse reflection characteristics.

For this product, the existing data reference ≥96% reflection in the 450–650 nm range. Buyers should confirm whether the required value is an average total reflectance across that wavelength interval or another defined optical parameter.

Request Reflectance Data for Your LED Design

High-Reflective Optical Grade vs. Standard Anodized Aluminum

Standard anodized aluminum and enhanced high-reflective aluminum are not automatically equivalent. Conventional anodizing can improve surface durability, while premium reflector materials may use additional optical layers or specially controlled oxide structures to increase total reflection.

Why 1085 Aluminum Is Used for LED Reflector Material

1085 is a high-purity aluminum grade commonly used as a substrate for high-quality reflective surfaces. Its purity and surface characteristics make it suitable for optical finishing where clean appearance and controlled reflection are required.

However, alloy designation alone does not create 96% reflectance. The final result depends on substrate quality, rolling condition, surface preparation and the complete reflective-layer system.

Select Surface Texture by Beam Requirement

Mirror / High-Specular Surface

A smooth mirror-like surface is suitable where the reflector must redirect light in a controlled direction. Typical applications include LED spotlights, downlights and narrow-beam luminaires.

Controlled Diffuse Surface

A textured or diffuse optical surface scatters a larger portion of the reflected light. It can be evaluated for linear lights, panel lighting and fixtures where uniform distribution is more important than a sharp reflected image.

Directional Surface

An anisotropic surface can redirect light differently along two directions and may be useful in elongated reflectors and linear LED fixtures.

Surface Roughness and Optical Quality

The current product information lists a surface roughness reference of Ra ≤0.1 μm. A smooth surface can help maintain controlled specular reflection, but roughness alone does not determine reflector efficiency.

Scratch Control

Scratches, tooling marks and fingerprints can alter local reflection. Optical surfaces should therefore be protected through slitting, blanking, forming, transportation and luminaire assembly.

Flatness

Unexpected waviness can alter the direction of reflected light. Flatness should be specified for large flat reflector panels and other components where optical geometry is sensitive to distortion.

Surface Uniformity

Haze, stains, coating variation or local surface defects can produce inconsistent optical performance. A representative sample should be approved for demanding LED reflector applications.

Thermal Management: What the Reflector Sheet Can and Cannot Do

The current product data reference thermal conductivity of approximately 205 W/m·K for the aluminum substrate. This means aluminum can conduct heat, but thermal conductivity of the raw substrate should not be confused with complete LED thermal management.

In a typical LED fixture, heat flows through the LED package, circuit board, thermal interface material, housing and heat sink. A thin reflector can participate in heat spreading when it is mechanically and thermally connected to the assembly, but it should not automatically replace a dedicated heat sink.

Discuss LED Reflector and Thermal Integration

Electrical Insulation Must Be Designed Separately

An anodized aluminum surface can provide electrical resistance because aluminum oxide is electrically insulating. However, insulation performance depends on oxide thickness, sealing, pores, cracks, edges, forming damage, humidity and applied voltage.

The existing product data reference ≥100 MΩ at 500 V DC. This value should be treated as a surface-system test reference only. The reflector sheet should not be used as the sole safety insulation between energized LED components and accessible metal unless the complete electrical design has been validated to the applicable luminaire requirements.

Where electrical isolation is required, the LED manufacturer should specify creepage, clearance, dielectric withstand, insulation class and any dedicated insulating films, pads or barriers separately from the optical reflector.

Coating Adhesion and Thermal Cycling

The existing product table references a 5B coating-adhesion level and thermal cycling from -20°C to +80°C for 100 cycles.

If a 5B classification is required, the applicable tape-test standard and specimen preparation should be specified. If ISO 2409 is required instead, results should be reported using its applicable classification system.

For thermal cycling, the order should define the temperature range, dwell time, ramp conditions, number of cycles and acceptance criteria for reflectance, cracking, peeling or other surface changes.

Fabrication for LED Reflector Components

Cutting and Blanking

Sheets or strips can be cut into reflector blanks according to the fixture drawing. Clean tables, rollers and tooling are important because even small particles can scratch the mirror surface.

Bending

Bend performance depends on aluminum temper, thickness, rolling direction, bend radius and reflective-layer construction. Tight-radius bends should be trialed before mass production.

Stamping and Reflector Forming

Three-dimensional reflector cups and curved optical components can be evaluated for suitable forming. Drawing depth and tool geometry should be matched to substrate temper and coating flexibility.

Perforation

Perforated components can be produced where the luminaire design requires airflow, mounting features or a decorative optical effect. Hole pattern and open area should be considered in both structural and optical design.

Protective Film During Processing

A compatible removable film can protect the reflector face during cutting and forming. Film adhesion should be matched to the optical surface and intended storage period.

LED Lighting Applications

LED Downlights and Recessed Fixtures

High-specular aluminum can be formed into reflector cones or internal reflector components for downlights. Final beam angle is determined by reflector geometry together with the LED source and any secondary lens.

LED Spotlights

Mirror-finish material can be used where directional reflection is required for accent, retail and architectural spot lighting.

Linear LED Fixtures

Flat, curved, diffuse or directional reflector inserts can be evaluated for linear LED systems to redirect light away from the housing and toward the intended illumination area.

High-Bay and Industrial Lighting

Reflective components can be incorporated into industrial luminaires where the optical system requires efficient redirection of LED light over large working areas.

Display and Signage Backlighting

Thin reflector sheet can be used behind compatible LED modules to redirect otherwise lost light and support more uniform illumination. The 0.20 mm end of the listed range can be evaluated where lightweight thin construction is required.

Commercial and Retail Lighting

Retail shelves, showcases and commercial luminaires can use high-reflective aluminum to improve light utilization and shape illumination around merchandise or architectural features.

Reflector Efficiency Depends on the Complete LED Optical System

Using a higher-reflectance material can reduce optical losses, but it does not guarantee a fixed percentage increase in finished-luminaire output.

Final performance depends on LED package efficiency, source position, reflector shape, number of reflections, surface distribution, lenses, diffusers, driver conditions, operating temperature and the complete luminaire design.

For a new LED fixture, comparing photometric results using the intended reflector material is more useful than applying a generic percentage energy-saving claim.

Request Material for an LED Fixture Trial

Quality Checks Before LED Reflector Production

Verify Reflectance Data

Confirm the required ≥96% value against the agreed wavelength range and measurement method. The report should clearly state whether total, specular or another reflectance value is being reported.

Verify Aluminum Substrate and Temper

Confirm the specified 1085-series substrate and temper before cutting or forming because mechanical behavior changes with material condition.

Verify Thickness

The current listed range is 0.20–1.50 mm. Confirm the final gauge and tolerance according to reflector rigidity and forming requirements.

Inspect Optical Surface

Inspect for scratches, haze, fingerprints, dents, stains, pressure marks and local coating defects before fabrication.

Check Surface Roughness Where Required

Where Ra ≤0.1 μm is part of the purchase specification, define the instrument, cut-off and sampling method so results can be compared consistently.

Evaluate the Formed Reflector

For stamped or bent components, inspect the finished reflector for surface cracking, tooling marks and optical distortion after forming.

Run Photometric Validation

For new fixture designs, test the complete luminaire with the intended LED source, reflector geometry, lens or diffuser rather than evaluating the sheet only as a flat sample.

How to Specify Aluminum Mirror Sheet for an LED Fixture

1. Define the LED Fixture Type

State whether the material is for a downlight, spotlight, linear luminaire, high-bay light, display system or another fixture.

2. Specify the Required Reflectance

Define total reflectance and any specular or diffuse requirement together with the wavelength interval and accepted measurement method.

3. Define the Surface Distribution

Choose mirror, diffuse or directional reflection according to the required beam pattern rather than choosing only the highest reflectance number.

4. Confirm Thickness and Dimensions

Select thickness within the 0.20–1.50 mm listed range and provide required width, length, blank dimensions and tolerances.

5. Provide the Reflector Drawing

Provide bend radius, reflector depth, perforation, holes and other geometry so forming suitability can be reviewed.

6. Define Thermal Conditions

Provide expected reflector temperature, LED power and proximity to heat-generating components where thermal cycling or thermal stability is important.

7. Define Electrical Requirements Separately

If the reflector is located near energized conductors, provide the required insulation architecture and electrical safety conditions instead of relying only on the anodized surface.

8. Confirm Protective Film

Specify whether protective film must remain on the mirror face during cutting, stamping or assembly and when it will be removed.

9. Confirm Required Documents

State whether optical reports, material certificates, RoHS, REACH or other product-specific documents are required before ordering.

Samples and OEM Fabrication Support

For a new LED fixture, sample material can be evaluated for optical compatibility, forming behavior and surface quality before bulk production. Sample dimensions and availability should be confirmed according to the selected reflector grade.

Custom widths, blanks, CNC-cut profiles, perforated parts or pre-formed components can be discussed where production capability matches the fixture design.

For repeat OEM projects, the approved optical surface, alloy, temper, dimensions and protective-film specification should remain consistent between production batches.

Packaging and Surface Protection

High-reflective surfaces should be protected from scratches, moisture, fingerprints, metal particles and pressure damage during storage and international transportation.

Protective film, interleaf materials, edge protection and export packing can be selected according to sheet dimensions and shipment requirements.

Information to Provide for a Quotation

For an accurate quotation, please provide the LED fixture type, required total reflectance, specular or diffuse requirement, wavelength range, aluminum substrate and temper if specified, thickness, dimensions, reflector drawing, bending or stamping process, operating temperature, protective-film requirement, quantity, required technical documents and destination.

Get an LED Reflector Aluminum Quote

Frequently Asked Questions

What is LED lighting aluminum mirror sheet?

It is an aluminum-based optical reflector material used inside LED luminaires to redirect light, reduce optical losses and help create the required beam distribution.

Does this product really provide 96% reflectance?

The existing product data reference ≥96% reflectance over 450–650 nm for the specified high-reflective grade. The final order should define the optical parameter and measurement method, and the supplied grade should be confirmed by applicable test data.

Is 96% reflectance the same as 96% specular reflectance?

No. Total reflection includes both directional and diffuse reflected light. Specular reflection describes only the mirror-like directional component.

Is ASTM E490 a reflector-sheet test method?

For reflector-sheet purchasing, use an agreed optical reflectance measurement method that defines wavelength range and measurement geometry. The reported value should clearly identify the optical property being measured.

Why is 1085 aluminum used?

1085 is a high-purity aluminum grade that provides a suitable substrate for controlled reflective finishing. The final reflectance still depends on the complete optical surface system.

What thickness range is available?

The current product information lists 0.20–1.50 mm. Final availability depends on temper, optical surface, dimensions and fabrication requirements.

What does Ra ≤0.1 μm mean?

Ra is an arithmetic surface-roughness parameter. A low value supports a smooth optical surface, but reflector performance should still be verified through actual reflectance measurements.

Does a 20 μm anodized layer automatically achieve 96% reflectance?

No. Reflectance depends on the complete surface construction. If 20 μm anodizing is required together with ≥96% reflectance, both requirements should be verified on the actual supplied optical grade.

Can the reflector sheet also work as an LED heat sink?

The aluminum substrate can conduct heat, but a thin reflector should not automatically replace a dedicated heat sink. Complete LED thermal performance depends on the circuit board, thermal interface, housing, heat sink and airflow.

What does the 205 W/m·K value represent?

It is retained from the existing product data as an aluminum-substrate thermal-conductivity reference. It should not be interpreted as a guaranteed heat-dissipation rating for the complete reflector or luminaire.

Does ASTM D5470 prove LED heat dissipation performance?

A material thermal-transmission test does not by itself establish the thermal performance of a finished LED fixture. Complete fixture thermal validation should use the actual assembly and operating conditions.

Can anodized mirror aluminum be used as electrical insulation?

Anodic oxide can provide electrical resistance, but it should not be relied upon as the sole safety-insulation system without appropriate dielectric and finished-product validation.

Can the sheet be bent?

Yes, compatible bending can be evaluated. Minimum bend radius depends on aluminum temper, thickness and reflective-layer construction.

Can it be stamped into reflector cups?

Suitable grades can be evaluated for stamping and reflector forming. A forming trial is recommended because tool contact and deformation can affect both appearance and optical performance.

Should reflectance be tested after forming?

For high-performance reflector components, evaluating the finished formed part is useful because geometry, stretching and tooling marks can influence reflected-light distribution.

Can the same surface be used for spotlights and panel lights?

Not necessarily. Spotlights may benefit from high-specular reflection, while broad-area lighting may require more diffuse or directional light distribution. Surface selection should follow the optical design.

Is protective film available?

Protective film can be supplied where compatible with the reflector surface and manufacturing process. Adhesion and removal conditions should be confirmed before production.

Can RoHS or REACH documentation be supplied?

Where RoHS, REACH or other documentation is required, state the requirement before ordering so documents applicable to the exact substrate and reflector surface can be confirmed.

Does UL 94 V-2 apply to aluminum reflector sheet?

Flammability classifications intended for polymeric materials should not be presented as a general rating for the aluminum sheet itself. Fire and electrical requirements should be evaluated for the relevant component materials and the finished luminaire.

Can I request a sample for an LED fixture trial?

Sample availability can be discussed. For new fixture designs, testing a formed reflector with the actual LED, lens and diffuser is recommended where optical performance is critical.

What information should I provide for a quotation?

Please provide fixture type, required total reflectance, specular or diffuse requirement, wavelength range, thickness, dimensions, reflector drawing, forming process, operating temperature, electrical design requirements if relevant, protective film, quantity, required documents and destination.
