Semiconductor inspection tools—such as automated optical inspection (AOI) systems, wafer defect scanners, and photolithography alignment modules—operate under extreme cleanroom standards (ISO Class 1 to Class 5). Detecting sub-micron defects on silicon wafers requires pristine light reflection, high thermal stability, zero particulate contamination, and immunity to static charge buildup.
Standard reflective polymers or secondary-coated glass mirrors pose significant contamination risks in ultra-high vacuum (UHV) and high-cleanroom environments due to outgassing and fragile breakage risks. 1060 anodized mirror aluminum sheet (≥ 99.60% pure Al with chemical polishing and anodic seal) offers a robust metallic solution. It provides total directional light reflection (≥ 86%-95%), ultra-low vacuum outgassing, static dissipation, and precise thermal conductivity for sensitive wafer inspection optics.

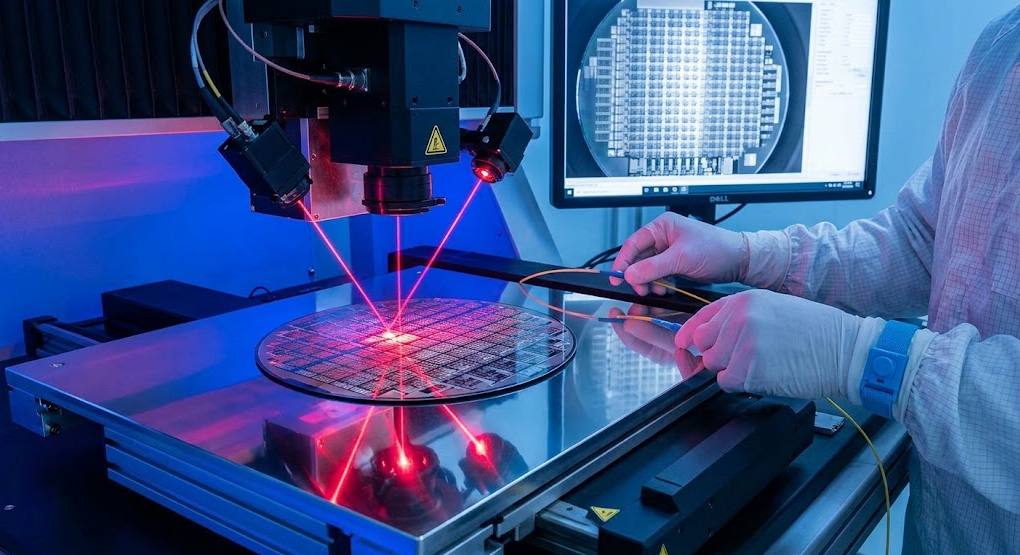

Sub-micron defect inspection relies on precise laser scanning or high-intensity LED light paths:
Elimination of Light Scatter: Imperfections or orange-peel textures on reflector plates disperse light, lowering signal-to-noise ratios (SNR) on high-speed CCD/CMOS sensors.
Spectral Uniformity: Inspection optics require stable reflectivity across UV, visible, and near-infrared (NIR) wavelengths without optical distortion.
Semiconductor equipment components face strict material outgassing limits:
Polymer / Glass Mirror Assembly Outgassing & Fragile Breakage Risk | 1060 Anodized Mirror Aluminum High Specular Reflectivity & Vacuum Sealed |
Glass / Resin Layer | Anodic Sealed Oxide Layer |
Silver / Paint Backing | Chemical Mirror Polish |
Polymer / Glass Base | 1060 Pure Al Substrate |
High Outgassing (VOCs contaminate wafer) Risk of Glass Particle Shatter Static Charge Accumulation (ESD Hazard) | Zero Outgassing (Vacuum/Cleanroom Safe) Shatterproof Metallic Construction Dissipates ESD / High Thermal Conduction |
Volatile Organic Contamination: Polymeric backings or adhesive layers outgas volatile organic compounds (VOCs) under UV illumination or vacuum, depositing thin films onto delicate projection lenses.
Particulate Generation: Brittle materials or flaking coatings generate microscopic dust particulates, causing fatal wafer die defects.
The table below compares technical parameters of optical reflection materials used in semiconductor inspection equipment:
Technical Parameter | Glass Mirror (Silvered) | Polished Stainless Steel (304/316) | 1060 Anodized Mirror Aluminum Sheet | Quality / Test Standard |
Total Specular Reflectivity | 92% – 98% | 55% – 65% | 86% – 95% | ISO 2768 / DIN 5036 |
Aluminum Substrate Purity | N/A | N/A | ≥ 99.60% Pure Al | ASTM B209 / GB/T 3880 |
Outgassing Rate (TML / CVCM) | High (Adhesives/Paint) | Zero | Ultra-Low (TML < 0.1%, CVCM < 0.01%) | ASTM E595 (Vacuum Safe) |
Thermal Conductivity | ~ 1.1 W/· K | ~ 16.2 W/m·K | ~ 230 W/m·K | ASTM E1530 |
Static Charge Dissipation | Poor (Insulator) | Excellent | Excellent (Dissipative Metallic Base) | ANSI/ESD S20.20 |
Shatter / Particulate Risk | High Risk (Glass) | Low | Zero Risk (Non-Brittle Metal) | ISO 14644 Cleanroom Class |

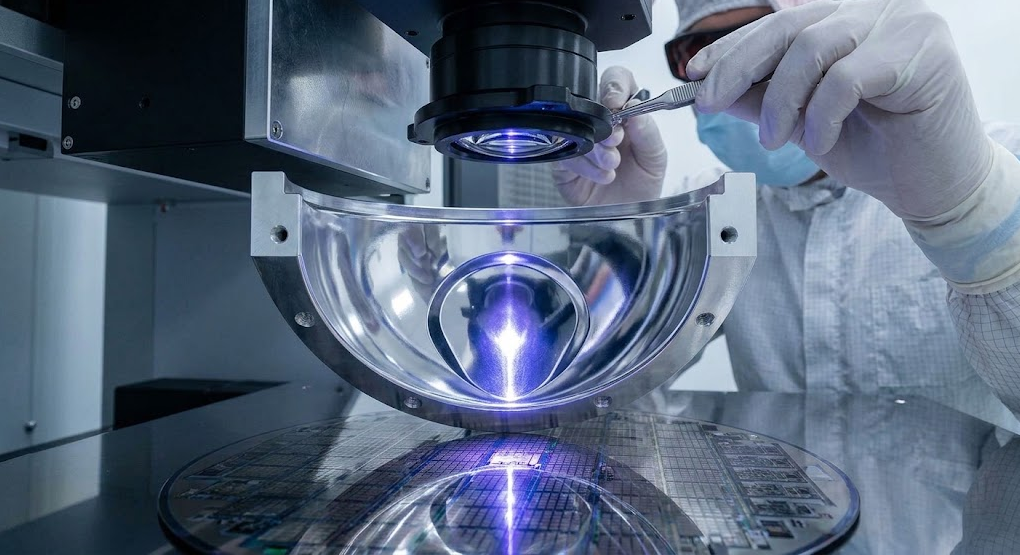

Uniform Light Beam Steering: The smooth specular surface directs light evenly across wafer surfaces, helping sensors differentiate true sub-micron micro-cracks from surface illumination noise.
Broadband Optical Performance: Maintains high reflectivity across UV and visible light, supporting multi-spectral inspection routines on patterned silicon wafers.
Zero Particulate Contamination: Non-shattering metallic construction eliminates glass particulate risks inside multi-million-dollar lithography and AOI inspection tools.
Corrosion Resistance against Process Gases: The sealed Al₂O₃ anodic surface resists degradation from chemical vapors, trace ozone, and cleanroom solvent wipe-downs.
Electrostatic Charge Dissipation: Conductivity beneath the thin anodic coating allows static charges to drain safely to ground, preventing particle attraction onto silicon wafers.
High Thermal Dissipation (230W/m·K): Rapidly transfers heat away from high-intensity inspection light sources, maintaining optical alignment and structural stability.
1060 aluminum contains ≥ 99.60% pure aluminum with strictly controlled iron (Fe ≤ 0.35%) and silicon (Si ≤ 0.25%) impurity limits:
Minimal Intermetallic Inclusions: Second-phase intermetallic particles in alloyed aluminum (e.g., 3003 or 6061) create microscopic pitting during electropolishing. 1060 pure alloy polishes to a smooth, uniform mirror surface.
High Soft-Temper Ductility: In the O or H22 temper, 1060 forms smoothly into curved optical reflectors, light cones, and parabolic mirrors without surface crazing.
Chemical polishing followed by anodic oxidation creates a hard, clear protective structure:
2Al + 3H₂O →Anodization→ Al₂O₃ + 3H₂ ↑
Protective Clear Anodizing Layer (3μm - 10μm): Converts the polished aluminum surface into clear crystalline sapphire/alumina (Al₂O₃), sealing the mirror finish against oxidation and micro-abrasion.
Non-Porous Sealed Surface: Hot water or nickel acetate sealing closes microscopic anodic pores, locking out humidity and preventing chemical entrapment.

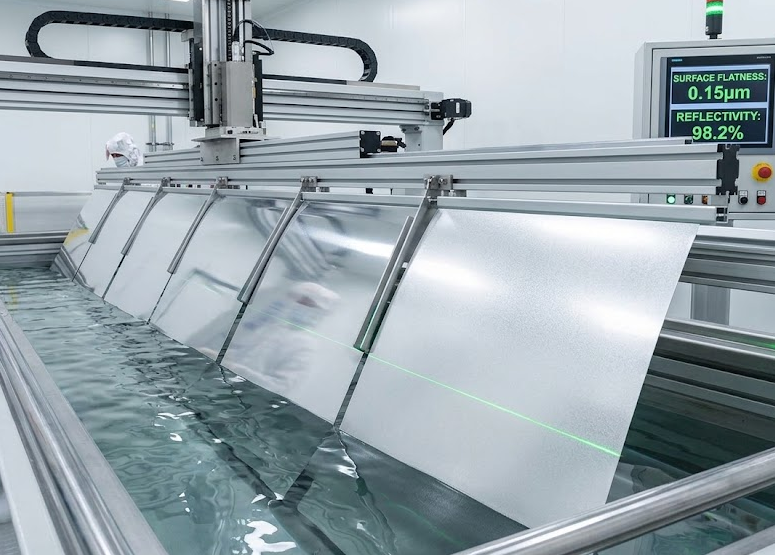

Ultrasonic Degreasing & Micro-Etching: Raw 1060 sheets undergo thorough cleaning and chemical pre-treatment to eliminate rolling oils and impurities from the aluminum matrix.
Bright Dip Chemical Polishing: The sheet passes through phosphoric-nitric acid baths at elevated temperatures, leveling surface micro-roughness (Ra ≤0.02μm) to achieve a mirror-like specular shine.
Precision Anodic Film Formation: Electrochemical anodization generates a uniform, transparent Al₂O₃ layer (3μm - 8μm) that protects the mirror polish without compromising total reflectivity.
Hot-Deionized Water Sealing: Closes microscopic anodic pores under controlled thermal conditions, creating a dense, non-porous surface that resists chemical absorption and cleanroom wipe-downs.
Burr-Free Edge Shear & CNC Cutting: Precision shears or CNC milling process the mirror sheets with burrs strictly held under 5% of sheet thickness, preventing metal sliver generation in cleanrooms.
Cleanroom Interleaving & Vacuum Packaging: Finished sheets are laminated with high-clarity, low-tack protective PE film, vacuum-sealed with desiccants in VCI bags, and packed in wooden crates for global export.
Q1:Why use 1060 aluminum instead of higher-strength alloys like 6061 for mirror applications?
A:High-strength alloys like 6061 contain magnesium and silicon intermetallic phases that create microscopic pitting during chemical polishing, causing light diffusion. 1060 pure aluminum (≥ 99.60%) polishes smoothly, achieving superior specular reflectivity.
Q2:Does the anodic oxide layer reduce the reflectivity of the mirror aluminum sheet?
A:Controlled anodization (3μm-8μm) using high-purity clear sealants maintains ≥ 86%-95% reflectivity while providing vital scratch resistance, chemical passivation, and non-outgassing properties.
Q3:Is 1060 anodized mirror aluminum safe for ultra-high vacuum (UHV) chambers?
A:Yes. The fully sealed anodic layer (Al₂O₃) contains no organic solvents, dyes, or volatile binders. It meets ASTM E595 outgassing standards (TML < 0.10%, CVCM < 0.01%), making it safe for cleanroom and vacuum tool integration.
Q4:How does 1060 mirror aluminum handle electrostatic discharge (ESD) in cleanrooms?
A:As a conductive metal substrate beneath a thin anodic layer, 1060 aluminum allows static charges to dissipate safely to ground, preventing static attraction of airborne dust particles onto wafer surfaces.
Q5:What protective packaging is used to ship mirror aluminum sheets for optical assembly?
A:Sheets are laminated with high-clarity, low-tack protective PE film, vacuum-packed with desiccants in cleanroom bags, interleaved with neutral paper, and shipped flat in heavy-duty non-fumigation wooden cases to prevent scratches or oxidation.
Specifying 1060 anodized mirror aluminum sheets for semiconductor inspection tools ensures high optical reflectivity, ultra-low vacuum outgassing, and robust cleanroom reliability.
To optimize material selection for your semiconductor optics or enclosure project:
Mandate High Alloy Purity (≥ 99.60% Al): Specify 1060 or 1070 alloy with controlled low iron/silicon levels to prevent surface pitting during bright chemical polishing.
Verify Specular Reflectivity & Anodic Film Thickness: Require total reflectivity ratings≥ 86%-90% (DIN 5036) and a sealed anodic layer (3μm-8μm) to balance reflectivity with scratch protection.
Ensure ASTM E595 Outgassing Compliance: Request test certification confirming Total Mass Loss (TML < 0.10%) and Collected Volatile Condensable Material (CVCM < 0.01%) for vacuum chamber installation.
