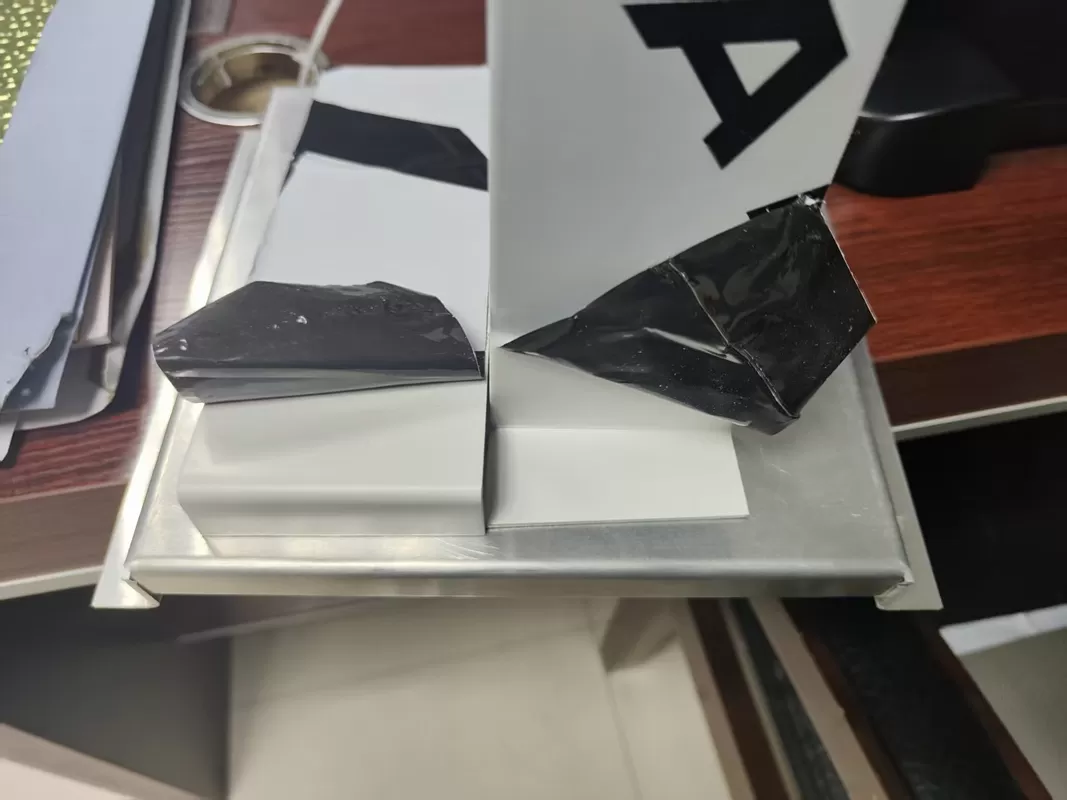

Bending is a critical process for color-coated aluminum sheets in architectural cladding, automotive parts, and furniture. Poor paint bending performance leads to cracking, peeling, or chipping—ruining aesthetics and durability. Below is a breakdown of core factors, testing methods, and fixes.
- 1100/3003/5052 series: Excellent ductility, ideal for bending (e.g., 5052-H32 allows 1×thickness radius) .- 6061/7075 series: Brittle (6061-T6 needs 3×thickness radius; 7075-T6 is not recommended) .
Paint Type
- PVDF: Superior flexibility (T-bend rating 0T-1T), resists cracking .- Polyester: Lower flexibility (T-bend rating 2T-3T), prone to damage in tight bends .
Bending Parameters
- Minimum radius: Depends on thickness/alloy (e.g., 1mm 5052-H32 needs ≥1mm radius) .- Angle: 90° bends stress paint more than gentle curves.

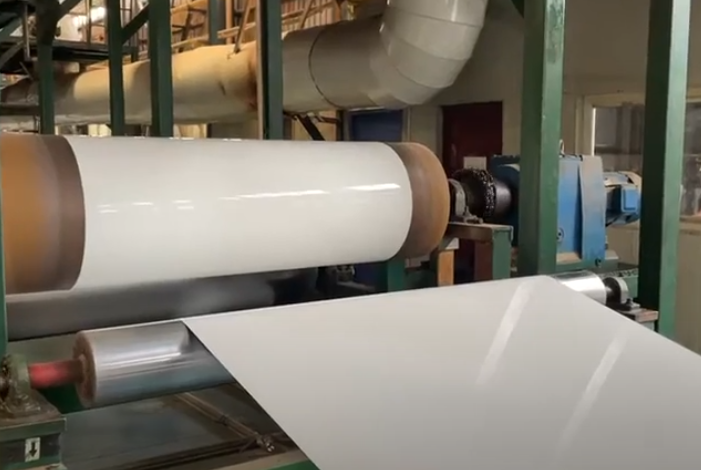

Coating Process
- Thin, uniform coatings (20-30μm) bend better than thick layers.- Poor adhesion (from inadequate surface pre-treatment) causes peeling.
2. Testing Standard: T-Bend Test
The most common method to evaluate performance (per GB/T 23443-2009 ):
Cut a 100×50mm sample from the color-coated sheet.
Bend the sample around a mandrel to 180° without cracking the paint.
Rate by mandrel diameter relative to sheet thickness (t):
0T: Mandrel = 0×t (best performance, typical for PVDF).
1T: Mandrel = 1×t (good, for most architectural uses).
≥3T: Poor (unfit for bending applications).
3. Common Issues & Solutions
Issue
Root Cause
Solution
Paint Cracking
Small bending radius; brittle alloy/paint
- Increase radius to meet alloy requirements (e.g., 6061-T6 needs 3×t) .- Switch to PVDF or anneal hard alloys.
Paint Peeling
Weak coating adhesion
- Improve pre-treatment (degrease, phosphate).- Use adhesion promoters.
Surface Chipping
Thick coating; rough bending tool
- Control coating thickness (20-30μm).- Use smooth, rounded tools.
4. Quick Selection Guide for Bending Projects
Application
Recommended Alloy
Paint Type
Min. Bending Radius
Architectural Facades
5052-H32
PVDF
1×t
Automotive Trim
3003-H14
PVDF
1×t
Heavy-Duty Parts
6061-T4 (annealed)
PVDF
1.5×t
Budget Indoor Use
1100-H14
Polyester
1×t
Conclusion
Paint bending performance relies on alloy ductility, paint flexibility, and process control. Prioritize 5052/3003 alloys with PVDF coatings for demanding bends, and always validate with T-bend tests. Matching materials to bending requirements ensures long-lasting, flawless results
