AA1100 H14 0.5mm High Gloss Coated Aluminum Coil for Roofing

AA1100 H14 0.5mm high gloss color coated aluminum coil with PE coating for roofing, cladding and architectural fabrication. Custom colors and widths are available for project requirements.
  • AA1100

Availability:
Quantity:

AA1100 H14 0.5mm High Gloss Color Coated Aluminum Coil

AA1100 H14 0.5mm high gloss color coated aluminum coil is designed for roofing, wall cladding and architectural fabrication where a smooth decorative surface, lightweight aluminum substrate and reliable forming performance are required.

The product uses AA1100 commercially pure aluminum in H14 temper with a high-gloss polyester coating. The 0.5mm gauge provides a practical balance between formability and handling strength for roll forming, bending, cutting and fabrication into roofing sheets, trims, flashings and decorative panels.

Standard widths include 1000mm, 1250mm and 1500mm, while color, width and coil requirements can be discussed according to the customer's roofing profile, fabrication equipment and project specification.

Request a Quotation

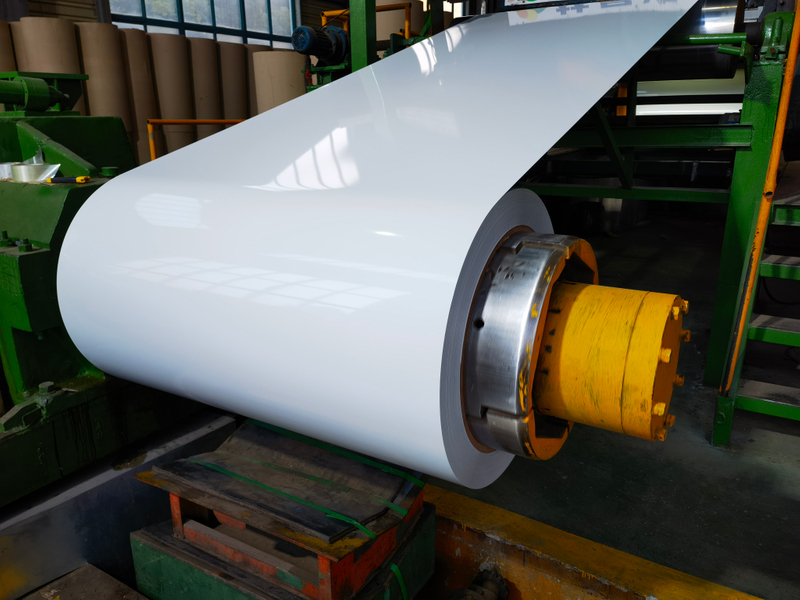

AA1100 H14 high gloss color coated aluminum coil for roofing

Technical Specifications

Item

Detailed Specifications

Product Type

High gloss color coated aluminum coil

Alloy Grade

AA1100, commercially pure aluminum, Al ≥99.0%

Temper

H14, medium strain hardened

Thickness

0.5mm

Published Thickness Tolerance

±0.02mm

Standard Width

1000mm / 1250mm / 1500mm; custom widths can be discussed

Surface Finish

High gloss, smooth and flat

Published Gloss

60–80 GU

Top Coating

Polyester (PE)

Back Coating

Protective epoxy paint

Top Coating Thickness

20–25μm

Back Coating Thickness

5–10μm

Tensile Strength

130–170MPa

Yield Strength

≥105MPa

Elongation

≥8% at 50mm gauge length

Published Color Tolerance

ΔE ≤1.0

Core Size

Φ405mm / Φ505mm

Main Applications

Building roofing, exterior wall cladding and architectural decoration

Processing

Roll forming, bending, cutting, slitting and related fabrication subject to profile requirements

Mechanical properties, color tolerance and coating values should be confirmed against the purchase specification and applicable inspection documents for the ordered batch.

Get Technical Specifications & Pricing

Why AA1100 H14 Is Suitable for Roofing Fabrication

AA1100 Aluminum Substrate

AA1100 is a commercially pure aluminum grade with good formability and corrosion resistance. It is commonly used where high strength is not the primary requirement but ease of forming, low weight and surface finish are important.

H14 Temper for Balanced Formability

H14 temper provides greater rigidity than fully soft aluminum while retaining useful forming capability. For roofing production, the final suitability should be confirmed against the actual panel profile, bend radius and roll-forming equipment.

0.5mm Gauge for Lightweight Roofing Components

The 0.5mm thickness is suitable for selected lightweight architectural components, roofing profiles and decorative applications where the structural design and support spacing are compatible with the material gauge.

High Gloss PE Coating

The visible surface uses a polyester coating designed to provide a smooth, bright decorative finish. The published gloss range is 60–80 GU, making the material suitable for projects where a more reflective architectural appearance is required.

The published coating build includes a 20–25μm PE top coat and a 5–10μm protective back coating. Final coating performance depends on coating formulation, curing conditions, exposure environment, color and fabrication requirements.

For demanding exterior projects, buyers should specify the expected exposure conditions, required color retention and any project-specific coating tests before confirming the order.

Key Product Advantages

High Gloss Decorative Surface

The coated surface provides a bright and uniform decorative appearance suitable for visible roof panels, facade components, trims and other architectural applications.

Good Formability

AA1100 H14 provides a practical combination of formability and stiffness for selected bending and roll-forming processes. Actual processing performance should be confirmed with the required profile geometry and production equipment.

Lightweight Material

Aluminum has a relatively low density, helping reduce handling weight compared with many heavier metallic materials. This can simplify transportation, fabrication and installation of non-structural architectural components.

Corrosion-Resistant Substrate

The aluminum substrate provides natural resistance to atmospheric corrosion, while the organic coating provides additional surface protection and decorative performance.

Custom Color and Width Options

Project colors, widths and coil dimensions can be discussed according to order quantity, production feasibility and architectural requirements. A physical color sample or agreed color reference is recommended for projects requiring close visual matching.

Roofing and Architectural Applications

The 0.5mm AA1100 H14 high gloss coated aluminum coil can be considered for a range of fabricated architectural products, including:

  • Residential roofing panels

  • Commercial building roof components

  • Industrial building roofing profiles

  • Villa roofing and decorative roof panels

  • Roof flashing and trim components

  • Eaves and fascia components

  • Exterior wall cladding

  • Curtain wall decorative components

  • Ceiling and interior decorative panels

  • Architectural decorative profiles

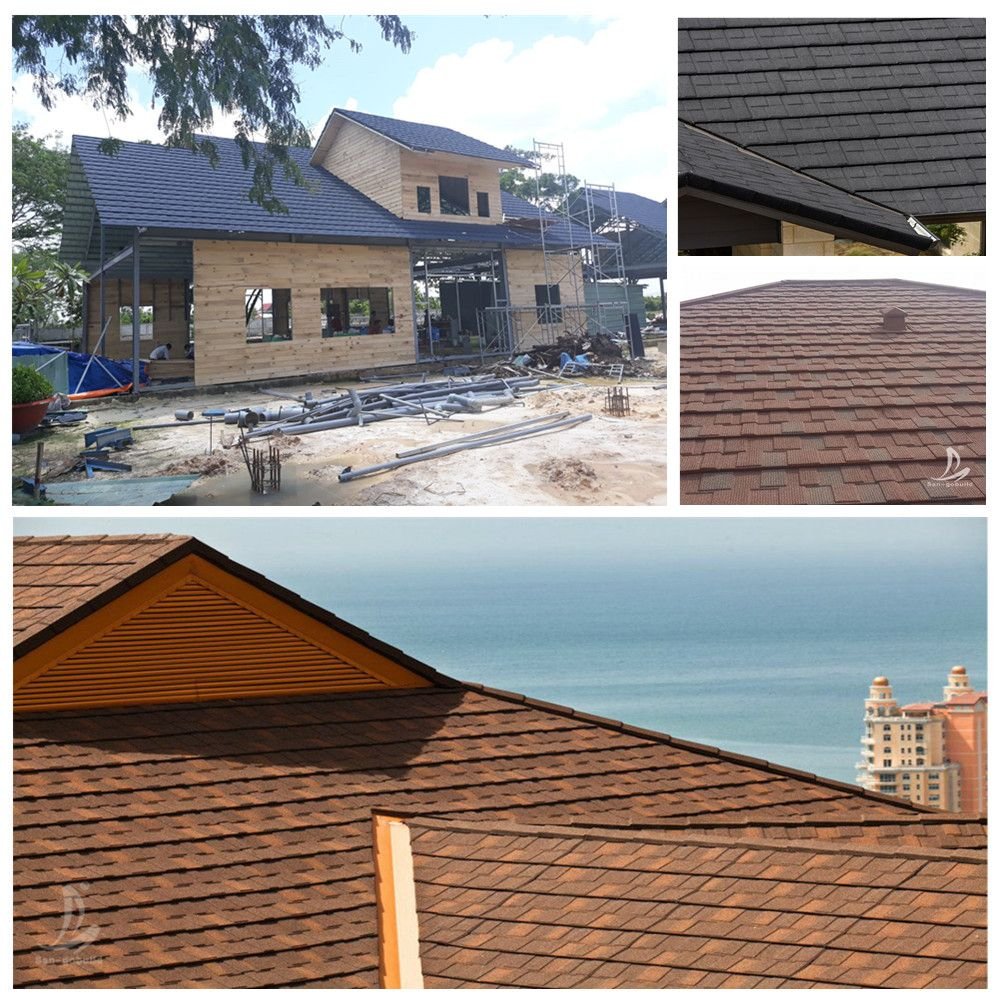

Color coated aluminum coil roofing application

Discuss Your Roofing Project

Roofing Fabrication Considerations

Roll Forming

For profiled roofing panels, the customer should provide the required panel geometry, roll-forming process and bend requirements where possible. Profile depth, forming stations and tooling conditions can affect the finished surface and coating performance.

Bending and Flashing

When the coil will be bent into flashing, fascia, ridge caps or other folded details, the required bend radius should be considered together with substrate temper and coating flexibility.

Surface Protection During Processing

Roller cleanliness, tooling condition and correct material handling are important for preserving a high-gloss finish. Protective film requirements should be discussed if additional surface protection is needed during fabrication or transport.

Production Trial

For a new roofing profile or demanding forming process, a sample trial on the actual production line is recommended before a large-volume order.

Color and Gloss Approval

Color and gloss are important for visible roofing and facade projects. Buyers requiring specific appearance should provide an agreed color reference, physical sample or other approved standard before production.

For projects using material from multiple production batches, batch planning and sample approval should be discussed before production where close visual consistency is required.

Quality Control

Quality inspection can cover aluminum thickness, coil width, coating thickness, color, gloss, surface appearance, edge condition and other agreed requirements.

For roofing fabrication, buyers may also specify agreed forming, adhesion or bend-performance requirements where these are important to the finished profile.

Acceptance criteria should be written into the purchase specification so both parties use the same dimensional, visual and coating requirements during inspection.

Packing and Coil Supply

Coils can be packed with moisture-resistant wrapping and protective export packaging according to coil size, shipping method and customer handling requirements.

Customers requiring particular coil weights, inner diameters or slit widths should provide these requirements before production so the coil format can be reviewed against the downstream equipment.

Information Required for a Quotation

For a more accurate quotation and production review, please provide as much of the following information as possible:

  • Required thickness

  • Required coil width

  • Color or color reference

  • Required gloss level

  • Required coating thickness, if specified

  • Coil inner diameter

  • Preferred coil weight

  • Order quantity

  • Roofing, cladding or other final application

  • Roll-forming or bending requirements

  • Indoor or outdoor service environment

  • Destination country or delivery port

  • Special inspection, documentation or packing requirements

Send Your Specifications for a Quote

FAQ

What is AA1100 H14 color coated aluminum coil?

It is AA1100 aluminum substrate in H14 temper supplied with an organic color coating. This product uses a high-gloss PE finish and is intended for architectural fabrication such as roofing, cladding and decorative components.

Is 0.5mm aluminum coil suitable for roofing?

It can be suitable for selected roofing profiles when the panel design, support spacing, wind load, snow load and local building requirements are compatible with the gauge. The finished roofing system should be designed according to the applicable project requirements.

What does H14 temper mean?

H14 identifies a strain-hardened temper that provides greater stiffness than annealed aluminum while retaining useful forming capability. Actual suitability depends on the required profile and bend geometry.

What is the gloss level of this aluminum coil?

The published gloss range for this product is 60–80 GU. Buyers requiring a specific gloss level should state the target value and acceptance tolerance in the order specification.

What coating is used on the surface?

The visible surface uses a polyester coating. The published top-coat thickness is 20–25μm, with a 5–10μm protective back coating.

Can the coil be roll formed into roofing sheets?

Yes, the material can be considered for suitable roll-forming applications. The final profile geometry, tooling, forming speed and bend requirements should be reviewed before bulk production.

Can the color be customized?

Custom colors can be discussed according to production feasibility and order quantity. Buyers should provide an agreed color reference or physical sample when precise visual matching is required.

What widths are available?

The published standard widths are 1000mm, 1250mm and 1500mm. Other widths can be discussed according to production and slitting requirements.

Can the coating crack during bending?

Coating performance during bending depends on coating flexibility, curing condition, substrate temper, bend radius and tooling. For tight bends or complex profiles, sample forming trials are recommended before bulk production.

Can protective film be supplied?

Protective film requirements can be discussed according to the surface finish, fabrication process and handling conditions.

What information should I provide for a roofing coil quotation?

Please provide thickness, width, color, gloss, coil weight, quantity, roof profile or forming method, application environment and destination. Drawings or profile samples are useful for customized roofing projects.

Can I request a sample before placing a bulk order?

Sample availability can be confirmed according to the required color, gloss and specification. For a new roof profile, a sample forming trial is recommended before bulk production.

Contact Us for Samples & Roofing Coil Pricing
