AA3105
Dingang
7606125900
| Availability: | |
|---|---|
| Quantity: | |

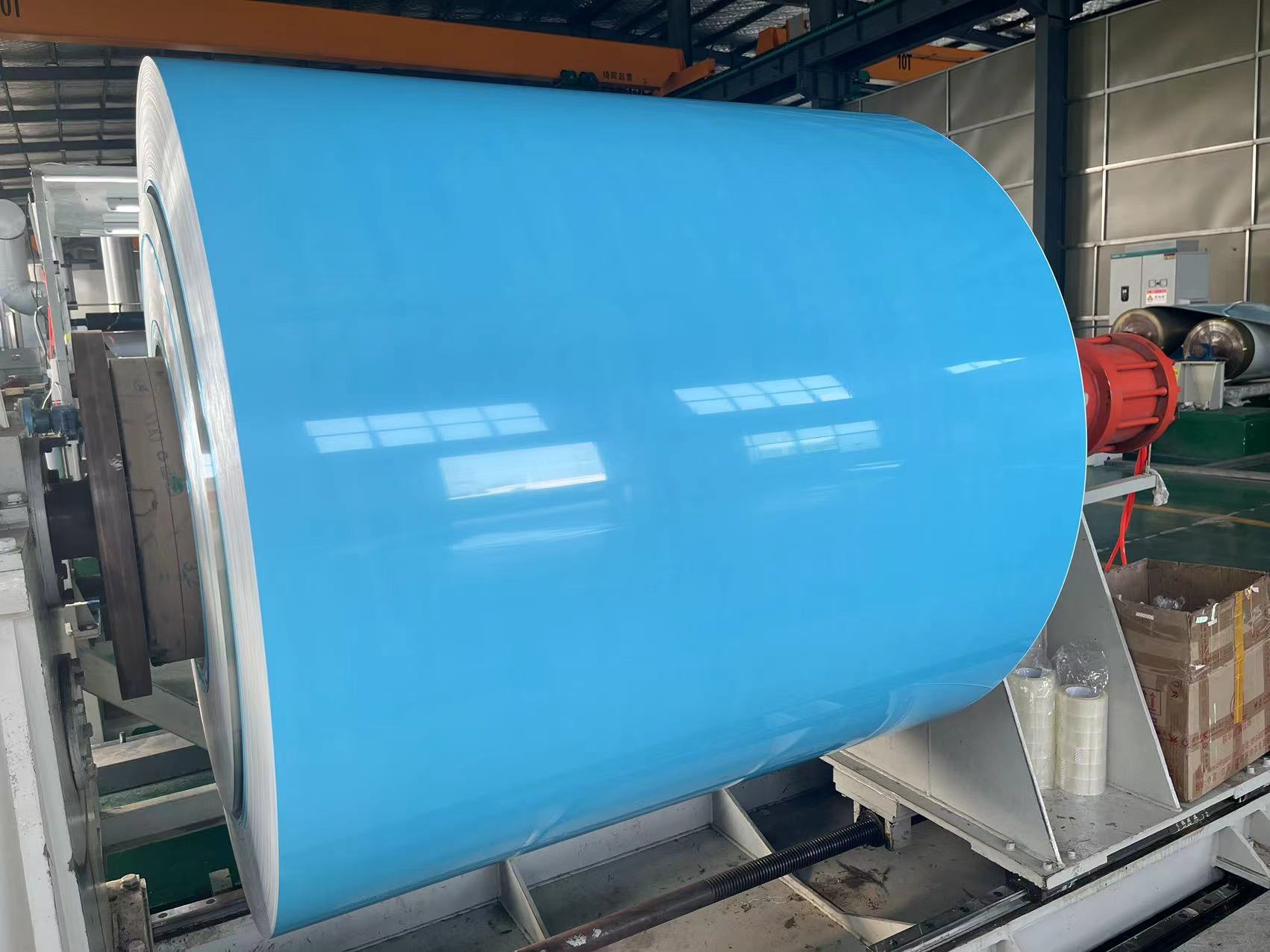

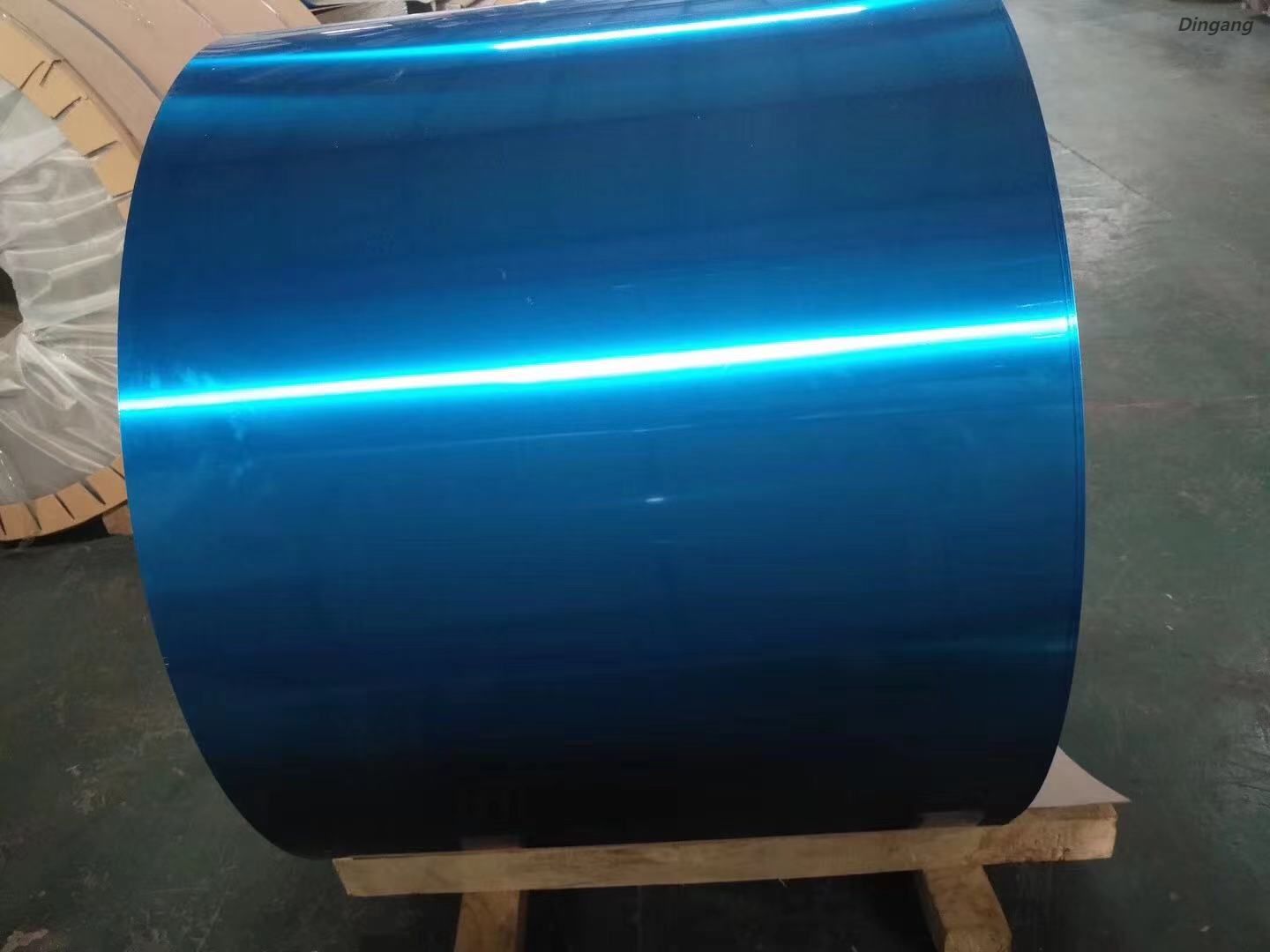

This 0.6mm H24 high gloss lacquered aluminum coil is designed for exterior wall cladding, facade components, fascia, eaves, architectural trim and other building applications requiring a smooth decorative finish and reliable fabrication performance.
The material combines a 0.6mm aluminum substrate in H24 temper with a high-gloss polyester lacquer finish. H24 provides a practical balance of rigidity and formability for cutting, slitting, bending, folding and profiling into compatible exterior architectural components.
Common widths include 1000mm, 1200mm and 1250mm. Custom widths, colors, gloss requirements, protective film and coil dimensions can be discussed according to panel dimensions, fabrication equipment, project drawings and appearance requirements.
Item | Specification |
|---|---|
Product Type | High gloss lacquered / prepainted aluminum coil |
Alloy Grade | To be confirmed according to the ordered material specification |
Temper | H24 |
Nominal Thickness | 0.6mm |
Published Thickness Tolerance | ±0.02mm |
Common Width | 1000mm / 1200mm / 1250mm; custom widths can be discussed |
Coating Type | High gloss polyester lacquer |
Coating Construction | Pretreatment / primer / polyester topcoat with reverse-side coating according to the confirmed specification |
Coating Thickness | To be confirmed according to the ordered polyester coating system |
Gloss | High gloss; target gloss value and tolerance to be confirmed by approved sample or purchase specification |
Surface Finish | Smooth high-gloss surface with controlled color and appearance |
Published Tensile Strength | 110–136MPa |
Published Elongation | 3–5% |
Processing | Cutting, slitting, bending, folding and profiling subject to project requirements |
Color | Custom colors according to approved physical sample or agreed color reference |
Protective Film | Available according to visible-surface protection and fabrication requirements |
Coil ID / Coil OD | To be confirmed according to decoiler and production-line requirements |
Coil Weight | Customized according to customer handling and equipment limits |
Main Applications | Exterior wall cladding, facade components, fascia, eaves, architectural trim and decorative building panels |
Final alloy grade, coating construction, dry-film thickness, color, gloss, dimensional tolerances, coil dimensions, protective film and packaging requirements should be confirmed in the purchase specification before production.
Get Technical Specifications & Pricing
H24 temper provides greater rigidity than fully annealed aluminum while retaining useful forming capability. This balance can be suitable for selected exterior panels, folded trims and architectural profiles.
The coil can be considered for compatible bending and profiling operations when bend radius, panel geometry, forming sequence, tooling condition and coating flexibility are matched to the finished component.
The H24 condition provides useful stiffness for facade panels, fascia and trim components where retaining the fabricated shape is important during handling and installation.
The high-gloss polyester lacquer provides a smooth, bright architectural appearance for visible building components. Gloss should be treated as a measurable project parameter rather than only described as high gloss.
Where appearance is important, buyers should specify the target gloss, measurement angle, permitted tolerance and approved physical reference. Different coating formulations and colors can produce different perceived gloss even when measured values are similar.
Exterior coating performance depends on the complete coating construction. Primer, topcoat and reverse-side coating should therefore be defined where film build is important to forming performance or environmental exposure.
Polyester coatings can be used for suitable exterior architectural applications, but weathering and color-retention performance depend on the specific resin system, coating thickness, color, UV exposure, climate, pollution and maintenance conditions.
For coastal sites, high-UV regions, heavily polluted environments or projects with stringent long-term appearance requirements, the installation environment and required coating performance should be reviewed before material approval.
Parameter | What to Confirm | Why It Matters |
|---|---|---|
Dry-Film Thickness | Primer, topcoat and back-coat thickness where specified | Affects coating performance and consistency |
Gloss | Target value, measurement method and tolerance | Controls the visible high-gloss appearance |
Color Difference | Approved master sample and acceptable color tolerance | Important for adjacent facade panels and large elevations |
Coating Adhesion | Cross-cut, tape or other agreed adhesion test | Helps verify bonding between coating and aluminum substrate |
T-Bend / Bend Performance | Agreed acceptance level according to fabrication requirements | Important for folded panels, fascia and architectural profiles |
Coating Cure | Solvent-resistance or other agreed cure verification | Insufficient cure can affect adhesion and fabrication performance |
Surface Hardness | Pencil-hardness or other agreed requirement where applicable | Useful for handling and fabrication of visible high-gloss surfaces |
Protective Film | Film type, adhesion and removal requirements | Helps protect visible surfaces during fabrication and installation |
The smooth lacquered surface provides a bright, clean finish for visible facade panels, trims and decorative exterior components.
Aluminum has a relatively low density, helping reduce handling weight during coil processing, transportation and fabrication of compatible non-structural architectural components.
Aluminum naturally develops a protective oxide layer, while the lacquer system adds decorative color and an additional environmental barrier over the coated surface.
Pre-coated coil allows fabricators to process material that already carries the decorative finish, reducing the need for secondary painting where the fabrication process is compatible with the coating.
Common widths of 1000mm, 1200mm and 1250mm are published for this product. Other widths and colors can be discussed according to production feasibility, quantity and project requirements.
0.6mm H24 high gloss lacquered aluminum coil can be considered for compatible architectural and decorative applications including:
Exterior wall cladding
Decorative facade panels
Curtain-wall decorative components
Building fascia
Eaves and exterior trim
Commercial building exterior decoration
Office building facade components
Hotel and retail exterior decoration
Building renovation panels
Outdoor advertising and sign substrates where the coating specification is suitable
Discuss Your Exterior Cladding Project
When the material is fabricated into fascia, trims, cassettes or folded panels, bend radius, H24 material condition, tooling and coating flexibility should be considered together.
For exterior wall panels or facade components, buyers should provide panel dimensions, folds, returns, ribs, fixing details and forming geometry where possible so material suitability can be reviewed before production.
Tighter bends create higher strain in both the aluminum and lacquer. Where sharp folds are required, the bend radius and coating flexibility should be included in material qualification.
High-gloss surfaces can reveal scratches, roller marks and handling damage more readily than matte or textured finishes. Clean tooling and controlled handling are therefore especially important.
Removable protective film can be discussed where additional surface protection is required during slitting, cutting, bending, transport or installation. Film adhesion and removal requirements should match the fabrication and storage process.
For complex facade profiles, tight bends or new fabrication methods, representative forming trials are recommended before bulk ordering to verify both dimensional performance and coating integrity.
For visible facade projects, buyers should approve the color and gloss against an agreed physical sample or other project reference before production.
Color and gloss should be treated as separate acceptance parameters. Two coils may have a similar nominal color but appear different if their gloss or surface texture differs.
Where multiple coils will be installed on the same visible elevation, production-batch planning can help reduce visible differences between adjacent panels.
For projects with strict appearance requirements, the purchase specification can define the approved master sample, color-difference tolerance and gloss tolerance together with the agreed measurement method.
The installation environment should be considered when selecting a polyester-coated aluminum product for exterior use. UV intensity, temperature, rainfall, humidity, coastal salt, industrial pollution and facade orientation can all affect coating exposure.
A standard high-gloss polyester coating should not automatically be assumed to meet every severe exterior exposure requirement. Where long-term color retention or demanding environmental resistance is critical, the required performance should be stated before coating approval.
Inspection can include substrate thickness, coil width, tensile strength, elongation, surface appearance, coating thickness, color, gloss, edge condition and coil dimensions according to the agreed purchase specification.
Where forming performance is important, buyers can specify an agreed coating-adhesion, T-bend or representative fabrication test together with the applicable acceptance criteria.
Where coating cure or surface durability is important, pencil hardness, solvent resistance or another agreed coating test can also be included.
For visible facade projects, approved color and gloss samples should be retained as production and inspection references.
Coils can be supplied with moisture-resistant wrapping, edge protection, secure strapping and export packaging according to coil dimensions, transportation method and customer handling requirements.
Fabricators using decoilers or automatic production lines should specify coil inner diameter, maximum outside diameter, maximum coil weight, winding orientation and width tolerance before production.
Where protective film is used, storage time, fabrication process and film-removal timing should be considered so the film remains suitable for the intended workflow.
To receive an accurate quotation and material review, please provide as much of the following information as possible:
Required alloy grade, if specified
H24 temper requirement
Required thickness and tolerance
Required coil width and tolerance
Color or approved physical sample
Target gloss and acceptable tolerance
Required polyester coating construction
Primer, topcoat and back-coat requirements
Required coating thickness, if specified
Protective-film requirement
Coil inner diameter
Maximum coil outside diameter
Maximum or preferred coil weight
Panel or profile drawing
Bending, folding or profiling requirements
Required bend radius
Required T-bend, adhesion or other coating test
Exterior wall, facade, fascia, eaves or other final application
Installation climate and exposure environment
Order quantity or annual consumption
Destination country or delivery port
Special inspection, documentation or packing requirements
Send Your Specifications for a Quote
It is 0.6mm aluminum coil supplied in H24 temper with a factory-applied high-gloss polyester lacquer finish for compatible architectural panels, cladding, fascia and trim applications.
H24 is a strain-hardened and partially annealed condition that provides a combination of stiffness and forming capability for compatible fabricated aluminum components.
The current published product information lists a nominal thickness of 0.6mm with a thickness tolerance of ±0.02mm. The applicable measurement and acceptance method should be confirmed for the ordered batch.
It can be considered for compatible exterior cladding and facade components when the coating specification, panel design, support system, forming process and exposure conditions are suitable.
Polyester coatings can be used for selected exterior applications. Actual weathering and color-retention performance depends on the specific coating formulation, film build, color, UV exposure, climate and maintenance conditions.
This product is supplied with a high-gloss finish. Where a numerical gloss requirement is needed, the target value, measurement method and tolerance should be specified before production.
The coating thickness should be selected according to the polyester system, forming requirements and exterior exposure. Primer, topcoat and reverse-side coating should be specified separately where these values are critical.
The published common widths are 1000mm, 1200mm and 1250mm. Other widths can be discussed according to production feasibility, tolerance and order quantity.
Yes. Custom colors can be discussed according to production feasibility and quantity. An approved physical sample or agreed color reference is recommended before bulk production.
Gloss changes the way a color appears under different lighting conditions. Two panels with a similar nominal color can still look different when their gloss levels are not matched.
Yes, for compatible profiles. Forming performance depends on bend radius, tooling, H24 material properties and coating flexibility. Complex profiles should be evaluated through representative trials.
T-bend or similar deformation testing can help evaluate whether the lacquer remains adhered and free from unacceptable cracking when the coated aluminum is folded or tightly formed.
Clean tooling, careful material handling and suitable removable protective film can help reduce scratching and surface marks during slitting, bending, transportation and installation.
The current published product information lists tensile strength of 110–136MPa and elongation of 3–5%. Required values should be confirmed against the ordered batch specification.
Protective film can be discussed according to surface finish, downstream fabrication method, storage time, transportation conditions and customer requirements.
Sample availability can be confirmed according to color, gloss and specification. For new facade profiles or demanding forming operations, sample fabrication trials are recommended before volume production.
Please provide alloy grade if specified, thickness, width, color, gloss, coating requirements, protective film, coil dimensions, panel drawing, forming method, installation environment, order quantity and destination.
