3003 H24 Wood Grain Color Coated Aluminium Stripe

3003 H24 wood grain color coated aluminium stripe is a premium raw material specially manufactured for exterior roller blinds, outdoor shutter windows, venetian blinds and architectural shading systems. Combined with high-quality 3003 H24 aluminium alloy substrate and advanced thermal transfer wood grain coating plus electrophoresis primer technology, this product perfectly integrates realistic wood aesthetics and superior metal performance. It effectively overcomes the common defects of solid wood like moisture absorption, mildew and deformation, as well as the rust issue of zinc steel strips. Featuring outstanding corrosion resistance, excellent formability, strong UV resistance and scratch resistance, this RoHS-compliant aluminium stripe is a top-choice material for durable and stylish shutter windows in residential, commercial and industrial buildings. After professional weathering tests, its gloss retention rate stays above 95%, ensuring long-term stable appearance and performance for outdoor use.

Model:
PPAL
Brand:
DINGANG

Availability:

Quantity:



Inquire Add to Basket

Product Description

3003 H24 Wood Grain Color Coated Aluminium Stripe | Raw Material for Exterior Roller Blinds & Shutter Windows

Product Overview

3003 H24 wood grain color coated aluminium stripe is a premium raw material specially manufactured for exterior roller blinds, outdoor shutter windows, venetian blinds and architectural shading systems. Combined with high-quality 3003 H24 aluminium alloy substrate and advanced thermal transfer wood grain coating plus electrophoresis primer technology, this product perfectly integrates realistic wood aesthetics and superior metal performance. It effectively overcomes the common defects of solid wood like moisture absorption, mildew and deformation, as well as the rust issue of zinc steel strips. Featuring outstanding corrosion resistance, excellent formability, strong UV resistance and scratch resistance, this RoHS-compliant aluminium stripe is a top-choice material for durable and stylish shutter windows in residential, commercial and industrial buildings. After professional weathering tests, its gloss retention rate stays above 95%, ensuring long-term stable appearance and performance for outdoor use.

Complete Technical Specifications

This section lists full technical parameters to meet procurement, processing and quality inspection requirements for blind and shutter manufacturers.

Parameter Category	Detailed Specifications
Full Product Name	3003 H24 Wood Grain Color Coating Aluminium Stripe for Exterior Roller Blinds & Shutter Windows
Alloy & Temper	3003 H24 (Al: 96.7-99.0%, Mn: 1.0-1.5%, Cu: 0.05-0.20%)
Mechanical Properties	Tensile Strength: 180-220MPa; Yield Strength: 150-180MPa; Elongation: ≥12%
Thickness Range	0.3mm - 2.0mm, fully customizable
Width Range	10mm - 100mm; Standard sizes: 20mm / 30mm / 40mm; Custom cutting available
Coating Technology	Thermal transfer wood grain + Electrophoresis primer
Composite Coating Performance	Total composite film ≥26μm (Oxide film ≥6μm + Paint film ≥20μm); Salt spray resistance ≥1000 hours (Grade 9.8+)
Anti-Aging Performance	UV resistance ≥8 years (QUV accelerated aging test); Coating adhesion: Level 1 (no peeling or cracking)
Surface Finish	Multiple wood grain patterns: Oak, Walnut, Pine and more; Custom patterns are supported
Color Fastness	Grade 4-5 (Compliant with GB/T 1865-2009 standard)
Executive Standards	GB/T 5237.4-2017, ASTM B209M, ROHS
Dimensional Tolerance	Thickness: ±0.02mm; Width: ±0.1mm

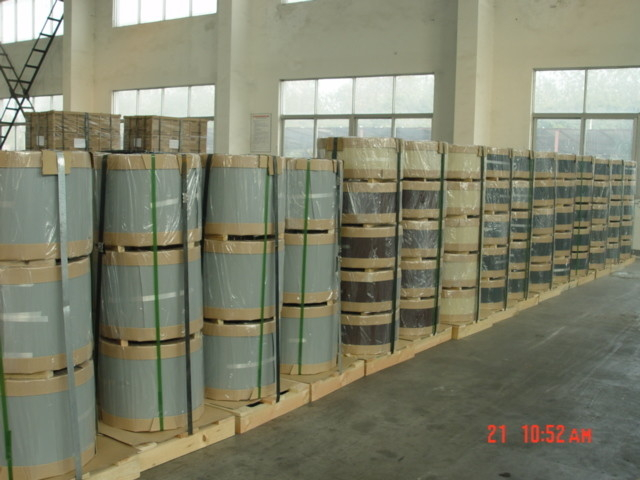

Packaging Method	Waterproof paper + Wooden pallet; 1000 pieces per bundle or customized packaging

Wide Application Scope

This versatile wood grain aluminium stripe adapts to multiple indoor and outdoor scenarios, covering mainstream shutter and roller blind application fields.

Residential Buildings

Ideal for bedroom windows, bathroom windows, balcony roller blinds and kitchen ventilation windows. The material is moisture-proof, easy to clean and decorative, matching various home decoration styles.

Commercial Buildings

Widely used for office building windows, shopping mall shading blinds, hotel exterior shutters and indoor partition louvers, balancing aesthetics and practicality for commercial spaces.

Industrial Spaces

Suitable for factory workshop shutters, clean room partitions and laboratory ventilation blinds. It features dust-proof and corrosion-resistant properties to adapt to harsh industrial environments.

Special Harsh Scenarios

Perfect for coastal buildings with anti-salt spray requirements, high-rise buildings with strong wind pressure resistance, and sunrooms that need long-term UV protection.

Product Advantages: Compare with Solid Wood & Zinc Steel Strips

Compared with traditional solid wood strips and zinc steel strips, 3003 H24 wood grain aluminium stripe has comprehensive strengths in weight, durability, maintenance and environmental protection.

Comparison Items	3003 H24 Wood Grain Aluminium Stripe	Solid Wood Strip	Zinc Steel Strip
Material Weight	Light (2.7g/cm³), greatly reducing installation labor and structural load	Medium density but bulky in structure	Heavy (7.85g/cm³), high transportation and installation cost
Weather Resistance	Excellent, no rust, no deformation under long-term outdoor exposure	Poor, easy to absorb moisture, get mildewed and deform	Average, prone to rust after long-term use
Service Life	15-20 years of stable service life	Only 3-8 years, frequent replacement needed	5-10 years, limited service cycle
Daily Maintenance	Low cost, just wipe with neutral detergent; no professional maintenance required	High cost, needs regular painting and waterproof treatment	Medium cost, periodic anti-rust treatment is essential
Decoration Effect	High-simulation wood grain, stable color and texture for long time	Natural wood texture but easy to fade	Single color, lack of decorative texture
Environmental Performance	RoHS compliant, 100% recyclable, eco-friendly	Causes deforestation, poor sustainability	Produces pollution during production process
Cost-Effectiveness	High cost performance, balanced price and long service life	Low cost performance with high material cost and short lifespan	Medium initial cost but high later maintenance expense

Frequently Asked Questions

We sort out common questions from buyers, processors and end users to solve your concerns about product performance, customization, installation and maintenance.

Q: Will the thermal transfer wood grain coating fade after long-term outdoor use?A: No. Adopting high-durability thermal transfer coating with professional UV-resistant additives, the product passes 1000-hour QUV accelerated aging test. The color fading rate is controlled below 5% after 8 years of outdoor use, maintaining stable wood grain appearance.
Q: Can I customize the size and wood grain pattern of the aluminium stripe?A: Yes. We support full customization. The thickness (0.3-2.0mm) and width (10-100mm) can be adjusted as required. We provide more than 20 standard wood grain styles including oak, walnut and pine, and can develop exclusive custom patterns according to your samples.
Q: Is this aluminium stripe applicable to bathrooms and coastal areas?A: Definitely. The 3003 H24 alloy plus thickened composite coating achieves over 1000 hours of salt spray resistance. It can resist moisture, humidity and salt corrosion effectively, which is the ideal material for bathrooms, coastal buildings and other high-humidity, high-salt environments.
Q: What are the daily maintenance methods for the wood grain aluminium stripe?A: The maintenance is extremely simple. Use a soft cloth dipped in neutral detergent to wipe off surface dust and stains. Please avoid using abrasive cleaners or sharp hard tools to prevent scratching the coating.
Q: What installation methods does this product support?A: It is compatible with all standard shutter and exterior roller blind installation methods, including slot insertion, screw fixation and clip-on assembly. The lightweight design allows on-site cutting according to actual sizes, lowering installation difficulty.
Q: Does the aluminium stripe have certain impact resistance?A: The 3003 H24 temper delivers moderate mechanical strength (tensile strength 180-220MPa), which can withstand daily slight impacts. If individual slats are bent accidentally, they can be easily restored or replaced separately.

Company Introduction & Cooperation Information

Brand: DINGANG

Model: PPAL

Changzhou Dingang Metal Material Co., Ltd has focused on aluminium alloy color coating production since 2002. We are a professional manufacturer integrating R&D, production and sales of color coated aluminium coil, sheet, stripe and circle. Our wood grain aluminium stripe for exterior roller blinds and shutter windows has stable quality, complete specifications and flexible customization services, and is widely exported to global markets.

We support bulk orders, sample testing and OEM customization. Welcome global buyers, blind manufacturers and building material distributors to contact us for detailed quotations and technical communication.

Changzhou Dingang Metal Material Co,Ltd.

Robert Tang (Sales Director)

Email: robert@cnchangsong.com

Phone: +0086 159 6120 6328 (whatsapp / wechat)
