Roller Shutter Flexible Prepainted Aluminum Strip

Core Advantages

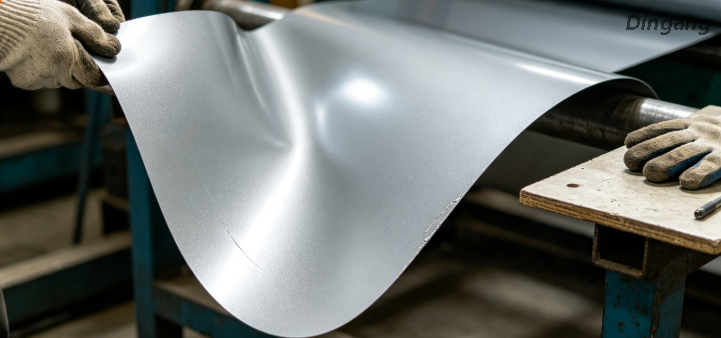

• Flexible polyester coating system, 180° bending and repeated rolling forming without paint cracking

• 3003 anti-rust aluminum base material, no rust problem in long-term outdoor use

• Lightweight design makes finished rolling shutter run more smoothly and quietly

• Weather-resistant coating, anti-ultraviolet, no easy fading or chalking for outdoor use

• Rich color options, matte and embossed textures available

• Stable width and thickness tolerance, suitable for automatic shutter slat production

• Moisture-proof and anti-corrosion, suitable for coastal, rainy and humid environments

• Customizable width and thickness according to different shutter forming machines

Production Process

3003 aluminum big coil uncoiling → Degreasing cleaning → Chromium-free passivation drying → Primer coating curing → Flexible top paint coating and baking → Cooling → Protective film lamination → Precision slitting into narrow shutter aluminum strips → Flex bending inspection → Winding into small finished rolls → Packaging and warehousing

Each batch will be tested for bending paint adhesion and weather resistance before delivery.

Technical Parameters

Application

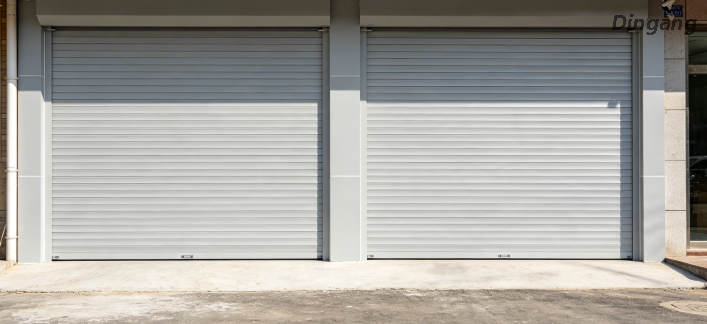

Commercial: Store rolling shutter door, shopping mall rolling gate, storefront anti-theft shutter

Residential: Villa garage rolling shutter, household security rolling curtain

Industrial storage: Factory workshop rolling door, warehouse rolling shutter

Special engineering: Parking lot rolling gate, factory dust-proof rolling curtain

Export Packaging

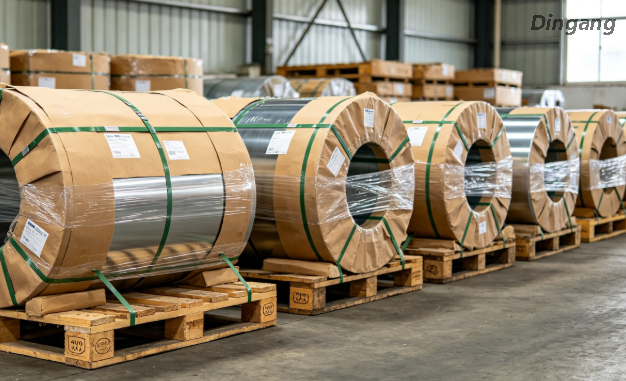

Finished narrow aluminum strips are wound into small rolls. Each roll is wrapped with moisture-proof PE film and kraft paper, then neatly arranged on IPPC fumigated wooden pallets and fixed with plastic packing belts. Outer shipping marks include alloy grade, thickness, width, color, net weight and batch number. Fumigation certificate and material test certificate can be provided for overseas procurement and customs clearance.

FAQ

Q1: Will the paint crack after repeated rolling of the shutter?

A: No. This product uses a flexible shutter-dedicated coating system and passes 180° bending test. Normal up-and-down rolling will not cause paint cracking or peeling.

Q2: Why use aluminum strip instead of galvanized strip for rolling shutters?

A: Galvanized shutter strips may rust after 2–3 years outdoors, while aluminum shutter strip is more rust-resistant, lighter, quieter and has a longer service life.

Q3: What thickness is most commonly used for garage rolling shutters?

A: 0.35mm–0.45mm aluminum strip is the most mainstream specification for garage and shop rolling shutters.

Q4: Can embossed wood grain style be customized?

A: Yes. Wood grain prepainted aluminum strip can be produced to give rolling shutters a decorative wood grain appearance.

Q5: Is it suitable for automatic shutter forming machines?

A: Yes. It has stable width and thickness tolerance and good unwinding tension performance, making it suitable for full-automatic shutter slat production lines.
