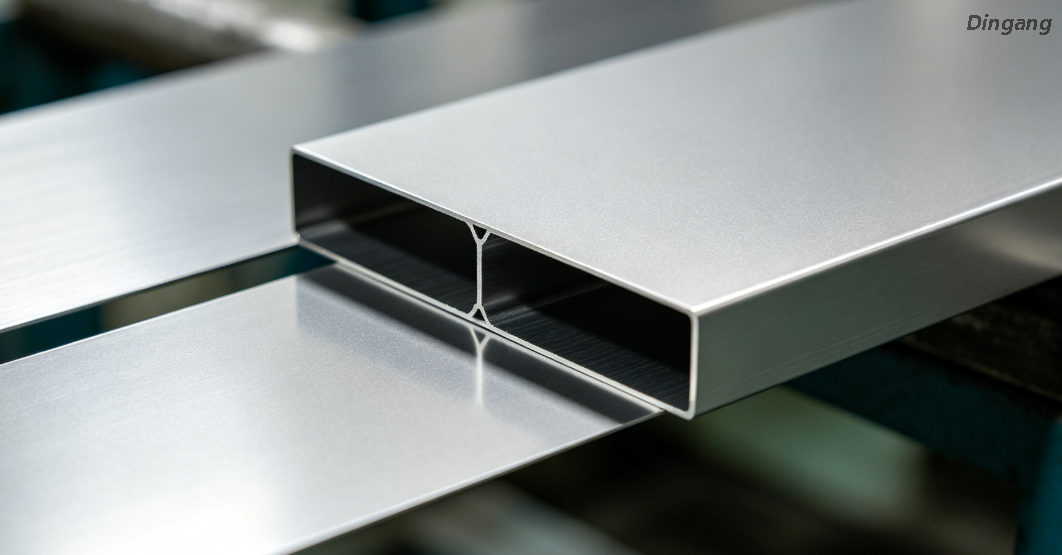

Weather Resistant PVDF Window Aluminum Strip

Core Advantages

• Premium PVDF fluorocarbon coating, super weather resistance, 20+ years outdoor service life without fading and chalking

• Excellent UV resistance, effectively resist strong sunlight irradiation, keep color stable for long-term outdoor use

• Outstanding corrosion and salt spray resistance, especially suitable for coastal areas and industrial polluted environment

• Dense fluorocarbon paint film, good self-cleaning performance, surface dust easy to wash away by rain

• Good bending and forming performance, no coating cracking or peeling after profiling, hemming and punching

• Precise dimensional tolerance, uniform thickness and width, perfectly match window profile assembly

• Rich color options, metallic color, solid color and wood grain available, match various architectural facade styles

• Lightweight high-strength aluminum substrate, easy transportation, cutting and on-site installation

Production Process

Aluminum coil raw material feeding → Multi-cycle degreasing and alkali cleaning → Chromium-free environmental passivation treatment → Constant temperature hot air drying → PVDF primer roller coating & high temperature curing → PVDF top coat coating & secondary baking → PVDF clear coat coating & third curing → Natural cooling → Surface quality inspection → Protective film lamination → Precision slitting → Fixed-length cutting → Stacking & dust-proof export packaging.

Each batch will undergo gloss test, color difference test and coating adhesion test before delivery to guarantee stable outdoor weather resistance.

Technical Parameters

Application

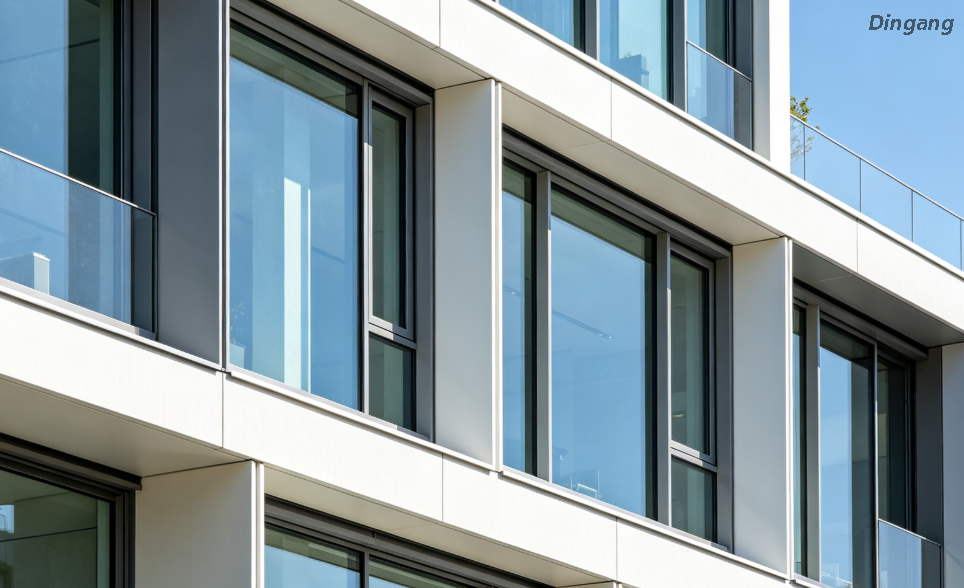

Building windows: Aluminum alloy window frame, window sash decorative strip, window edge trim

Curtain wall engineering: Curtain wall frame, hidden frame edge pressing, facade decorative strip

Coastal buildings: Seaside residential and commercial building window system aluminum profile

Commercial complex: Hotel, office building, shopping mall exterior window decoration

Industrial construction: Factory building window, sunroom, greenhouse aluminum trim strip

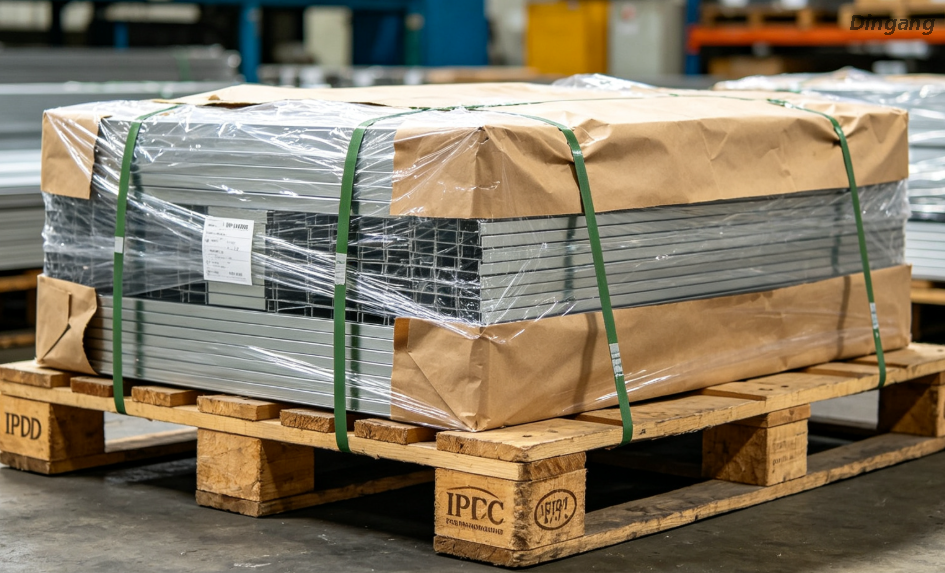

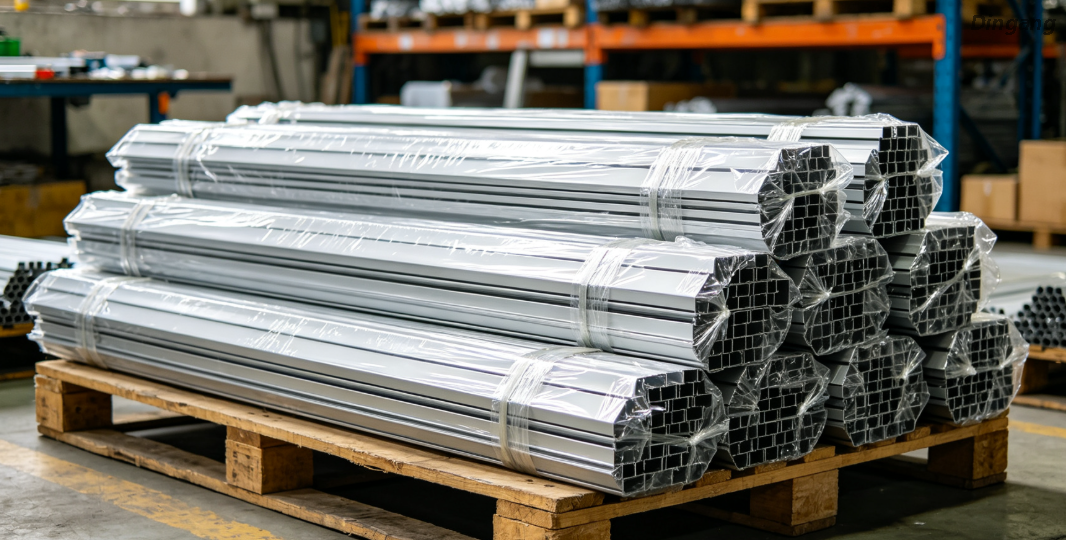

Export Packaging

Aluminum strips separated by protective film, bundled by same specification. Whole bundles wrapped with moisture-proof PE film and kraft paper. Fastened on IPPC fumigated wooden pallets with strapping tape. Clear shipping marks marked on outside including alloy grade, thickness, width, color code, net weight, gross weight and batch number. We can provide fumigation certificate, MTC and weather resistance test documents for overseas construction project tender and customs clearance.

FAQ

Q1: What is the difference between PVDF and PE coated aluminum strip?

A: PE coating is suitable for indoor use with 5-8 years service life; PVDF fluorocarbon coating has super weather resistance, UV resistance and corrosion resistance, 20+ years outdoor service life, specially designed for high-end building exterior projects.

Q2: Is PVDF aluminum strip suitable for coastal areas?

A: Yes. PVDF coating has excellent salt spray resistance and anti-corrosion performance, can resist marine humid and salt fog environment, is the first choice for coastal building window and curtain wall systems.

Q3: Can you customize special width and color?

A: Fully supported. We can slit any width from 10mm to 300mm according to customer requirements, and customize all RAL colors, metallic colors and wood grain finishes.

Q4: Will bending affect the weather resistance of PVDF coating?

A: No. The PVDF coating has excellent flexibility, conventional bending and profiling will not damage the paint film, and the weather resistance remains stable after forming.
