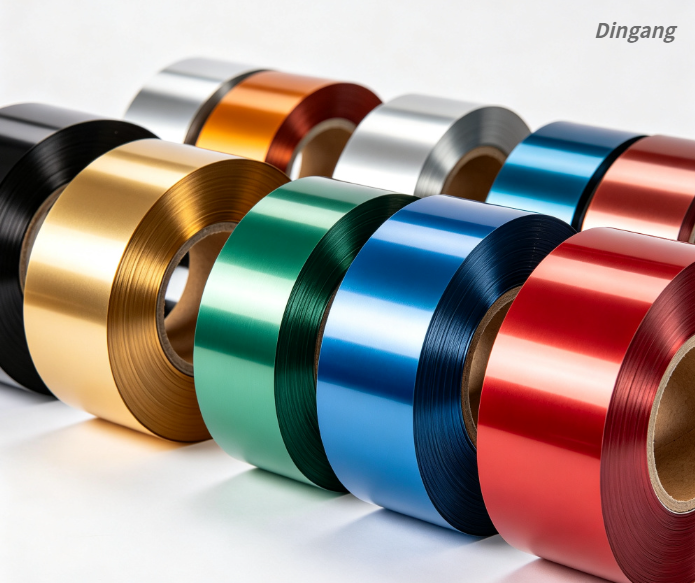

Prepainted Aluminium Stripe Color Coated Narrow Aluminum Strip Coil for Roller Shutter Door Decorative Edge Trim Lamp Housing Hardware Stamping

1. Core Advantages

1. Precision slitting processing：Imported alloy slitting knife, minimum slitting width 10mm, edge burr-free, width tolerance ±0.1mm, stable automatic feeding for customer stamping machines.

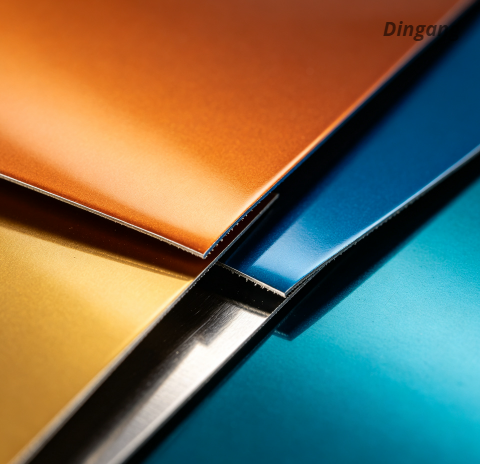

2. Stable coating & consistent color：Base coil completed double high-temperature baking before slitting, coating strong adhesion, no edge paint peeling. Matte & glossy surface optional, unified coating production line ensures zero obvious color difference between batches.

3. Two anti-corrosion coating options：Standard PE polyester coating for regular outdoor use; upgraded PVDF fluorocarbon stripe for coastal salt spray & chemical corrosive environment, anti-fade service life over 10 years.

4. Good forming performance：1060 O soft temper supports deep drawing & repeated bending; 3003 anti-rust alloy for long-term outdoor structural accessories, coating intact after all cold processing.

5. Mini coil customized design：Small inner diameter mini coil 50-500kg, match small automatic rolling shutter & stamping equipment, save storage space for small factories.

6. Eco-friendly paint material：Water-based non-toxic color coating, pass RoHS & REACH test, no heavy metal, safe for indoor furniture & lighting decoration.

2. Production Process

Full-width prepainted coil incoming inspection → uncoiling → surface defect online detection → precision slitting → constant tension rewinding into mini stripe coil → plastic end cap protection → multi-layer anti-rust film wrapping → pallet stacking & export packaging.

3. Standard Technical Parameters

• Base alloy: 1060 pure aluminum / 3003 manganese anti-rust aluminum

• Thickness range: 0.2mm - 2.0mm

• Custom slitting width: 10mm ~ 300mm

• Coating: PE Polyester (18-28μm) / PVDF Fluorocarbon (28-40μm)

• Surface luster: Matte 20°-30° / Medium Gloss / High Gloss

• Available colors: Full RAL solid color, metallic color, wood grain transfer color

• Anti-corrosion performance: PE pass 500h salt spray; PVDF pass 1000h salt spray

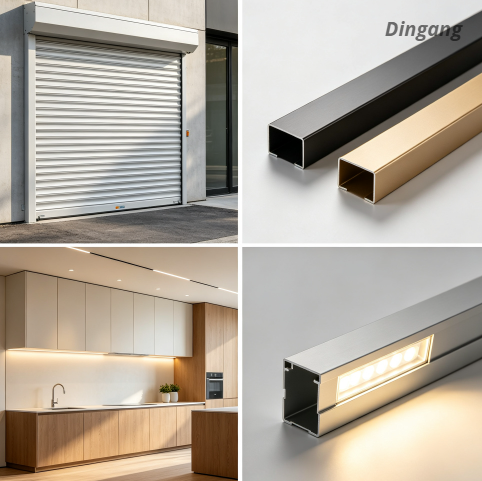

4. Main Application Fields

1. Door & window industry: Automatic rolling shutter door raw material, garage rolling gate strip, security door decorative trim

2. Building decoration: Cabinet furniture edge wrapping strip, ceiling closing trim, wall metal decorative strip

3. Lighting manufacturing: LED downlight housing, outdoor landscape lamp casing, advertising light box edge strip

4. Hardware stamping: Small decorative metal parts, fence trim, air conditioner internal machine edge strip

5. Construction auxiliary material: Roof edge closing strip, insulation board surface wrapping stripe

5. Export Packaging Standard

Each mini stripe coil wrapped with anti-rust kraft paper + transparent plastic film; paper spacer between stacked coils to avoid color scratch; hard plastic circular cover protect coil two ends. All coils fixed on fumigated wooden pallet with steel strapping, full waterproof film outer wrapping to isolate seawater moisture for long sea transportation. Clear shipping label marked width, thickness, color number, net weight & batch number on every pallet. Heat treatment fumigation certificate can be provided for European, Australian customs clearance.

6. Inspection & After-sales Service

Triple full inspection before delivery: coating thickness test, color difference comparison with confirmed sample, slitting edge burr screening, winding tightness check. Complete documents free supply: MTC mill test certificate, coating performance report, MSDS, commercial invoice & packing list. If customers receive goods with color difference, paint peeling, size error or surface scratch caused by factory production & packaging, send photos & video evidence within 7 working days, our technical team will reply within 24 hours, provide re-production, supplementary shipment or reasonable compensation solutions.

Q1: What’s the narrowest width you can slit?

A: Minimum 10mm ultra-narrow stripe, smooth burr-free cutting edge, tolerance ±0.1mm.

Q2: Is this stripe suitable for outdoor roller shutter?

A: Yes. PE coating for normal outdoor; PVDF upgrade for seaside salt fog environment, anti-rust and anti-fade.

Q3: What’s your MOQ for prepainted aluminium stripe?

A: Small trial order 1 ton acceptable, bulk order over 3 ton enjoys better unit price.

Q4: Can you make matte surface stripe?

A: Matte and glossy two types available, inform your surface requirement before mass production.

Q5: Can the stripe be stamped and deep drawn?

A: 1060 O temper stripe supports bending, stamping and deep drawing without paint peeling.
