Could Ultra-Thin AluminumFoil Solutions Solve Energy Density Issues in Drone Solid-State Batteries?

Solid-state batteries (SSBs) represent the next leap in commercial drone aviation, promising higher energy densities, faster charging, and operational safety over liquid lithium-ion packs. However, incorporating solid electrolytes increases dead weight at the cell level, limiting early solid-state batteries from achieving their full flight-endurance potential.

Utilizing ultra-thin, high-tensile aluminum foils (6μm - 12μm) as cathode current collectors and flexible laminate pouch enclosures reduces inactive cell mass, allowing drone solid-state battery packs to maximize gravimetric energy density (Wh/kg).

Inactive Mass Penalties in Next-Gen Solid-State Cells

While solid-state chemistries offer theoretical energy densities exceeding $400 - 500\text{ Wh/kg}$, solid inorganic ceramics or polymer electrolytes add mass compared to thin liquid separators.

Mass Distribution in High-Energy Solid-State Cell: ┌─────────────────────────────────────────────────────────┐ │ Active Cathode & Anode Materials (~60-65%)  ├─────────────────────────────────────────────────────────┤ │ Solid-State Electrolyte (~15-20%)  ├─────────────────────────────────────────────────────────┤ │ Current Collectors & Enclosure (Inactive) (~15-20%) │ <-- Target for Mass Reduction └─────────────────────────────────────────────────────────┘

Every micrometer stripped from inactive components—such as cathode foil substrates and heavy rigid battery enclosure walls—boosts overall energy density without altering active chemistry.

Substrate Strength Requirements for Solid-State Slurry Coating

Transitioning to thinner aluminum foil introduces mechanical processing challenges during high-speed roll-to-roll manufacturing:

Coating Strain: Solid-state ceramic slurries have higher viscosity and mass density than conventional liquid battery slurries, exerting greater mechanical stress on the substrate.

Web Break Prevention: Sub-10μm foils require high tensile strength (≥200 MPa) and uniform elongation (≥ 1.5%) to prevent web tearing under tension during drying and calendering.

Technical Specification Matrix: Ultra-Thin Foil & Enclosure Solutions

The table below outlines technical parameters for ultra-thin aluminum foils and composite pouch enclosures engineered for drone solid-state batteries:

Performance Advantages in Drone Flight Endurance & Battery Safety

Direct Gravimetric Energy Density Gains & Weight Optimization

Replacing traditional heavy internal foils and rigid battery casings yields significant overall battery performance benefits:

Weight Elimination: Replacing 15μm foil with 7μm foil cuts cathode substrate weight by over 50%, yielding a net energy density boost of 3 - 5% across the complete cell pack.

Extended Hover & Payload Capacity: Mass reductions in multi-cell packs extend drone hover times and operating radiuses for aerial mapping and delivery flights.

Elimination of Rigid Metal Casing Mass: Swapping heavy aluminum/steel cylindrical or prismatic battery cans for aluminum laminate pouch enclosures cuts enclosure mass by 60 - 70%.

View More >>

Environmental Sealing for Moisture-Sensitive Solid Electrolytes

Sulfide-based solid electrolytes offer ultra-high ionic conductivity but react violently with atmospheric moisture to release toxic hydrogen sulfide (H₂S) gas:

Zero Moisture Ingress: Aluminum foil laminate pouch enclosures provide a continuous, zero-permeability metallic barrier (< 0.005 g/m²·24h) against water vapor and oxygen ingress.

Hermetic Heat Seal Integrity: Modified polypropylene inner sealants provide high heat-seal bond strength (≥40 N/15mm), preventing seal rupture under internal cell swelling.

View More >>

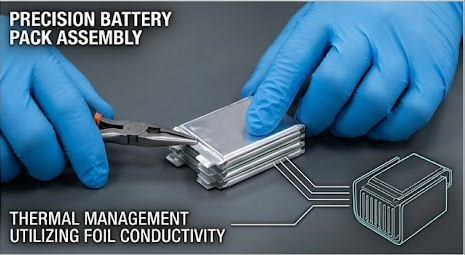

Thermal Conductivity & Internal Heat Dissipation

While solid-state batteries are safer than liquid cells, rapid charging and high-rate drone takeoff bursts generate internal heat:

High Thermal Conductivity Core (≥ 200 W/m·K): Aluminum current collector foils conduct heat away from internal cell cores to the external pouch surface.

Prevention of Hotspots: Rapid thermal dissipation prevents localized heat buildup, protecting solid electrolyte interfaces from thermal degradation during peak current draw.

View More >>

Ultra-Thin Foil Substrates (6μm - 12μm)

Reducing standard 15μm aluminum foil down to 6μm - 9μm presents mechanical challenges during high-speed roll-to-roll manufacturing:

High Tensile Strength Alloys (1235 / 8079): Delivers high tensile strength (≥ 200 MPa) to resist web breaks under high tension during ceramic slurry coating.

Low Surface Roughness & Pinhole Resistance: Micro-refined grain structures ensure zero pinholes, preventing electrical shorting and non-uniform current distribution.

Functional Carbon-Coated Aluminum Foil

Applying a thin conductive carbon layer (1 - 2μm) onto ultra-thin aluminum foil improves solid-state interface performance:

Lower Interface Resistance: Enhances electron transfer between solid cathode particles and the metallic collector.

Superior Interfacial Adhesion: Prevents active material delamination during volume changes in charge-discharge cycles.

Substrate Selection, Precision Rolling & Annealing

High-Purity Alloy Selection: 1235, 8079 alloys are selected for ultra-thin rolling capability and high electrical conductivity (≥ 61% IACS).

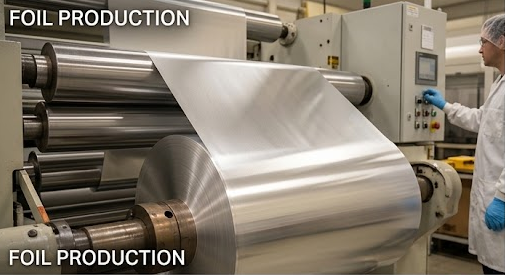

Cold Rolling with Automatic Gauge Control (AGC): High-purity aluminum ingots are cold-rolled through multi-stand foil mills down to sub-micron tolerances (6μm - 12μm).

Controlled Atmosphere Annealing: Foils undergo precise heat treatment to achieve the H18 full-hard temper (for maximum tensile strength during slurry coating) or soft tempers (for deep-drawing enclosure applications).

Carbon Functional Coating & Micro-Dryer Profiles

Micro-Gravure Carbon Coating: Thin conductive carbon slurries (1 - 2μm dry film thickness) are applied to both sides of the ultra-thin aluminum foil under strict web-tension control.

Flotation Drying: The web passes through multi-zone flotation ovens to remove solvents without causing heat distortion or micro-stretching of the thin aluminum substrate.

Battery Enclosure Composite Lamination & Deep Drawing

Multi-Layer Foil Lamination: For flexible pouch battery enclosures, 40μm - 50μm aluminum foil is laminated between outer polyamide/nylon (PA) and inner polypropylene (PP) layers using high-performance polyurethane adhesives.

Cold Form Punching / Deep Drawing: The composite laminate undergoes cold forming into deep pouch cavities designed to house solid-state cell stacks without pinhole formation or layer delamination along corner bends.

FAQ

Q1:Can ultra-thin aluminum foil (6μm - 8μm) handle high-tension battery coating lines?

A:Yes. By using high-tensile alloys (such as 8079-H18), tensile strength is maintained above 200 MPa, allowing high-speed web handling without tearing.

Q2:How does carbon-coated aluminum foil improve solid-state battery performance?

A:The carbon layer fills microscopic surface void spaces on the aluminum foil, lowering interface resistance and improving electrical contact with solid electrolyte-cathode mixtures.

Q3:Why are flexible aluminum pouch enclosures preferred over rigid metal cases for drone batteries?

A:Flexible aluminum laminate pouches weigh significantly less than steel or aluminum cans, reducing inactive mass while providing a hermetic, moisture-proof barrier against atmospheric degradation.

Q4:Does ultra-thin aluminum foil suffer from pinhole oxidation during storage?

A:Quality battery-grade foils are produced in cleanroom conditions and sealed in vacuum packaging with desiccants to eliminate surface oxidation and pinhole corrosion before coating.

Q5:How does foil thickness reduction impact total drone flight time?

A:Reducing current collector and enclosure mass by 30 - 50% increases pack energy density by 3 - 5%, directly extending drone flight times by several minutes per battery charge.

Conclusion

Integrating ultra-thin aluminum foil substrates and flexible laminate pouch enclosures allows drone solid-state battery engineers to minimize dead weight while maintaining structural integrity.

To optimize material selection for your battery design:

Select Substrates by Coating Speed: Specify 6µm – 8µm 1235/8079-H18 foil for high-tension roll-to-roll slurries requiring ≥ 200 MPa tensile strength.

Incorporate Carbon Coatings for Interface Stability: Mandate 1µm double-sided carbon coating to lower internal resistance in solid-state cell stacks.

Partner with Precision Foil Manufacturers: Work with established suppliers like Changzhou Dingang Metal Material Co., Ltd. to secure pinhole-free, battery-ready aluminum foil materials.
