1.016mm × 88.9mm × 82.296m Prepainted Aluminum Channel Letter Coil

Prepainted 1.016mm × 88.9mm × 82.296m aluminum channel letter coil, equivalent to .040" × 3.5" × 270 ft, for LED letters, illuminated signs, halo letters and dimensional signage.
Availability:
Quantity:

1.016mm × 88.9mm × 82.296m Aluminum Channel Letter Coil

Prepainted aluminum channel letter coil in 1.016mm thickness, 88.9mm width and 82.296m roll length is designed for fabricating the returns and sidewalls of three-dimensional channel letters, illuminated signs, LED letters, halo-lit letters and other fabricated signage.

These metric dimensions are the direct equivalents of the widely used .040" × 3.5" × 270 ft channel-letter coil specification. The 88.9mm width provides a consistent 3.5-inch return depth, while the continuous 82.296m roll supports efficient manual or automatic letter fabrication with fewer material changes.

Black and white prepainted finishes are available according to project requirements. Alloy, temper, coating system, surface finish, protective masking and coil configuration should be confirmed according to the customer's channel-letter bending machine and finished sign construction.

This product is supplied as prepainted aluminum coil or strip for signage fabrication. It should not be treated as a pressure-sensitive adhesive aluminum tape unless an adhesive backing is specifically included in the ordered construction.

Request Channel Letter Coil Pricing

Channel Letter Coil Specifications

Specification

Product Value

Fabrication Guidance

Product Type

Prepainted Aluminum Channel Letter Coil

For dimensional-sign returns and sidewalls

Thickness

1.016 mm

Exact metric equivalent of .040"

Width

88.9 mm

Exact metric equivalent of 3.5"

Roll Length

82.296 m

Exact metric equivalent of 270 ft

Nominal Imperial Size

.040" × 3.5" × 270 ft

Common commercial channel-letter coil format

Available Colors

Black / White

Confirm face and reverse-side color configuration when ordering

Surface

Smooth Prepainted Finish

Suitable for fabricated commercial signage

Aluminum Alloy

Order-Specific

AA1100, AA3003, AA5052 or another suitable grade can be discussed according to forming and strength requirements

Temper

Order-Specific

Select according to manual or automatic bending requirements

Coating System

Project-Specific Prepainted Finish

Specify indoor or outdoor exposure, color and required finish

Protective Masking

Optional / Project-Specific

Useful for reducing handling scratches during fabrication

Edge Condition

Precision Slit

Burr and edge quality should be controlled for bending-machine compatibility

Fabrication

Manual / Automatic Channel Letter Bending

Machine model and minimum bending radius should be confirmed

Typical Applications

LED Channel Letters, Illuminated Letters, Halo Letters, Reverse Channel Letters

Used as the return or sidewall of dimensional signage

Why .040" × 3.5" × 270 ft Is a Common Channel Letter Size

The .040-inch gauge provides a practical balance between stiffness and formability for many channel-letter constructions. At exactly 1.016mm, it should not be confused with nominal 1.0mm coil where an exact imperial gauge has been specified.

The 3.5-inch or 88.9mm width determines the nominal return depth when the full strip width is used as the channel-letter sidewall. This size is widely used for commercial dimensional lettering and compatible sign-fabrication systems.

A 270-foot or 82.296m continuous roll provides sufficient material for multiple letters while reducing roll changes and maintaining a consistent finish across a sign project.

Metric and Imperial Dimensions

Dimension

Imperial

Metric Equivalent

Thickness

.040"

1.016 mm

Width

3.5"

88.9 mm

Roll Length

270 ft

82.296 m

Providing both metric and imperial dimensions helps sign fabricators in Australia and other metric markets cross-check machine settings, project drawings and supplier specifications against common international channel-letter coil sizes.

Designed for Channel Letter Returns

Channel letter coil forms the vertical return or sidewall around the face or back of a three-dimensional sign letter. The material is cut, notched, bent and joined to create the required letter depth and shape.

Illuminated Channel Letters

Prepainted aluminum returns can be used around acrylic-faced LED letters where a consistent return depth and finished exterior appearance are required.

Halo-Lit Letters

Channel-letter coil can also be formed for halo-lit or reverse-illuminated letters where the return forms an important visible part of the finished sign.

Reverse Channel Letters

Reverse channel-letter construction can use prepainted aluminum returns with a separate metal face and rear illumination according to the sign design.

Non-Illuminated Dimensional Letters

The material can also be considered for compatible dimensional-letter fabrication where electrical illumination is not required.

Black and White Prepainted Finishes

Black and white are widely used colors for dimensional signage because they integrate easily with common sign faces, building facades and commercial branding.

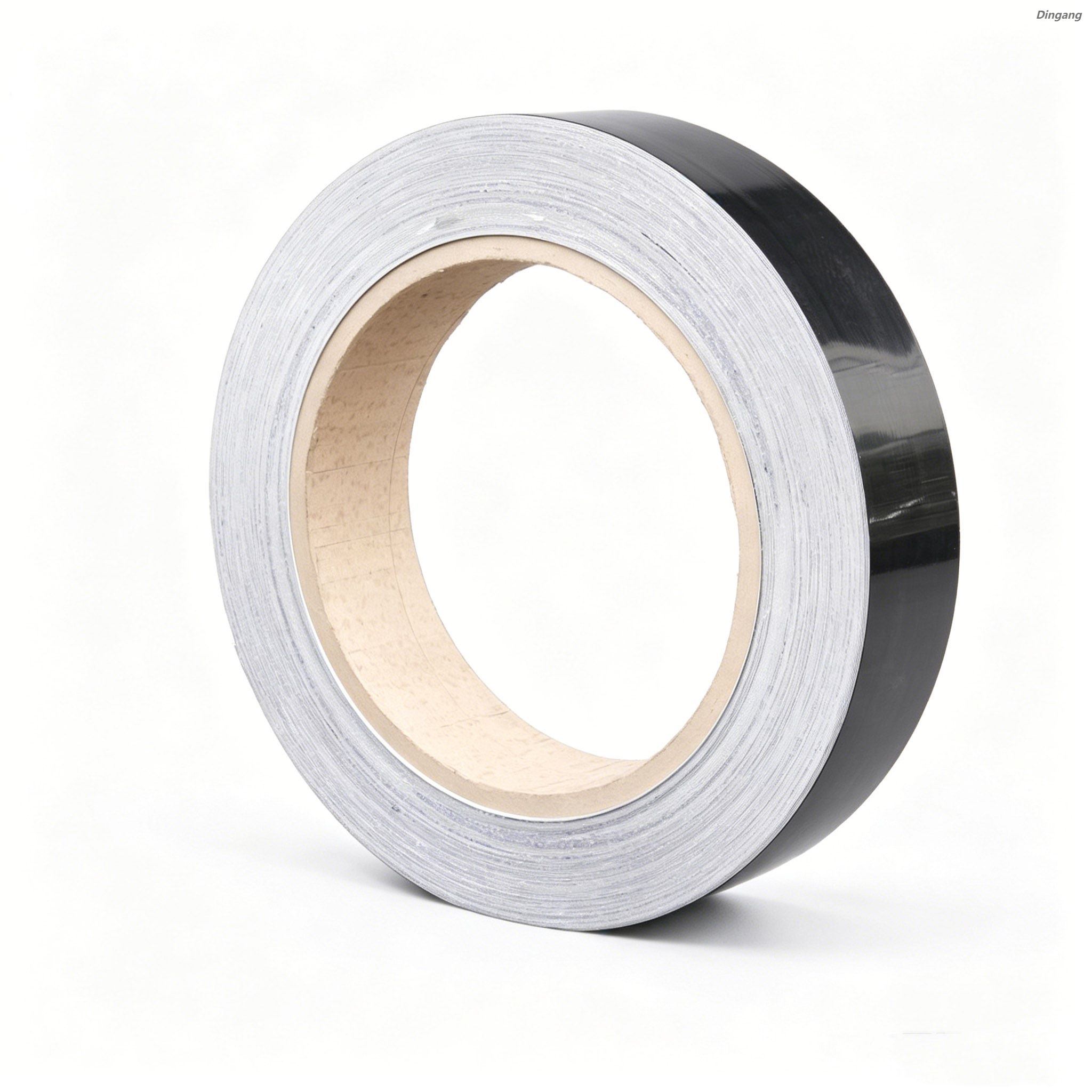

Black Channel Letter Coil

Black returns provide a strong visual outline and are commonly selected for modern storefront lettering, contrasting sign faces and architectural branding.

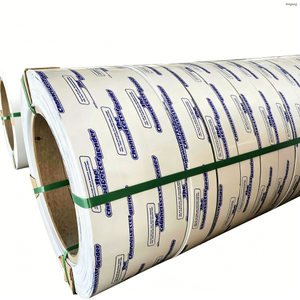

White Channel Letter Coil

White returns provide a clean neutral appearance and can be selected for light-colored facades, white sign faces and projects requiring a brighter finished edge.

Face and Reverse-Side Color

If the project requires different colors on the exterior and interior faces, specify the exact face/reverse configuration at quotation stage. A light-colored internal surface can also be useful in illuminated letters where internal reflectance is part of the sign design.

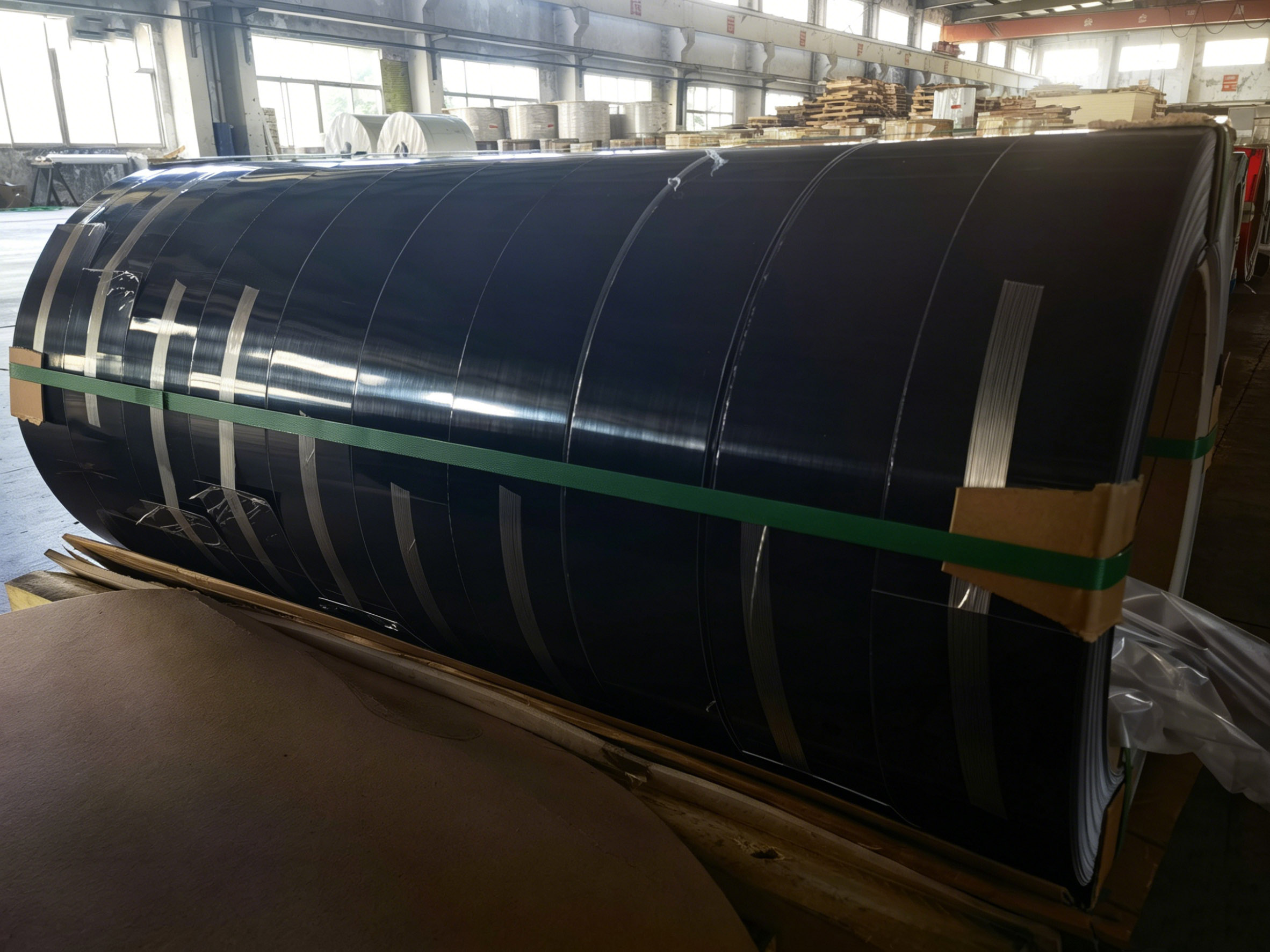

black prepainted aluminum channel letter coil 1.016mm x 88.9mm x 82.296m

Product Advantages

Advantage

Performance

Fabricator Value

Standardized Return Width

88.9mm / 3.5" pre-slit width

Supports consistent dimensional-letter return depth

Continuous Roll

82.296m / 270 ft

Reduces material changes during multi-letter fabrication

Prepainted Surface

Black or white finished surface

Reduces the need for post-fabrication painting where the supplied finish is suitable

Formability

Alloy and temper selected for bending

Supports manual or automatic fabrication when correctly specified

Precision Slitting

Controlled width and edge condition

Helps improve feeding and edge quality during fabrication

Metric / Imperial Cross Reference

1.016mm / .040", 88.9mm / 3.5", 82.296m / 270 ft

Simplifies international purchasing and drawing verification

Manual and Automatic Bending Compatibility

Channel-letter coil can be fabricated with manual forming tools or compatible automatic channel-letter bending machines.

Machine compatibility should be confirmed before bulk ordering because bending equipment can differ in material thickness range, return width, feed mechanism, notching method, flanging method and minimum bending radius.

Minimum Bend Radius

Tight-radius letters place more strain on the aluminum and painted surface. Alloy, temper, coating flexibility and bend radius should therefore be evaluated together.

Notching and Flanging

Automated systems may notch, flange or otherwise prepare the strip as part of letter fabrication. Coil width and material properties should match the intended machine process.

Feed Consistency

Width consistency, edge condition, coil flatness and winding quality affect automatic feeding and should be included in quality control for high-volume sign production.

Alloy and Temper Selection

Channel-letter coil should not be ordered only by thickness and color. Aluminum alloy and temper influence bendability, spring-back, stiffness and resistance to cracking during fabrication.

Alloy Direction

General Characteristic

Selection Consideration

AA1100

High formability and relatively low strength

Useful where easier forming is a priority

AA3003

Good balance of formability and strength

Common direction for fabricated aluminum strip applications

AA5052

Higher strength and good corrosion resistance

Requires suitable forming parameters and bend radius

The exact alloy and temper should be confirmed against the bending machine, letter geometry and required finished stiffness rather than selected from alloy name alone.

Coating and Outdoor Service

Exterior channel letters require the painted surface to withstand sunlight, rain, temperature cycling and atmospheric exposure appropriate to the installation environment.

Coating Type

The coating chemistry, film thickness and pretreatment should be specified according to the intended indoor or outdoor service conditions. No universal service life should be assigned from color alone.

Color and Gloss

For repeat signage programs, color and gloss should be controlled against an approved physical sample or agreed color reference.

Bend Performance

The paint system should tolerate the required bends without unacceptable cracking, peeling or loss of adhesion. Representative fabrication trials are recommended for tight-radius letters.

Channel Letter Coil for Australian Sign Fabricators

Providing the specification in millimetres and metres simplifies procurement, drawings and production communication for Australian sign manufacturers while preserving compatibility with the internationally common .040" × 3.5" × 270 ft format.

Buyers should still confirm bending-machine limits, return depth, color, coating, alloy, temper and roll configuration rather than assuming that all 3.5-inch channel-letter coils are interchangeable.

Typical Signage Applications

Application

Typical Use

LED Channel Letters

Fabrication of consistent aluminum returns around illuminated letter faces

Storefront Signage

Dimensional brand lettering for retail and commercial facades

Halo-Lit Letters

Return fabrication for rear-illuminated architectural lettering

Reverse Channel Letters

Formed sidewalls for metal-faced reverse-lit signage

Dimensional Sign Letters

Three-dimensional fabricated lettering for branding and display

Custom Sign Fabrication

Compatible fabricated returns where 88.9mm return width is specified

Quality Control

Thickness Verification

Confirm that the ordered .040-inch product corresponds to the specified 1.016mm nominal thickness and agreed tolerance.

Width and Slitting

Verify 88.9mm nominal width, edge straightness, slit quality and burr condition because these properties influence feeding and fabricated edge quality.

Roll Length

Confirm the required 82.296m / 270 ft nominal roll length for production planning and material control.

Color and Gloss

Black, white and any custom finish should be checked against the approved color and gloss standard where appearance consistency is important.

Coating Adhesion

Painted-surface adhesion should remain suitable after representative bending and forming operations.

Surface Appearance

Inspect the visible finish for scratches, coating defects, dents and contamination before fabrication.

Coil Winding

Roll winding should be stable and aligned so that telescoping, loose winding or damaged edges do not interfere with the decoiler or bending machine.

Machine Trial

A representative trial is recommended before bulk production when the material will be used on an automatic channel-letter bending machine.

Storage and Handling

Store channel-letter coil in a clean and dry indoor area and protect it from water, condensation, corrosive contaminants and mechanical damage.

Rolls should be handled carefully to avoid edge dents, telescoping and scratches that can affect appearance or automatic machine feeding.

If a protective masking film is supplied, storage temperature and duration should be controlled so that the film remains removable without excessive adhesive residue.

Information Required for a Quotation

For accurate pricing and production review, please provide:

  • Required thickness: 1.016mm / .040" or alternative gauge

  • Required width: 88.9mm / 3.5" or alternative return depth

  • Required roll length: 82.296m / 270 ft

  • Required aluminum alloy if specified

  • Required temper if specified

  • Black, white or custom color requirement

  • Face and reverse-side color configuration

  • Indoor or outdoor application

  • Required coating system

  • Gloss or matte finish

  • Protective masking requirement

  • Automatic or manual bending process

  • Channel-letter bending-machine brand and model

  • Minimum bend radius or smallest letter size

  • Notching or flanging process

  • Required coil inner diameter if machine-dependent

  • Order quantity

  • Destination port or delivery location

Send Your Channel Letter Coil Specification

Frequently Asked Questions

What does 1.016mm × 88.9mm × 82.296m mean?

It is the exact metric conversion of .040" thickness × 3.5" width × 270 ft roll length, a common commercial channel-letter aluminum coil format.

Is 1.016mm the same as 1.0mm?

Not exactly. 1.016mm is the direct conversion of .040 inch. Where the customer's drawing specifies .040", the nominal 1.016mm value should be used rather than automatically replacing it with 1.0mm.

What is 88.9mm in inches?

88.9mm equals 3.5 inches and represents a common channel-letter return width.

What is 82.296m in feet?

82.296 metres equals 270 feet.

Is this aluminum adhesive tape?

No pressure-sensitive adhesive backing should be assumed. This product is primarily a prepainted aluminum coil or strip used for channel-letter fabrication unless an adhesive construction is specifically ordered.

What is channel letter coil used for?

It is used to fabricate the return or sidewall of three-dimensional channel letters used in storefront, architectural and illuminated signage.

Can it be used for LED channel letters?

Yes. The material can be used for compatible LED channel-letter returns when the thickness, width, coating and fabrication method match the sign design.

Can it be used for halo-lit or reverse channel letters?

Yes, where 88.9mm return depth and the selected finish are suitable for the specified construction.

Can this coil run on an automatic bending machine?

It can be supplied for automatic channel-letter fabrication, but machine compatibility should be confirmed against thickness range, strip width, coil ID, notching method and minimum bending radius.

Which aluminum alloy should be selected?

AA1100, AA3003 and AA5052 are possible directions depending on formability and strength requirements. The correct grade should be confirmed for the actual fabrication process.

Why does temper matter?

Temper affects bendability, stiffness and spring-back. A material that is too hard for the selected machine or bend radius can be more difficult to form.

Are black and white finishes available?

Yes. Black and white are available finish directions for this product. Confirm the required face and reverse-side color configuration when requesting a quotation.

Can custom colors be produced?

Custom prepainted colors can be discussed for suitable production quantities and coating requirements.

Can one side be black and the other side white?

Different face and reverse finishes can be discussed according to production capability and order specification. State the exact color arrangement during quotation.

Why is a white interior sometimes used on illuminated letters?

A light-colored interior can improve internal light reflection in some illuminated channel-letter constructions and can reduce the need for post-fabrication painting.

Is protective masking available?

Protective masking can be discussed where surface protection during fabrication and handling is required.

Can the coil be used outdoors?

Yes, when the coating, pretreatment, alloy and complete sign construction are selected for the intended exterior environment.

Is it suitable for coastal locations?

Aluminum can perform well in many coastal environments, but coating system, cut edges, fasteners, drainage and salt accumulation should be considered for the complete sign installation.

Can it be used as structural reinforcement?

Channel-letter coil is primarily a fabricated signage return material. It should not be treated as a structural reinforcement product unless a qualified engineering design specifically requires it.

Can it be used as roof flashing or general construction wrapping?

This specification is primarily intended for channel-letter fabrication. Roofing flashing, architectural trim and general wrapping normally use product specifications selected specifically for those applications.

Can other widths be supplied?

Other channel-letter return widths can be discussed according to project requirements and production capability.

Can other thicknesses be supplied?

Alternative gauges can be discussed, but the bending machine, letter size, return depth and required stiffness should be considered before changing thickness.

What information is required for an accurate quotation?

Please provide thickness, width, roll length, alloy or temper if specified, color configuration, coating requirement, bending-machine model, coil ID requirement, order quantity and delivery destination.

Should a machine trial be completed before bulk production?

Yes. A representative bending trial is recommended when the coil will be used on automatic equipment or for tight-radius, small or complex letter shapes.

Contact Dingang for Samples and Pricing

Previous:
Next:

Product Category

Consult Us To Get Your Customized Aluminum Solution

We help you specify and source the coated aluminum you need, on time and within budget.

Products

Application

Quick links

Follow Us

Contact Us

    joey@cnchangsong.com
    +86-18602595888
   Building 2, Zhixing Business Plaza, No.25 North Street, Zhonglou District, Changzhou City, Jiangsu Province, China
    Chaoyang road, Konggang economic development area, Lianshui, Huai'an city, Jiangsu,China
© COPYRIGHT 2026 CHANGZHOU DINGANG METAL MATERIAL CO., LTD. ALL RIGHTS RESERVED.
