Channel Letter Aluminium Coil

Core Advantages

• Optimized for automatic channel letter bender, clean tight-radius bending, no coating crack, low springback, high finished yield

• 3003/3105 Al-Mn alloy, natural rust-proof property, stable for outdoor storefront environment

• Multiple surface options: solid pre-painted, brushed silver/gold, mirror, perforated for backlit effect

• PE coating for general use; PVDF fluorocarbon coating for coastal, high UV harsh outdoor projects, long color retention

• Rich RAL solid colors, metallic gold, silver, champagne to meet brand customization

• Precise slitting width tolerance, smooth edge, no burr, compatible with high-speed letter bending machine

• PE protective film covered on surface, prevent scratch during transportation and fabrication

• Light weight, easy installation, reduce load on building facade

Production Process

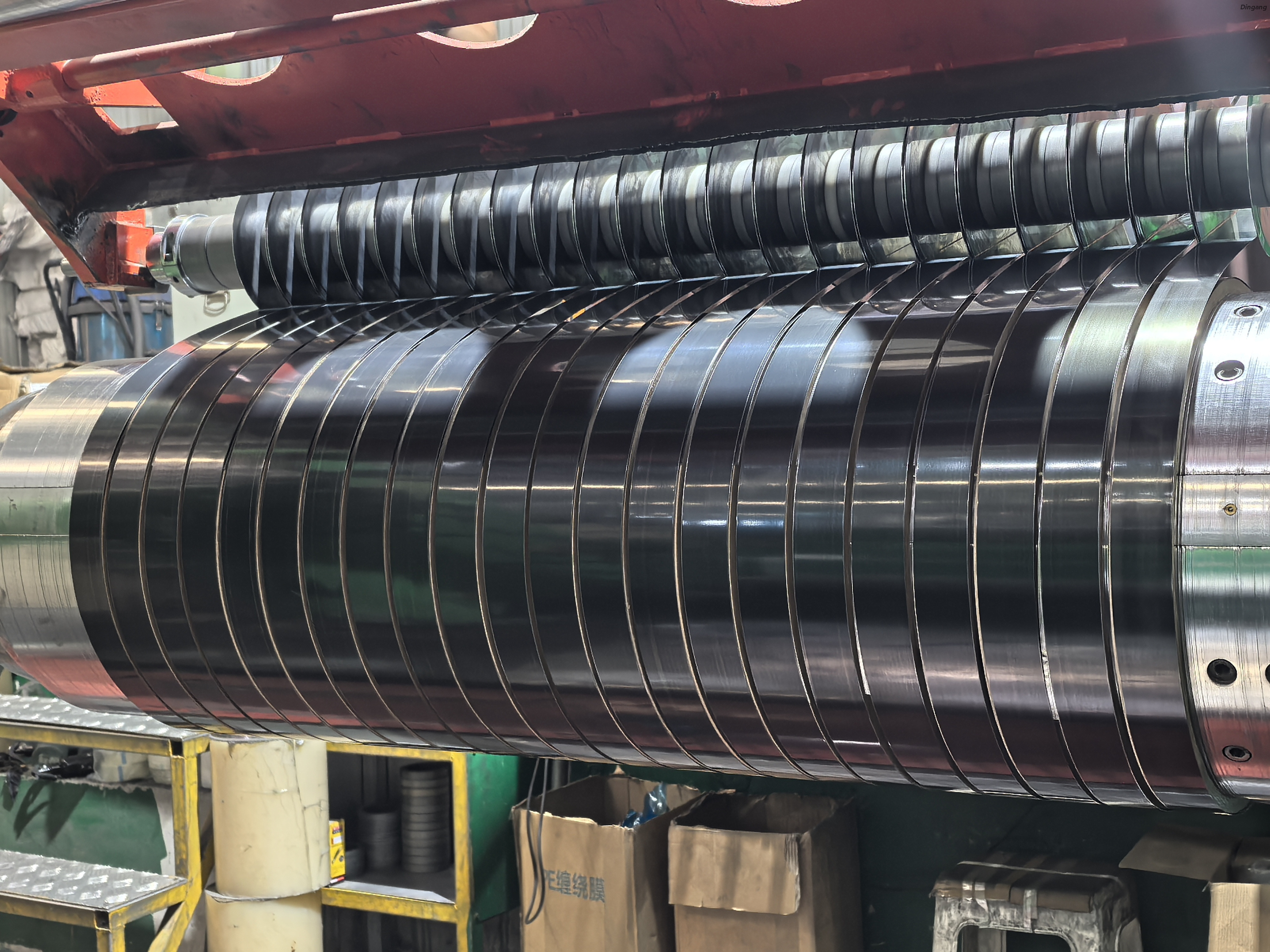

Aluminum jumbo coil uncoiling → Degreasing & cleaning → Chromate conversion pre-treatment → Primer + top coat baking curing (for prepainted) → Surface inspection → Precision slitting to custom narrow width → Edge deburring → PE protective film lamination → Final dimension & appearance inspection → Export packing Each batch conducts bending test, coating adhesion, salt spray and UV aging test before shipment.

Technical Parameters

Application

Commercial storefront: Shop front LED 3D luminous channel letters Shopping mall & hotel: Indoor & outdoor brand 3D logo signage Advertising factory: Raw material for automatic letter bending machine Special signage: Perforated backlit channel letters, decorative metal sign borders

Export Packaging

Coils wrapped by kraft paper + moisture-proof PE film. PE protective film on coating surface to avoid scratch. Coils placed on IPPC fumigated wooden pallets, fixed with packing straps and stretch film. Shipping marks mark alloy grade, temper, thickness, width, coating type, color code, net/gross weight and batch number. MTC, test reports and fumigation certificate available for customs clearance and incoming inspection.

FAQ

Q1: Best alloy for channel letter coil? A: 3003-H14 is the most popular, balanced bendability and strength; 3105-H24 for higher weather resistance; 1060 for small delicate letters; 5052 for coastal high-corrosion area.

Q2: Most popular thickness? A: 0.6mm is global standard for channel letter bending, 0.5mm for small thin letters, 0.8~1.0mm for large deep letters.

Q3: PE vs PVDF coating? A: PE for normal inland outdoor & indoor signs; PVDF fluorocarbon for coastal, strong UV environment, longer anti-fading lifespan.

Q4: Can we make perforated channel letter coil? A: Yes, perforated aluminum coil available for backlit / halo effect channel letters.

Q5: Compatible with letter bending machine? A: Yes, our material is specially calibrated for mainstream automatic channel letter benders, stable forming.
