Is Ultrasonic-Weldable Lacquered Aluminum Foil Better for Aerospace Sensor Cable Shielding?

Modern aerospace electrical wiring interconnection systems (EWIS)—deployed across commercial jetliners, military avionics, urban air mobility (UAM) aircraft, and spacecraft sensor networks—operate under intense electromagnetic interference (EMI) and harsh environmental stress. High-frequency sensor cables transmitting micro-volt signals must maintain absolute signal integrity while enduring continuous thermal cycling, structural vibration, and strict mass constraints.

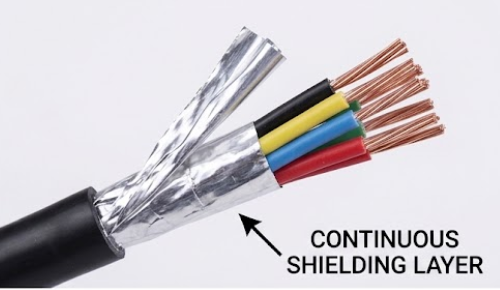

Traditional heavy copper braided shielding adds significant dead weight and is labor-intensive to ground termination points. Ultrasonic-weldable lacquered aluminum foil (8000 series and 1000 series soft aluminum foils coated with ultra-thin, conductive or heat-treatable lacquer systems) offers a superior alternative. By combining $100\%$ continuous EMI surface coverage with direct, fluxless ultrasonic wire-to-foil bonding, this material slashes EWIS harness mass, eliminates mechanical ground clamps, and ensures high signal reliability in aerospace sensor networks.

Structural Mass & High-Frequency Noise Threats

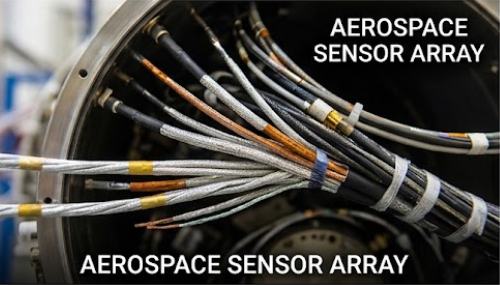

Aerospace sensor harnesses (e.g., thermocouple lines, vibration sensors, FADEC engine controls, and satellite telemetry links) face unique operating environments:

High-Frequency EMI Noise: Radar pulses, lightning strikes (HIRF), and onboard high-power electronics induce transient noise into unshielded sensor lines, causing sensor drift or false telemetry readings.

Braid Weight Penalty: Conventional copper braid shields add substantial weight across miles of onboard EWIS cabling. Furthermore, braided meshes feature microscopic diamond gaps that allow high-frequency electromagnetic radiation (>1 GHz) to penetrate.

Comparison: Heavy Copper Braid Shielding vs. Ultrasonic-Weldable Lacquered Foil

Cable Shielding Material Comparison

The matrix below compares traditional cable shielding methods against ultrasonic-weldable lacquered aluminum foil for aerospace sensor applications:

Key Professional Advantages in Aerospace Sensor Cable Shielding

Direct Weight Reduction & Fuel Efficiency

Up to 75% Shielding Weight Savings: Replacing heavy copper braid shields with 12μm - 25μm ultrasonic-weldable lacquered foil backed by a thin PET carrier cuts shield weight by up to 75%. On modern commercial or defense aircraft with over 100 km of EWIS wiring, this material swap reduces dry structural mass by hundreds of kilograms.

View More >>

Fluxless Solid-State Termination & Ultra-Low Contact Resistance

Elimination of Toxic Soldering & Crimping Heat: Ultrasonic bonding operates as a cold solid-state welding process. It eliminates chemical fluxes, lead-based solders, and high-temperature thermal crimping that can damage delicate fluoropolymer (PTFE/ETFE) wire insulation.

Low Contact Resistance (<2 mΩ): The direct metal-to-metal atomic weld between the drain wire and the aluminum foil core creates a robust low-resistance electrical termination (<2 mΩ), guaranteeing clean, low-impedance ground paths for sensitive sensor instrumentation.

View More >>

Superior High-Frequency Attenuation & Environmental Resistance

100% Optical Barrier against HIRF: Unlike braided shields that suffer from aperture leakage at higher microwave frequencies, continuous lacquered foil delivers seamless 360° coverage. This achieves >85 dB EMI attenuation across 100 MHz - 10GHz, protecting critical flight telemetry against High-Intensity Radiated Fields (HIRF).

Thermal Cycling & Vibration Fatigue Immunity: Fully soft O-temper aluminum combined with tough thermoset lacquers withstands continuous aerospace vibration profiles (MIL-STD-810G) and thermal shock (-65°C to +150°C) without work-hardening, micro-cracking, or shield continuity loss.

View More >>

Functional Lacquer Chemistry & Solid-State Weld Physics

Standard lacquered foils utilize insulating polyester or epoxy coatings that block electrical grounding. Ultrasonic-weldable lacquered foil incorporates a specialized conductive or low-temperature thermoset lacquer:

Thermally Displacement-Optimized Coating: Under high-frequency ultrasonic mechanical vibration (20 kHz - 40 kHz) and clamping force, the ultra-thin lacquer layer (1.5μm - 3μm) instantly displaces at the contact zone.

Solid-State Atomic Diffusion: Microscopic scrubbing strips the natural aluminum oxide (Al₂O₃), allowing direct metal-to-metal atomic bonding between the copper drain wire and the aluminum foil core without melting the metal or creating toxic solder fumes.

High-Frequency EMI Transfer Impedance

100% Optical Coverage (360° Barrier): Wrapped overlapping foil provides complete shielding without optical voids, achieving low transfer impedance (Zₜ < 10 mΩ/m) across high-frequency bands (100 MHz - 10 GHz).

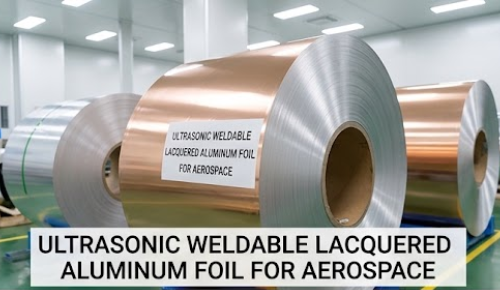

Substrate Micro-Refining & Annealing Control

High-Purity Alloy Selection (8011 / 1235-O Temper): Ultra-pure aluminum foil (9μm - 25μm) is fully soft-annealed (O temper) to achieve high elongation (>6% - 10%), ensuring the foil wraps around tight cable radii without micro-tearing.

Precision Surface Degreasing & Corona Pre-Treatment: Continuous web processing uses high-voltage corona discharge to raise surface energy (>48 dynes/cm), ensuring maximum mechanical keying of the functional lacquer.

High-Speed Precision Micro-Coating & Slitting

Class 1,000 Cleanroom Reverse Gravure Coating: Applies the specialized conductive/weldable lacquer at uniform dry film thickness (1.5μm ± 0.2μm), eliminating pinholes and maintaining tight surface resistivity limits.

Dust-Free Razor Slitting & Spooling: Precision shearing equipment slits the foil into narrow tape widths (4 mm - 50 mm) with minimal edge burrs (≤ 1.5μm), preventing edge-tear propagation during high-speed automated cable wrapping.

Ultrasonic Weld Audit & Outgassing Verification

Ultrasonic Peel Strength Testing: Every production master roll undergoes standardized ultrasonic wire-weld testing to verify peel force thresholds (>8 N peel resistance without substrate tearing).

Space Vacuum Outgassing Compliance (ASTM E595): The cured lacquer matrix is tested under thermal vacuum (10⁻⁵ Torr at 125°C for 24 hours) to verify Total Mass Loss (TML < 1.0%) and Collected Volatile Condensable Material (CVCM < 0.01%).

FAQ

Q1:Why is standard aluminum/PET foil tape difficult to ground in aerospace cables?

A:Standard aluminum/PET foil tapes use non-conductive adhesives or insulating polymer backings. Drain wires rely on physical pressure contact alone, which can oxidize, loosen under aircraft vibration, and cause high grounding resistance over time.

Q2:How does ultrasonic welding join a copper drain wire to lacquered aluminum foil?

A:The ultrasonic welding horn applies high-frequency mechanical vibrations (20 - 40 kHz) under pressure. This instantly displaces the thin functional lacquer layer and breaks down the oxide film, creating a solid-state atomic bond between the copper wire and aluminum foil without melting the metals.

Q3:Does the functional lacquer burn or emit toxic fumes during ultrasonic welding?

A:No. Ultrasonic welding is a cold, solid-state process that generates minimal localized frictional heat. The lacquer is mechanically displaced away from the weld zone rather than thermally burned, avoiding toxic fumes, charring, or thermal damage to adjacent wire insulation.

Q4:Can lacquered aluminum foil completely replace copper braid shielding?

A:In high-frequency low-power sensor cables, yes. However, for high-power lines requiring high mechanical crush resistance or severe low-frequency (<1 MHz) power grounding, engineers often use a hybrid shield: a lacquered foil inner layer for 100% high-frequency EMI coverage combined with a light outer braid for mechanical strength.

Q5:What temper of aluminum foil is required for flexible aerospace cables?

A:Fully soft annealed foil (O temper) is required. The $O$ temper provides high elongation (>6% - 10%), allowing the cable to bend repeatedly around tight aircraft bulkhead radii without tearing or cracking the shielding foil.

Conclusion

Ultrasonic-weldable lacquered aluminum foil is superior to traditional copper braids and standard glued foil tapes for aerospace sensor cable shielding, providing high mass savings, seamless EMI protection, and fast, reliable ground termination.

To optimize material selection for aerospace cable harness design:

Specify Alloy & Temper (8011-O or 1235-O): Require fully annealed soft aluminum foil (12μm- 25μm) to ensure high flexibility and tear resistance during automated high-speed spiral wrapping.

Mandate Outgassing Compliance (ASTM E595): For space-bound or high-altitude EWIS harnesses, enforce strict ASTM E595 certification (TML < 1.0%, CVCM < 0.01%) to prevent volatile chemical outgassing inside avionics bays.

Validate Ultrasonic Weld Parameters: Verify that the functional lacquer formulation supports fast ultrasonic welding cycle times (<0.5 seconds) with low electrical contact resistance (<2 m\Ω) and high joint pull strength (>8 N).
