Food-Grade Vs. Architectural Color-Coated Aluminum: It Is Not Only About The Coating

Introduction

Many buyers assume the only gap between food‑grade color‑coated aluminum and ordinary architectural color‑coated aluminum lies in surface paint systems. In reality, substrate alloy selection, chemical composition limits, surface pretreatment, production‑process control and compliance standards also create critical distinctions. Even with identical coating resins, using non‑qualified base aluminum will disqualify material for food‑contact applications. This article breaks down substrate differences, coating‑system contrasts, pretreatment rules and real‑world application guidance.

Substrate Differences: Not Interchangeable Even for the Same Alloy Series

A common misunderstanding: the same alloy grade can serve both building and food‑contact scenarios. While overlapping alloy numbers exist, food‑grade substrates enforce stricter impurity caps, surface cleanliness and production‑environment requirements.

Architectural‑Grade Substrate Requirements

Architectural color‑coated aluminum prioritizes mechanical performance, outdoor corrosion resistance and formability for facades, roofing, gutters and curtain walls.

Common alloys: 3003‑H24, 3004, 5005, 5052. 3003 Al‑Mn is the mainstream for exterior building projects, targeting tensile strength, bending performance and atmospheric corrosion resistance.

Chemical focus: Control Mn, Mg, Fe and Si to meet structural strength and outdoor anti‑rust needs. Strict limits on heavy‑metal migration are not required.

Surface standard: Focus on flatness, no obvious rolling defects; residual oil and surface‑particle limits follow general industrial‑aluminum norms, without food‑hygiene constraints.

Temper: H14, H16, H24 hard tempers dominate for structural rigidity.

Food‑Grade Substrate Requirements

Food‑contact color‑coated aluminum targets non‑migration of heavy metals, hygienic cleanliness and chemical inertness when touching aqueous, acidic or fatty food media.

Common alloys: High‑purity 1000‑series (1050, 1100), 3003, 8011. Copper, lead, cadmium and arsenic must stay under tight regulatory thresholds. High‑Cu variants are excluded, to avoid risk of metal ion leaching.

Chemical focus: Rigorous impurity element control. Even 3003 alloy for food use must follow food‑contact material specifications, different from architectural‑grade 3003 with wider impurity tolerance.

Surface standard: Ultra‑low residual oil, no heavy‑metal‑containing surface contaminants. Rolling oil and auxiliary agents must match food‑contact production norms. Chromate‑containing passivation is often prohibited for food‑grade variants.

Temper: O‑soft or low‑hard tempers are frequent for deep drawing food‑container parts.

Can One Alloy Grade Cover Both Fields?

Technically yes in name only. For example AA3003 exists for both architecture and food use. But architectural‑grade 3003 substrate cannot directly switch to food‑contact use, because its impurity‑element tolerance and surface‑cleanliness standards do not satisfy food‑safety regulations. Substrate batch‑traceability also becomes mandatory for food‑grade material, which is unnecessary for architectural orders.

Coating‑System Core Differences

Coating is the most visible differentiator, yet coating requirements are built upon qualified substrate and pretreatment.

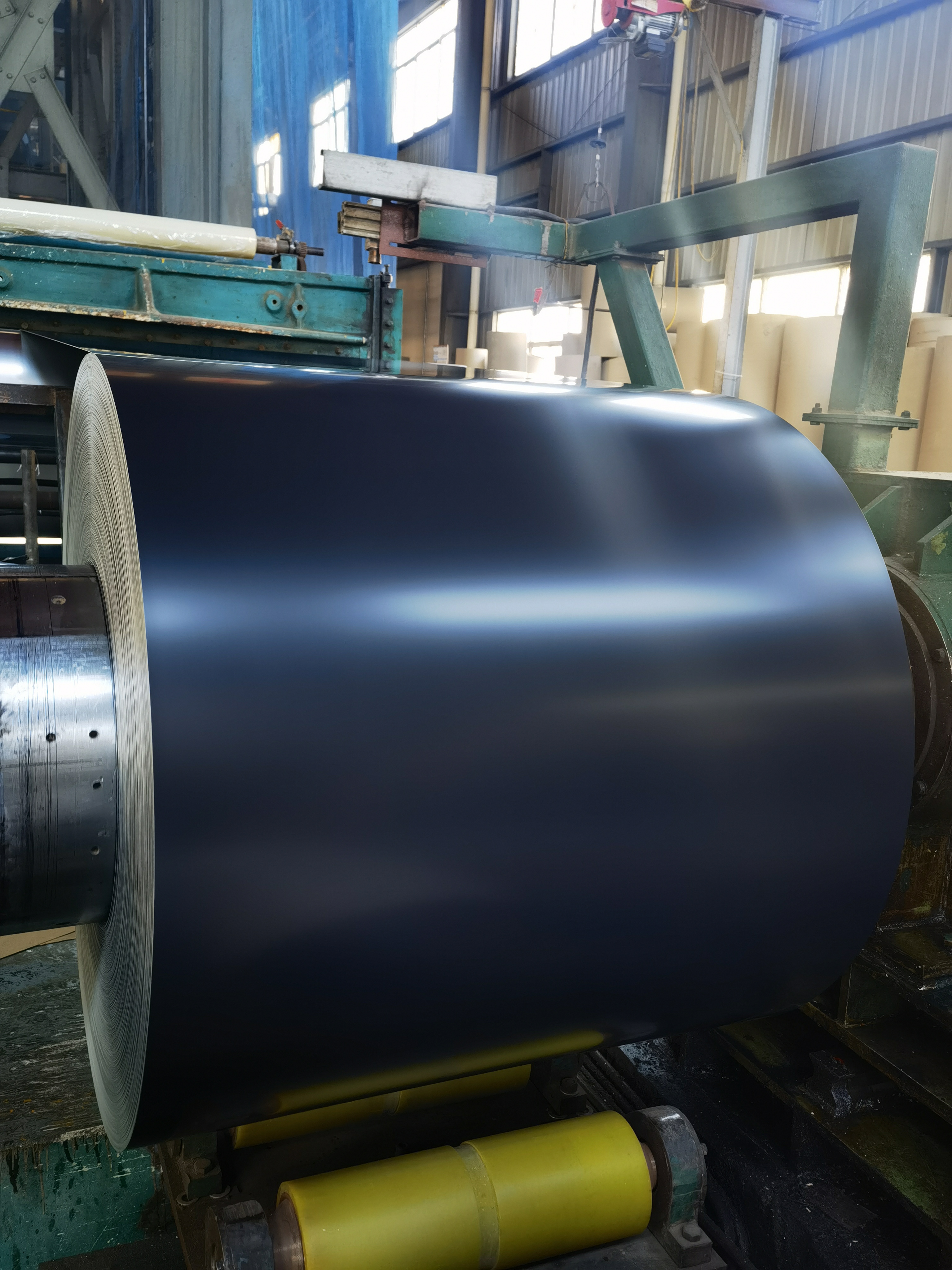

Architectural‑Grade Coating

Main resin options: PE polyester, SMP silicone‑modified polyester, HDP high‑durability polyester, PVDF fluorocarbon.

Core performance targets: UV resistance, anti‑chalking, anti‑fading, salt‑spray resistance for long‑term outdoor exposure.

Restrictions: No limitation on food‑contact migration; many industrial additives are permitted for weather‑resistance improvement.

Typical coating thickness: PE 18‑22 μm; PVDF 25‑32 μm topcoat. Back‑side anti‑rust primer is applied for building‑panel protection.

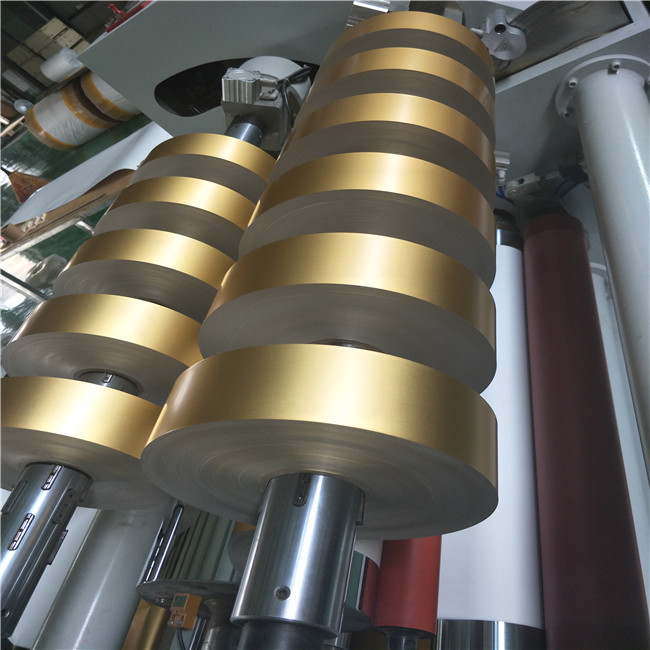

Food‑Grade Coating

Main resin options: Food‑safe PE, food‑grade epoxy, approved food‑contact polyester. Architectural PVDF / SMP cannot be directly used for food contact, even with identical resin families.

Core performance targets: Migration compliance under FDA 21 CFR 175.300, EU 10/2011, GB 4806.9; no odor, no substance transfer to food‑simulating liquids (acetic acid, ethanol, water).

Restrictions: Only positive‑list raw‑material components are allowed; toxic additives are banned. Coating integrity is critical: any scratch exposing substrate creates metal‑migration risk.

Coating thickness: Usually thinner functional barrier layers, optimized for food‑safety testing rather than multi‑year outdoor anti‑UV performance.

Pretreatment & Production‑Process Gap

Many buyers overlook pretreatment, which sits between substrate and topcoat and strongly impacts end‑use safety.

Architectural pretreatment: Mainly chromate or trivalent‑chromium conversion film, targeting coating adhesion and atmospheric anti‑corrosion. Hexavalent‑chromium‑based conversion is widely accepted in construction field.

Food‑grade pretreatment: Most markets ban hexavalent‑chromium passivation. Chromium‑free conversion or approved trivalent‑chromium systems are applied. Production lines need dedicated cleaning, and cross‑contamination from industrial‑grade production must be avoided.

Important note: Even if you paint food‑grade resin onto architectural‑grade substrate with ordinary chromate pretreatment, the finished product still fails food‑contact certification.

Quick Comparison Table: Food‑Grade vs Architectural Color‑Coated Aluminum

Common Misconceptions in Procurement

• ❌ “Same alloy number = same substrate quality.”

Alloy grade name is not sufficient proof for food‑contact usage. You must verify chemical‑composition certificates and food‑safety test reports.

• ❌ “Paint food‑grade coating onto architectural aluminum to get food‑grade material.”

Substrate impurity, rolling‑oil residue and pretreatment film already violate food‑contact requirements before top‑coating.

• ❌ “Food‑grade coating automatically works for outdoor building use.”

Food‑safe resins are not optimized for long‑term UV exposure; they may chalk and fade quickly under sunlight.

Conclusion

Coating is the most obvious difference, yet substrate chemical composition, surface cleanliness, pretreatment and whole‑process compliance are equally critical gaps between food‑grade and architectural‑grade color‑coated aluminum. The same alloy designation does not guarantee interchangeability. For food‑contact projects, buyers need to check substrate‑composition reports, pretreatment specifications and full food‑safety certification, rather than only focusing on surface paint formulations. For architectural projects, selecting food‑grade material brings unnecessary cost increases without additional outdoor‑weathering benefits.
