Why Food-Grade Lubricated Aluminum Foil is Essential for Deep-Draw Container Making

For C-suite executives, plant managers, and tooling engineers in the food packaging and converting industries, maximizing press speed while maintaining zero-defect container production is a primary operational objective. Stamping deep-drawn aluminum containers—such as smooth-wall catering dishes, bakery pans, and airline meal trays—requires severe plastic deformation that stretches aluminum foil close to its mechanical limits.

Stamping raw aluminum foil without proper surface lubrication leads to high friction, metal tears, surface galling, and rapid die wear. Food-grade lubricated aluminum foil provides a vital boundary layer that lowers friction during high-speed pressing, ensuring consistent draw ratios, extended tool life, and full compliance with global food safety standards.

The Mechanical Challenges of Deep-Draw Foil Container Stamping

High-speed container presses operate at up to 150 - 250 strokes per minute. During each stroke, flat aluminum foil is forced into deep die cavities, subjecting the metal to intense multi-axial stress.

Extreme Plastic Deformation & Wall-Thinning Mechanics

During deep drawing, aluminum foil (0.03mm - 0.12mm gauge) undergoes complex mechanical deformation. As the punch forces the foil into the die cavity, the metal in the flange area experiences radial tensile stress and circumferential compressive stress. Without lubrication, high friction along the die radius restricts metal flow, causing localized necking and sidewall tearing.

The High Cost of Unlubricated Stamping: Metal Tears, Wrinkling, and Die Wear

Pressing unlubricated or under-lubricated foil leads to several manufacturing failures:

Metal Tearing & Splits: High friction prevents smooth metal draw, causing the foil to fracture along the container corners or bottom radius.

Wrinkling & Flange Deformation: Irregular friction causes uneven material gathering in the flange zone, resulting in loose, wrinkled container rims that cannot be sealed properly.

Die Galling & Tool Damage: Direct aluminum-to-steel contact causes micro-welding (galling), transferring aluminum onto expensive carbide or tool steel dies. This dulls cutting edges and requires frequent press shutdowns for tool cleaning.

Dry vs. Lubricated Foil Deep-Drawing Performance Matrix

Core Industrial Applications for Deep-Draw Lubricated Foil

Food-grade lubricated aluminum foil stock is specified across high-volume container manufacturing sectors:

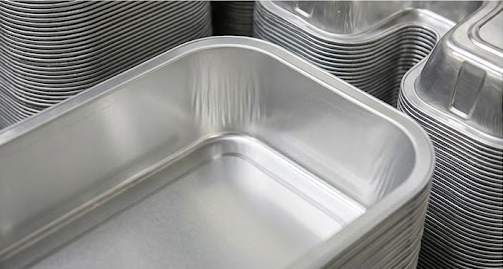

Smooth-Wall Catering Trays & Retortable Airline Meal Containers

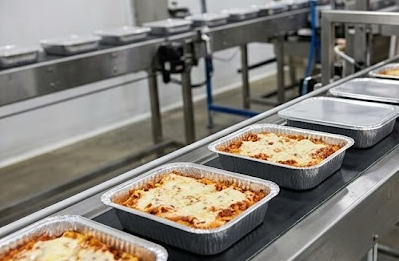

Smooth-wall catering trays and airline meal containers require deep cavity draws with flat, un-wrinkled flanges for hermetic heat-sealing. High-lubricity pre-coated foil enables smooth plastic flow into complex multi-compartment dies without tearing or flange distortion.

View More >>

Wrinkle-Wall Food Service Pans, Bakery Trays, and Takeout Containers

Wrinkle-wall aluminum containers rely on controlled folding along sidewall radii. Uniform food-grade lubrication reduces punch friction, producing tight, even sidewall pleats and flat container bottoms on high-speed press lines.

View More >>

Deep-Drawn Portion Cups, Aerosol Cans, and Technical Packaging Components

Single-serve butter dishes, jam portion cups, and small technical drawn cups require extreme draw ratios. Lubricated aluminum foil allows raw material to deform smoothly in multi-stage progressive dies without thinning or splitting.

View More >>

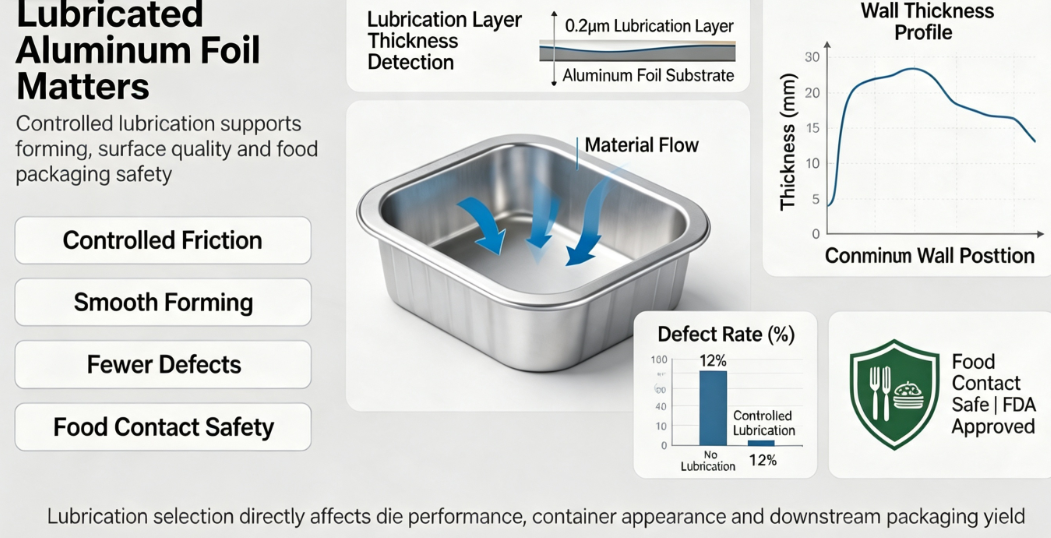

Boundary Lubrication Dynamics & Hydrodynamic Film Formation

Under extreme drawing pressure (> 100 MPa), liquid lubricants transition into a protective boundary lubrication film. This microscopic layer (1 - 3 μm thick) separates the metal surface from the die radius, replacing high metal-to-metal dry friction (μ ≈ 0.6 - 0.8) with low fluid shear resistance (μ ≈ 0.05 - 0.10).

Thermal Evaporation vs. Permanent Food-Grade Lubricants (FDA 21 CFR 178.3570 / 178.3910)

Depending on downstream processing requirements, specialized lubricants are applied to container foil stock:

Vanishing / Evaporative Oils: Formulated with synthetic aliphatic hydrocarbons that provide boundary lubrication during stamping, then evaporate cleanly during oven baking or drying, leaving no greasy residue.

Food-Grade Organic Oils & Waxes: Formulated from hydrogenated vegetable oils, synthetic esters, or food-grade paraffin waxes. Compliant with FDA 21 CFR 178.3570 (incidental food contact) and FDA 21 CFR 178.3910 (surface lubricants for metallic article manufacturing), these lubricants remain on the container surface without altering the taste, odor, or safety of packaged foods.

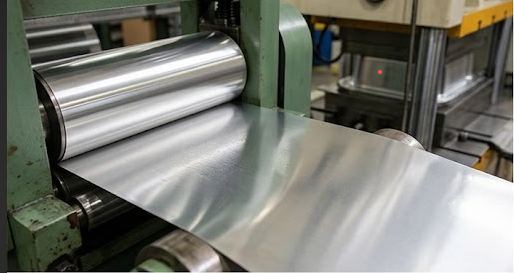

Electrostatic & Precision Roller Application Controls (50 - 800mg/m²)

Applying lubricant unevenly across a coil creates inconsistent friction during pressing:Low Coating Weights (50 - 200mg/m²): Ideal for shallow-drawn wrinkle-wall takeout containers, providing sufficient slip without excessive surface oiliness.

High Coating Weights (300 - 800 mg/m²): Essential for deep-drawn smooth-wall containers, creating a heavy protective film that prevents tears across deep draw depths (> 50mm).

Eliminating Metal Galling, Die Friction, and Press Sticking

Electrostatic oil applicators atomize food-grade lubricant droplets, depositing a uniform coating across both sides of the aluminum foil web. This complete surface coverage prevents unlubricated dry spots, eliminating metal pickup, galling, and foil sticking inside the press cavity.

Alloy Ductility Interaction: Grain Structure Optimization (Alloy 3003 / 8011 )

Proper lubrication works in tandem with the underlying aluminum alloy chemistry:

Alloy 3003 (Al-Mn): Offers high tensile strength (140 - 180MPa) and excellent elongation, making it the industry choice for smooth-wall, heavy-gauge deep-drawn containers.

Alloy 8011 (Al-Fe-Si): Features a fine, fully recrystallized grain structure that provides superior deep-drawing ductility without "orange peel" surface roughening.

FAQ

Q1:Why can't container makers apply lubricant manually at the press instead of buying pre-lubricated foil?

A:Manual or spray-on press lubrication often results in non-uniform oil distribution, leading to dry spots (which cause tears) or excessive oil pooling (which stains containers and contaminates press areas). Factory-applied pre-lubricated foil delivers controlled, electrostatic oil distribution across 100% of the coil surface.

Q2:What food safety certifications govern food-grade aluminum foil lubricants?

A: Surface lubricants used on packaging foil must comply with FDA 21 CFR 178.3570 (lubricants with incidental food contact), FDA 21 CFR 178.3910, and European Union EU No 10/2011 regulations, guaranteeing that residues are non-toxic, odorless, and safe for direct food contact.

Q3:Does food-grade lubricant affect the heat-sealability or printability of aluminum containers?

A:When applied at correct coating weights (50 - 300 mg/m²), food-grade vanishing oils and specialized wax lubricants do not interfere with downstream heat-sealing lacquers or rim printing inks. For heavy organic lubricants (> 500 mg/m²), specialized heat-seal lacquers formulated to burn through surface oil films should be specified.

Q4:Which aluminum alloy temper is best for deep-drawn smooth-wall foil containers?

A:Alloy 3003 in 'O' (fully annealed soft) or 'H22/H24' (partially annealed) temper is the industry standard for deep-drawn smooth-wall containers. This alloy combination delivers high elongation (> 18%) and superior tensile strength, preventing sidewall fracturing during deep cavity draws.

Q5: How does Changzhou Dingang Metal Material Co., Ltd. (China) ensure oil weight consistency across wide foil coils?

A:Dingang Metal Material Co., Ltd. utilizes automated electrostatic DOS lubricators integrated with continuous inline photometric sensors. This closed-loop system monitors and adjusts oil application across the entire coil width, keeping coating weights strictly within specification (± 10 mg/m²).

Conclusion

Achieving zero-defect, high-speed deep-drawn container production requires matching high-ductility aluminum alloys with precise food-grade surface lubrication. By specifying pre-lubricated aluminum foil stock with certified FDA/EU compliance and tight lubricant weight tolerances, container manufacturers can eliminate metal tearing, extend press tooling life, and boost production line output.
