1050 Solid Aluminum Cladding Panel PVDF Coated Aluminium Facade Panel for Exterior Curtain Wall

1. Core Advantages

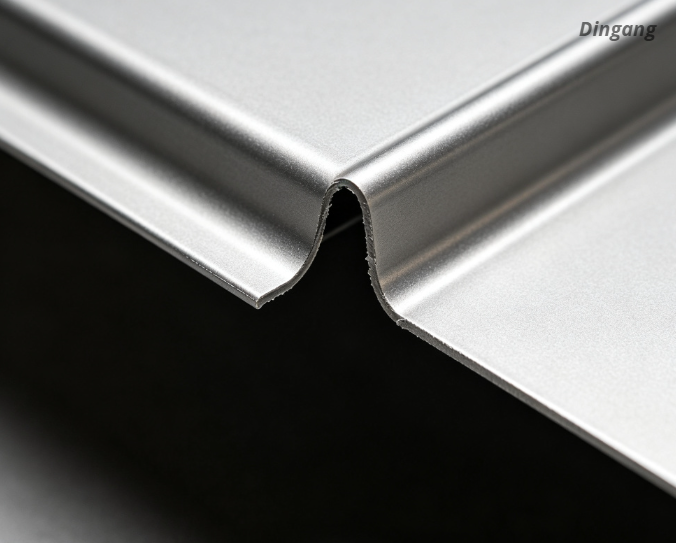

1. 1050 high purity aluminum：Made of 1050 pure aluminum ingot, aluminum content ≥99.5%, good ductility and corrosion resistance, easy forming processing, no cracking after complex bending.

2. PVDF fluorocarbon coating：Kynar 500 PVDF resin coating, 70% fluorocarbon content, super anti-UV, anti-fade, anti-salt spray, 20-30 years service life outdoors, perfect for high-rise building curtain wall.

3. Custom engineering solution：CNC precision processing, custom size, shape, thickness, hole position according to customer drawing. Flat panel, arc panel, special shape panel all available.

4. High flatness & precision：Multi-roller leveling + stress relief treatment, flatness ≤0.5mm/m, dimension tolerance ±0.1mm, precise matching for on-site installation.

5. Complete installation system：Provide matching keel, bracket, fastener and other installation accessories. Hidden installation system, beautiful appearance, no exposed screws.

6. Light weight & safe：Only 1/5 weight of stone material, reduce building load, safe for high-rise building. All aluminum material, Class A fire rating, non-combustible.

2. Production Process

1050 pure aluminum sheet raw material → surface degreasing & cleaning → chromate passivation → PVDF primer coating → first baking → PVDF top finish coating → second baking → CNC precision cutting → bending & flanging → punching & notching → installation accessories welding → surface protective film → inspection → individual packaging.

Full automatic coating line + CNC processing center ensures stable coating quality and accurate dimension for every panel.

3. Standard Technical Parameters

• Base material: 1050 high purity aluminum (aluminum ≥99.5%)

• Panel thickness: 1.5mm, 2.0mm, 2.5mm, 3.0mm, 4.0mm

• Standard size: Custom cut according to engineering drawing

• Max panel size: 1500mm width × 6000mm length

• Coating type: PVDF Fluorocarbon (70% Kynar 500) standard

• Coating thickness: 28μm – 40μm (primer + topcoat)

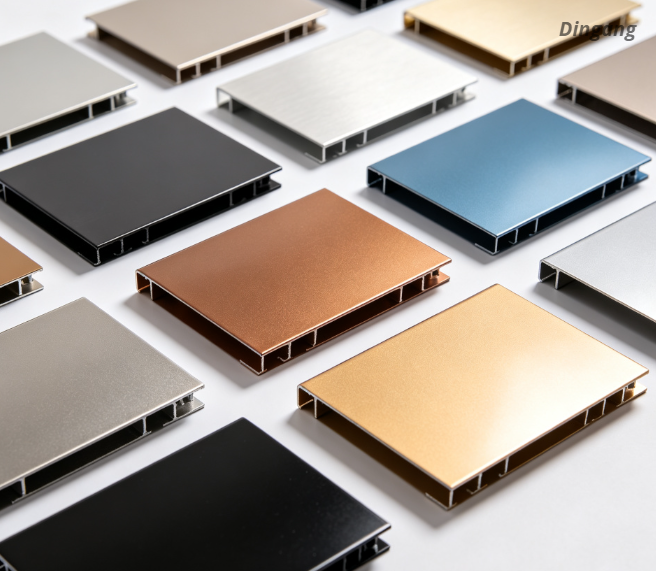

• Surface finish: Matte, medium gloss, high gloss, metallic, brushed, mirror

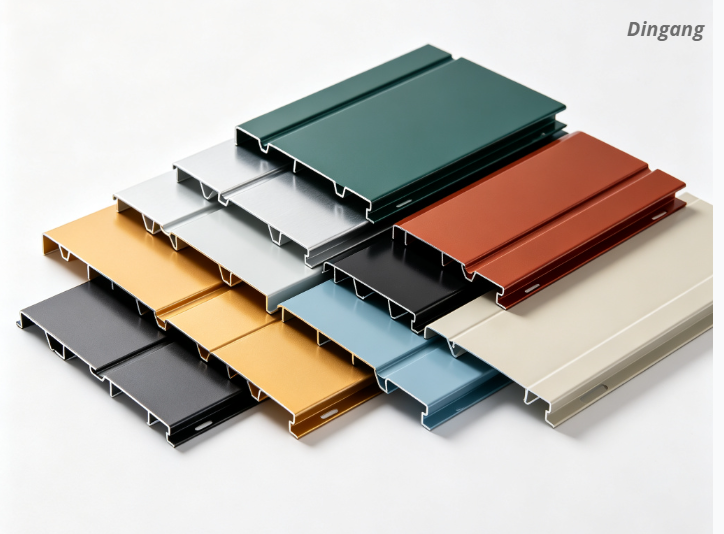

• Colors: Full RAL colors, custom color matching available

• Fire rating: Class A non-combustible

• Installation system: Hidden bracket system, open frame system

4. Main Application Fields

1. High-rise building: Exterior curtain wall, facade cladding, high-rise office building

2. Commercial complex: Shopping mall, hotel, exhibition hall, airport, railway station

3. Public building: Hospital, school, stadium, museum, government building

4. Interior decoration: Interior wall, column cladding, ceiling, lobby decoration

5. Renovation project: Old building facade renovation, curtain wall upgrading

6. Special shape: Arc building, special shape facade, irregular architectural design

5. Full Set Installation Accessories

• Aluminum keel / galvanized steel keel

• Adjustable bracket & connector

• Stainless steel fastener & screw

• Rubber sealing strip

• Waterproof & fireproof sealant (optional)

• Installation drawing & technical guidance

6. Export Packaging Standard

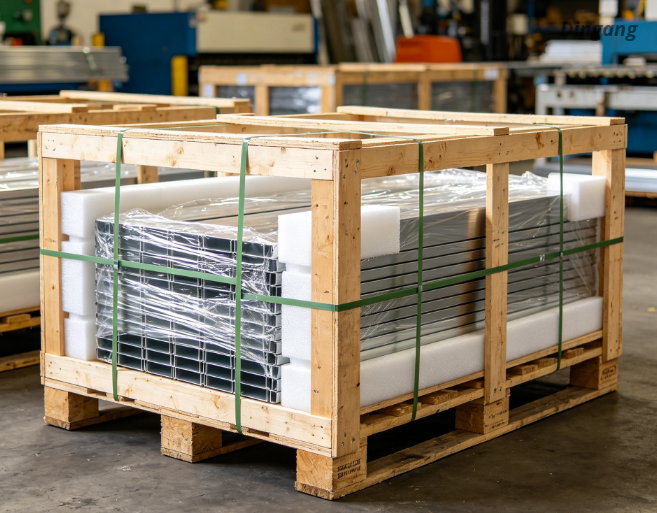

Each panel covered with thick PE protective film on front surface; EPE foam wrap around each panel; four corners installed hard plastic anti-collision corner protectors; individual panel packed in corrugated paper box; multiple panels placed in fumigated wooden crate or on wooden pallet, fixed with steel strapping. Custom size and special shape panels adopt individual wooden case packaging to avoid deformation during transport. Each package marked clear label including panel number, size, thickness, color and installation position. Fumigation certificate provided for customs clearance.

7. Inspection & After-sales Service

Five-fold strict inspection before delivery: coating thickness & adhesion test, color difference comparison, dimension tolerance measurement, flatness check, surface defect inspection. Full set documents provided: coating test report, material test certificate, fire rating report, installation drawing, MTC, MSDS, commercial invoice & packing list. Professional engineer team provides technical support and installation guidance. If any quality problem found within 7 working days after receiving goods, send photos & video evidence, we will respond within 24 hours and provide re-production, supplementary shipment or reasonable compensation solutions.

FAQ

Q1: What's the difference between solid aluminum panel and ACP (aluminum composite panel)?

A: Solid aluminum panel is single layer full aluminum material, higher strength, better fire resistance (Class A), longer service life, more suitable for high-rise building curtain wall. ACP is sandwich structure, lower cost but lower fire rating.

Q2: What thickness aluminum panel is commonly used for exterior curtain wall?

A: 2.5mm thickness is standard for most exterior curtain wall projects; 3.0mm for high-rise building and large size panel; 1.5mm-2.0mm for interior wall and ceiling.

Q3: How long is the service life of PVDF coated aluminum panel?

A: PVDF fluorocarbon coated 1050 aluminum panel service life 20-30 years outdoors, no fading no peeling, widely recognized as the best coating for exterior curtain wall.

Q4: Can you produce custom shape and size panel according to our project drawing?

A: Yes, we have CNC processing center and professional engineer team, can produce flat, arc, perforated, special shape panels according to customer's CAD drawing, suitable for complex architectural design.

Q5: Do you provide installation system and technical support?

A: Yes, we provide complete installation keel and accessories, also provide installation drawing and technical guidance. Our engineer can guide installation on site for large projects.
