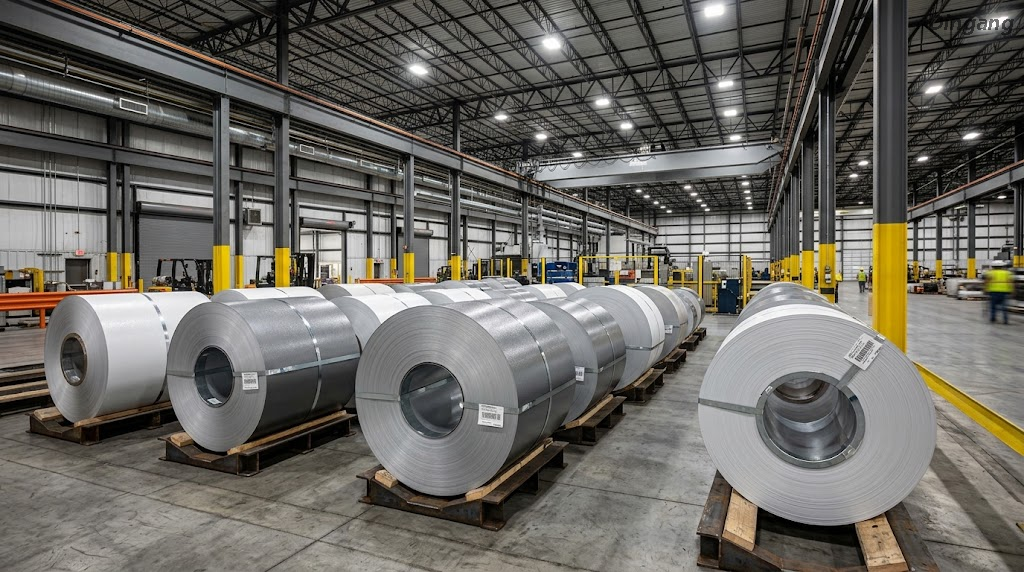

Lightweight High-Strength Coated Aluminum Strip | Stamped Casing for Drone Docking Stations

Autonomous drone docking stations, remote UAV hangars, and automated battery-swap nests operate 24/7 in exposed, unmonitored environments—from commercial building rooftops and highway surveillance masts to offshore energy platforms and solar utility fields. These outdoor installations endure relentless environmental stress: driving rain, gale-force wind shear, extreme solar UV radiation, sub-zero freeze-thaw cycles, and airborne coastal salt fog. Fabricating drone station shells from stamped carbon steel creates severe weight penalties that complicate rooftop crane lifts and accelerate edge-rust along gasketed seal channels. Conversely, casting or post-spraying unpainted aluminum introduces high tooling costs, porosity risks, long lead-time bottlenecks, and uneven paint buildup along weather-stripping flanges.

Our Lightweight High-Strength Coated Aluminum Strip solves these structural and environmental challenges directly at the coil-processing stage. Built on magnesium-alloyed AA5052-H32 / H34 and AA5754 structural aluminum, this strip undergoes precision tension leveling, chemical surface conversion, and continuous automated roller coating with weather-tough fluoropolymer (PVDF) or high-durability polymer (HDP) finishes. Delivering a 60% weight reduction compared to steel, yield strength exceeding 180 MPa to resist hurricane wind loads, crack-free 1.0T to 1.5T deep-draw formability, and 20-year outdoor color stability, this material allows hardware fabricators to stamp, draw, and hem complete drone station clamshells directly from the coil without secondary spray painting.

Product Advantages

Autonomous drone stations demand outer casings that balance lightweight structural stiffness, severe outdoor weather isolation, and zero-defect stamping formability. Our Lightweight High-Strength Coated Aluminum Strip integrates marine-grade AA5052/AA5754 base metal with an elastic, solar-reflective fluoropolymer coating. By delivering yield strengths above 180 MPa, stamped shell panels withstand gale-force rooftop winds and localized hail impacts without permanent denting, while slashing enclosure weight by roughly 60% compared to traditional steel cabinets. The flexible polymer coating stretches in lockstep with the aluminum grain structure during deep-draw stamping and multi-axis press-brake bending, eliminating micro-cracks along tight 1.5T water-seal gutters and 180° hemmed perimeter flanges. Furthermore, infrared-reflective pigments keep internal dock temperatures significantly lower under direct desert sunlight, shielding sensitive drone flight batteries from heat degradation. Delivering pre-finished, color-matched strip directly to your stamping presses completely eliminates the extended lead times, orange-peel defects, and high scrap rates of outsourced liquid powder coating.

Key Performance Advantages for Drone Docking Station Casings

60% Weight Reduction vs. Steel Enclosures: Lowers the total mass of the station, simplifying rooftop hoisting and reducing torque demands on motorized canopy opening linkages.

Over 180 MPa Structural Yield Strength: Magnesium-hardened base metal resists wind deflection and mechanical deformation under extreme outdoor storms.

Flake-Free Deep-Draw Gasket Channels: Elastic coating formulation maintains Class 5B adhesion during stamping of tight-radius return flanges and continuous seal channels.

High Solar Reflectance (SRI ≥ 82): Cool-roof pigment technology reflects infrared solar energy, reducing internal thermal loading to protect drone batteries during charging.

C5-M Marine Atmospheric Protection: High-density fluoropolymer barrier withstands continuous salt fog, acid rain, and coastal humidity without blister corrosion or chalking.

Complete Product Specifications

Quality Control & Production Reliability

Every production run is executed under ISO 9001 quality controls, utilizing continuous tension leveling, multi-stage non-chromate chemical passivation, and automated cleanroom roller-coating lines to ensure verified mechanical and environmental durability.

Tailored B2B OEM & Processing Services

To support progressive stamping operations, robotic enclosure press shops, and sheet metal fabricators, we offer turnkey processing and supply chain services built for continuous production:

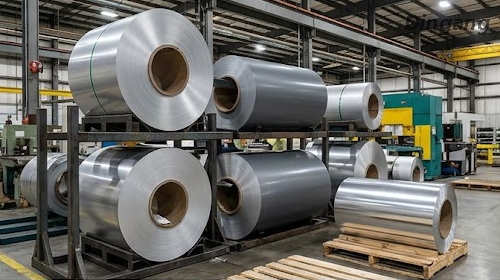

Precision Rotary Slitting for Automated Stamping

Equipped with high-precision rotary slitters, we supply custom-slit coil ribbons down to 60mm widths with tight width tolerances ($\pm0.10\text{mm}$) and low edge burrs ($\le 0.015\text{mm}$), ensuring smooth, jam-free feeding through progressive stamping dies and automated decoilers.

Deep-Draw Formable Protective Film Lamination

Coils can be laminated with specialized high-elongation, medium-tack co-extruded PE protective films (60 to 90 microns) engineered to stretch up to 200% alongside the metal during deep-draw corner stamping and brake bending, peeling off cleanly without adhesive residue.

High-SRI Solar Heat-Reflective Color Matching

While Signal White (RAL 9003) and Light Grey (RAL 7035) are industry standards for outdoor drone equipment, we formulate custom corporate identity colors within 48 hours, integrating solar-reflective ceramic pigments to minimize solar heat absorption in desert or tropical climates.

Heavy-Duty Seaworthy Export Packaging

Coil reels and slit packs are protected with vapor corrosion inhibitor (VCI) anti-rust paper, encapsulated in heavy waterproof plastic wrapping, fitted with rigid steel radial edge guards, and secured onto reinforced, fumigated wooden skids for international sea shipping.

Industrial Applications

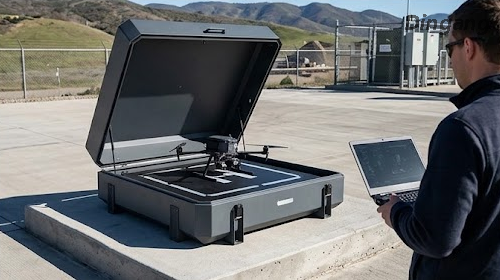

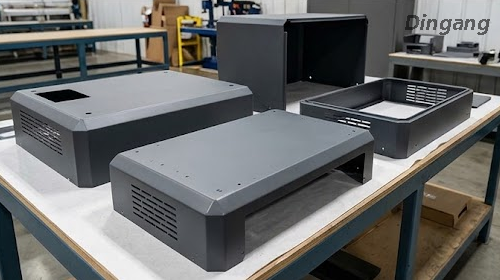

Motorized Clamshell Canopy Shells & Bi-Fold Landing Bay Doors

Autonomous drone nests use rapid-acting split clamshell doors or sliding motorized roof lids that open and close hundreds of times per month. Stamped from 1.5mm to 2.0mm 5052-H32 coated strip, these aerodynamic curved panels provide the structural stiffness needed to resist wind uplift during deployment cycles. The low weight minimizes inertia, preventing wear on linear actuators, while the smooth, crack-free finish forms an airtight compression seal against automotive-grade perimeter EPDM rubber gaskets.

High-Capacity Battery Fast-Charging & Carousel Shrouds

Inside the docking station, automated robotic arms or rotating carousels swap depleted drone flight packs for fully charged batteries. The internal protective shroud panels must endure motor vibration, mechanical friction, and warm thermal airflows from high-amperage multi-battery charging banks. Formed from 1.0mm to 1.2mm coated aluminum strip, these covers provide rigid physical shielding with clean-sheared cooling ventilation punch-outs that will not flake paint into sensitive electrical charging contacts.

Weather-Sealed Outer Base Skirts & Ground Anchoring Plinths

The lower perimeter skirts of drone stations sit directly at ground or rooftop level, exposed to pooled rainwater, mud splash, snowdrifts, and weed-trimmer impacts. Formed from 2.0mm high-yield 5052 strip, these base panels provide heavy-duty impact resistance against accidental ground collisions while remaining completely immune to the bottom-edge rust that commonly destroys galvanized sheet steel enclosures within three years.

Climate Control Airflow Louvers & Thermoelectric Cooler (TEC) Bezels

Autonomous drone hangars rely on internal air conditioning, active heat pumps, or TEC modules to keep drones at optimal launch temperatures. Precision-stamped louver grilles and air-baffle cowlings stamped from pre-painted strip manage high-velocity intake and exhaust air. The flexible coating wraps cleanly around sharp-radius louver blades without paint micro-fissuring, preventing airborne moisture and industrial chemical smog from attacking the sheared edges.

Mast-Mounted RTK Base Station Housings & Weather Sensor Brackets

High-precision autonomous landings require RTK GPS receivers, ultrasonic wind anemometers, and optical rain sensors mounted on elevated masts above the station. Deep-drawn from 1.2mm 5052 pre-coated strip, these compact aerodynamic sensor housings shield sensitive telemetry processing boards from direct solar bake-out, static lightning charges, and high-vibration wind buffeting.

FAQ

Q1:Why is AA5052 preferred over AA6061 or AA3003 for stamped drone docking station casings?

While AA6061 provides high strength, it is prone to cracking when cold-bent around tight radii without annealing. AA3003 bends easily but lacks the yield strength needed to resist strong wind loads. AA5052 offers an optimal balance: a high yield strength of 180 to 240 MPa for structural rigidity, combined with excellent elongation (≥ 12% - 18%) that allows deep-draw stamping and tight 1.5T corner bending without cracking.

Q2:Will the pre-painted coating peel or crack during deep-draw stamping of canopy covers?

No. The fluoropolymer topcoat is formulated with long-chain elastomeric crosslinking agents that stretch in synchrony with the aluminum crystalline matrix. Qualified to ≤ 1.0T - 1.5T bend standards and Class 5B cross-hatch adhesion, the coating withstands deep corner draws and tight return flanges without micro-cracking, peeling, or die galling.

Q3:How does the coating protect drone flight batteries from outdoor heat degradation?

Our white and light-grey finishes incorporate high-Solar Reflectance Index (SRI ≥ 82) ceramic pigments. Unlike standard industrial paints that absorb radiant heat, this coating reflects near-infrared solar energy away from the casing, helping reduce internal enclosure temperatures by 4°C to 7°C under direct summer sun and preserving battery health.

Q4:Does the surface support industrial weatherproofing gaskets and structural adhesives?

Yes. The reverse side of the strip is coated with a high-adhesion epoxy wash primer (3-5μm) compatible with structural polyurethane and silicone bonding adhesives. The topcoat provides a stable, non-porous substrate for high-tack EPDM rubber weather-stripping tapes and closed-cell foam compression gaskets.

Q5:What is the expected service life of this material in severe coastal or tropical environments?

Equipped with a 70% Kynar 500® PVDF coating system over a marine-grade 5052 base, the material is classified for ISO 12944 C5-M (Very High Marine) corrosivity zones. It provides an expected maintenance-free service life exceeding 20 years without blister corrosion, chalking, or major color fade (ΔE < 3.0).
