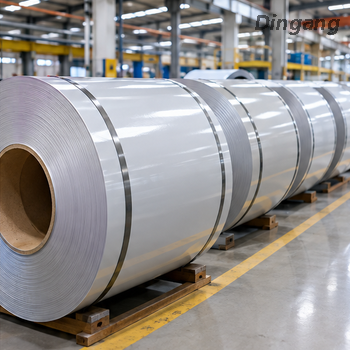

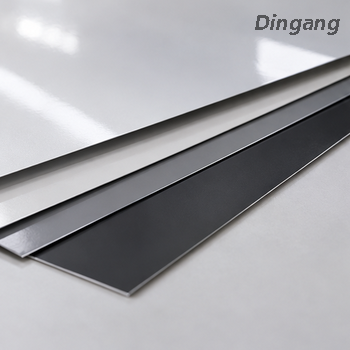

High-Formability 5052-H32 Pre-Painted Aluminum Coil  for Humanoid Robot Torso Shells

Next-generation bipedal humanoid robots and dynamic robotic torsos demand lightweight, high-strength structural enclosures that protect central computing cores, high-discharge battery packs, and multi-axis harmonic drive actuators. When roboticists specify shell materials, they face a severe engineering compromise: injection-molded engineering plastics (such as PC-ABS or carbon-fiber composites) suffer from poor electromagnetic interference (EMI) shielding, fire propagation risks, and brittle impact fracturing during sudden dynamic falls. Conversely, fabricating torso panels from cold-rolled steel adds excessive tare weight, shifting the robot’s center of gravity and rapidly depleting battery reserves. Furthermore, attempting to deep-draw unpainted aluminum sheet and sending complex compound-curved shells to third-party batch spray booths causes heavy orange-peel paint buildup, long lead-time delays, and micro-cracking along tight edge returns.

Our High-Formability 5052-H32 Pre-Painted Aluminum Coil provides a structural, mass-reducing metal solution engineered specifically for complex robotic body stamping. Built on continuous tension-leveled AA5052 magnesium-hardened aluminum, the strip undergoes automated multi-stage chemical passivation and continuous cleanroom roller coating with an ultra-flexible polyurethane-acrylic or modified fluoropolymer resin matrix. Delivering an optimal balance of 180 to 240 MPa yield strength to resist collision dents, a 60% mass reduction compared to steel, certified ≤ 1.0T to 1.5T bend formability, and zero paint flaking during deep compound-radius draw operations, this pre-finished coil allows robotics manufacturers to stamp, draw, and hem complete thoracic, sternum, and lumbar fairings directly from the coil with zero post-forming spray painting.

Product Advantages

Engineering structural shells for humanoid robot torsos requires materials capable of absorbing mechanical shock, reducing dynamic inertia, and deforming cleanly across organic 3D aerodynamic geometries. Our High-Formability 5052-H32 Pre-Painted Aluminum Coil integrates fine-grain magnesium-alloyed metallurgy with an elastomeric polymer topcoat formulated specifically for high-strain press forming. Unlike soft commercial alloys, 5052-H32 provides high yield strength (130 to 195 MPa), ensuring that large, un-braced chest plates and thoracic covers resist denting and oil-canning when subjected to accidental bumps or gripping loads. During multi-stage hydraulic stamping, the continuous roller-applied coating stretches alongside the metal’s crystalline lattice, preventing micro-crazing along deep compound convex sweeps and 180° perimeter safety hems. The non-ferrous aluminum substrate provides natural electromagnetic attenuation, shielding internal edge-AI compute units from electromagnetic noise generated by adjacent brushless motor drives. Supplying precision-leveled, pre-finished coil directly to stamping presses bypasses outsourced powder coating, eliminates clogged fastener holes, and cuts robot body fabrication cycle times by up to 35%.

Key Performance Advantages for Humanoid Robot Torso Shells

Deep 3D Compound Draw Capability: High limiting draw ratio (LDR up to 2.05) and elastic coating crosslinking allow deep compound curvature stamping without orange-peel wrinkling or paint flaking.

60% Weight Reduction vs. Steel Cowlings: Slashes upper-body tare weight, lowering the robot's dynamic center of gravity and extending operational battery life per charge cycle.

Integrated Broadband EMI Shielding: Solid conductive aluminum shell attenuates electromagnetic interference across 30 MHz to 10 GHz, protecting core AI processors from servo drive noise.

Impact-Absorbing Elastic Finish: Absorbs direct drop-weight impact energies exceeding 9.0 Joules, maintaining a continuous paint barrier during balance-testing falls and collisions.

Flake-Free 180° Perimeter Hemming: Enables crisp mechanical hem folding along outer shell edges to eliminate sharp sheet-metal burrs without requiring edge paint touchups.

Complete Product Specifications

Quality Control & Production Reliability

Fabricating complex, compound-curved robotic torso shells from pre-painted coil requires strict control over alloy grain size, work-hardening rates, and interfacial coating adhesion under multi-axial plastic strain.

Tailored B2B OEM & Processing Services

Deep-Draw High-Elongation Protective Film Lamination

Coils can be laminated with specialized 70 to 100-micron multi-layer co-extruded PE protective films engineered with an elongation capacity exceeding 250%. The film adheres securely to the matte painted surface with controlled peel strength (60 to 80 g/25mm), stretching smoothly with the sheet during deep compound hydraulic drawing without tearing, puncturing, or leaving adhesive residue on the shell.

Precision Multi-Axis Blanking with Laser-Scored Relief Notches

To support automated robotic stamping lines, we supply custom irregular blank shapes and pre-cut rectangular sheets with dimensional tolerances held within ±0.20mm. Using high-precision carbide tooling, blank edges are deburred to ≤ 0.010mm, preventing die galling and feeding cleanly into automated sheet destackers.

Factory Grounding Window Provision for EMI Continuity

For humanoid chassis configurations requiring continuous electrical bonding to internal ground planes, we offer selective inline laser ablation or mechanical masking along designated panel perimeter margins. This exposes raw, oxidation-passivated bare aluminum bands (5mm to 12mm wide) for direct chassis ground lug fastening, eliminating manual paint scraping on robot assembly lines.

Robotic Brand Identity Color & Fine-Sand Texture Matching

While Cyber Matte Grey (RAL 7035), Satin Signal White (RAL 9003), and Stealth Black (RAL 9005) are industry standards for humanoid robotics, we formulate custom corporate exterior colors and fine-sand tactile textures within 48 hours, using certified ceramic pigments to maintain low-glare visual depth across production runs.

Industrial Applications

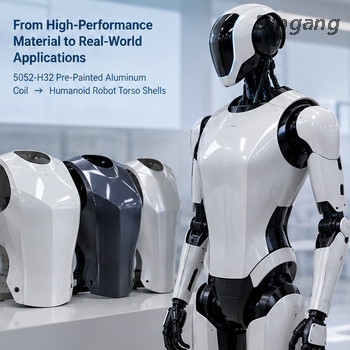

Anterior Thoracic Chest Armor & Core Battery Compartment Shields

The central chest plate of a humanoid robot encloses the main computing hub, IMU sensor arrays, and high-discharge lithium battery banks. Stamped from 1.5mm to 2.0mm 5052-H32 pre-painted sheet, these broad, compound-curved panels absorb front-impact deflections during tripping accidents. The continuous elastic coating stretches smoothly across the prominent convex chest profile, while the high yield strength prevents the panel from crushing inward against delicate internal battery cells.

Posterior Spine & Heat-Exhaust Vertebral Louver Cowlings

Humanoid upper backs house forced-air heat sinks, cooling fans, and high-gauge power routing looms. Formed from 1.0mm to 1.2mm coated aluminum strip, these rear vertebral covers incorporate arrays of stamped directional ventilation louvers and wiring pass-throughs. The flexible coating maintains full adhesion along sharp louver shearing lines, preventing edge peeling under hot exhaust air streams up to 80°C.

Bi-Axial Pelvic & Lumbar Articulation Fairings

The junction between the upper thoracic spine and the bipedal pelvic drive involves high-torque yaw, pitch, and roll movements. Shell covers around this waist joint require complex multi-axis press-brake bending with tight 90° return flanges to maintain mechanical clearance with internal harmonic gearboxes. The 1.0T bend flexibility allows tight clearances without paint micro-fissuring along high-stress bend lines.

Clavicle & Shoulder Gimbal Actuator Shrouds

Dual-axis shoulder joints generate high localized heat and electromagnetic flux from high-speed brushless DC motors. Deep-drawn into hemispherical fairings from 1.0mm 5052 pre-painted coil, these compact shrouds provide physical splash and dust protection while containing electromagnetic interference (EMI), preventing radiated motor switching noise from corrupting nearby stereo vision camera signals.

Flange-Mounted Fast-Swap Battery Bay Access Hatches

Robots designed for 24/7 industrial logistics utilize fast-swap battery hatches secured via quarter-turn quick-release fasteners. Stamped with full 180° hemmed perimeter flanges to provide a safe, smooth handling edge for service technicians, 5052-H32 pre-painted sheet resists edge paint flaking, latch friction, and daily handling scuffs over thousands of battery swap cycles.

FAQ

 Q1:Why is AA5052-H32 preferred over AA6061-T6 or AA5052-O for humanoid torso shells?

AA6061-T6 provides high tensile strength but cracks when bent or stamped around tight radii. AA5052-O is soft and forms easily, but its low yield strength (approx. 45–65 MPa) makes finished torso panels prone to denting during handling. AA5052-H32 provides the optimal engineering balance: a strain-hardened yield strength of 130 to 195 MPa for impact resistance, combined with 12% to 18% elongation that supports deep compound stamping without cracking.

Q2:How does the coating behave during deep-draw stamping of compound convex chest geometries?

The coating utilizes a specialized polyurethane-acrylic or fluoropolymer resin system crosslinked with elastomeric chain extenders. When the metal experiences multi-axial plastic deformation in a hydraulic press, the coating stretches in synchrony with the aluminum grain slip planes up to the material’s limiting draw ratio (LDR 1.80–2.05), maintaining complete interfacial adhesion without crazing or flaking.

Q3:What punch-to-die clearance is recommended for stamping 5052-H32 pre-painted sheet?

For 1.0mm to 1.5mm 5052-H32 pre-painted sheet, we recommend setting the total punch-to-die clearance at 10% to 12% of metal thickness per side, with die entry radii maintained at 4 to 6 times sheet thickness. Maintaining smooth, polished die radii and adequate blank-holder pressure prevents localized wrinkling and prevents coating scuffing during deep draw strokes.

Q4:Can pre-painted 5052 torso shells be joined using structural adhesives or mechanical fasteners?

Yes. The reverse side features a high-adhesion epoxy wash primer (3 to 5 µm) that bonds with two-part structural polyurethane, epoxy, and methacrylate adhesives. The material also supports mechanical clinching (such as Tox® joints), self-piercing rivets (SPR), and standard threaded rivet nuts (blind nuts) without paint flaking around fastener holes.

Q5:How does the finish hold up against repeated impacts during balance calibration falls?

The coating is formulated to absorb impact energy rather than fracture. Qualified to withstand direct drop-weight impacts exceeding 9.0 Joules (80 in-lbs) per ASTM D2794, the coating deforms dynamically with the dented aluminum substrate, preventing paint chipping and maintaining a continuous aesthetic barrier during balance-testing drops.

Request a Production Quote & Sample Validation Kit

Are you designing humanoid robot torso structures, engineering lightweight bipedal body panels, or seeking to replace offline batch powder coating with high-formability pre-painted aluminum coil?

Contact our technical sales engineering team today to review your humanoid shell project specifications and receive a factory-direct quotation within 12 hours.
