Impact-Resistant Polyurethane Coated Aluminum Strip for AGV & Warehouse AMRs

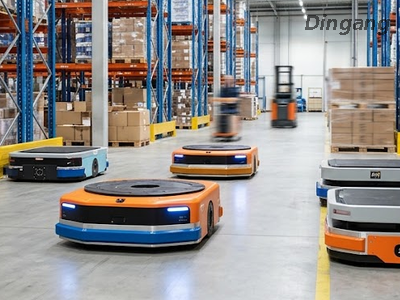

Autonomous Mobile Robots (AMRs) and Automated Guided Vehicles (AGVs) navigate busy fulfillment centers, e-commerce sortation hubs, and 24/7 manufacturing plants. Operating in dense traffic lanes, a robot's lower perimeter skirts, bumper channels, and chassis cowlings take the brunt of operational wear: scrapes against wooden pallets, incidental bumps into structural racking, continuous vibrations over floor expansion joints, and grit abrasion from concrete dust. Fabricating these lower protective skirts from cold-rolled steel adds deadweight that strains drive wheel motors, increases braking inertia, and drains battery runtimes. Conversely, bare aluminum scratches easily, while commercial polyester pre-painted metals crack and chip upon impact, leaving exposed metal edges and shedding paint debris across clean automated warehouse floors.

Our Impact-Resistant Polyurethane Coated Aluminum Strip provides a tough, mass-reducing metal solution engineered specifically for high-impact robotics enclosures. Manufactured from continuous tension-leveled AA5052-H32 magnesium-hardened aluminum, the strip is coated via cleanroom roller lines with an elastomeric polyurethane (PU) system crosslinked with flexible polyol-isocyanate polymers. Delivering certified impact resistance exceeding 9.0 Joules, Taber abrasion resistance over twice that of standard polyesters, Class 5B cross-hatch adhesion, and clean ≤ 1.0T to 1.5T bend formability, this material enables chassis fabricators to roll-form wrap-around bumpers, punch sensor brackets, and brake-form protective skirts directly from coil stock with zero secondary spray painting.

Product Advantages

Autonomous mobile robot chassis hardware requires materials that handle continuous mechanical impacts, resist abrasive scuffing, and eliminate post-forming paint lines. Our Impact-Resistant Polyurethane Coated Aluminum Strip pairs the high yield strength of magnesium-alloyed AA5052 with a flexible, roller-applied polyurethane coating. Unlike brittle powder coats that chip upon contact with steel pallet racking, the elastomeric polyol-isocyanate polymer matrix flexes dynamically with the aluminum substrate during localized collisions, absorbing energy without micro-crazing or paint detachment. The AA5052-H32 core delivers over 180 MPa of yield strength, providing the rigidity needed to protect internal drive gearboxes while shedding 60% of the tare weight of traditional steel bumper bars. In the press shop, the material’s ≤ 1.0T bend flexibility allows continuous progressive roll-forming of wrap-around perimeter profiles, deep 90° return flanges, and punched safety sensor windows without paint flaking along sheared edges. Sourcing pre-coated, precision-slit strip directly for roll-forming and stamping lines removes offline spray bottlenecks, lowers production scrap, and keeps automated warehouse vehicle fleets running smoothly.

Key Performance Advantages for AGV & AMR Enclosures

Resilience to 9-Joule Direct Impacts: Flexible polyurethane resin stretches under direct mechanical deflection, preventing paint chipping during warehouse pallet knocks.

60% Tare Weight Reduction vs. Steel: Lowers overall vehicle mass, reducing drive wheel motor wear, shortening braking distances, and extending runtime per battery charge.

Superior Floor-Debris Abrasion Resistance: Polyurethane formulation resists scouring from concrete floor dust, abrasive poly-wheels, and sliding cardboard cartons.

Clean-Shear Sensor Window Punching: High coating adhesion prevents paint peeling along narrow bridge cutouts for ultrasonic proximity sensors, LiDAR ports, and E-stop switches.

Chemical Protection Against Industrial Fluids: Resists surface damage and blistering from incidental contact with hydraulic oils, gear lubricants, lithium-battery electrolyte mists, and cleaning solvents.

Complete Product Specifications

Quality Control & Production Reliability

Maintaining high impact absorption and flake-free formability in AGV perimeter skirts requires tight control over two critical areas: the crosslinking density of the polyurethane polymer matrix and the interfacial shear strength between the primer and the aluminum substrate.

Tailored B2B OEM & Processing Services

Rotary Precision Slitting with Controlled Edge Camber for Roll-Forming

Equipped with polished carbide rotary knives and automated shimless tooling, we slit master coils into narrow ribbons from 50mm to 650mm widths with tolerances held within ±0.10mm. Knife vertical overlap and horizontal clearances are optimized for AA5052-H32 shear planes, keeping edge burrs below 0.012mm and eliminating lateral strip camber to ensure straight feeding through automated roll-formers.

Heavy-Duty Co-Extruded Puncture-Resistant Bumper Tooling Film

Strips can be laminated with specialized 70 to 100-micron multi-layer co-extruded PE protective films formulated for high-pressure roll-forming and stamping. Engineered with a puncture-resistant elastomeric core and controlled peel adhesion (50 to 70 g/25mm), the film stretches around sharp bumper profile corners without tearing, peeling away cleanly on final vehicle assembly lines without leaving adhesive residue.

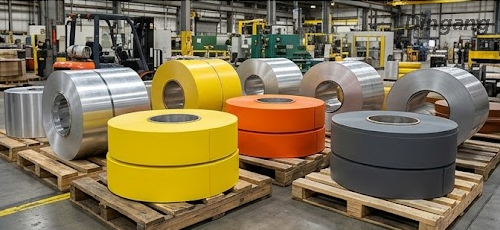

Selective High-Visibility Safety Color & Reflective Band Formulations

While Industrial Safety Yellow (RAL 1023), Signal Yellow (RAL 1003), and Traffic Orange (RAL 2009) are standard AGV safety colors, we formulate custom corporate fleet colors within 48 hours. Coils can also be ordered with selective longitudinal edge-masking or high-contrast warning stripes applied during roller coating to assist onboard automated optical safety sensors.

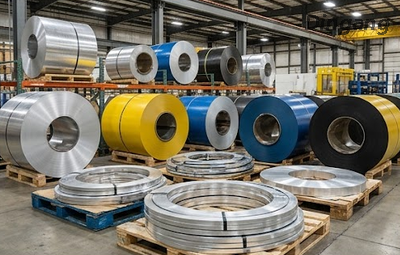

High-Tension Traverse Spooling & Reinforced Palletization for Continuous Profiling

To support high-speed continuous roll-forming lines, we supply slit strip in continuous traverse-wound spools (oscillation wound) up to 1,000kg with zero splices. Finished coils are mounted on heavy 508mm steel cores, interleaved with moisture-barrier paper, wrapped in vapor corrosion inhibitor (VCI) film, and secured onto reinforced, fumigated wooden skids for international sea shipping.

Industrial Applications

FAQ

 Q1:Why is polyurethane (PU) superior to standard polyester or epoxy for AGV bumper skirts?

Standard polyesters and epoxies form rigid, highly crosslinked resin structures. When an AGV experiences a sudden collision with a forklift or pallet rack, these rigid coatings cannot flex with the underlying metal, causing them to shatter, micro-crack, and chip away. Polyurethane utilizes long-chain polyol-isocyanate chemistry that provides high elasticity. When the aluminum substrate dents under impact, the PU coating deforms alongside the metal, absorbing the shock energy without cracking or flaking.

Q2:How does the strip handle roll-forming into complex U-channel and C-channel bumper profiles?

The coating is formulated for a T-bend rating of ≤ 1.0T to 1.5T with Class 5B adhesion. In continuous roll-forming lines, the strip moves through multi-station progressive forming rolls without paint micro-fissuring, wrinkling along inside radii, or flaking along outside bend corners. Using tooling with polished chrome rolls and light lubrication prevents die marking and preserves coating integrity.

Q3:What punch-to-die clearances prevent edge burrs during high-speed sensor window punching?

For AA5052-H32 strip in typical 1.5mm to 2.0mm gauges, we recommend setting punch-to-die total clearance at 10% to 12% of metal thickness per side. Maintaining sharp punch edges and proper die clearances ensures a clean shear plane through the aluminum and polyurethane layers, keeping cut-edge burrs below 0.015mm and preventing paint tearing around sensor mounting openings.

Q4:How does switching from 2.0mm steel to 5052 polyurethane-coated aluminum affect AMR battery life?

Aluminum has a density of roughly 2.7 g/cm³ compared to steel's 7.85 g/cm³, cutting bumper and skirt weight by approximately 60%. Lowering this deadweight reduces the vehicle's rotational and linear inertia, easing drive motor torque demands during stop-and-go sortation cycles. Depending on the vehicle's duty cycle, this weight reduction can extend battery runtimes by 8% to 15% between charges.

Q5:Can the polyurethane-coated surface endure accidental contact with forklift battery acid or gear oils?

Yes. The fully cured polyurethane topcoat is non-porous and chemically stable. It withstands continuous contact with mineral oils, synthetic gear lubricants, hydraulic fluids, and splashes of diluted sulfuric battery acid or lithium electrolyte solutions without softening, blistering, or discoloring. Spills wipe clean using standard industrial degreasers.

Request a Production Quote & Sample Validation Kit

Are you designing impact-resistant AGV perimeter bumpers, engineering lightweight AMR chassis skirts, or seeking to replace post-spray steel with pre-coated polyurethane aluminum strip?

Contact our technical sales engineering team today to review your AGV/AMR enclosure project specifications and receive a factory-direct quotation within 12 hours.
