Pre-Painted Aluminum Coil | Standing Seam Roofing Strip for Coastal Developments

Oceanfront developments—such as coastal luxury resorts, marina clubhouses, island ferry terminals, desalination facilities, and seaside residential villas—expose building envelopes to severe environmental conditions. High-velocity maritime winds deliver continuous airborne salt fog, persistent humidity, intense solar ultraviolet radiation, and sand-scouring winds. When coastal standing seam roofs are rolled from standard prepainted steel or commercial-grade polyester aluminum, failures happen fast: red-rust edge-creep corrodes sheet cut lines within 3 to 5 years, fastener clips seize, and rigid coatings crack during the tight folding of 360° mechanical double-lock seams, allowing wind-driven rain to infiltrate the building envelope.

Our Pre-Painted Aluminum Coil for Coastal Standing Seam Roofing is engineered specifically to eliminate coastal corrosion and field roll-forming micro-cracks. Manufactured from high-manganese structural alloys (AA3004 and AA5052 in H14, H16, or H26 tempers), the coil provides roughly 30% higher mechanical yield strength than ordinary 3003 aluminum to resist severe hurricane wind suction. Strip surfaces receive non-chromate chemical passivation followed by continuous roller-coating with a marine-grade 70% Kynar 500® PVDF or FEVE fluorocarbon resin system tested for C5-M atmospheric corrosivity. Qualified for ≤ 1.0T to 1.5T seam-locking flexibility, this coil feeds directly into continuous portable roll-forming machines on job sites, turning out seamless, multi-meter roof pans with zero paint peeling along the ribs.

Product Advantages

Standing seam roofing in coastal developments demands materials that survive high salt fog concentrations, prevent wind uplift failure, and roll-form cleanly on portable jobsite machinery. Our Pre-Painted Aluminum Coil matches the corrosion immunity of structural Al-Mn-Mg alloys (AA3004/AA5052) with an ultra-flexible 70% Kynar 500® fluoropolymer finish. By delivering yield strengths between 145 and 195 MPa, wide-span standing seam roof pans withstand extreme negative wind suction pressures without unseaming from concealed clips, while in-line tension leveling ensures flat, oil-canning-free panel valleys under intense tropical sunlight. The ductile coating formulation flexes down to 1.0T, allowing roofing crews to roll continuous 40-meter pans and mechanically crimp 360° double-lock standing seams without paint micro-fissuring or loss of edge adhesion along ribbed profiles. Because the non-ferrous aluminum core never produces red rust, sheared drip edges and fastener holes remain clean and sound, saving property owners the heavy expense of recoating or replacing coastal roofs.

Key Performance Advantages for Coastal Standing Seam Roofing

Zero Red-Rust Edge Corrosion: Non-ferrous aluminum metallurgy prevents cut-edge bleed, maintaining clean drip-edge eaves and gutter lines along oceanfront coastlines.

Flake-Free 360° Double-Lock Seaming: High-flexibility PVDF coating withstands continuous mechanical electric seamer crimping without micro-cracking or flaking.

Resilience to Coastal Hurricane Winds: Magnesium-hardened AA3004 alloy provides high yield strength to resist negative wind uplift across wide purlin spacings.

Dead-Flat Pan Lay-Flat Quality: Continuous tension leveling neutralizes residual stress in the strip, eliminating panel oil-canning and distortion under direct sun.

High-SRI Cool Roof Energy Savings: Solar-reflective ceramic pigments bounce near-infrared heat away from the building, cutting indoor air conditioning loads in tropical resorts.

Complete Product Specifications

Quality Control & Production Reliability

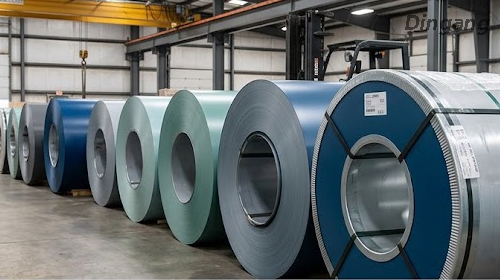

Every production coil is manufactured under ISO 9001 quality controls, utilizing automated chemical pre-treatment and cleanroom roller coating to maintain strict mechanical, forming, and anti-corrosion performance.

Tailored B2B OEM & Processing Services

To support metal roofing contractors, portable roll-former operators, and regional distributors, we offer turnkey processing and jobsite-ready packaging:

Precision Slitting for Standing Seam Pan Widths

Equipped with high-precision rotary slitters, we supply custom-slit coil widths (such as 410mm, 475mm, 500mm, and 610mm) tailored to your roll-forming machine tooling. Edge burrs are kept under 0.015mm to prevent roll-die scoring and ensure clean rib formation.

Strippable UV-Resistant Protective Film Lamination

Coils can be laminated with specialized 60 to 80-micron co-extruded PE protective films formulated for outdoor jobsites. The film withstands heavy roll-former roll pressure without tearing, stays bonded during jobsite handling, and peels away cleanly without leaving adhesive residue after field seaming.

Custom Coastal Colors & Mica Metallic Finishes

While Slate Grey, Charcoal, Sandstone, and Off-White are popular coastal palettes, we formulate custom solid shades, textured fine-sand finishes, and metallic mica fluorocarbon colors within 48 hours, using certified inorganic ceramic pigments to resist UV-induced fading.

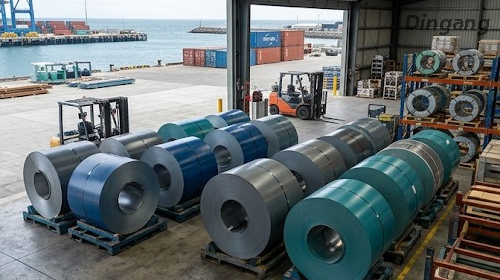

Heavy-Duty Seaworthy Export Packaging

Coil packs are wrapped in vapor corrosion inhibitor (VCI) anti-rust paper, encapsulated in heavy waterproof plastic wrapping, fitted with rigid steel radial edge guards, and secured onto reinforced, fumigated wooden skids built to handle export ocean shipping and jobsite delivery.

Industrial Applications

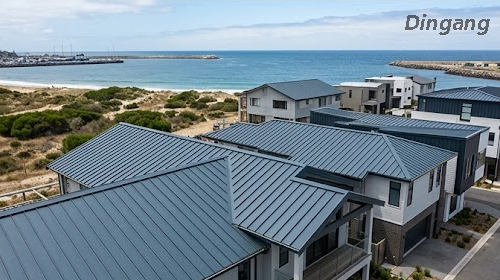

Oceanfront Luxury Resort Villas & Bungalow Double-Lock Standing Seam Roofs

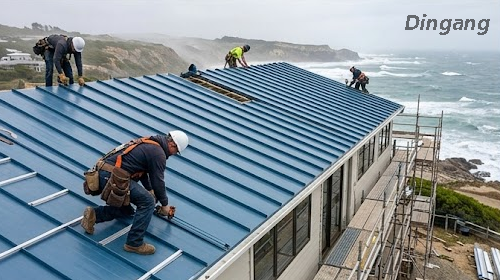

Seaside hotel pavilions and over-water bungalows feature steep-pitch hip and gable roofs exposed to ocean spray and high humidity. Roll-formed on site from 0.8mm to 1.0mm AA3004 coated coil, continuous pans run from ridge to eave without horizontal laps. Mechanically crimped into 360° double-lock standing seams, these roofs create a watertight seal against torrential monsoon rains, while custom matte coastal palettes blend into shoreline landscapes without chalking or fading.

Island Passenger Ferry Terminals & Marina Gangway Canopies

Ferry terminals and marina walkways stand directly inside the salt-spray splash zone, subjected to constant saltwater mist and wind gusts from docking vessels. Roll-formed into 65mm high-standing seam profiles from 0.9mm to 1.0mm heavy-gauge coated strip, these long roof pans span open pedestrian walkways without intermediate purlins. The C5-M rated PVDF finish resists saltwater corrosion, bird droppings, and diesel exhaust fumes from commercial ferry engines.

Coastal Port Logistics Warehouses & Cold Storage Metal Envelopes

Harbor cargo sheds and port cold storage facilities feature low-slope roofs measuring hundreds of meters in length, where thermal expansion and contraction push roof panels against their clips. Continuous 0.7mm to 0.8mm AA3004 standing seam panels glide smoothly over thermal expansion clips without tearing or wearing through the paint. The marine-grade coating stops coastal air from pitting the metal, preventing leaks that could damage stored freight.

Coastal Desalination & Water Treatment Plant Facility Envelopes

Desalination plants and wastewater facilities combine high-salinity marine air with airborne chlorine, sulfur, and acidic processing vapors. Standard metal roofing on these structures often corrodes within three years. Utilizing our high-build 3-coat PVDF system over AA5052-H32 strip, building envelopes maintain structural integrity against corrosive industrial atmospheres without requiring protective maintenance coatings.

Curved Architectural Airport Terminal & Transit Hub Canopies

Modern airport terminals and seaside high-speed rail stations often feature dramatic curved, barrel-vaulted, or wave-profile roof geometries. Slit to custom widths, our pre-painted coil runs through specialized convex and concave radius-curving roll-formers. The flexible coating stretches smoothly along tapered standing seams and smooth transitions without cracking or stress-blanching along the radius curves.

FAQ

Q1:Why is AA3004 preferred over AA3003 and steel for coastal standing seam roofs?

Galvanized steel corrodes along cut edges and clip fastener penetrations in coastal environments. While AA3003 bends easily, it lacks the yield strength needed to resist strong wind loads. AA3004 contains added magnesium (approx. 1.0%), providing roughly 30% higher mechanical yield strength (145–195 MPa) than AA3003. This extra strength gives the roof pan the rigidity needed to resist negative wind uplift across wide purlin spans while preserving the ductility required for 360° seam folding.

Q2:Will the paint crack when using an electric seamer to crimp 360° double-lock seams?

No. The marine-grade fluoropolymer topcoat contains elastomeric resin flexibilizers that deliver a T-bend rating of ≤ 1.0T to 1.5T and Class 5B cross-hatch adhesion. It deforms cleanly with the aluminum during the high-pressure mechanical folding of 360° double-lock standing seams, leaving a smooth, continuous paint surface without micro-fissuring or flaking.

Q3:What prevents galvanic corrosion between the aluminum roof and mounting clips?

To avoid galvanic reactions, contractors should use 300-series stainless steel concealed mounting clips or aluminum clips paired with stainless steel fasteners and EPDM isolation washers. Direct contact with dissimilar metals (like bare carbon steel or copper) must be prevented using non-conductive barriers or factory-applied isolation wash-coats.

Q4:How does the coating withstand airborne coastal sand abrasion?

Our coastal coating system incorporates durable primer resins and high-density fluorocarbon topcoats that achieve a 2H pencil hardness. Tested under ASTM D968 falling sand abrasion standards, the cured finish withstands abrasive windborne beach sand without premature thinning or substrate exposure.

Q5:What is the expected service life of this pre-painted coil in severe coastal zones?

When coated with our 70% Kynar 500® PVDF or FEVE system, the material is certified for ISO 12944 C5-M (Very High Marine) environments. It provides an expected service life exceeding 25 years without substrate rust-through, blistering, or excessive color fade (ΔE ≤ 5.0).

Request a Production Quote & Sample Validation Kit

Are you bidding on coastal resort standing seam projects, roll-forming long-span architectural roof pans, or looking to replace corroded steel roofing with marine-grade pre-painted aluminum coil?

Contact our architectural technical sales engineering team today to review your coastal roofing coil specifications and receive a factory-direct quotation within 12 hours.
