Precision-Slit 1060 Pre-Coated Aluminum Foil | Heat-Spreading Layer for Server Power Busway Trunks

Overhead power busway trunks and sandwich bus duct systems channel massive continuous current—ranging from 800A to over 4000A—into high-density AI computing racks and server aisles. Under heavy resistive loads ($I^2R$ losses), internal copper or aluminum phase conductors generate concentrated thermal energy. In compact sandwich configurations, heat trapped between insulated conductor bars creates severe localized hotspots that accelerate the dielectric breakdown of polyester (Mylar) or epoxy insulation wraps, risking phase-to-phase short circuits and triggering premature thermal breaker trips. Conversely, integrating bare aluminum foil into automated busbar taping lines presents serious electrical flashover hazards if razor burrs or torn foil edges puncture surrounding dielectric sleeves.

Our Precision-Slit 1060 Pre-Coated Aluminum Foil provides an engineered thermal dissipation layer designed specifically for busway trunk conductor packs. Manufactured from high-purity AA1060 aluminum (minimum 99.6% purity), the foil delivers an exceptional bulk thermal conductivity of approximately 230 W/(m·K), rapidly drawing concentrated heat away from internal conductor surfaces and spreading it evenly toward the external housing casing. The foil is roller-coated in a cleanroom environment with a high-temperature dielectric polymer lacquer (2.0 to 5.0 µm dry film thickness) that provides certified voltage breakdown resistance without adding thermal impedance. Precision-slit with edge burrs suppressed below 0.003mm, this ultra-pliable material wraps smoothly around rectangular busbars on automated high-speed taping machines without tearing, wrinkling, or puncturing adjacent insulation films.

Product Advantages

Mitigating thermal hot spots within high-current server busway trunks requires a heat-spreading medium that moves thermal energy rapidly without compromising dielectric clearance. Our Precision-Slit 1060 Pre-Coated Aluminum Foil combines the thermal performance of high-purity aluminum with ultra-thin dielectric surface engineering. By leveraging a high base metal thermal conductivity of 230 W/(m·K), the foil acts as a planar heat shunt, intercepting concentrated heat from the copper phase conductors and transferring it across the surface to the bus duct enclosure walls, where it dissipates into ambient airflows. The continuous roller-applied dielectric coating provides a reliable insulation barrier capable of withstanding voltage spikes up to 3.0 kV, eliminating the risk of phase-to-phase micro-arcing. Furthermore, our precision rotary slitting lines produce deburred edges held under 0.003mm, allowing automated spiral or longitudinal wrapping heads to apply continuous tension without foil edge tearing or insulation sleeve abrasion. Integrating this pre-coated foil into busway manufacturing eliminates the need for expensive oversized conductor derating, prevents localized insulation degradation, and lowers the operating temperature of mission-critical server power trunks.

Key Performance Advantages for Server Power Busway Trunks

Rapid Planar Thermal Equalization: High bulk thermal conductivity (~230 W/(m·K)) flattens localized conductor heat spikes, reducing central busway temperatures by 8°C to 12°C.

Integrated Dielectric Flashover Barrier: High-breakdown polymer coating provides up to 3.0 kV isolation, preventing capacitive discharge across tightly stacked conductor phases.

Micro-Burr Slit Edges (≤ 0.003mm): Razor-clean slitting eliminates sharp metal fringes that could cut through primary Mylar, Nomex, or epoxy insulation layers.

Pliable Wrapping Formability: High elongation (≥ 15% in O temper) allows tight, continuous spiral wrapping around rectangular conductor bars and sharp 90° busway elbows without cracking.

Thermal Class B/F Endurance: Thermally stable coating resists continuous operating temperatures up to 155°C without embrittling, cracking, or releasing volatile outgassing compounds.

Complete Product Specifications

Quality Control & Production Reliability

Preventing thermal runaway and dielectric breakdown along high-amperage busway trunks requires two uncompromising material standards: sub-micron dry film thickness uniformity across the foil web and absolute suppression of razor edge burrs that could puncture dielectric films under wrapping tension.

Tailored B2B OEM & Processing Services

Precision Micro-Burr Rotary Slitting for Automated Conductor Wrapping

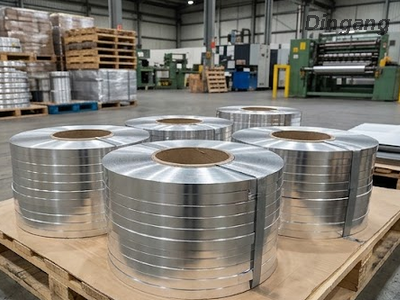

Using mirror-finished tungsten carbide circular shear knives with micro-adjusted clearances, master foil rolls are slit into narrow ribbons from 25mm to 350mm widths. With slit-edge burrs strictly controlled under 0.003mm and width tolerances held within ±0.05mm, the strip feeds cleanly through automated busbar taping lines without snagging or slicing adjacent dielectric films.

Continuous Traverse Spooling for High-Speed Busway Taping Lines

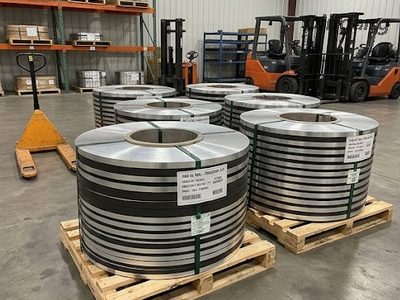

To support continuous manufacturing lines and reduce downtime for roll changeovers, we supply slit foil in continuous traverse-wound spools (oscillation wound) up to 350kg. Spools feature electronic tension-controlled winding with zero splices, allowing automated busbar wrapping machinery to operate continuously across full production shifts.

Single/Double-Sided Dielectric Lacquering & PET Film Composite Lamination

Beyond our standard double-sided dielectric lacquer, we provide customized insulation combinations. This includes single-sided coating with bare reverse-side aluminum for direct housing contact, or inline thermal lamination with 12 to 25-micron electrical-grade polyester (PET) or polyimide (Kapton) films for enhanced mechanical puncture and dielectric resistance up to 6.0 kV.

Hermetically Sealed Foil Core Packaging for Humidity Protection

Slit coils and spools are wound on heavy 76mm (3-inch) or 152mm (6-inch) steel or reinforced phenolic cores. Each roll is packed with non-abrasive protective side discs, sealed inside heavy vapor corrosion inhibitor (VCI) foil barrier bags with active silica desiccants, and secured in heavy-duty wooden crates to prevent edge impacts and moisture ingress during international sea freight.

Industrial Applications

Compact Sandwich Feeder Busway Conductor Phase Interlayers

High-amperage (1600A to 3200A) sandwich-type busways stack three-phase copper conductors tightly together with only thin insulation sheets between them. Placed between the primary insulation sleeves, continuous 0.050mm to 0.080mm 1060 coated foil strips extract heat from the center phase bar and conduct it laterally to the outer aluminum extrusion housing, eliminating internal thermal trapping without increasing bus duct width.

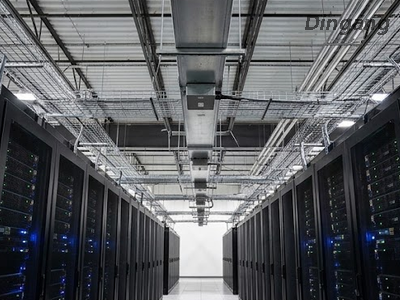

Overhead Modular Track Busway Extrusion Thermal Contact Liners

Open-channel overhead track busways running above server aisles permit flexible plug-in power taps. Lining the interior wall of the extruded housing with 0.1mm 1060 pre-coated foil creates a continuous thermal interface between internal conductor supports and the finned housing shell, accelerating radiant and conductive heat dissipation into cold-aisle airflows.

High-Current Busway Joint Pack Thermal Expansion Sleeves

The bolted joint packs that connect adjacent 3-meter busway sections experience concentrated electrical contact resistance and thermal expansion stresses. Flexible shims and folded wrapping sleeves made from annealed 1060-O pre-coated foil bridge the joint area, dispersing localized contact heat away from connection splice bolts while preventing galvanic oxidation between dissimilar metal connectors.

Plug-In Tap-Off Box Disconnect Switch Thermal Shunts

Branch tap-off boxes draw high currents from main busway trunks through mechanical spring-loaded contact fingers. The concentrated current transition point generates localized heat near internal molded-case circuit breakers (MCCBs). Pre-cut 1060 coated foil shunts wrap around connection assemblies, conducting heat toward the steel or aluminum tap-off box enclosure without requiring active cooling fans.

Cast Resin Low-Voltage Busway Outer Thermal Dissipation Shields

In high-humidity sub-floor or rooftop environments, heavy cast-resin busways encapsulate conductors inside solid polymer blocks. Wrapping conductor bundles in 1060 pre-coated foil prior to resin casting provides a high-thermal-conductivity planar path that distributes heat along the trunk length, preventing localized hot pockets from developing inside the solid resin matrix during continuous peak electrical loads.

FAQ

 Q1:Why is AA1060 aluminum preferred over AA3003 or AA8011 for busway heat spreading?

AA3003 and AA8011 are alloyed with manganese, iron, and silicon to enhance mechanical strength, but these alloying elements scatter electrons and phonons, lowering thermal conductivity to approximately 160 W/(m·K). High-purity AA1060 (≥ 99.6% Al) provides a bulk thermal conductivity of roughly 230 W/(m·K)—more than 40% higher. This increased conductivity accelerates heat transfer along thin foil layers, making it ideal for compact busway conductor stacks.

Q2:Does the pre-coated foil provide sufficient electrical insulation to replace primary busbar sleeves?

No. The pre-coated foil is engineered as a functional thermal dissipation and secondary dielectric barrier (providing 1.5 kV to 3.0 kV breakdown protection). It is designed to work in conjunction with primary electrical insulation systems—such as heat-shrink polyolefin sleeves, multi-layer polyester film taping, or epoxy powder coatings—preventing localized hotspot degradation of those primary insulation barriers.

Q3:What slitting edge-burr limits are maintained to prevent tape-wrapping tears?

We maintain edge burrs strictly below 0.003mm (3 microns) using polished carbide rotary shear knives. Keeping burrs to this minimal level prevents the foil edge from cutting into adjacent plastic insulation sleeves or tearing under high winding tension during high-speed automated conductor wrapping.

Q4:How does 1060 pre-coated foil handle 90° bends and joint offsets in busway trunks?

In the fully annealed O temper, AA1060 aluminum has an elongation capacity of 15% to 25% with very low yield strength (30 to 55 MPa). When wrapped busbars undergo 90° flatwise or edgewise bending on hydraulic busbar benders, the foil and flexible dielectric coating stretch smoothly around the bend radius without delaminating, wrinkling, or micro-cracking along fold lines.

Q5:What is the maximum continuous temperature rating of the coating under full electrical load?

The crosslinked thermoset polymer coating is rated for continuous operation under Thermal Class B (130°C) and Class F (155°C) environments. It withstands peak short-circuit thermal excursions up to 200°C for short durations without blistering, carbonizing, or losing dielectric isolation properties.

Request a Production Quote & Sample Validation Kit

Are you engineering high-amperage server power busways, optimizing thermal dissipation in sandwich bus ducts, or looking to eliminate conductor hotspots with pre-coated aluminum foil?

Contact our electrical technical sales engineering team today to review your busway heat-spreading specifications and receive a factory-direct quotation within 12 hours.
