PVDF Coated Aluminum Coil | Non-Dusting Substrate for Semiconductor Facilities

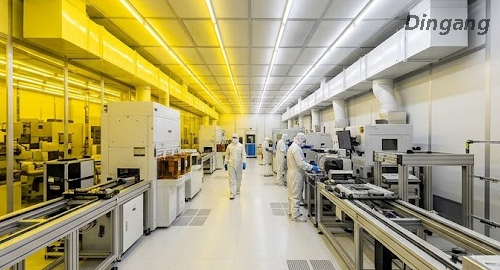

Semiconductor fabrication facilities—including wafer processing bays, photolithography suites, sub-fab return-air plenums, and chemical mechanical planarization (CMP) areas—operate under strict contamination control standards. In these micro-environments, a single sub-micron airborne particle or trace volatile organic outgassing compound can settle onto a silicon wafer, bridge nanometer-scale circuitry, and destroy production yields. Standard architectural pre-painted metals and commercial powder-coated panels present serious operational risks in front-end wafer fabs: conventional resin binders chalk under high airflow, shedding microscopic paint dust, while unreacted solvent plasticizers continuously outgas airborne molecular contaminants (AMCs) that condense onto precision stepper lenses and laser optics. Furthermore, aggressive daily surface decontamination using isopropyl alcohol (IPA), hydrogen peroxide vapor, and acidic air mists causes standard coatings to soften, yellow, and micro-fissure.

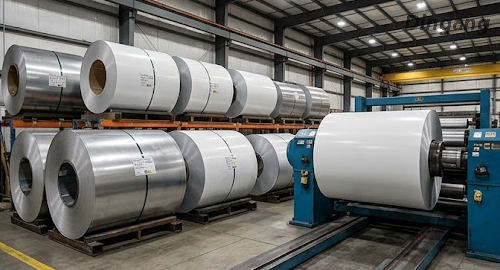

Our PVDF Coated Aluminum Coil provides a certified non-dusting, chemically inert metal substrate engineered specifically for semiconductor cleanroom envelopes. Utilizing tension-leveled AA3003-H14 and AA5052-H32 structural alloys, the strip undergoes automated multi-stage chemical passivation and continuous cleanroom roller coating with a high-density 70% Kynar 500® fluoropolymer resin system. Cured at tightly controlled peak metal temperatures to drive off all volatile processing carriers, the coating delivers certified zero particulate shedding down to ISO Class 3 cleanroom environments, extremely low organic outgassing, high resistance to aggressive cleaning agents, and micro-crack-free formability for cleanroom sandwich wall panels, ceiling tiles, and air handling louvers.

Product Advantages

Semiconductor facilities demand cleanroom envelope materials that eliminate micro-particle generation, resist aggressive chemical protocols, and preserve structural flatness across massive floor plans. Our PVDF Coated Aluminum Coil addresses these stringent contamination criteria through precision roller coating and controlled thermal crosslinking. The high-density fluoropolymer topcoat locks pigment particles inside a tight chemical lattice that prevents surface chalking, erosion, and particulate dusting, even when exposed to high-velocity laminar airflows from overhead fan filter units. High peak metal temperatures in our catenary ovens thoroughly volatilize all carrier solvents, ensuring the cured film releases virtually no organic volatiles that could deposit onto optical lithography mirrors. Formulated with a tension-leveled AA3003/AA5052 base, the material provides flat, oil-canning-free faces for adhesive lamination into honeycomb-core or rockwool sandwich wall panels, while the ductile coating bends down to 1.0T without micro-cracking or shedding flakes along panel edges. By providing pre-finished, cleanroom-ready coil directly to modular panel lines, your plant eliminates post-spray batch bottlenecks, lowers part rejection rates, and complies with international cleanroom contamination standards.

Key Performance Advantages for Semiconductor Facilities

Zero Particulate Dusting: High-crosslink fluoropolymer structure prevents binder breakdown, ensuring zero micro-particle shedding under continuous laminar airflows.

Ultra-Low AMC Outgassing: Certified compliance with ASTM E595 standards prevents condensable organic volatiles from depositing onto high-precision photolithography lenses.

Chemical Disinfectant Immunity: Resists over 2,000 cycles of mechanical scrubbing with 70% IPA, hydrogen peroxide, and ammonium hydroxide without paint softening or clouding.

Dead-Flat Lay for Sandwich Lamination: Multi-roll tension leveling removes internal residual stresses, ensuring flat sheet bonding to aluminum honeycomb and mineral wool cores.

Flake-Free Edge Bending: Superior coating elasticity achieves 1.0T to 1.5T bend performance, ensuring crisp 90° cassette folds without paint flaking along panel joints.

Complete Product Specifications

Quality Control & Production Reliability

Every production run is manufactured under ISO 9001 quality protocols, using closed-loop chemical pre-treatment and automated cleanroom roller coating to maintain strict optical, mechanical, and cleanliness performance.

Tailored B2B OEM & Processing Services

To support cleanroom wall panel manufacturers, HVAC fabricators, and sheet metal press shops, we offer turnkey processing and supply chain services built for clean manufacturing lines:

Precision Slitting & Custom Blanking

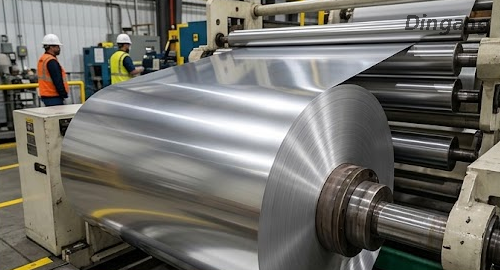

Equipped with high-precision rotary slitters and cut-to-length shearing lines, we supply custom-slit coil widths down to 50mm and pre-cut rectangular blanks with low edge burrs held under 0.015mm, allowing direct feeding into automated panel-bending lines.

Cleanroom-Grade Low-Tack Protective Film Lamination

Coils are laminated with specialized co-extruded, halogen-free PE protective films (50 to 80 microns). Formulated with ultra-low-tack acrylic adhesives, these films protect the surface during CNC punching and press braking, peeling away cleanly without leaving gummy chemical residues on the panel.

Reverse-Side Wash Coat for Structural Bonding

The reverse side of the aluminum strip is roller-coated with a high-adhesion epoxy wash primer (3 to 5 microns) specially formulated to maximize bonding strength with polyurethane adhesives, epoxy resins, and aluminum honeycomb cores.

Hermetic Moisture-Barrier Export Packaging

Coil reels and flat sheet packs are protected with vapor corrosion inhibitor (VCI) anti-rust barriers, vacuum-sealed inside heavy waterproof polyethylene wrapping, fitted with rigid steel radial edge guards, and secured onto reinforced, fumigated wooden skids for international sea shipping.

Industrial Applications

Modular Cleanroom Sandwich Wall Systems & Demountable Partition Skins

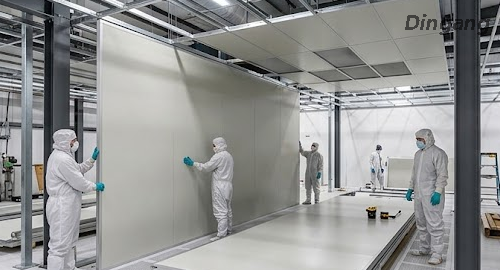

Semiconductor cleanroom wall partitions require rigid, demountable panels that can be reconfigured without generating dust. Laminated to aluminum honeycomb or high-density rockwool cores, our 0.8mm to 1.0mm pre-coated coil provides a flat, rigid exterior skin. The smooth, non-dusting surface stands up to continuous cleanroom pressure differentials, while panel joints fit snugly with silicone or gasket seals without chipping paint along formed interlocking edges.

Fan Filter Unit (FFU) Ceiling Grid Panels & HEPA/ULPA Filter Hoods

Thousands of motorized Fan Filter Units run continuously across cleanroom ceilings to maintain downward laminar airflow. Housing cowlings, filter transition collars, and blanking ceiling tiles stamped from 1.0mm to 1.2mm coated aluminum strip withstand continuous motor micro-vibrations without shedding paint flecks onto open production lines below. The anti-glare satin white finish (RAL 9016 or RAL 9003) provides clean, uniform light reflection across the cleanroom grid.

Sub-Fab Air Return Chases & Recirculation Duct Linings

Underneath the cleanroom waffle slab, sub-fab return-air corridors channel thousands of cubic meters of air per hour back up to makeup air units (MAUs). Fabricated from 1.2mm to 1.5mm AA5052-H32 coated coil, these large-format air duct panels resist abrasion from high-speed recirculating air streams. The chemically inert PVDF coating isolates the aluminum substrate from acidic chemical exhaust mists and ambient moisture, preventing oxidation and corrosion flaking.

Photolithography & Metrology Bay Acoustic Wall Liners

Deep ultraviolet (DUV) and extreme ultraviolet (EUV) lithography scanners are sensitive to both acoustic noise and chemical contaminants. Wall baffles and acoustic absorption panels fabricated from perforated, non-outgassing PVDF-coated aluminum absorb mechanical machinery noise without releasing outgassing hydrocarbons that could fog multi-mirror projection optical assemblies.

Automated Material Handling System (AMHS) Overhead Track Fascias

Overhead Hoist Transport (OHT) vehicles travel along high-speed ceiling rail tracks carrying Front Opening Unified Pods (FOUPs) filled with production wafers. Guard fascias, cable track raceway covers, and emergency drip trays formed from 5052 pre-coated strip provide lightweight, rigid protection that resists friction from rolling machinery, ensuring no paint dust falls into open tool load ports during vehicle docking.

FAQ

Q1:Why is PVDF coating superior to standard polyester or powder coating in semiconductor fabs?

Standard polyester and epoxy powder coatings contain aromatic compounds, plasticizers, and soft resin binders that break down under continuous airflow, generating paint dust and outgassing volatile organic compounds (VOCs). A 70% Kynar 500® PVDF coating provides a tightly crosslinked fluoropolymer lattice that resists chemical breakdown, releases virtually zero outgassing vapors, and does not chalk or shed particles into cleanroom environments.

Q2:How does this material achieve a "non-dusting" rating for cleanrooms?

The coating is applied via continuous liquid roller coating inside positive-pressure cleanrooms and cured at high peak metal temperatures. This process creates a dense, non-porous film that achieves a Rating 10 (zero chalking) per ASTM D4214. The smooth surface resists mechanical erosion from high-velocity air streams, preventing the release of micro-particles into ISO Class 3 to Class 5 cleanrooms.

Q3:What outgassing specifications does this pre-painted coil meet?

Tested in accordance with ASTM E595, our cleanroom-grade PVDF coated coil achieves a Total Mass Loss (TML) of ≤ 0.28% and a Collected Volatile Condensable Material (CVCM) of ≤ 0.02%. These low values prevent airborne molecular contamination (AMC) from condensing onto high-precision optical lenses and silicon wafers.

Q4:Can this coil be laminated into aluminum honeycomb or mineral wool sandwich panels?

Yes. The reverse side of the coil is coated with a specialized epoxy wash primer engineered to promote adhesion with polyurethane, epoxy, and structural acrylic adhesives. The strip's tension-leveled flatness ensures smooth contact across panel faces, preventing adhesive voids, blistering, and delamination.

Q5:How does the coating handle daily washdowns with IPA and disinfectant agents?

The fluorocarbon chemical structure is chemically inert and non-porous. It withstands over 2,000 double rubs with 70% Isopropyl Alcohol (IPA), 10% hydrogen peroxide, peracetic acid, and standard cleanroom detergents without softening, hazing, or losing surface gloss.
