Stucco Embossed Pre-Coated 3003 Aluminum Sheet for Robot Teach Pendant Enclosures

Industrial robot teach pendants, handheld programming terminals, and mobile automated workcell interfaces operate under continuous physical stress in factory environments. Carried by calibration technicians and robotics operators across eight-hour shifts, these handheld consoles face drop impacts onto concrete floors, abrasive rubbing against oily work gloves, continuous exposure to metal cutting fluids, and harsh specular reflections from high-bay overhead factory lighting. When pendant housings are molded purely from thick engineering thermoplastics (such as polycarbonate or ABS), they add bulky weight, lack built-in electromagnetic shielding (EMI) against servo-drive switching transients, and crack along boss points during corner drops. Conversely, smooth metal sheets highlight every surface scratch, show greasy palm prints, and require internal welded stiffeners to prevent flex and oil-canning across wide display spans.

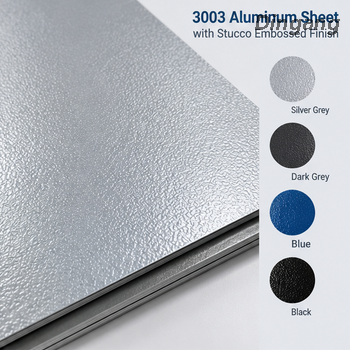

Our Stucco Embossed Pre-Coated 3003 Aluminum Sheet provides an ergonomic, rigid metal substrate designed specifically for lightweight handheld robotics interfaces. Manufactured from manganese-alloyed AA3003 (in H14, H16, or H24 tempers), the sheet is precision roller-embossed with a fine, classic stucco texture that increases mechanical sectional modulus and flexural rigidity by up to 30%, allowing engineers to downgrade metal thickness to save handheld weight without sacrificing dent resistance. The sheet is finished on automated cleanroom roller lines with a durable polyurethane-polyamide or thermoset fluoropolymer resin system (15% to 25% low-gloss sheen). Delivering built-in anti-slip tactile grip, diffuse light scattering to eliminate screen glare, verified Class 5B cross-hatch adhesion, and micro-crack-free formability during tight-radius press-brake bending, this pre-finished sheet allows enclosure fabricators to shear, punch, and assemble rugged teach pendant shells directly from the skid with zero post-forming spray painting.

Product Advantages

Engineering modern robot teach pendant enclosures requires metal stock that balances tactile ergonomics, structural rigidity, and clean press-shop fabrication without post-forming paint lines. Our Stucco Embossed Pre-Coated 3003 Aluminum Sheet pairs manganese-alloyed base metal with mechanical texturing and tough surface chemistry. The calibrated stucco embossing creates continuous multi-directional geometric ridges that increase the panel’s section modulus, boosting flexural stiffness by up to 30% compared to smooth sheet. This allows designers to use thinner gauges (such as 1.0mm instead of 1.5mm), reducing overall handheld pendant weight to ease operator fatigue during programming runs. The specialized polyurethane-polyamide coating achieves a 3H pencil hardness, resisting scratches from dropped wrenches, rough work gloves, and metal umbilical connectors. The low-gloss (15% to 25%) matte texture diffuses high-bay factory lighting to prevent screen glare, while the textured surface masks greasy fingerprints and provides a secure, non-slip grip. Delivering pre-finished blanks directly to your CNC punch presses and press brakes eliminates the orange-peel flaws, color variation, and extended lead times of outsourced batch powder coating.

Key Performance Advantages for Robot Teach Pendant Enclosures

30% Higher Sectional Stiffness: Embossed geometric pattern prevents panel oil-canning and resists drop denting without requiring welded internal stiffener ribs.

Non-Slip Ergonomic Tactile Surface: Textured stucco finish provides a secure hand-grip for operators wearing leather or nitrile work gloves coated in cutting oils.

3H Industrial Scratch Resistance: Polyamide-reinforced resin matrix withstands abrasion from tools, dragging cables, and rough workbench surfaces without scratching to bare metal.

Anti-Glare Diffuse Optical Finish: Low-gloss 15% to 25% sheen scatters overhead factory illumination, preventing specular reflections around HMI touchscreens.

Direct Press-Brake Formability: High coating flexibility allows clean 90° corner bends down to 1.5T with zero paint flaking over embossed ridges, bypassing secondary spray lines.

Complete Product Specifications

Quality Control & Production Reliability

Producing stucco-embossed pre-coated 3003 sheet for handheld enclosures requires precise control over base alloy grain structure, roll-embossing nip pressure, and coating adhesion across textured pattern peaks.

Tailored B2B OEM & Processing Services

Precision CNC Blanking with Tight Diagonal Tolerances for Turret Punching

Equipped with multi-roll precision leveling and high-speed shearing lines, we supply custom pre-cut rectangular blanks up to 3500mm in length. Blank length and width tolerances are held within ±0.20mm with diagonal squareness held under 0.5mm, ensuring jam-free automated feeding into CNC turret punch presses and panel benders.

Micro-Perforated Laser & Forming Protective Film for Textured Surfaces

Sheets can be laminated with specialized 70 to 100-micron multi-layer co-extruded PE protective films designed specifically for embossed metal. Formulated with a controlled-tack acrylic adhesive (60 to 80 g/25mm), the film adheres securely into the recessed valleys of the stucco pattern during shearing, laser cutting, and press braking without lifting, peeling away cleanly on assembly lines without leaving adhesive residue.

Custom Low-Gloss Industrial Color Matching & Two-Tone Contrasts

While Machine Tool Grey (RAL 7035), Slate Grey (RAL 7015), Anthracite (RAL 7016), and Signal Black (RAL 9005) are standard robotics colors, we formulate custom corporate equipment shades within 48 hours. Formulations use inorganic ceramic pigments to ensure uniform low-gloss (15% to 25%) matte texture and consistent color across separate production batches.

Anti-Abrasion Skid Packaging with Eye-to-Sky Moisture Barrier Protection

Finished sheets are interleaved with acid-free moisture-proof paper to prevent pattern-to-paint abrasion during transport. Bundles are wrapped in vapor corrosion inhibitor (VCI) anti-rust barriers, sealed inside heavy-gauge polyethylene covers, fitted with reinforced steel corner protectors, and banded to heavy-duty fumigated wooden pallets designed for containerized ocean shipping.

Industrial Applications

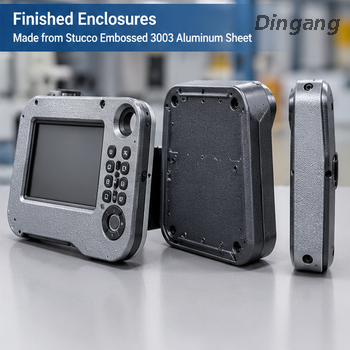

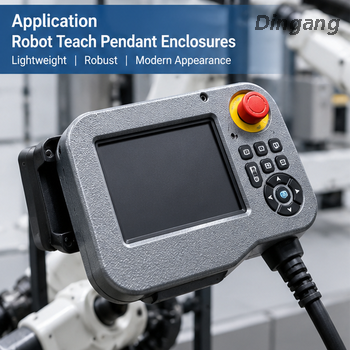

Six-Axis Articulated Robot Teach Pendant Rear Enclosure Shells

Handheld teach pendants for 6-axis welding and handling robots feature broad rear metal covers that house internal communication boards, rechargeable battery packs, and safety deadman switches. Stamped and folded from 1.0mm to 1.2mm 3003 stucco-embossed pre-coated sheet, these rear covers provide rigid drop protection. The textured finish gives technicians a secure grip while the solid aluminum base provides natural electromagnetic shielding (EMI) against servo-drive high-frequency switching noise.

Autonomous Forklift & Reach Truck Wheel Fender Shrouds

Teach pendant upper fascias feature prominent mounting cutouts for red mushroom emergency-stop pushbuttons, enable switches, and keylock selector dials. Punched from 1.2mm to 1.5mm stucco sheet coated in Safety Yellow (RAL 1023) or Signal Grey (RAL 7004), these bezels endure high-frequency switch impacts. The tough coating shears cleanly along narrow switch cutouts without paint flaking, while the textured surface masks thumb scuffs and glove dirt.

Collaborative Robot (Cobot) Handheld Guiding Tablet Backplates

Lightweight collaborative robots frequently utilize detachable tablet-sized wireless interfaces for direct lead-through programming. Fabricated from 0.8mm to 1.0mm stucco-embossed 3003 sheet, these slim backplates shed weight to keep the tablet light in hand. The embossed pattern diffuses reflection from nearby safety indicator lights and resists scratching when rested on rough automated machinery surfaces.

Workcell Wall-Mounted Docking Cradle & Charger Liners

When not in active use, teach pendants rest in stationary docking cradles or automated charging holsters mounted to safety fences. Lining cradle surfaces with 1.2mm stucco-embossed pre-coated sheet protects both the holster and the pendant body from abrasive friction. The textured surface minimizes contact surface area, preventing scuff marks and paint transfer during repeated daily insertions.

CNC Rotary Table & Pallet Pool Mobile Setup Pendants

Machining centers utilize handheld auxiliary operator pendants for manual axis jogging and workpiece probe calibration. Stamped and brake-formed from 1.2mm 3003 stucco sheet, these enclosures endure continuous misting from water-soluble cutting coolants and lubricating oils. The chemical-resistant polyurethane topcoat prevents fluid ingress from softening or blistering the finish, while the textured metal hides minor dents from flying metal chips.

FAQ

 Q1:Why is stucco-embossed AA3003 preferred over smooth AA5052 for handheld teach pendants?

While AA5052 provides high raw yield strength, using it in smooth sheet form leaves panels prone to oil-canning across wide flat spans and easily shows scratches. Stucco-embossed AA3003 uses geometric ridge corrugation to increase flexural stiffness by up to 30%, matching the rigidity of smooth 5052 while allowing the use of lighter-gauge metal (reducing handheld wrist fatigue). The embossed texture also scatters light to prevent screen glare and provides an ergonomic, non-slip grip.

Q2:Will the pre-painted coating crack or flake along the embossed ridges during 90° press braking?

No. The polyurethane-polyamide coating incorporates elastomeric resin flexibilizers that deliver a T-bend rating of ≤ 1.5T and Class 5B cross-hatch adhesion. It deforms cleanly with the metal substrate across embossed peaks and valleys during sharp 90° brake bending, preventing micro-crazing and edge peeling along formed housing flanges.

Q3:What punch-to-die clearances prevent burrs when punching emergency-stop and display openings?

For 1.0mm to 1.5mm stucco-embossed 3003 sheet, we recommend setting the total punch-to-die clearance at 8% to 10% of nominal metal thickness per side, calculated from the base sheet thickness (excluding embossing peak height). Maintaining sharp carbide punches with light clearance prevents coating drag and keeps cut-edge burrs below 0.012mm around button and screen openings.

Q4:How does the textured coating withstand water-soluble CNC coolants and hydraulic oils?

The fully cured polyurethane-polyamide resin forms a dense, non-porous chemical barrier. It withstands continuous exposure to synthetic water-soluble machining coolants, mineral lubricating oils, and 70% isopropyl alcohol cleaning wipes without softening, swelling, or losing surface hardness.

Q5:How do assembly workers establish electrical chassis grounding across the coated embossed sheet?

Because the coating functions as an electrical insulator, grounding studs require direct metal-to-metal contact. This is achieved using serrated grounding star-washers or self-clinching studs (such as PEM® studs) that penetrate the 25-micron paint film and bite into the aluminum base during assembly. Alternatively, designated grounding contact areas can be masked prior to blanking.
