AAMA 2604 Standard Pre-Painted Aluminum Coil | High-Performance Coating for Commercial Storefronts

Product Overview

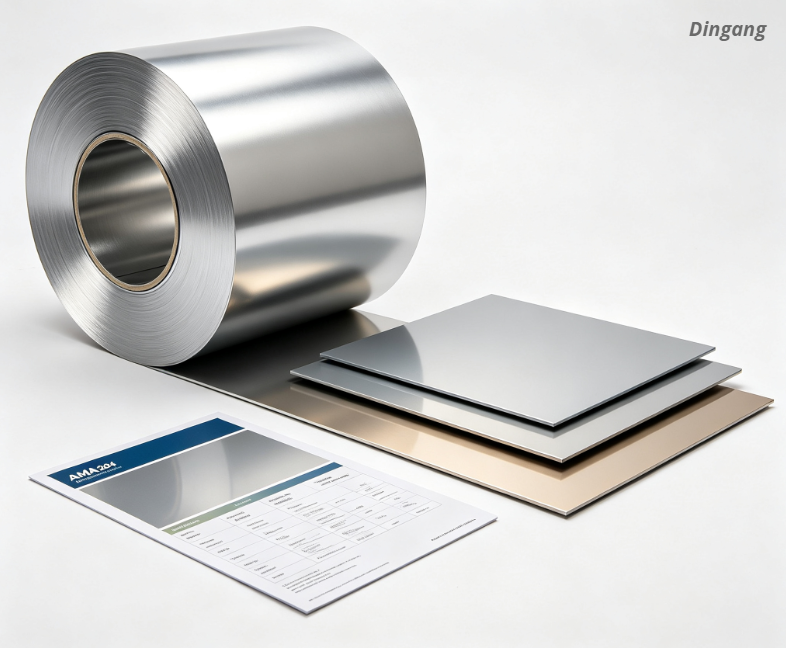

Designed specifically to meet the high mechanical wear and environmental demands of retail developments, educational campuses, and low-rise office complexes, this high-performance color-coated aluminum coil is certified to the AAMA 2604 voluntary specification. Commercial entryways, storefront framing, and window wall systems experience continuous physical contact, cleaning chemical exposure, and high solar radiation. Standard polyester finishes frequently suffer from early color degradation, scuffing, and localized gloss loss under these heavy operational loads.

This high-performance architectural product utilizes premium-grade manganese-magnesium aluminum substrates—such as AA3003 or AA5052 complying with ASTM B209 codes—which are processed through an automated continuous roller coating sequence. Armored with a specialized 50% fluorocarbon PVDF system or a highly cross-linked, premium silicone-modified polymer (SMP) resin matrix, the surface layer complies with the rigorous performance benchmarks of AAMA 2604. It maintains its structural and visual integrity over a 5-year real-world South Florida atmospheric exposure testing cycle, offering a cost-effective, highly durable cladding alternative for premium commercial entries.

Product Advantages

Commercial storefronts and retail entryways are high-traffic structural environments. Continuous door impacts, maintenance cleaning, pedestrian traffic, and solar exposure require high material durability. Standard polyester materials often show premature surface scuffing, color fading, or edge chalking, which compromises the corporate brand appearance. Our AAMA 2604 certified pre-painted aluminum coil provides reliable exterior performance by balancing mechanical flexibility with hard, UV-resistant resin systems.

Key Performance Advantages for Commercial Storefronts

• Verified AAMA 2604 Compliance Matrix: Formulated to withstand 3000 hours of continuous salt fog exposure and humidity testing, preventing surface blistering and paint creeping.

• Balanced 50% PVDF Resin Architecture: Offers an efficient balance of cost and performance, delivering high UV stability and color protection for intermediate commercial properties.

• Excellent Scuff & Impact Parameters: Reaches a ≥ 2H pencil hardness rating, resisting everyday surface scratches from shopping carts, luggage, and pedestrian contact.

• Precision Edge-Slitting Capabilities: Tension-leveled to ensure flat, uniform feeding during high-speed roll forming, stamping, and automated profile pressing..

Complete Product Specifications

Quality Control & Production Excellence

Our advanced roller coating and curing lines execute precise physical evaluations on each production run, validating AAMA 2604 performance parameters to guarantee absolute material longevity.

B2B Sourcing & Customization Services

To support large-scale retail developments and commercial facade projects, we provide procurement managers with comprehensive customization options:

Customized Storefront Color Formulation

We match colors to standard RAL, Pantone, and custom corporate branding catalogs, producing consistent solid and metallic shades for storefront systems.

Precision Ribbon Slitting Solutions

Coils can be pre-slit into narrow widths (such as $100\text{mm}$, $150\text{mm}$, or $200\text{mm}$) with clean edges, optimized for automated storefront profile cladding lines.

Heavy-Duty Sea Freight Packaging Protection

All shipments utilize core protection, heavy airtight vapor barriers packed with moisture-absorbing desiccant materials, and rugged steel outer casings on reinforced wooden pallets to withstand sea transit.

Industrial Applications

This AAMA 2604 high-performance pre-painted aluminum coil is specified by window-wall fabricators and facade contractors for a wide variety of commercial and institutional structures:

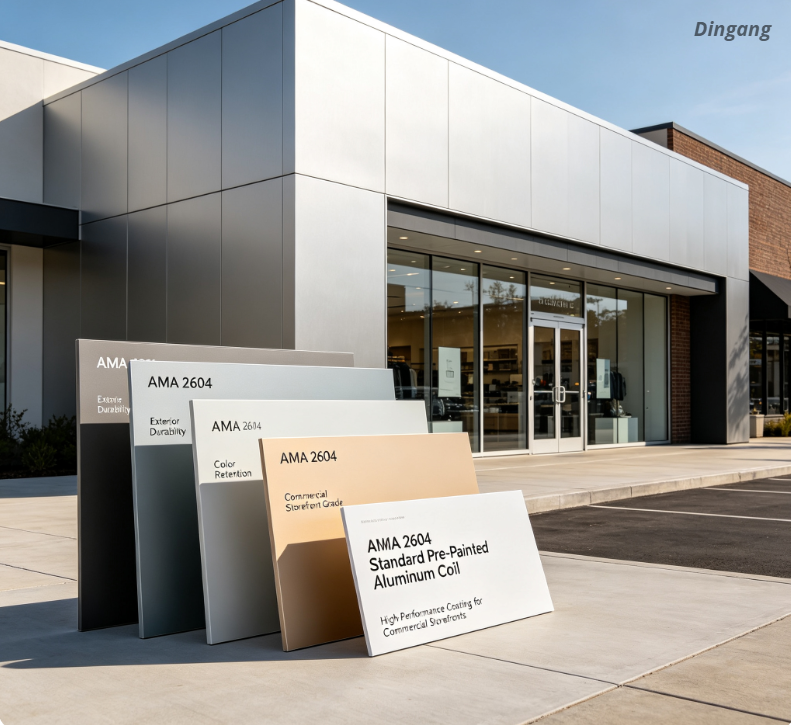

Commercial Storefronts & Glazing Systems

Supplies the raw metal sheet material for fabricating entrance doors, storefront window framing, corner mullions, and exterior transoms.

Window Wall Cladding & Spandrel Panels

The preferred choice for manufacturing intermediate spandrel cassettes, curtain wall accent pieces, and structural columns in low-to-mid-rise office buildings.

Automated Entrance Systems & Revolving Doors

Provides a flat, durable, scratch-resistant surface finish for automated sliding door housings, revolving door frames, and surrounding control enclosures.

External Architectural Louvers & Sunshades

Commonly slit into narrow strips for automated processing into exterior ventilation louvers, structural sunshades, and accent fins.

Educational Campuses & Public Facility Canopies

Provides a clean, durable, low-maintenance protective skin for high-traffic walkway canopies, soffits, and institutional entry configurations.

FAQ

Q1:What differentiates the AAMA 2604 specification from the higher AAMA 2605 performance standard?

AAMA 2604 requires a 5-year atmospheric exposure test with 50% PVDF or high-performance resin systems, making it suitable for low-to-mid-rise commercial buildings and storefronts. AAMA 2605 requires a stricter 10-year exposure test using 70% PVDF formulations, specified for high-rise monumental curtain walls.

Q2:How does a 50% PVDF blend improve performance compared to standard architectural polyester?

Standard polyester finishes can fade and chalk within a few years of high UV exposure. A 50% PVDF blend uses strong carbon-fluorine bonds that resist solar radiation, ensuring superior color stability (ΔE ≤ 5.0) over extended service lifetimes.

Q3:Can this pre-painted coil handle sharp 90-degree corner folding without cracking the paint?

Yes. Our high-performance coatings are formulated for excellent elasticity, achieving a bend rating of ≤ 2T. This allows for clean mechanical folds and sharp corner profiles on storefront framing cassettes without paint delamination.

Q4:Why is a ≥ 2H pencil hardness parameter important for commercial storefront entries?

Commercial entrances face continuous contact from pedestrian foot traffic, keys, bags, and shopping carts. Achieving a ≥ 2H pencil hardness prevents everyday surface scratches and scuffs, keeping storefronts looking professional over time.

Q5:What alloy series is recommended for fabricating roll-formed window wall accessories?

We recommend the AA3003 or AA5052 alloy series. AA3003 provides high formability for general trim work, while magnesium-stabilized AA5052 delivers superior yield strength and wind load resistance for larger structural cassettes.

Q6:What packaging steps protect the coils from oxidation and moisture damage during sea transit?

Each coil is enclosed in a multi-layered protective envelope. Coils are core-wrapped, packed with heavy-duty moisture-absorbing desiccant materials, sealed inside a rugged protective steel sheet enclosure, and securely strapped to reinforced, fumigated wooden pallets for safe ocean transport.

Request an AAMA 2604 Storefront Specification Quote

Are you currently structuring project submittals, managing retail facility tenders, or sourcing high-durability raw materials for a commercial storefront, window wall, or entrance system contract? Send your target thickness, width, color code, and volume requirements to our technical sales team for an engineering-grade quote and physical sample verification within 12 hours.
