Can Ultra-Smooth Anodized Mirror Aluminum Plates Eliminate Light Glare in Heads-Up Display (HUD) Units?

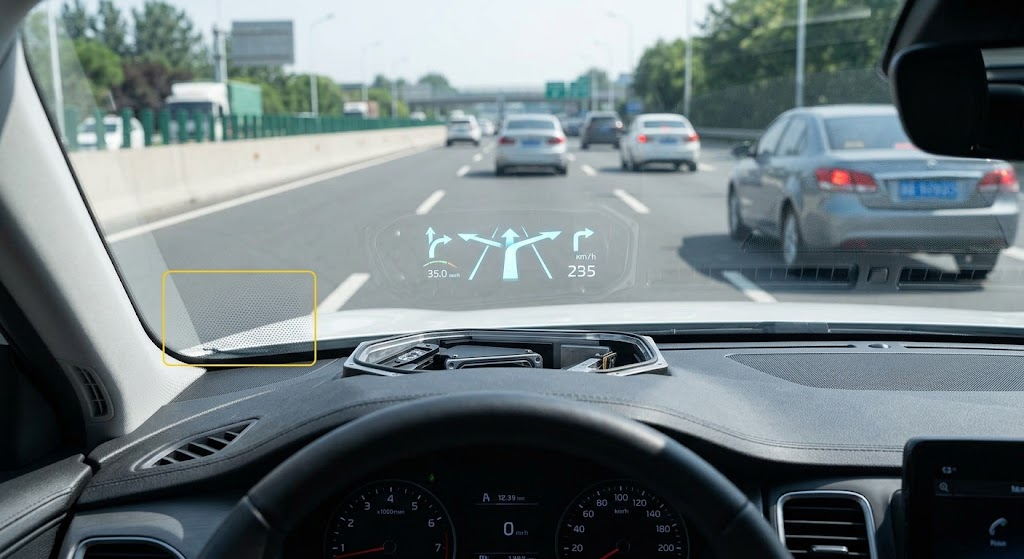

Automotive Heads-Up Displays (HUDs)—including advanced Augmented Reality HUDs (AR-HUDs)—project critical speed, navigation, and ADAS telemetry directly onto windshields within the driver's primary field of view. To deliver high-contrast virtual images under bright sunlight while remaining compact within cramped instrument panels, HUD Picture Generation Units (PGUs) rely on high-precision optical folding mirrors and optical housings.

Ultra-smooth anodized mirror aluminum plates (high-purity 1000 and 5000 series aluminum alloys subjected to mechanical/chemical polishing and continuous anodization) provide a targeted solution for glare control and optical reflection. By pairing high total specular reflectance (≥ 86% - 92%) with zero-stray-light anodized surfaces and anti-glare micro-textures, these engineered aluminum plates effectively mitigate unwanted internal optical glare, suppress ghosting, and streamline thermal dissipation in modern automotive HUD units.

The Stray Light & Sunlight Trap Problem

HUD units installed beneath dark windshield dashboards operate in challenging optical conditions:

Sunlight Trapping (Sun-Burn Hazard): Direct sunlight entering through the windshield can focus through HUD mirrors back onto the TFT/DLP display panel, risking thermal damage to the display engine.

Secondary Optical Glare & Ghosting: High-intensity LED backlights inside the PGU reflect off internal housing walls and mirror edges. If unmanaged, this stray light escapes onto the windshield as a blurry background halo (glare), impairing driver visibility.

Comparison: Conventional Painted Plastic Housing vs. Anodized Mirror Aluminum Plate

HUD Mirror & Housing Materials

The matrix below compares traditional HUD material approaches against ultra-smooth anodized mirror aluminum plates:

Key Professional Advantages for Automotive HUD Systems

Elimination of Stray Light Glare & Background Halos

Trapping Stray Photons: Selective black anodizing on peripheral mounting frames absorbs non-collimated light, preventing internal scatter from bleeding onto the windshield display area.

Elimination of Multi-Reflection Ghosting: The ultra-thin oxide sealing layer ( <3μm) prevents secondary front-surface refractive ghosts, ensuring crisp vector text and navigation graphics.

View More >>

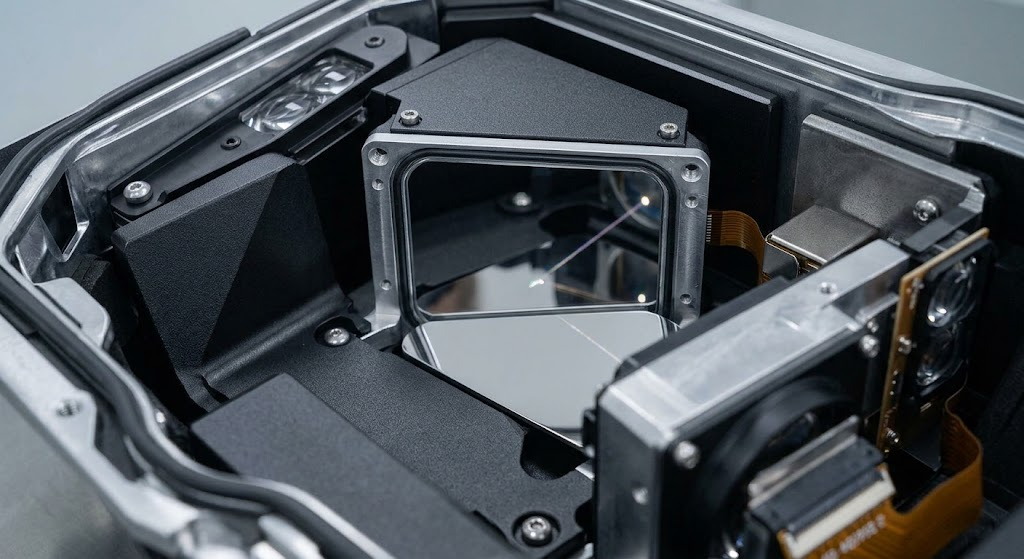

Dual-Function Structural Radiator & PGU Cooling

Direct Backlight Heat Sinking: High-luminance AR-HUD engines generate substantial localized heat from high-wattage LED array sources. Anodized mirror aluminum acts as both an optical reflector and an active thermal spreader (>200 W/m·K), pulling thermal energy away from display chips.

Prevention of Optical Alignment Drift: Unlike plastics that experience thermal expansion and creep under cabin heat (>80°C), aluminum maintains tight dimensional stability, preventing virtual image distortion or alignment drift.

View More >>

Zero Outgassing & Long-Term Cabin Reliability

Protection for Sensitive Internal Lenses: Volatile organic outgassing from traditional plastics or spray paints coats delicate internal lenses with a cloudy film over time. Inorganic anodized aluminum releases zero volatile compounds, preserving long-term HUD optical clarity.

UV & Scratch Resistance: The micro-hard anodic oxide coating (~ 300 - 400 HV) protects mirror surfaces from scratches during assembly handling and prevents yellowing under persistent solar UV exposure.

View More >>

Micro-Smooth Polishing & Specular Reflected Light Path

The surface quality of mirror aluminum directly dictates image clarity and haze:

Electro-Chemical Polishing (Ra < 0.02μm): Super-pure aluminum alloys (1080 or 5657, Al ≥ 99.8%) undergo electro-brightening to eliminate microscopic surface peaks. This reduces diffuse light scattering (Haze < 0.5%) and directs light exclusively along the intended optical path to the combiner mirror.

Continuous Anodizing Seal Protection: A thin, dense transparent aluminum oxide film (Al₂O₃, 2μm - 5μm) seals the polished surface, preventing ambient oxidation, fingerprints, and environmental degradation without dulling specular reflectance.

Dual-Zone Selective Anodizing for Anti-Glare Efficiency

Mirror Projection Zones vs. Dark Absorption Zones: Using mask-anodizing technology, specific panel regions are bright-anodized for high-efficiency reflection, while non-optical mounting flanges and inner sidewalls are matte-black anodized (aₛ > 0.95). This traps stray photons before they can escape toward the driver's line of sight.

High-Purity Substrate Selection & Refining

High-Purity Alloy Cores (1080 / 5657-H18): Using high-purity aluminum prevents iron (Fe) and silicon (Si) intermetallic inclusions, which cause surface pitting or cloudy streaks during brightening.

Precision Tension Levelling: Coils undergo tension-leveling processes to ensure tight flat tolerances (≤ 0.1 mm/m), preventing optical focal shifts and image distortion across the HUD field of view.

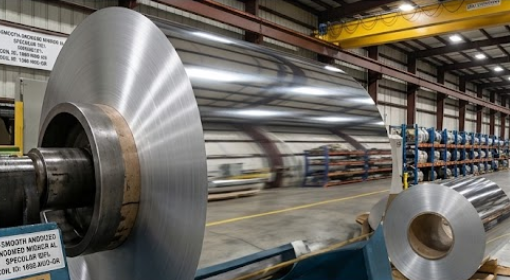

Continuous Coil Anodizing & Black Absorption Dyeing

Sulfuric Acid Anodizing Bath: The polished aluminum web travels through continuous sulfuric acid electrolysis tanks to grow a highly uniform, nanoporous anodic oxide matrix.

Inorganic Black Oxide Sealing: For glare-trapping zones, black inorganic metal salts are deposited deep into the porous anodic layer and hydrothermal sealed (>98°C), ensuring zero-fading performance under long-term UV exposure behind windshields.

CNC Shearing, Thermal Outgassing & Optical Audits

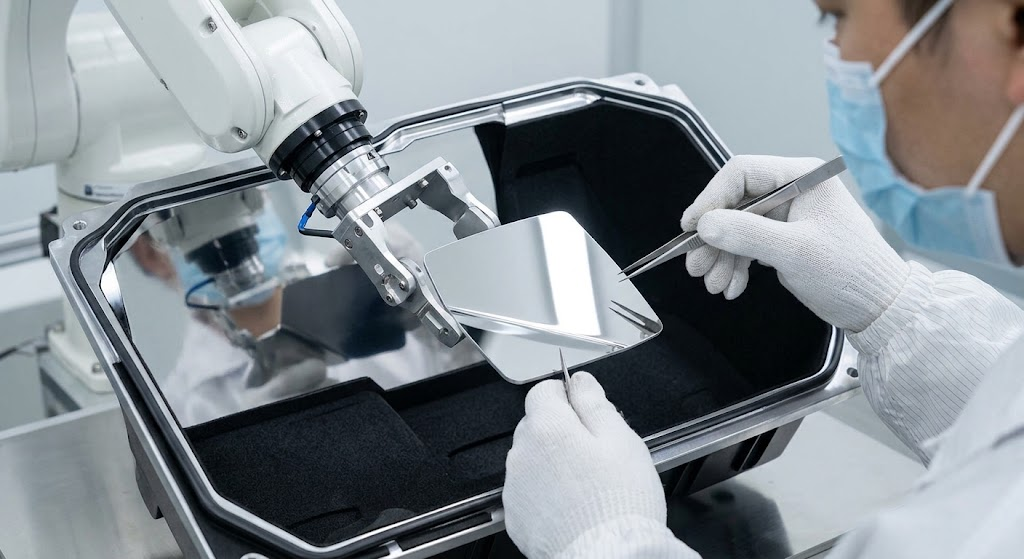

Dust-Free Cleanroom CNC Machining: Mirror plates are stamped or laser-cut inside Class 10,000 cleanrooms using protective PE films to prevent surface micro-scratches during processing.

Zero Outgassing Audit: Oxide layers are inorganic and completely free of volatile organic compounds (VOCs), passing thermal outgassing tests (100°C for 72 hours) to ensure zero haze accumulation on sensitive HUD optics.

FAQ

Q1:How do anodized mirror aluminum plates eliminate light glare in HUD units?

A:By combining ultra-smooth electro-polished specular zones (which direct light precisely toward the windshield) with integrated matte-black anodized border areas, the aluminum plate traps stray photons and prevents internal light scattering that causes background glare and halos.

Q2:Can anodized aluminum mirrors match the optical reflectivity of glass mirrors?

A:Yes. High-purity anodized mirror aluminum plates (1080 / 5657 alloys) achieve specular reflectance levels between 88% and 92%, closely matching first-surface glass mirrors while offering superior shatter resistance, lighter weight, and easier mechanical mounting.

Q3:Does the anodized oxide layer craze or crack under high automotive dashboard temperatures?

A:No. Precision-controlled thin anodic coatings (2μm - 5μm) are engineered to withstand continuous operating temperatures ranging from -40°C to +105°C without crazing or delaminating.

Q4:How does mirror aluminum aid in HUD thermal management?

A:Aluminum has a high thermal conductivity (180 - 220 W/m·K). When used for internal mirrors and PGU structural panels, it rapidly conducts heat away from high-power LED/laser light sources, reducing panel operating temperatures and preventing thermal warping.

Q5:Will the reflective surface degrade or haze over time inside the vehicle?

A:No. The hard electro-chemically sealed anodic oxide layer (Al₂O₃) permanently seals the aluminum surface, protecting it against atmospheric oxidation, ambient humidity, and UV exposure.

Conclusion

To maximize optical reflection while eliminating stray light glare in automotive HUD PGU design:

Specify High-Purity Alloy Substrates (1080H18 or 5657-H18): Require high purity (Al ≥ 99.8%) to ensure high specular brightness (≥ 88%) and ultra-low diffuse haze (<0.5%).

Utilize Dual-Finish Selective Anodizing: Design mirror plates with specular polished optical zones surrounded by integrated matte-black anodized edges to trap internal stray light.

Mandate Outgassing & Flatness Certifications: Enforce zero-outgassing requirements per ISO 12219-4 and specify flat mechanical tolerances (≤ 0.1mm/m) to maintain sharp, haze-free virtual images across wide cabin operating temperatures.
