The Technical Impact of Slitting Edge Burrs on Automated Aluminum Roll Forming Lines

In automated high-speed aluminum roll forming, the quality of the incoming slit coil edge directly dictates continuous line uptime, forming accuracy, and final profile geometry. While roll forming engineers frequently focus on roll pass design, bend radius limits, and inter-pass speed synchronization, slitting edge burrs represent a critical, often hidden root cause of catastrophic equipment stoppages, severe tooling wear, and unacceptable scrap rates.

When raw master coils of aluminum alloy (such as 3003, 3105, or 5052) are slit into narrow strips, improper rotary shear blade setups leave vertical projection burrs along the slit edge. On continuous automated roll forming mills, these hardened metal micro-projections act as cutting chisels against precision-ground chrome rolls, jam side-guiding tracks, trigger automated sensor errors, and induce micro-cracking during severe progressive bending.

The Mechanics of Aluminum Slitting & Edge Burr Generation

Rotary slitting shears coil stock by compressing the material beyond its ultimate shear strength between upper and lower circular knives.

Shear Strain Dynamics, Fracture Zone Mechanics, and Shear-to-Break Ratios

A precision slit edge exhibits three distinct metallurgical zones across the thickness cross-section:

1. Top Rollover: The initial plastic deformation zone created as the knife penetrates the strip.

2. Shear Burnish Band: The smooth, vertical cut surface created during steady-state shearing.

3. Fracture Zone & Burr: The rough area where tension exceeds material tensile strength, resulting in a sudden break.

Tooling Root Causes: Clearance Misalignment, Knife Wear, and Horizontal Runout

Burrs are caused primarily by improper setup or degraded rotary slitting knives:

Excessive Horizontal Knife Clearance: Causes the aluminum to fold down between the blades rather than shear cleanly, resulting in a flexible, hook-like burr along the bottom strip edge.

Insufficient Clearance: Forces double-shearing, generating secondary micro-burrs and sliver debris that contaminates the coil web.

Knife Radius Wear & Chipping: Dull shear edges increase penetration forces, increasing rollover depth and creating uneven burr heights.

Arbor Deflection & Horizontal Runout: Loose arbor bearings or uncalibrated spacer setups allow horizontal knife drift under load, leading to cyclic burr height variations along the coil length.

Slitting Burr Severity Thresholds & Operational Risk Matrix

Engineering Mitigation Strategies: Precision Slitting & In-Line Edge Conditioning

Eliminating edge burr problems requires controls at both the coil slitting plant and the customer's roll forming feed entry.

In-Line Edge Conditioners, Edge Deburring Rolls, and Scrap Chopper Optimization

When processing master coils with minor residual burrs, roll forming line entry tables can incorporate active edge-conditioning hardware:

Motorized Edge-Deburring Rolls: Opposing hardened-steel carbide rollers compress edge burrs back into the strip margin prior to the first forming station.

Planar Edge Trimming / Rotary Carbide Deburrers: High-speed carbide cutters shave off edge projections, creating a smooth, radiused edge profile.

Scrap Chopper

Synchronization: Maintains uniform web tension during coil slitting, preventing edge tearing caused by scrap line speed lagging.

View More >>

Blade Clearance Calculation (% of Gauge), Knife Arbor Rigidity, and Polyurethane Stripper Rings

Precision slitting relies on adjusting blade clearance according to alloy temper and gauge:

Clearance Per Side(C) = K × T

Where:

T = Material Thickness (mm)

K = Clearance Factor (0.04 - 0.08 for soft aluminum 1000/3000 series}; 0.08 - 0.12 for work-hardened 5000/6000 series)

Using ultra-rigid, large-diameter knife arbors with hydraulic locking nuts prevents arbor flexing. Pairing these with precision-ground polyurethane stripper rings supports the strip edge, preventing rollover distortion during shearing.

View More >>

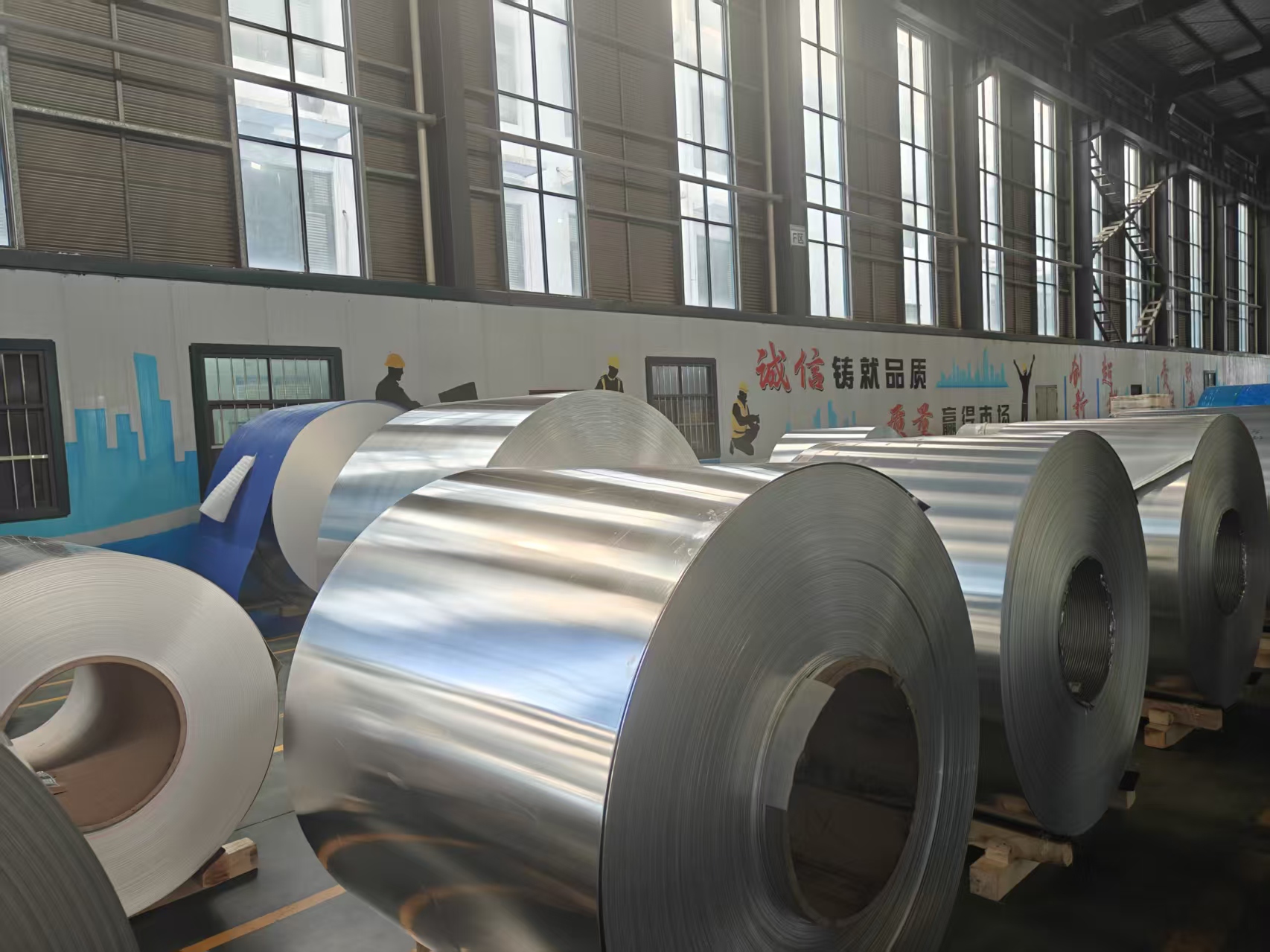

Export Packaging Controls & Zero-Burr Quality Assurance

Operating under certified ISO 9001 and ISO 14001 quality frameworks, Changzhou Dingang Metal Material Co., Ltd. (China) ensures every coil shipment meets strict international standards. Slit coils undergo edge-quality inspection before being wrapped in VCI anti-corrosion barrier film, padded with high-density edge protectors, and secured on heavy-duty wooden skids (eye-to-sky or eye-to-wall) for safe global transport.

View More >>

Roll Pass Friction, Chrome-Plated Die Scuffing, and Tooling Galling

Roll forming tooling depends on polished, hard-chrome-plated tool steel (e.g., D2, SKD11) to maintain surface finish on painted or mill-finish aluminum. Edge burrs act as localized high-pressure contact points against the roll radii:

Galling & Aluminum Transfer: High contact pressure strips protective lubricants, causing soft aluminum to cold-weld onto the steel roll surface (galling).

Abrasive Scuffing: Once aluminum pick-up begins on a roll station, it scratches subsequent sections of the coil web, causing cosmetic surface defects across entire production runs.

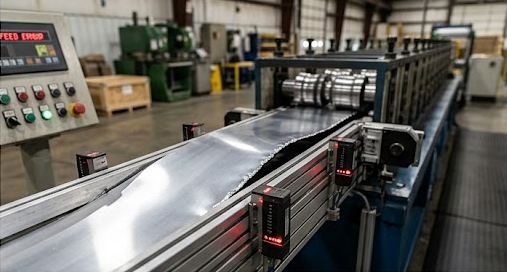

Guiding System Jamming, Sensor Misreads, and Automatic Feeding Faults

Automated lines rely on entry guide tables, side-roller cassettes, and optical width-tracking sensors to maintain centerline alignment:

Physical Jamming: Heavy burrs increase effective strip width at localized points. These burrs dig into hardened side-guide plates, causing strip buckling or sudden feeder stops.

Optical Sensor Errors: Burrs obscure clean strip edges, causing laser or photoelectric edge-trimmers and guiding sensors to misread strip width. This results in continuous, unwanted machine steering corrections.

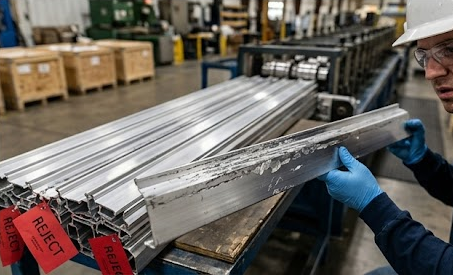

Edge Buckling, Wave Defects, and Flare at Flying Cut-Off Presses

Edge burrs introduce non-uniform residual stress concentrations along the slit margin:

Edge Wave & Center Buckle: Work-hardened burrs alter local stretch resistance during progressive bending, resulting in longitudinal edge wave defects.

End Flare at Cut-Off: When profiles pass through flying shear dies, edge burrs disrupt clean punch shearing. This alters residual stress release at the cut end, causing profile end flare (outward opening of profile legs) beyond quality tolerances.

Measurement Methodologies: Optical Profilometry, Micrometers, and Metallurgical Cross-Sections

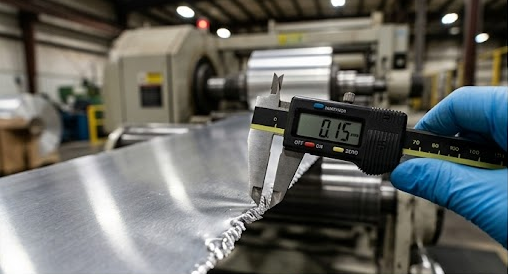

Point-Contact Anvil Micrometer: Rapid shop-floor measurement comparing maximum edge thickness against center-strip gauge.

Non-Contact 3D Optical Profilometry: Uses laser triangulation to map edge profiles, providing precise metrics for rollover depth, burnish band height, and peak burr altitude (μm).

Metallurgical Sectioning: The gold-standard laboratory technique. Edge samples are mounted in resin, polished, and micro-examined under microscopy to evaluate work-hardening depth and micro-fractures.

Industry Edge Quality Standards (ASTM B659 / DIN EN 485 Compliance)

Global aluminum coil specifications regulate maximum allowable edge projections:

DIN EN 485-4: Mandates that slit edge burr height for precision cold-rolled aluminum sheet must not exceed 5% of nominal thickness, capped at a maximum of 0.10 mm for heavy-gauge stock.

ASTM B209 / B659 Guidelines: Mandates burr-free edges for coil stock intended for continuous automated processing, specifying that burrs must not interfere with downstream coil feeding or mechanical joining.

FAQ

Q1:What is the maximum acceptable slitting burr height for automated aluminum roll forming?

A:As a general engineering standard, the maximum burr height should not exceed 5% of nominal strip thickness (Class B). For high-speed lines or high-gloss architectural profiles, burr heights should be kept below 3% (< 0.03 mm for 1.0mm stock) to prevent roll galling and feeding faults.

Q2:How does blade clearance differ when slitting soft aluminum (O-temper) vs. hard alloys (H18/H38)?

A: Soft aluminum (e.g., 3003-O) requires tighter knife clearances (3% - 6% of thickness) to shear cleanly without excessive edge dragging or stretching. Hard alloys (e.g., 5052-H38) require wider clearances (8% - 12% of thickness) to facilitate clean crack propagation through the fracture zone without double-shearing.

Q3:What is the difference between an edge burr and edge wave in slit coil?

A:A burr is a localized vertical projection of metal along the cut line caused by shearing mechanics. An edge wave is a macro-level buckle along the strip margin caused by differential longitudinal stretching during slitting (often from excessive stripper ring pressure or uneven knife arbor nip).

Q4:Can edge burrs cause paint chipping on pre-painted aluminum roll forming lines?

A:Yes. Heavy burrs focus severe bending stresses along the slit edge, causing pre-applied organic coatings (PVDF, PE, or Epoxy) to crack, micro-flake, or delaminate during aggressive roll-forming pass sequences.

Q5:How can a roll forming plant quickly deburr coil in-line if incoming stock has heavy edge burrs?

A:Installing a standalone in-line edge-conditioning unit directly after the uncoiler—equipped with carbide deburring disks or hardened opposing pinch-compression rollers—compresses or shaves edge burrs before the material enters the guiding entry table.

Conclusion

Edge quality is a foundational requirement for high-speed automated aluminum roll forming operations. By establishing strict slitting tolerances, calculating correct shear clearances, and partnering with precision coil slitting suppliers, roll forming manufacturers can eliminate expensive line stoppages, protect precision tooling, and maintain high production yields.
