AA1100 Color Coated Aluminum Coil for Curtain Wall Panels

AA1100 color coated aluminum coil for curtain wall and facade panel fabrication, available in 0.3-1.5mm thickness, 1000-1600mm width, PVDF or PE coatings, custom colors and machine-ready coil sizes.
  • AA 1100

  • Dingang

  • 7606125900

Availability:
Quantity:

AA1100 Color Coated Aluminum Coil for Curtain Wall & Facade Panels

AA1100 color coated aluminum coil is designed for architectural curtain-wall skins, facade panels, soffits, decorative wall systems and other non-structural exterior or interior metal components requiring good formability, consistent color and a factory-applied coating finish.

The substrate is AA1100 aluminum with approximately 99.0% aluminum content. Available tempers include O, H14 and H18, with thicknesses from 0.3mm to 1.5mm and widths from 1000mm to 1600mm according to the current product range.

PE polyester and PVDF fluoropolymer coating systems are available. For demanding exterior facade exposure, a project-qualified PVDF system is normally preferred where stronger long-term resistance to UV exposure, color change, chalking and weathering is required.

AA1100 provides excellent formability and corrosion resistance but has lower substrate strength than many 3xxx and 5xxx architectural aluminum alloys. It is therefore best specified as a curtain-wall or facade panel skin according to the complete panel design rather than treated as a universal structural facade material.

Request AA1100 Curtain Wall Coil Pricing

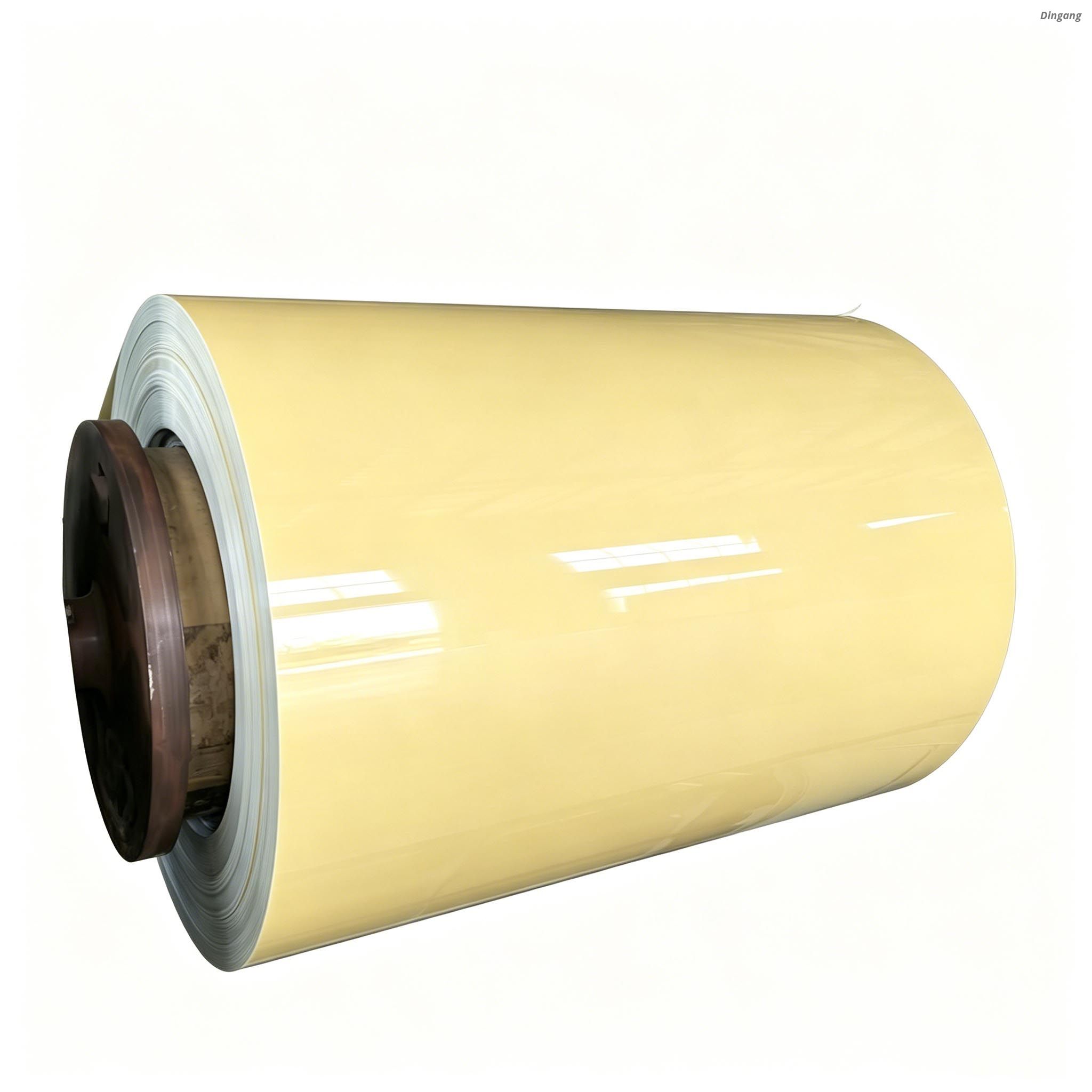

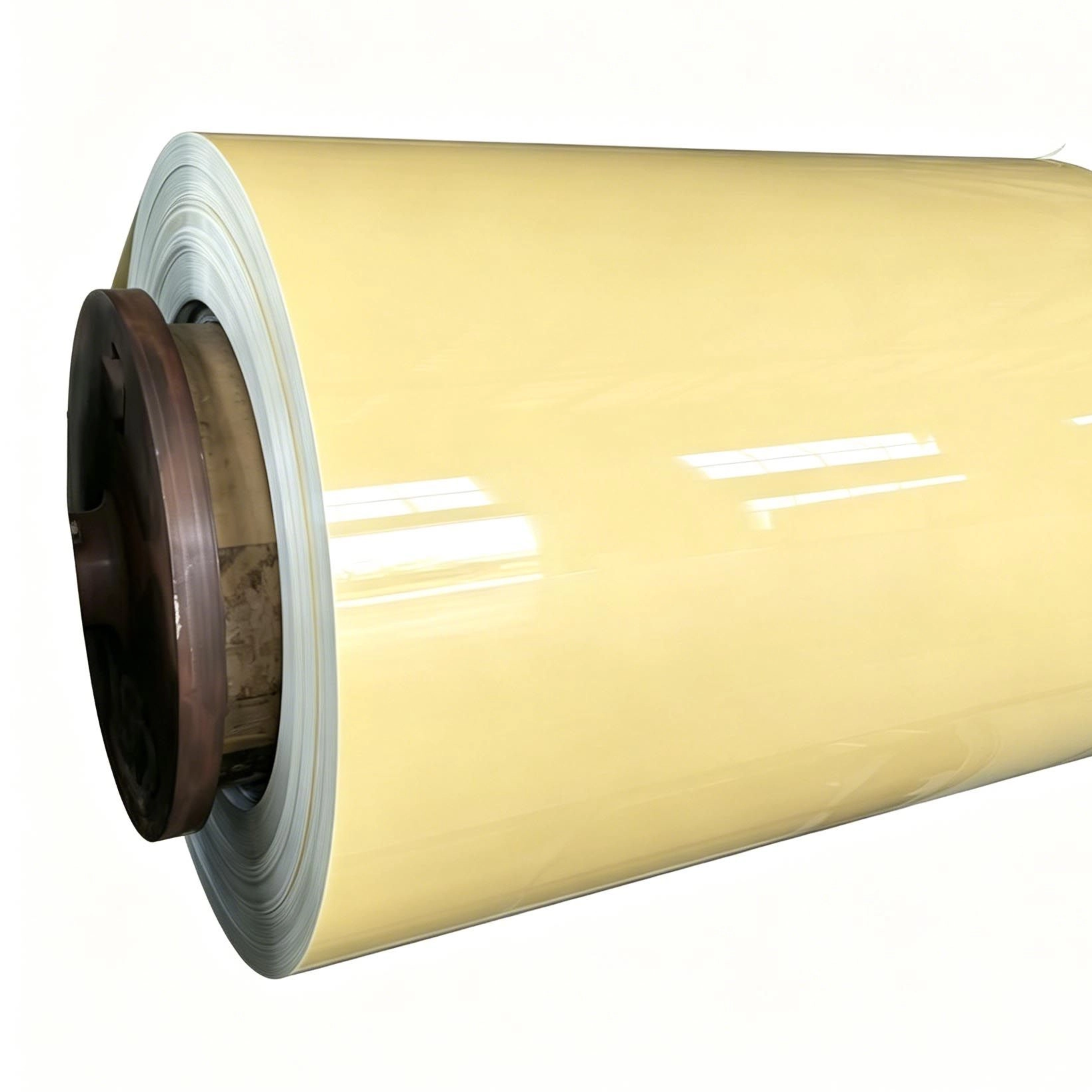

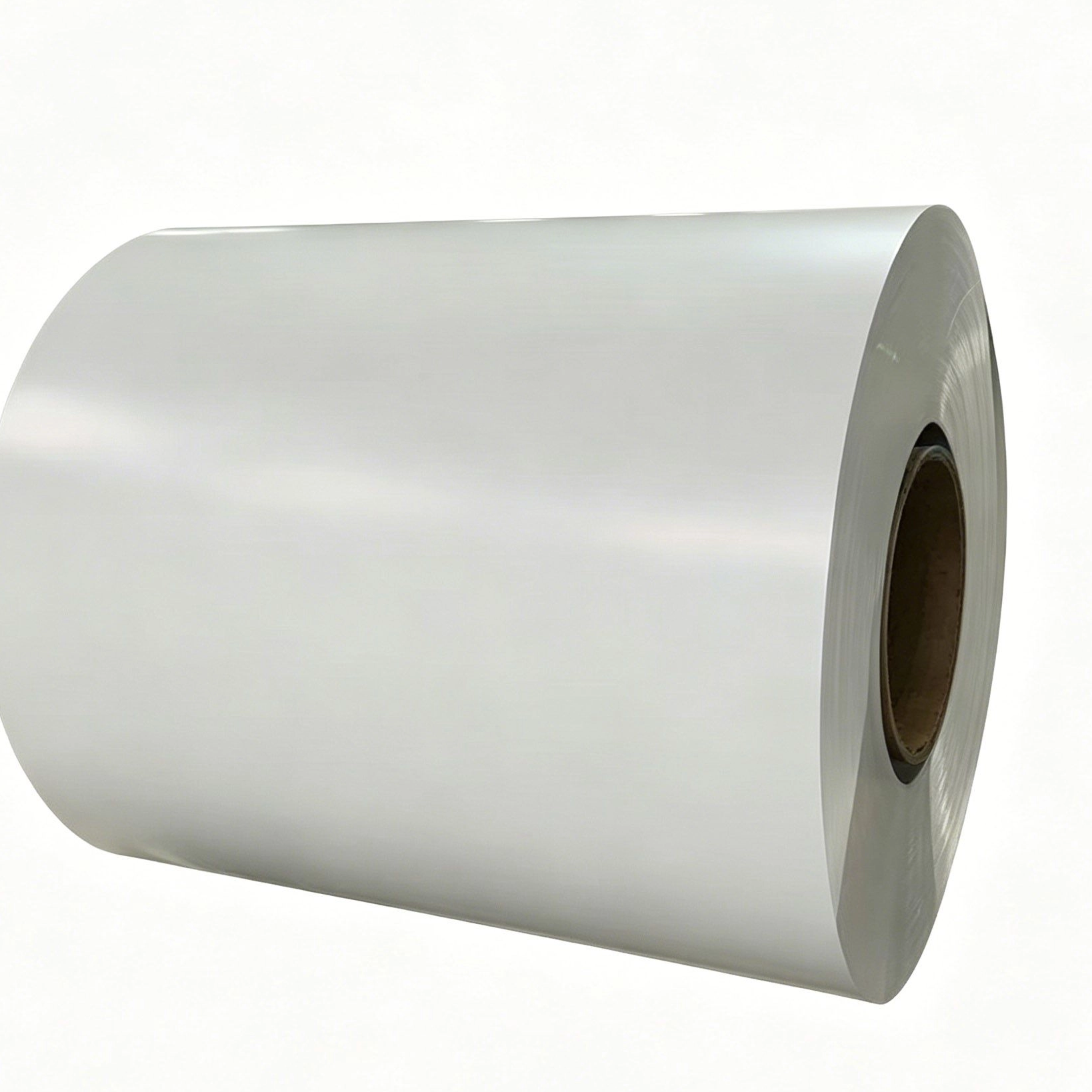

AA1100 color coated aluminum coil for curtain wall and facade panels

Technical Specifications

Parameter

Available Specification

Purchasing Notes

Product

AA1100 Color Coated Aluminum Coil

For curtain-wall skins, facade panels and architectural cladding components

Alloy

AA1100

Approximately 99.0% aluminum; high formability and moderate strength

Temper

O / H14 / H18

Select according to bending, forming and panel stiffness requirements

Thickness

0.3–1.5mm

Final gauge should match panel size, profile geometry and support design

Thickness Tolerance

Reference ±0.01mm

Confirm the contractual tolerance for each ordered gauge

Width

1000–1600mm

Custom slitting available according to project requirements

Coating Type

PVDF / PE Polyester

Select according to exposure environment and required durability

PVDF Coating Thickness

25–35μm

Exact primer/topcoat construction should be confirmed for the selected coating system

PE Coating Thickness

15–25μm

Suitable for compatible general architectural applications

Primer

5–8μm reference

Final primer chemistry and thickness depend on the approved coating system

Back Coat

Project-specific

Specify color, primer or bonding requirement where necessary

Color

Silver / Grey / Black / White / Champagne Gold / RAL / Pantone / Custom

Physical sample approval recommended for architectural projects

Surface Finish

Matte / Satin / Semi-Gloss / Glossy according to coating system

Specify measurable gloss where visual consistency is critical

Color Difference

ΔE ≤1.5 where agreed

Measurement method, instrument and approved master sample should be defined

Mechanical Properties

Tensile 75–150N/mm²; elongation reference ≥10%

Actual values depend on temper, gauge, direction and test method

Protective Film

Optional

Recommended for appearance-critical curtain-wall panel fabrication

Coil ID

76mm / 152mm

Specify according to decoiler equipment

Maximum Coil OD

≤600mm reference

Confirm against production-line handling limits

Coil Weight

Customized

Specify target and maximum lifting capacity

MOQ

1 metric ton reference

Final MOQ depends on coating, color, gauge and production requirements

Why Choose AA1100 for Architectural Panels?

AA1100 is a commercially pure aluminum grade containing approximately 99.0% aluminum. It combines excellent corrosion resistance, high ductility and good forming capability.

High Formability

AA1100 can be bent, folded, roll formed and fabricated into compatible architectural panel profiles when the temper and gauge are selected for the required forming operation.

Natural Corrosion Resistance

Aluminum develops a naturally protective oxide layer, while the factory-applied primer and topcoat provide additional surface protection and decorative appearance.

Lightweight Panel Skin

The low density of aluminum helps reduce panel weight compared with heavier metal substrates, which can simplify downstream handling and fabrication.

Strength Limitation

AA1100 has lower mechanical strength than common architectural alloys such as AA3003, AA3005, AA5005 or AA5052. Large-format panels, high wind loads and demanding structural profiles should therefore be engineered as part of the complete facade system.

AA1100 O, H14 and H18 Temper Selection

Temper

General Characteristics

Selection Consideration

O

Soft condition with high ductility

Useful for deeper forming or tight bending where low strength is acceptable

H14

Moderately strain-hardened

Useful balance between forming capability and panel stiffness

H18

Harder strain-hardened condition

Higher stiffness but reduced forming margin for tight bends

Temper selection should be confirmed by a representative fabrication trial when the panel requires tight folds, grooves, perforation or complex profiles.

PVDF vs PE Coating for Curtain Wall Panels

PVDF and PE polyester coatings serve different exposure and cost requirements. The terms identify resin families rather than a complete performance specification, so the exact coating manufacturer, formulation, film build and pigments should be confirmed for demanding projects.

Selection Factor

PVDF

PE Polyester

Typical Positioning

Demanding exterior architectural applications

General architectural and decorative applications

UV Exposure

Preferred where stronger long-term UV resistance is required

Performance depends strongly on polyester grade and exposure

Color & Gloss Retention

Generally selected for higher exterior retention requirements

Suitable where lower exposure or less demanding retention is acceptable

Typical Applications

Exterior facade panels, wall cladding and architectural components

Interior panels, ceilings and suitable general-purpose building components

Cost

Higher-performance and higher-cost system

More economical coating option

70% PVDF for Demanding Facade Projects

Where a project specifically requires a high-performance architectural fluoropolymer system, the coating specification should identify the required PVDF resin content and performance standard rather than simply stating “PVDF.”

For high-exposure exterior projects, 70% PVDF systems are commonly specified because of their weathering, UV resistance and color-retention characteristics.

PE for General Architectural Use

Polyester coating can provide good hardness, flexibility and corrosion protection for compatible interior and exterior building components where the exposure and appearance-retention requirements are less demanding.

Typical Coil-Coating Construction

Aluminum Substrate

AA1100 coil provides the metal base for forming and fabrication.

Cleaning and Pretreatment

The aluminum surface is cleaned and chemically pretreated before coating to support corrosion resistance and paint adhesion.

Primer

The primer forms the bonding layer between the pretreated aluminum and the decorative topcoat. The supplied product information references a primer thickness of approximately 5–8μm.

PVDF or PE Topcoat

The topcoat provides the visible color, gloss and primary weathering surface. The listed ranges are approximately 25–35μm for PVDF and 15–25μm for PE.

Reverse-Side Coating

The reverse side can be supplied with a compatible back coat or primer according to fabrication, bonding and panel-manufacturing requirements.

Color Control for Curtain Wall Projects

Facade projects often use multiple coils across a large visible elevation, making color consistency a critical acceptance parameter.

Physical Master Sample

A production-approved physical sample should be retained for visually critical projects rather than relying only on digital color references.

RAL and Pantone References

RAL or Pantone codes provide a useful starting point for color development, but the final metallic substrate and coating system can influence perceived appearance.

ΔE Color Tolerance

Where instrumental color control is required, a target such as ΔE ≤1.5 can be specified together with the approved standard, instrument geometry, illuminant and measurement method.

Metallic and Effect Colors

Metallic, pearlescent and special-effect finishes can appear different according to coil direction, lighting and viewing angle. Panel orientation should therefore remain consistent across the facade.

Gloss Level and Surface Appearance

Matte, satin, semi-gloss and glossy surfaces can be developed according to the selected coating system.

Where adjacent panels must appear uniform, specify a nominal gloss value and acceptable tolerance rather than using only descriptive terms such as “matte” or “glossy.”

Surface inspection should also control scratches, roller marks, dents, coating streaks, contamination and other visible defects.

Request Color & Coating Samples

Curtain Wall Panel Fabrication

Prepainted AA1100 coil can be converted into compatible solid aluminum skins, cassette panels, decorative facade panels, soffits and other architectural components.

Cutting and Slitting

Coils can be slit or cut according to panel manufacturing requirements. Edge quality should be controlled to reduce burrs and visible defects.

Bending and Folding

The selected temper, metal thickness and coating flexibility should tolerate the intended bend radius without unacceptable coating cracking or loss of adhesion.

Grooving

Where panels are grooved before folding, the remaining metal thickness and fold geometry should be controlled according to the finished panel design.

Punching and Perforation

Perforated facade panels should be tested with the selected alloy, temper and coating to confirm edge quality and coating behavior around punched areas.

Protective Film

Temporary protective film can help protect the visible surface during cutting, bending, shipment and installation. Film type and removal timing should be compatible with the coating.

T-Bend and Coating Flexibility

Coating flexibility is important when prepainted material is post-formed into facade panels.

T-Bend Test

A T-bend test can be specified to evaluate coating flexibility and adhesion after folding. Acceptance criteria should correspond to the actual coating system and fabrication requirement.

Minimum Bend Radius

Tighter bend radii create greater strain in both the aluminum substrate and coating. Harder H18 material generally requires more conservative forming than softer O or H14 conditions.

Fabrication Trial

A representative panel-forming trial is recommended before bulk production whenever a new gauge, temper, coating system or panel geometry is introduced.

Test Item

Purpose

Dry Film Thickness

Verify primer and topcoat film build

Color Difference

Control production-batch color consistency

Gloss

Control appearance between adjacent facade panels

Cross-Hatch Adhesion

Evaluate coating adhesion to the pretreated aluminum substrate

T-Bend

Evaluate coating flexibility during post-forming

Pencil Hardness

Provide a reference for cured coating hardness

Impact Resistance

Evaluate coating behavior during deformation

MEK / Solvent Rub

Evaluate coating cure where applicable to the paint chemistry

Salt Spray

Comparative corrosion test when method and acceptance criteria are defined

Accelerated Weathering

Compare gloss, color and coating degradation under controlled exposure

Salt-Spray and Corrosion Testing

The supplied product data references salt-spray performance targets for PVDF and PE systems. Salt-spray hours should only be specified together with the actual coating construction, test standard, scribe condition and acceptance criteria.

Laboratory salt-spray exposure is a comparative corrosion test and should not be converted directly into a fixed number of outdoor service years.

Coastal Projects

Buildings near coastlines require particular attention to pretreatment, primer, coating selection, exposed cut edges, fasteners, sealants and maintenance because salt deposition can increase corrosion risk.

Industrial Atmospheres

Where facades are exposed to industrial chemicals or heavy pollution, the coating system should be selected according to the actual environment rather than using a general PVDF or PE designation alone.

Outdoor Service Life and Warranty

A universal statement such as “PVDF lasts 15–20 years” or “PE lasts 8–10 years” should not be applied to every project.

Actual coating life and any available warranty depend on the coating formulation, pigment chemistry, film thickness, project location, orientation, UV exposure, marine environment, fabrication, installation and maintenance.

Where a formal coating warranty is required, the exact coating system, color, building location and warranty conditions should be agreed before production.

Fire Performance of Curtain Wall Materials

Aluminum metal is non-combustible, but an organic-coated aluminum coil should not automatically be assigned a complete curtain-wall fire classification from the substrate alone.

The reaction-to-fire and facade fire performance of a finished curtain-wall panel depends on the aluminum skin, organic coating, core or insulation material, adhesive, substructure, cavity barriers, fixings and complete tested assembly.

Where an A1 or another fire classification is required, it should be supported by a test or classification report applicable to the actual material or complete facade construction.

EN 1396 Coil-Coated Aluminum Reference

EN 1396:2023 covers coil-coated wrought aluminum and aluminum-alloy sheet and strip for general applications and is relevant to compatible prepainted aluminum products within this thickness range.

A project specification can identify EN 1396 requirements together with the required substrate alloy, temper, dimensions, coating system, color, gloss, reverse-side treatment and project-specific performance criteria.

Curtain Wall and Facade Applications

Commercial Buildings

AA1100 coated aluminum can be fabricated into compatible decorative panel skins for shopping centers, offices, hotels, exhibition centers and other commercial buildings.

High-Rise Building Facades

AA1100 can be used in appropriately engineered non-structural facade components. Wind loading, panel deflection, stiffeners, fixings and substructure should be designed separately for the complete curtain-wall system.

Public Buildings

Coated aluminum panels can be used for compatible facade and decorative components in airports, railway stations, schools, hospitals, stadiums and public facilities.

Residential Facades

Applications can include balcony panels, soffits, decorative wall cladding and compatible residential facade components.

Renovation Projects

Prepainted aluminum can also be fabricated into lightweight decorative skins for compatible facade refurbishment projects where the supporting system has been properly evaluated.

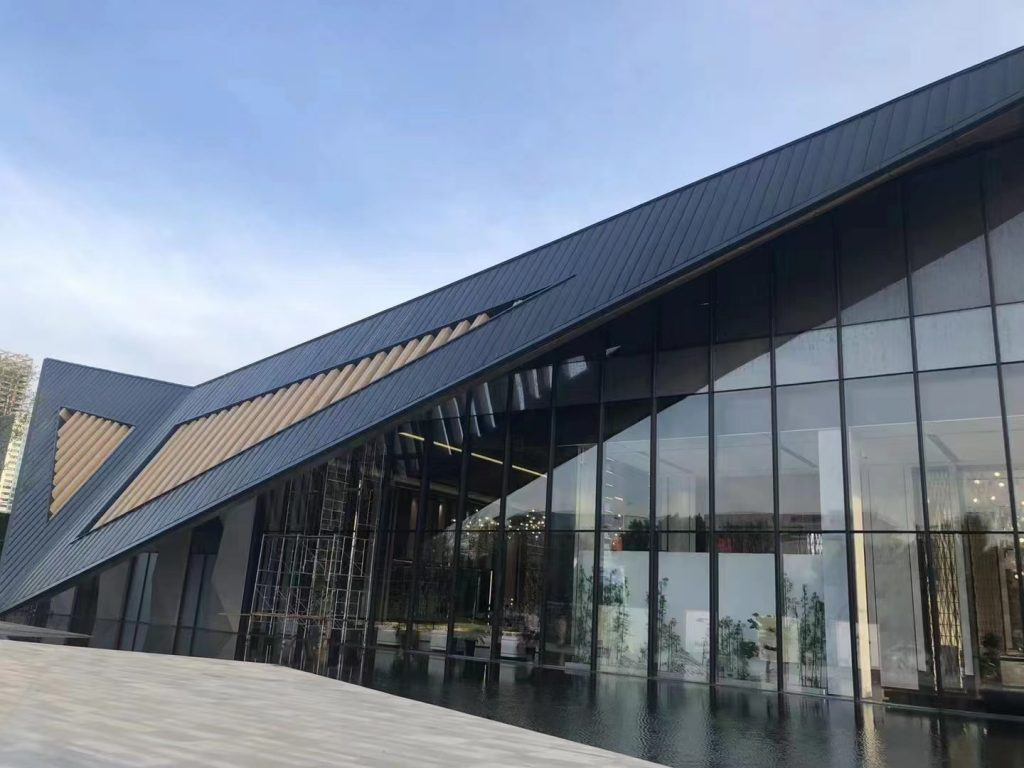

AA1100 color coated aluminum facade and curtain wall application

Complete Curtain Wall System Requirements

Color coated aluminum coil is a raw material for facade fabrication. It does not by itself establish the performance of the complete curtain-wall system.

System Requirement

Responsible Construction

Wind Load Resistance

Panel geometry, metal thickness, stiffeners, anchors and substructure

Water Tightness

Panel joints, sealants, flashing and drainage design

Air Leakage

Complete curtain-wall joint and sealing system

Thermal Performance

Insulation, cavity, thermal bridges and complete wall build-up

Fire Performance

Panel, core, insulation, cavity barrier, coating and full facade assembly

Structural Movement

Connections, joints and allowance for thermal and building movement

Quality Control

Inspection Item

Recommended Control

Alloy

Verify AA1100 against approved order specification

Temper

Verify O / H14 / H18 or agreed condition

Metal Thickness

Measure nominal gauge and contractual tolerance

Width

Verify master or finished slit width

Coating Type

Verify PE / PVDF and approved coating system

Primer Thickness

Check where included in the coating specification

Topcoat Thickness

Measure dry-film thickness against approved requirement

Color

Compare with physical master and instrumental standard where specified

Gloss

Measure against nominal gloss and tolerance

Adhesion

Test using the agreed cross-hatch or other coating method

T-Bend

Verify where the material will be post-formed

Pencil Hardness

Check where required by coating specification

Impact Resistance

Evaluate where deformation performance is contract-critical

Surface Appearance

Inspect scratches, streaks, dents, roller marks and coating defects

Coil Shape

Inspect telescoping, edge alignment and winding condition

Machine-Ready Coil Specifications

Coil Parameter

Information to Provide

Thickness

0.3–1.5mm within the available range

Finished Width

1000–1600mm or approved slit width

Core ID

76mm / 152mm or agreed machine requirement

Maximum Coil OD

Specify decoiler limit

Coil Weight

Specify target and maximum handling weight

Coated Side

Specify winding orientation where required

Protective Film

Specify film type, thickness and removal requirements

Splices

Specify allowable quantity where continuous fabrication requires control

Send Your Curtain Wall Coil Specification

Sample and First-Piece Approval

A preproduction sample is recommended whenever a new color, gloss level, PVDF or PE system, gauge, temper or panel-forming process is introduced.

For large curtain-wall projects, review the coated sample under representative daylight and project lighting conditions.

The sample should also pass through the intended cutting, grooving, bending or punching process where post-forming performance is important.

After approval, retain the physical master sample, color data, gloss target, coating construction and coil specification for repeat orders.

Packaging and Storage

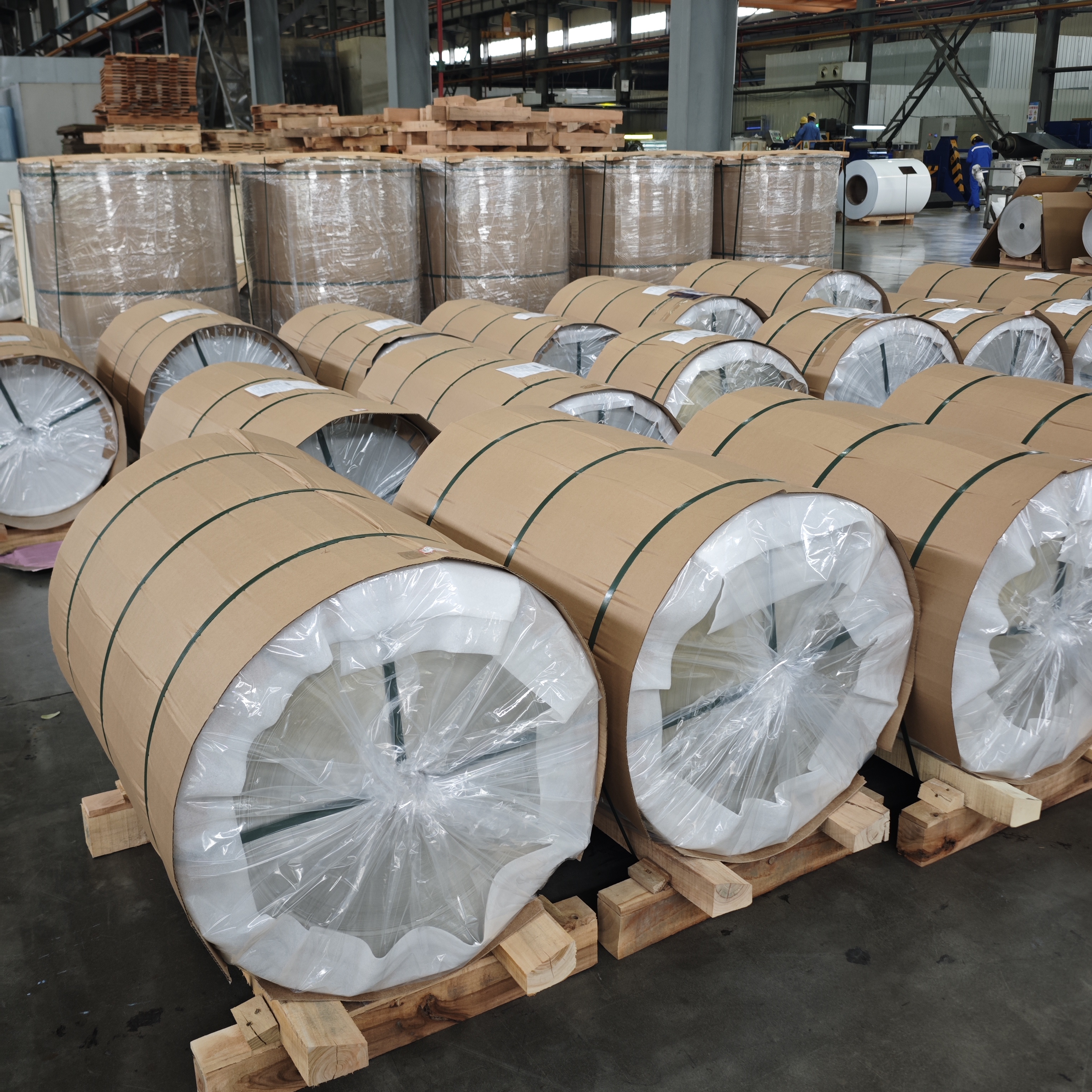

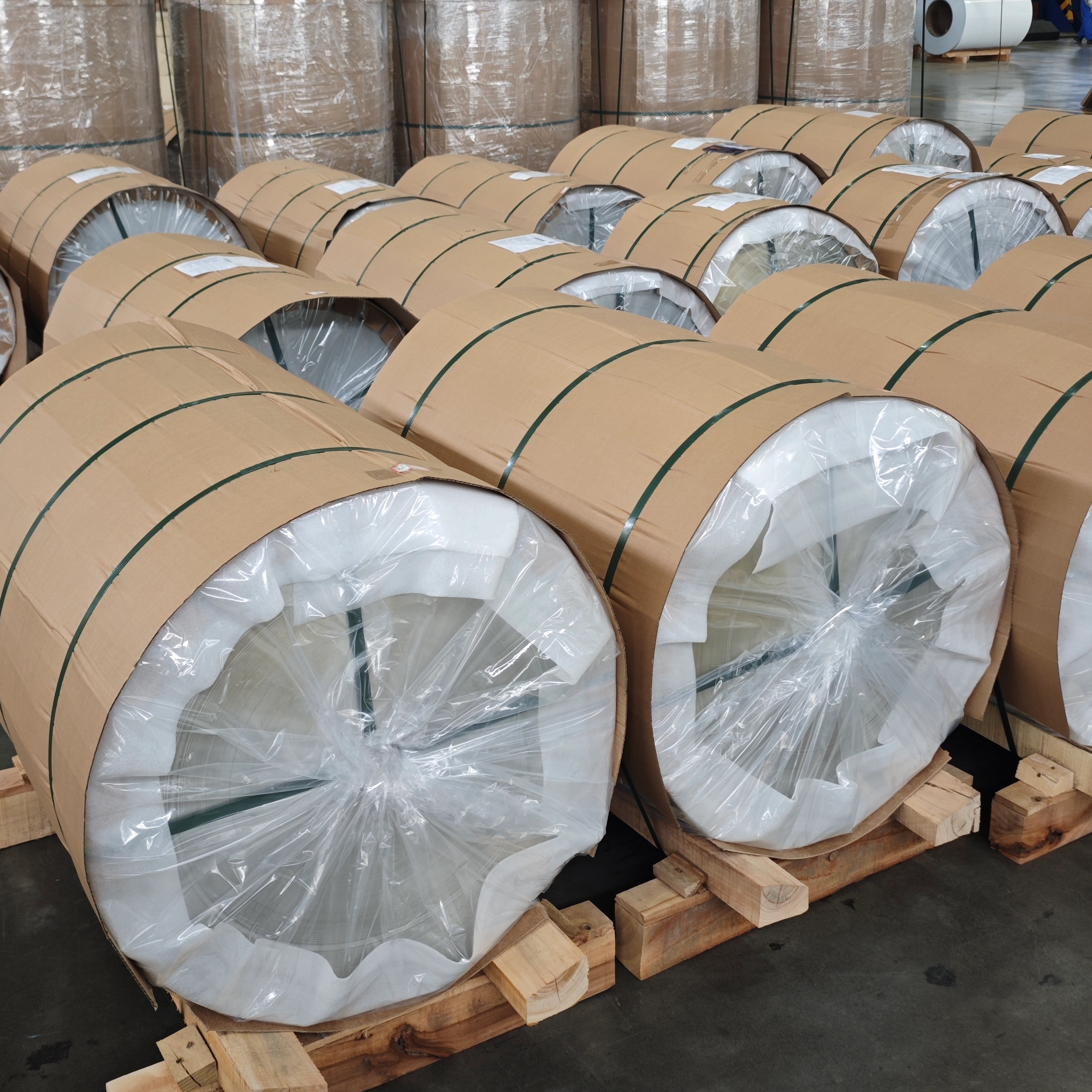

Coils should be packed to protect the coated surface, edges and coil shape during transportation and warehouse handling.

Moisture-resistant wrapping, edge protection and secure export pallets or cases can be used according to coil dimensions and shipping requirements.

Store coated aluminum coils in a dry, ventilated warehouse protected from rain, standing water and condensation.

Avoid prolonged storage in wet packaging, direct exposure to corrosive chemicals and loading conditions that can deform coil edges.

Information Required for a Quotation

Please provide the curtain-wall or facade application, AA1100 temper, metal thickness, finished width and required quantity.

Specify PE or PVDF coating, required primer and topcoat thickness, color reference, gloss and any back-coat requirements.

For exterior projects, provide the building location, climate, coastal or industrial exposure and required coating performance.

For fabrication, provide the panel size, bend radius, grooving or punching process and any required T-bend or coating-adhesion specification.

For machine-ready coils, provide core ID, maximum coil OD, target coil weight, winding orientation and protective-film requirements.

If a specific standard, test report or coating warranty is required, identify it at quotation stage.

Request Samples & a Quotation

FAQ

What is AA1100 color coated aluminum coil?

It is commercially pure AA1100 aluminum coil with a factory-applied organic coating such as PE polyester or PVDF for architectural and decorative fabrication.

Is AA1100 suitable for curtain-wall panels?

AA1100 can be used for compatible non-structural curtain-wall skins and decorative facade panels where its formability and strength match the panel design.

Is AA1100 suitable for structural curtain-wall framing?

AA1100 is relatively low strength and should not automatically be specified for structural framing or highly loaded components. Structural material selection should follow the engineered curtain-wall design.

Which tempers are available?

The current product range includes O, H14 and H18.

What thickness range is available?

The current listed thickness range is 0.3–1.5mm.

What widths are available?

Widths from 1000mm to 1600mm are listed, with custom slitting available according to the project.

What is the difference between PVDF and PE coating?

PVDF is generally selected for more demanding exterior weathering and UV exposure, while PE polyester is a more economical option for general architectural applications.

Is 70% PVDF available?

If the project requires a 70% PVDF architectural coating system, specify this requirement together with the coating manufacturer, performance standard and required film construction before quotation.

What PVDF coating thickness is available?

The listed PVDF range is approximately 25–35μm. Exact primer and topcoat film build should be confirmed for the approved coating system.

What PE coating thickness is available?

The listed PE coating range is approximately 15–25μm.

Does PVDF always last 15–20 years?

No universal service life applies to every PVDF coating. Performance depends on resin formulation, pigments, film thickness, climate, project orientation, environment and maintenance.

Does PE always last 8–10 years outdoors?

No. Polyester performance depends on the exact resin system, pigment, coating construction and exposure conditions.

Can custom RAL colors be supplied?

Yes. RAL, Pantone references and customer samples can be used for color development according to production feasibility.

What does ΔE ≤1.5 mean?

ΔE is an instrumental measure of color difference. If ΔE ≤1.5 is specified, the measurement standard, instrument settings and reference sample should also be agreed.

Can matte and glossy surfaces be produced?

Yes. Matte and glossy finishes are available, and additional gloss levels can be discussed according to the coating system.

Can AA1100 coated coil be bent after coating?

Yes, provided the alloy temper, gauge, bend radius and coating flexibility are compatible. A representative forming trial is recommended.

What is T-bend?

T-bend is a common test used to evaluate the flexibility and adhesion of a coil coating when the coated metal is folded.

Does a salt-spray test predict exact outdoor life?

No. Salt-spray testing is a comparative accelerated corrosion test and should not be directly converted into years of facade service life.

Is the coated AA1100 coil automatically Class A1?

No blanket A1 classification should be assumed for the complete coated product or facade system. Required fire performance should be supported by applicable test or classification documentation.

Does aluminum coil itself provide thermal insulation?

Aluminum sheet has high thermal conductivity and is not the primary insulation layer of a curtain wall. Thermal performance depends on insulation, cavities, thermal breaks and the complete facade construction.

Is EN 1396 relevant to this product?

EN 1396:2023 is relevant to compatible coil-coated aluminum sheet and strip for general applications within this thickness range.

Can protective film be supplied?

Protective film can be discussed for appearance-critical facade materials to protect the coating during fabrication, shipment and installation.

Can samples be supplied before bulk production?

Sample preparation can be discussed for checking color, gloss, coating quality and forming compatibility before commercial production.

What is the MOQ?

The current product information lists approximately 1 metric ton as a reference. Final MOQ depends on alloy condition, thickness, width, coating system and color.

What information is required for a quotation?

Please provide application, temper, thickness, width, PVDF or PE coating, coating thickness, color, gloss, back coat, protective film, coil dimensions and quantity.

Request a Quote for AA1100 Curtain Wall Aluminum Coil

If you manufacture curtain-wall panels, facade cladding, soffits or architectural metal components, send us your AA1100 coil and coating requirements.

We can discuss O, H14 and H18 tempers, 0.3–1.5mm thicknesses, 1000–1600mm widths, PVDF or PE coatings, custom colors and machine-ready coil specifications.

Request a Quotation

Previous:
Next:

Product Category

Related Products

Consult Us To Get Your Customized Aluminum Solution

We help you specify and source the coated aluminum you need, on time and within budget.

Products

Application

Quick links

Follow Us

Contact Us

    joey@cnchangsong.com
    +86-18602595888
   Building 2, Zhixing Business Plaza, No.25 North Street, Zhonglou District, Changzhou City, Jiangsu Province, China
    Chaoyang road, Konggang economic development area, Lianshui, Huai'an city, Jiangsu,China
© COPYRIGHT 2026 CHANGZHOU DINGANG METAL MATERIAL CO., LTD. ALL RIGHTS RESERVED.
