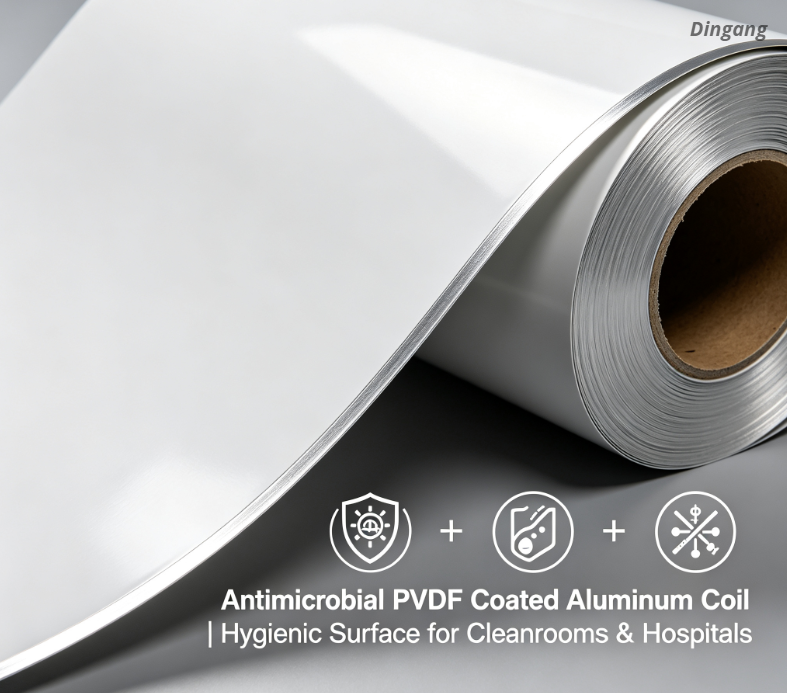

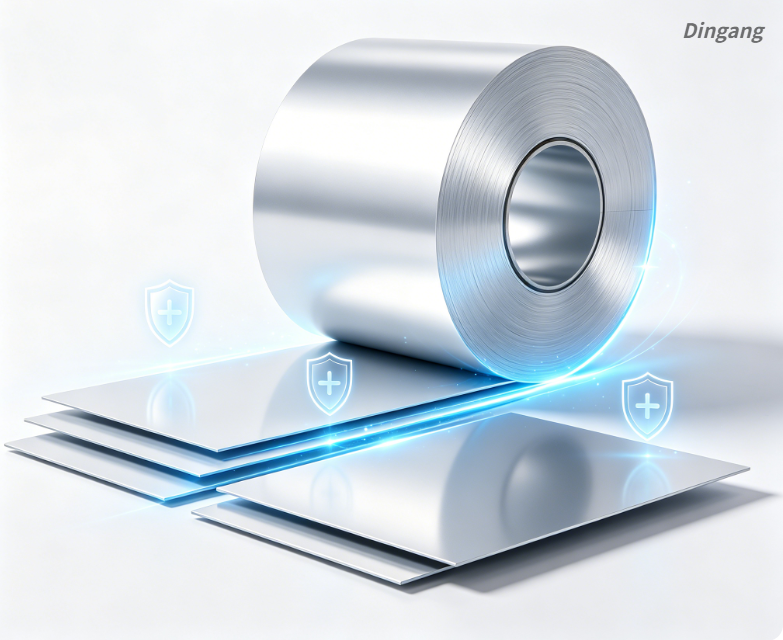

Antimicrobial PVDF Coated Aluminum Coil | Hygienic Surface for Cleanrooms & Hospitals

Product Overview

Formulated to satisfy the stringent bio-security mandates and rigorous chemical sterilization protocols of the modern healthcare and micro-electronics industries, this antimicrobial PVDF coated aluminum coil provides an elite, self-sanitizing structural skin for sterile enclosures. Manufactured from premium, highly flat base architectural alloys—such as AA3003 and AA5052 complying with ASTM B209—this high-precision metal substrate is treated with an advanced continuous roller coating line.

The outer barrier utilizes a high-molecular fluorocarbon PVDF resin matrix integrated with a specialized, slow-release ionic silver (Ag+) or zinc-based antimicrobial additive. Certified in strict accordance with ISO 22196 and JIS Z 2801 standards, this hygienic surface actively disrupts cellular membranes to eliminate ≥ 99.9% of harmful bacterial strands, including Escherichia coli and Staphylococcus aureus. It provides an immutable, chemical-resistant cladding solution that withstands continuous sanitization with aggressive hospital-grade disinfectants without peeling or losing its active antimicrobial properties.

Product Advantages

Controlled environments require constant chemical exposure, where walls and ceilings are continually exposed to aggressive cleaning compounds and sanitizing agents. Standard pre-painted aluminum finishes can experience rapid gloss degradation, microscopic cracking, or chemical softening under these conditions, creating hidden micro-fissures where biological contaminants gather. Our antimicrobial PVDF coated aluminum coil completely re-engineers surface hygiene by merging long-term chemical durability with continuous biocidal action.

Key Performance Advantages for Sterile Enclosures

• Continuous Active Sanitation (≥ 99.9%): Encapsulated silver ions migrate slowly to the surface, continuously neutralizing dangerous bacteria strands through an ongoing oligodynamic effect.

• Immunity to VHP and Chemical Washings: The highly stable 70% Kynar 500 PVDF resin matrix shields the finish from surface blistering, discoloration, or softening during continuous vaporized hydrogen peroxide (VHP) cycles.

• Tension-Leveled Flatness Matrix: Processed through high-load planetary leveling systems to eliminate edge waves and center buckles, ensuring smooth, defect-free bonding to polyurethane, mineral wool, or aluminum honeycomb panel cores.

• Micro-Precision Edge & Gauge Control: Advanced inline caliber tracking maintains a uniform thickness profile within ±0.02 mm, preventing machine sticking or cutting deviations on automated CNC punching and bending lines.

Complete Product Specifications

Quality Control & Production Excellence

Our manufacturing facilities apply strict technical testing regimes to every production run, verifying material performance against international microbiological and structural standards to ensure long-term surface stability.

B2B Sourcing & Customization Services

To support large-scale healthcare construction bids and specialized cleanroom procurement contracts, we offer procurement managers tailored production parameters:

Custom Matte & Low-Gloss Adjustments

Tailored gloss levels between 10% and 25% designed to eliminate harsh lighting reflections from overhead cleanroom fixtures, reducing fatigue for medical and laboratory personnel.

Non-Marking High-Adhesion Masking Film

Application of specialized, low-residue PE protective masking configured to withstand deep mechanical sheet stamping, peeling away cleanly without leaving adhesive trace deposits on the hygienic surface.

Reinforced Clean-Room Export Packaging

All production runs utilize heavy steel core inserts, complete airtight moisture-barrier wrapping, rust-preventating desiccant inserts, and high-strength steel strapping to prevent port storage contamination and sea freight oxidation.

Industrial Applications

This high-performance antimicrobial pre-painted aluminum coil is the direct engineering raw material specified by global design-build firms to execute high-tier controlled environments and hygienic medical complexes:

Biopharmaceutical & Life Science Laboratories

Supplies the non-dusting, chemical-resistant exterior metallic skin required to fabricate modular wall systems, flush ceilings, and containment booths.

Semiconductor & Micro-Electronics Fabrication Units

Provides fully anti-static and anti-microbial wall liners designed to maintain tight cleanroom criteria and avoid particle contamination.

Hospital Surgical Suites & Intensive Care Units

The preferred choice for forming seamless architectural wall linings, air duct casings, and durable partitions inside operating theatres and emergency wards.

Commercial Food Processing & Cold Chain Liners

Acts as a safe, non-toxic, and anti-fungal metallic inner lining for cold storage sandwich panels, processing facilities, and large-scale industrial kitchens.

Diagnostic Imaging Centers & Pharmaceutical Laboratories

Provides long-lasting structural surfaces for chemical storage enclosures, laboratory workstations, and clean packaging zones.

FAQ

Q1:What mechanism allows the antimicrobial PVDF coating to eliminate bacteria without leaching chemicals into the cleanroom?

The coating architecture incorporates slow-release inorganic active silver ions (Ag+) uniformly distributed throughout the 70% Kynar 500 PVDF resin matrix. When bacteria contact the surface, these ions disrupt cellular respiration and reproduction to achieve a ≥ 99.9% kill rate under ISO 22196. Because the ions are bound within the cured polymer matrix, they do not wash off or release harmful chemicals into the airflow.

Q2:Why is AA3003-H14/H24 choice of metallurgy critical for modular cleanroom wall panel lamination?

AA3003 is an architectural manganese-aluminum alloy known for its excellent ductility and corrosion resistance. When strain-hardened to H14/H24 tempers and passed through high-precision tension levelers, it delivers a flat sheet profile that eliminates residual stresses, preventing face bubbling or buckling when laminated to insulation cores.

Q3:Can this hygienic surface handle continuous sanitization with Vaporized Hydrogen Peroxide (VHP)?

Yes. Traditional polyester finishes can soften or discolor under repeated VHP cycles. Our high-performance 70% fluorocarbon PVDF base provides exceptional chemical stability, resisting chemical decomposition and physical degradation to maintain its look and antimicrobial performance over years of sterilization cycles.

Q4:Does the antimicrobial additive alter the formability or bend properties of the aluminum coil?

No. The inorganic silver-ion particles are integrated at a microscopic scale within the resin formulation, allowing the coating to retain its natural material flexibility. The coil reliably achieves a ≤ 2T bend rating with zero coating cracking, allowing fabricators to bend sharp cleanroom panel corners and edges without performance loss.

Q5:What packaging steps prevent moisture damage and oxidation during sea transit to international ports?

To prevent maritime humidity and saltwater corrosion, each coil is core-wrapped, sealed inside heavy-duty water-resistant barriers filled with industrial desiccant materials, enclosed in a rugged steel outer casing, and securely strapped to reinforced wooden pallets for safe ocean transport.

Request a Technical Engineering Specification Quote

Are you currently structuring project submittals or managing procurement for a biopharmaceutical laboratory, hospital complex, or semi-conductor cleanroom? Send your specific gauge, width, volume, and target color requirements to our technical sales team for an engineering-grade quote and sample kit within 12 hours.
