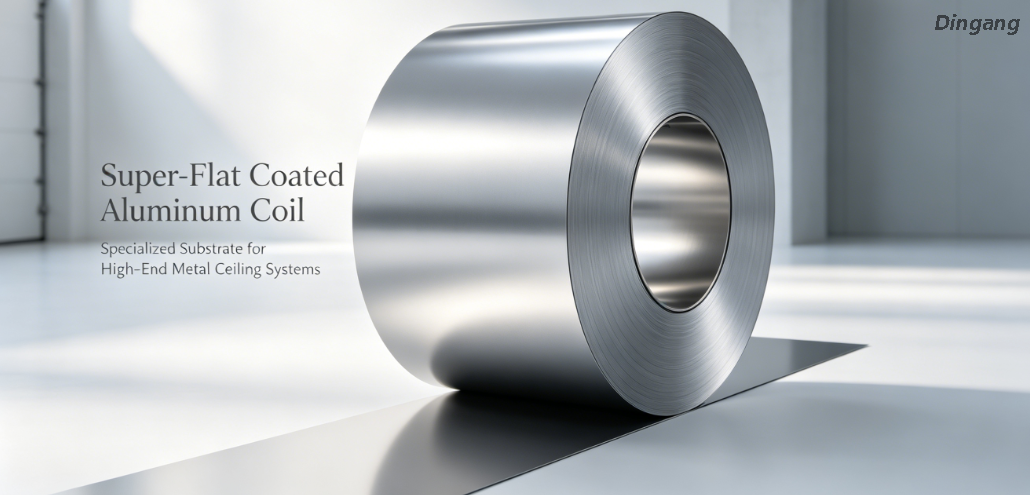

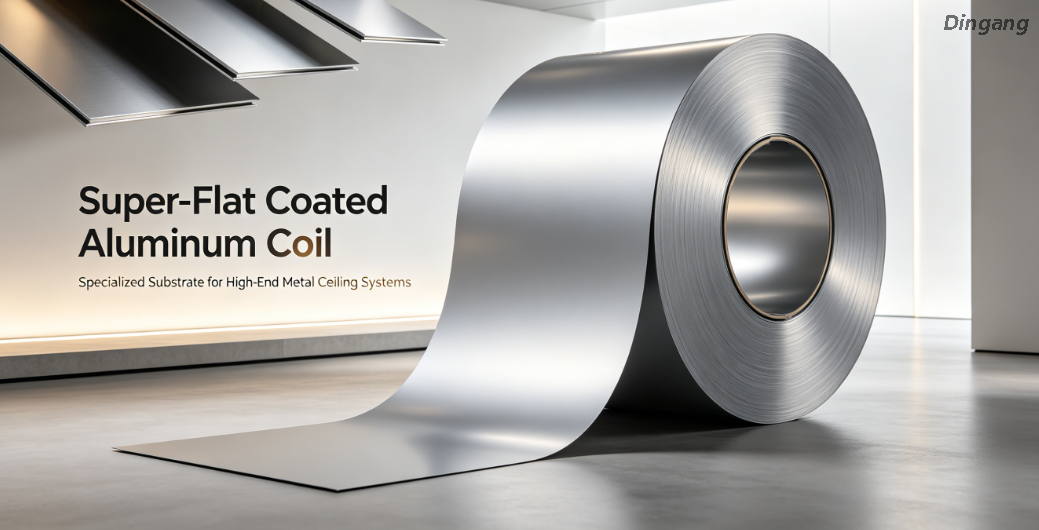

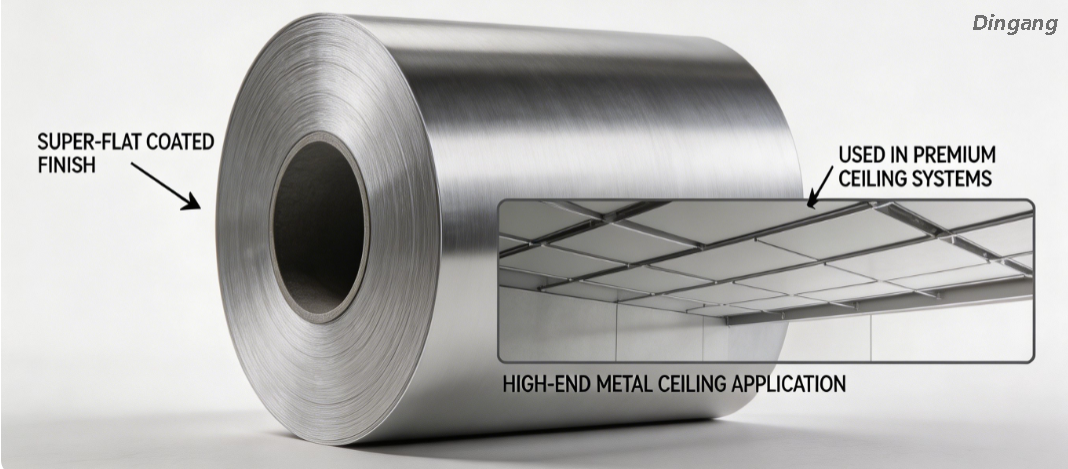

Super-Flat Coated Aluminum Coil | Specialized Substrate for High-End Metal Ceiling Systems

Product Overview

Specifically developed to eliminate visual deflection, oil-canning, and edge wave distortion across wide-span suspended interior metal ceilings and architectural soffit installations, this super-flat color-coated aluminum coil sets the benchmark for interior ceiling system substrates. Modern architectural ceiling designs demand expansive, continuous metal surfaces, linear baffle profiles, and intricate micro-perforated acoustic layouts. When standard prepainted coils with residual internal rolling stresses are sheared, stamped, or micro-perforated, those internal stresses release—causing unsightly bowing, twisting, and uneven light reflection across the installed ceiling grid.

This specialized interior substrate utilizes ultra-clean, high-formability aluminum alloys—such as AA1100, AA3003, or AA3105 in strict accordance with ASTM B209 / EN 485 metrics—engineered for superior surface consistency. Processed on an advanced multi-stage tension-leveling line, the coil is stretched past its yield point under continuous computer control to completely relieve residual stress and deliver near-zero I-Unit flatness performance. The material is coated with an ultra-smooth, highly cross-linked polyester (PE), fluorocarbon PVDF, or specialized anti-static, dust-repellent polyurethane coating system. This ensures a pristine, reflection-grade surface that remains perfectly flat even after intensive acoustic micro-perforation, deep stamping, or continuous roll-forming into high-end ceiling panels and linear baffles.

Product Advantages

Suspended metal ceilings in modern airports, commercial offices, and transit stations serve both aesthetic and acoustic functions. Because ceiling light fixtures cast parallel illumination across expansive horizontal planes, even the smallest surface imperfection, oil-can reflection, or panel sag is magnified. Furthermore, acoustic ceiling tiles require thousands of micro-perforations per square meter. Standard prepainted aluminum strips frequently warp or twist during high-speed punching because of internal stress imbalances. Our super-flat coated aluminum coil resolves these challenges through targeted metallurgical preparation and advanced tension-leveling processing.

Key Performance Advantages for Metal Ceiling Systems

• Near-Zero I-Unit Flatness Control: Advanced tension leveling removes edge waves, coil set, and center buckles, ensuring large ceiling panels lay completely flat under harsh ambient lighting.

• Perforation Stability Without Deformation: Stress-relieved base metal allows high-density acoustic micro-perforation (down to Ø 0.7mm - 1.8mm hole patterns) without curling or cupping the finished tile.

• Anti-Static & Easy-Clean Coatings: Formulated with dust-resistant additives that prevent airborne particle buildup, keeping interior ceilings clean and reducing long-term maintenance costs.

• Color Uniformity Under Parallel Lighting: Precise multi-stage paint application keeps color variation strictly within ΔE ≤0.4, ensuring seamless visual consistency across large ceiling installations.

Complete Product Specifications

Quality Control & Production Excellence

Our specialized coil coating and precision leveling lines conduct rigorous physical testing and stress audits on every batch, ensuring zero defect rates on automated tile-stamping and roll-forming lines.

B2B Sourcing & Customization Services

To support commercial ceiling system manufacturers and interior fit-out contractors, we offer tailored procurement configurations:

Architectural Surface Finishes & Metallic Effects

We formulate specialized ceiling finishes including high-reflectance pure whites, anti-glare matte tones, anodic metallic silver/bronze, and realistic wood-grain textures achieved through precision roller-printing technology.

Custom Ribbon Slitting for Linear Baffles

Coils can be pre-slit into exact width ribbons (such as $75\text{mm}$, $100\text{mm}$, or $150\text{mm}$) with burr-free edges, ready for direct feeding into high-speed linear baffle roll-forming machinery.

Heavy-Duty Sea Freight Packaging Protection

All shipments utilize core protection, heavy airtight vapor barriers packed with moisture-absorbing desiccant materials, and rugged steel outer casings on reinforced wooden pallets to withstand sea transit.

Industrial Applications

This super-flat coated aluminum ceiling coil is specified by interior ceiling manufacturers, architectural fit-out contractors, and acoustic system fabricators for high-end commercial interiors:

Commercial Office Towers & Financial Hubs

Supplies the raw flat strip for manufacturing wide-format lay-in ceiling tiles (600×600mm, 600×1200mm), concealed grid systems, and executive boardrooms.

Airport Terminals & Rail Station Concourses

The preferred substrate for fabricating long-span linear metal baffles, curved ceiling elements, and wide acoustic panels capable of spanning high-traffic transit areas.

Healthcare Facilities & Cleanroom Environments

Specified for anti-microbial, anti-static sealed ceiling panels in operating theaters, laboratories, and sterile medical corridors.

Open-Plan Shopping Malls & Retail Atriums

Commonly converted into decorative floating ceiling clouds, step-level soffit panels, and custom-painted architectural accent baffles.

Exterior Building Soffits & Covered Walkways

Provides a flat, corrosion-resistant exterior ceiling solution for exterior entry soffits, open-air canopies, and transit station overhangs.

FAQ

Q1What causes "oil-canning" in metal ceiling panels, and how does super-flat technology prevent it?

Oil-canning is a visible waviness across flat metal sheets caused by uneven internal rolling stresses and edge wave variations. Our super-flat technology uses computer-controlled tension leveling to stretch the metal strip beyond its yield point, eliminating internal stress and delivering a flat surface ( ≤ 3 I-Units ) that will not buckle under parallel lighting.

Q2:Can this pre-painted coil be micro-perforated for acoustic ceiling panels without damaging the paint?

Yes. Our specialized ceiling coatings are formulated for superior flexibility and substrate adhesion (5B rating). During high-density mechanical punching (e.g., 1.8mm hole grids with up to 40% open area), the paint holds firmly to the aluminum edge without flaking, peeling, or micro-chipping.

Q3:Why is AA3003 or AA3105 metallurgy preferred over standard AA1100 for suspended ceiling systems?

While AA1100 offers high purity and formability, AA3003 and AA3105 contain manganese additions that boost yield and tensile strength. This extra strength allows wide-span ceiling tiles and linear baffles to maintain structural rigidity without sagging over time under their own weight.

Q4:What gloss levels are recommended to minimize glare in open-plan office spaces?

For open-plan offices and educational facilities, low-gloss matte finishes in the 10% to 20% range (measured at 60°) are recommended. They diffuse overhead light evenly, reducing eye strain and eliminating harsh reflections across large ceiling areas.

Q5:What packaging steps protect the super-flat coils from surface scratching and moisture damage during sea transit?

Each coil is wrapped with a protective PE film, packed with heavy vapor barriers and moisture desiccants, encased in a rugged steel outer shell, and strapped securely to fumigated wooden pallets to prevent corrosion, edge damage, and moisture buildup during long ocean shipments.

Request a Super-Flat Ceiling Substrate Specification Quote

Are you currently structuring project submittals, managing interior fit-out tenders, or sourcing high-precision raw materials for a wide-span ceiling tile, acoustic panel, or linear baffle manufacturing contract? Send your target thickness, width, color code, gloss preference, and volume requirements to our technical sales team for an engineering-grade quote and physical sample verification within 12 hours.
